ProfiCare PC-HL 3116 Wall-Mounted Ceramic Fan Heater User Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read this instruction manual carefully before operating the ProfiCare PC-HL 3116 wall-mounted ceramic fan heater. Keep this manual for future reference.

• Ensure the appliance is connected to a power supply that matches the specifications (220-240V, 50-60Hz).
• Do not cover the heater. Maintain adequate clearance from walls, furniture, and curtains to prevent overheating.
• This appliance is equipped with overheat protection. If the heater becomes too hot, it will automatically switch off.
• Do not use this heater in the immediate vicinity of a bath, shower, or swimming pool. It has IP24 splash protection, but direct water exposure should be avoided.
• Бул продукт жакшы жылууланган бөлмөлөр үчүн же кээде колдонуу үчүн гана ылайыктуу.
• Иштеп жаткан учурда балдарды жана үй жаныбарларын шаймандан алыс кармаңыз.
• Always unplug the heater before cleaning or maintenance.

2. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• ProfiCare PC-HL 3116 Wall-Mounted Ceramic Fan Heater Unit
• Алыстан башкаруу (батарея менен кошо)
• Mounting Material (screws and wall plugs)
• Instruction Manual

3. Продукт бүтүп калдыview

The ProfiCare PC-HL 3116 is a wall-mounted ceramic fan heater designed for efficient and comfortable heating of rooms up to 60 m².

3.1-сүрөт: Фронт view of the ProfiCare PC-HL 3116 heater with heat emission indicated.

3.2-сүрөт: Close-up of the heater's LED display showing temperature and mode indicators.

3.1 Негизги өзгөчөлүктөрү

• PTC Ceramic Heating Element: Provides fast and efficient heat.
• LED дисплей: Shows current temperature and operational status.
• Алыстан башкаруу: Ыңгайлуу иштөө үчүн толук функциялуу пульт.
• Ачык терезени аныктоо: Automatically switches off when a sudden temperature drop is detected.
• Свинг функциясы: Distributes air optimally throughout the room.
• Жөнгө температурасы: 18°Cден 45°Cге чейинки диапазондо.
• Two Heating Levels: 1000W and 2000W.
• 8 сааттык таймер: Пландалган операция үчүн.
• 6 Time Programs: Customizable heating schedules.
• Автоматтык режим: Adjusts heating level based on set temperature.
• Ашыкча ысып кетүүдөн коргоо: Иштөө учурунда коопсуздукту жогорулатат.
• IP24 Splash Protection: Suitable for use in bathrooms (zone 3).

3.2 Алыстан башкаруу

The included remote control allows for convenient adjustment of all heater functions.

3.3-сүрөт: Remote control with various function buttons.

The remote control includes buttons for power, temperature adjustment, timer, heating level selection, fan function, time programs, and swing function. A battery is pre-installed.

4. Орнотуу

The PC-HL 3116 heater is designed for wall mounting. Ensure the chosen location is suitable and allows for proper air circulation.

4.1 Жайгашкан жерди тандоо

• Select a wall location that is clear of obstructions and flammable materials.
• Ensure there is sufficient space around the heater for optimal heat distribution and safety.
• The power cable length is 1.5 meters, so choose a location within reach of a suitable power outlet.

4.2 Монтаждоо боюнча нускамалар

Use the provided mounting material (screws and wall plugs) for secure installation.

1. Mark the desired mounting points on the wall according to the heater's dimensions. Refer to Figure 4.1 for approximate dimensions.
2. Белгиленген жерлерге тешиктерди бургула.
3. Бургуланган тешиктерге дубал сайгычтарды салыңыз.
4. Secure the heater to the wall using the screws. Ensure it is firmly attached.
5. Электр кабелин жерге туташтырылган электр розеткасына сайыңыз.

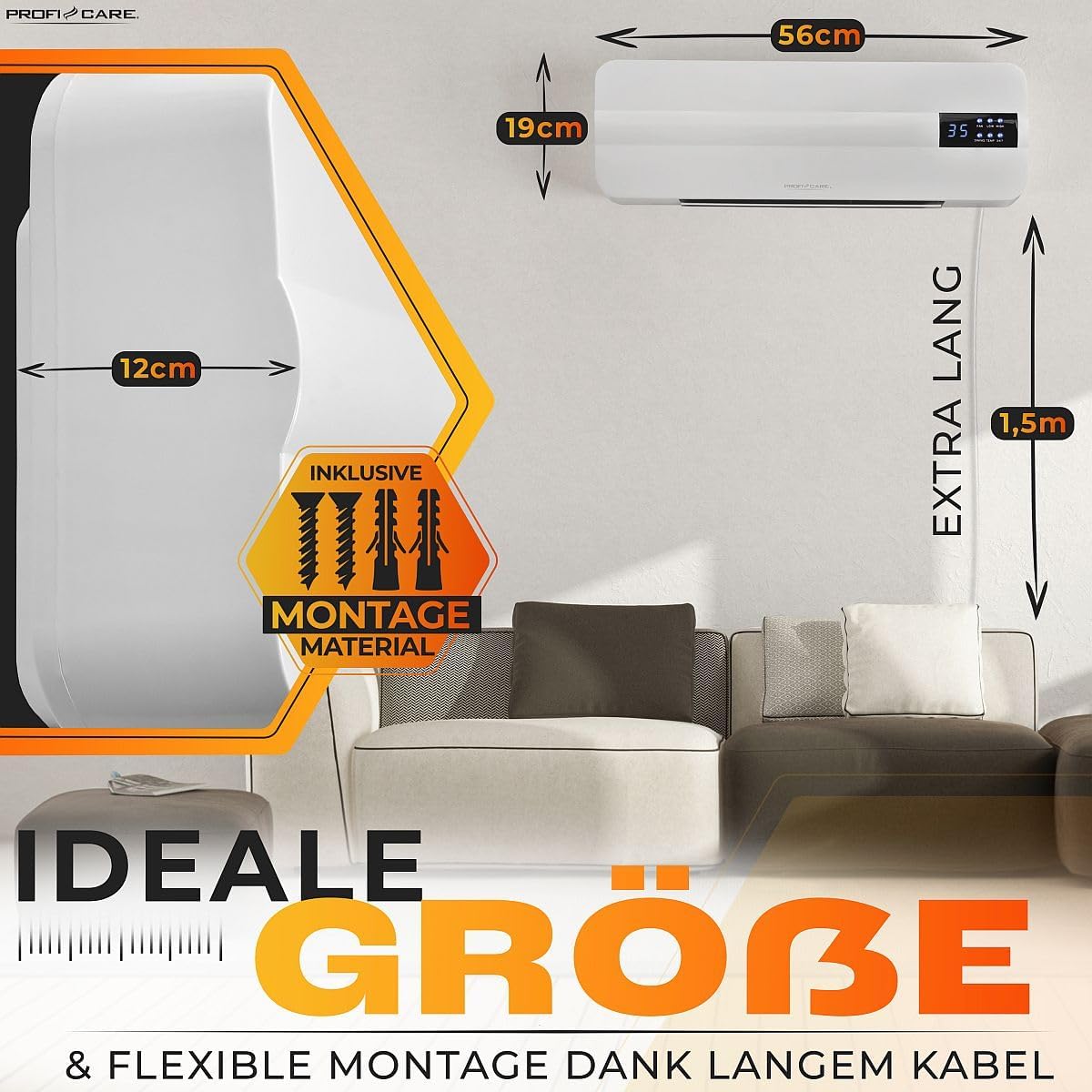

4.1-сүрөт: Heater dimensions and illustration of mounting material.

5. Операция

Operate the ProfiCare PC-HL 3116 using the control panel on the unit or the remote control.

5.1 Күйгүзүү/өчүрүү

басыңыз Күч button on the remote control or the unit to turn the heater on or off.

5.2 Температураны коюу

колдонуу Температуранын жогорулашы (+) жана Температуранын төмөндөшү (-) buttons on the remote control to set the desired room temperature between 18°C and 45°C. The LED display will show the set temperature.

5.3 жылытуу деңгээли

Select between two heating levels:

• Төмөн (1000 Вт): For moderate heating or maintaining temperature.
• Жогорку (2000 Вт): бөлмөнү тез жылытуу үчүн.

Use the dedicated button on the remote control to cycle through the heating levels.

5.4 Fan Function

The heater can operate in fan-only mode without heat, providing air circulation. Activate this function using the remote control.

5.5 Timer and Time Programs

• 8 сааттык таймер: Set the heater to operate for a specific duration up to 8 hours.
• 6 Time Programs: Configure custom heating schedules for different times of the day or week. Refer to the remote control section for specific button functions.

5.6 Селкинчек функциясы

жандырыңыз Свинг function to enable the internal louvers to oscillate, distributing warm air more evenly across the room.

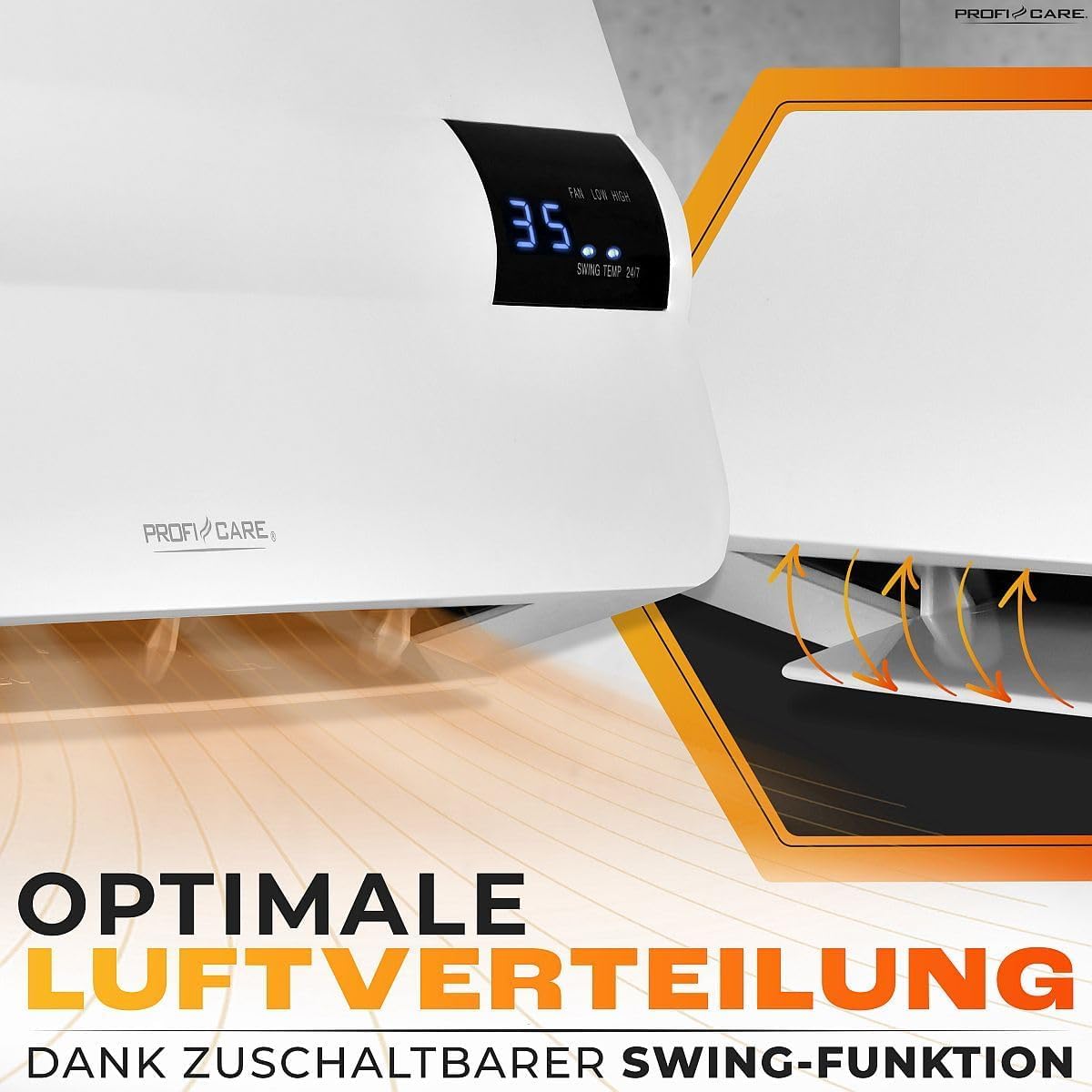

5.1-сүрөт: Illustration of optimal air distribution via the swing function.

5.7 Автоматтык режим

In Automatic Mode, the heater will automatically switch between heating levels (1000W/2000W) or turn off/on to maintain the set temperature efficiently.

5.8 Ачык терезени аныктоо

The heater features an intelligent open window detection system. If a sudden drop in room temperature is detected (indicating an open window), the heater will automatically switch off to conserve energy. It will resume operation once the window is closed and the temperature stabilizes, or can be manually restarted.

5.2-сүрөт: Heater demonstrating automatic shut-off with open window detection.

6. Техникалык тейлөө

Жылыткычыңыздын узак мөөнөттүү жана натыйжалуу иштешин үзгүлтүксүз тазалоо жана туура сактоо камсыздайт.

6.1 Тазалоо

1. Тазалоодон мурун жылыткычты дайыма розеткадан сууруп, аны толугу менен муздатыңыз.
2. Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
3. Ensure no water enters the interior of the appliance.
4. Periodically clean the air inlet and outlet grilles with a soft brush or vacuum cleaner to remove dust accumulation.

6.2 Сактоо

If the heater will not be used for an extended period, unplug it and store it in a cool, dry place, preferably in its original packaging.

7. Кыйынчылыктарды

If you encounter issues with your ProfiCare PC-HL 3116 heater, refer to the following common problems and solutions:

Бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, кардарларды колдоо менен байланышыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

The manufacturer provides a 2-year availability for spare parts for this product. For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official ProfiCare webсайт.
