Denso кычкылтек сенсорунун модели 234-8049 колдонуу боюнча колдонмо

1. Киришүү

This manual provides essential information for the proper installation, operation, and maintenance of your Denso Oxygen Sensor, Model 234-8049. The oxygen sensor is a critical component in your vehicle's engine management system, responsible for monitoring the oxygen content in the exhaust gases. This data is used by the engine control unit (ECU) to optimize the air-fuel mixture, ensuring efficient combustion, reduced emissions, and optimal engine performance. This sensor is designed for specific automotive and motorcycle applications.

2. Продукт бүтүп калдыview

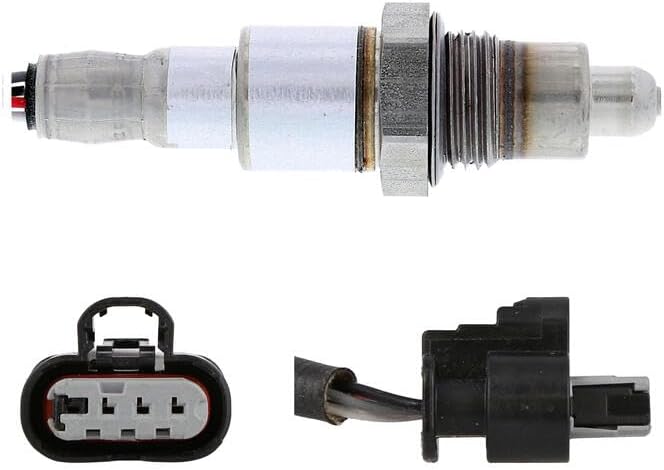

1-сүрөт: Denso Oxygen Sensor Model 234-8049. This image displays the complete oxygen sensor unit, featuring its threaded body for secure mounting into the exhaust system and the integrated electrical connector for signal transmission to the vehicle's engine control unit.

The Denso Oxygen Sensor Model 234-8049 is a precision-engineered component designed to meet or exceed original equipment specifications. It features a flange mount type for secure installation and provides an electrical signal output to the vehicle's computer.

3. Орнотуу жана орнотуу

Proper installation is crucial for the correct function and longevity of the oxygen sensor. It is highly recommended that installation be performed by a qualified technician. Always refer to your vehicle's specific service manual for detailed instructions and safety precautions.

3.1. Коопсуздук чаралары

• Ensure the vehicle's engine is cool before beginning work to prevent burns.
• Электр зымдарынын кыска төшөлүшүнө жол бербөө үчүн унаанын аккумуляторун ажыратыңыз.
• Тиешелүү жеке коргоочу шаймандарды, анын ичинде кол каптарды жана көздү коргоону кийиңиз.
• Эгерде унааны көтөрүү керек болсо, тиешелүү көтөргүч жабдууларды колдонуңуз.

3.2. Орнотуу кадамдары (Жалпы)

1. Сенсорду табыңыз: Identify the faulty oxygen sensor on your vehicle. Oxygen sensors are typically located in the exhaust manifold or exhaust pipe.
2. Электр туташтыргычын ажыратыңыз: Carefully disconnect the electrical connector from the old sensor. Avoid pulling on the wires.
3. Эски сенсорду алып салуу: Use a specialized oxygen sensor socket or an open-end wrench to loosen and remove the old sensor. It may be tight due to heat and corrosion.
4. Жаңы сенсорду даярдоо: Apply a small amount of anti-seize compound to the threads of the new Denso oxygen sensor. Ensure the compound does not get on the sensor tip.
5. Жаңы сенсорду орнотуу: Thread the new sensor into the exhaust bung by hand to prevent cross-threading. Tighten it to the manufacturer's specified torque using the appropriate tool. This sensor uses a flange mount type.
6. Электр туташтыргычын туташтыруу: Reconnect the electrical connector securely until it clicks into place.
7. Батареяны кайра туташтыруу: Унаанын аккумуляторун кайра туташтырыңыз.
8. Таза коддор: If a "Check Engine" light was on, use an OBD-II scanner to clear any diagnostic trouble codes (DTCs).
9. Сыноо Drive: Perform a short test drive to ensure proper operation and that no warning lights reappear.

4. Иштөө принциптери

Once installed, the Denso Oxygen Sensor operates continuously as part of your vehicle's emission control system. It measures the amount of unburned oxygen in the exhaust gas and generates a voltage signal proportional to this oxygen content. This electrical signal is sent to the engine's ECU. The ECU then uses this feedback to adjust the fuel injection timing and duration, maintaining the ideal air-fuel ratio (stoichiometric ratio) for efficient combustion and catalytic converter operation. There is no direct user interaction required for the operation of the oxygen sensor after proper installation.

5. Техникалык тейлөө

Denso Oxygen Sensors are designed to be maintenance-free components. They do not require regular cleaning or adjustment. However, their performance can degrade over time due to exposure to extreme temperatures, exhaust contaminants, and normal wear.

5.1. Recommended Practices

• Мезгилдүү текшерүү: During routine vehicle maintenance, a technician may visually inspect the sensor and its wiring for any signs of damage or corrosion.
• Диагностикалык мониторинг: The vehicle's onboard diagnostic (OBD-II) system continuously monitors the oxygen sensor's performance. If a fault is detected, the "Check Engine" light will illuminate.
• Алмаштыруу: Replace the oxygen sensor if diagnostic tests indicate a malfunction or if it has reached the end of its service life, as recommended by your vehicle manufacturer or when performance issues arise.

6. Кыйынчылыктарды

A malfunctioning oxygen sensor can lead to various engine performance issues. If you suspect a problem with your oxygen sensor, consider the following:

6.1. Common Symptoms of a Faulty Oxygen Sensor

• Illuminated "Check Engine" Light: This is the most common indicator. An OBD-II scanner can retrieve specific diagnostic trouble codes (DTCs) related to the oxygen sensor.
• Кыскартылган күйүүчү май: An inaccurate sensor signal can cause the engine to run too rich or too lean, leading to decreased fuel efficiency.
• Көбөйгөн эмиссиялар: Аба-отундун аралашмасын туура эмес башкаруудан улам унаа эмиссиялык сыноолордон өтпөй калышы мүмкүн.
• Орой иштебей калуу же токтоп калуу: In some cases, a faulty sensor can affect engine stability.
• Кыймылдаткычтын иштебей калышы же туура эмес күйүшү: Incorrect fuel delivery can lead to poor engine response.

6.2. Diagnostic Steps

• Retrieve DTCs: Use an OBD-II scanner to read any stored trouble codes. Common codes for oxygen sensors include P0130-P0167.
• Кесиптик диагноз: Due to the complexity of engine management systems, it is strongly recommended to have a qualified automotive technician diagnose and repair oxygen sensor-related issues. They have the specialized tools and knowledge to accurately test sensor function and identify underlying causes.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For detailed information regarding the warranty coverage for your Denso Oxygen Sensor Model 234-8049, please refer to the official Denso website or contact Denso customer support directly. Warranty terms and conditions may vary. For technical assistance, troubleshooting beyond the scope of this manual, or to locate authorized service centers, please visit the manufacturer's official support channels.

Өндүрүүчү Webсайт: www.denso.com
