1. Киришүү
The HUBBLE CONNECTED Nursery Pal Dual Vision Smart Camera is designed to provide comprehensive monitoring of your baby and nursery environment. This device features both a wide-angle and a regular view camera, AI Motion Tracking, and connectivity through the HubbleClub app, allowing for remote viewing and interaction. This manual provides instructions for setting up, operating, and maintaining your smart camera.
2. Кутуда эмне бар
Сиздин пакетте бардык компоненттер бар экенин текшериңиз:
- Nursery Pal Dual Vision Smart Camera
- Кубаттуу адаптер
- Quick Start Guide
- Колдонуучунун Колдонмосу (бул документ)
- Кепилдик маалымат
- Universal Wall Mount (optional installation)
Image: Components included with the Nursery Pal Dual Vision Smart Camera.
3. Продукт бүтүп калдыview жана өзгөчөлүктөрү
The Nursery Pal Dual Vision Smart Camera is equipped with advanced features for comprehensive baby monitoring:
- Dual Vision Monitoring: Simultaneous wide-angle and close-up views.
- AI Motion Tracking: Camera automatically follows movement.
- Алыстан панорама жана жантайтуу: Control the close-up view camera remotely.
- Толук HD 1080p видео: Clear video streaming on both cameras.
- Инфракызыл түнкү көрүнүш: Таза viewаз жарык шарттарда.
- Two-Way Talk (ConnectChat): Балаңыз менен алыстан байланышыңыз.
- Preloaded Soothing Sounds: Lullabies, nature sounds, and stories.
- Бөлмө температурасы сенсору: Monitor nursery temperature.
- HubbleClub App Integration: Access live feed, activity alerts, growth tracker, and sleep insights.
- Коопсуз Wi-Fi туташуусу: Private and secure data transmission.
Image: Key features of the Nursery Pal Dual Vision Smart Camera.
Image: Patented Dual Camera Technology for close-up and wide-angle views.
4. Орнотуу нускамалары
4.1 Камераны жайгаштыруу
Камераны ачык көрүнгөн жерге коюңуз view of your baby and the nursery. The camera can be placed on a flat surface or mounted to a wall.
- Ensure the camera is out of reach of children.
- Keep the power cord away from the crib or play area to prevent entanglement hazards.
- For optimal Wi-Fi performance, place the camera within 10 feet of your Wi-Fi router during initial setup.
Image: Camera mounted above a crib for optimal viewing.
Image: Camera placed on a flat surface.
4.2 Кубат туташтыруу
- Кубат адаптерин камеранын электр киргизүү портуна туташтырыңыз.
- Кубат адаптерин ылайыктуу электр розеткасына сайыңыз.
- The camera will power on automatically. Wait for the indicator light to show it is ready for pairing.
4.3 HubbleClub App Installation and Wi-Fi Pairing
- жүктөп алыңыз HubbleClub app from the App Store (iOS) or Google Play Store (Android) on your smartphone or tablet.
- Open the HubbleClub app and follow the on-screen instructions to create an account or log in.
- Select "Add Device" and choose your Nursery Pal Dual Vision Smart Camera model.
- Ensure your smartphone/tablet is connected to a 2.4GHz Wi-Fi тармагы during the setup process. The camera is compatible with dual-band routers (2.4GHz and 5.0GHz), but initial setup requires 2.4GHz.
- Follow the app's prompts to connect the camera to your Wi-Fi network. This typically involves scanning a QR code generated by the app with the camera.
- Туташкандан кийин, мүмкүн view the live feed and access all camera features through the app. After setup, you can switch your phone/tablet back to a 5GHz network if desired.

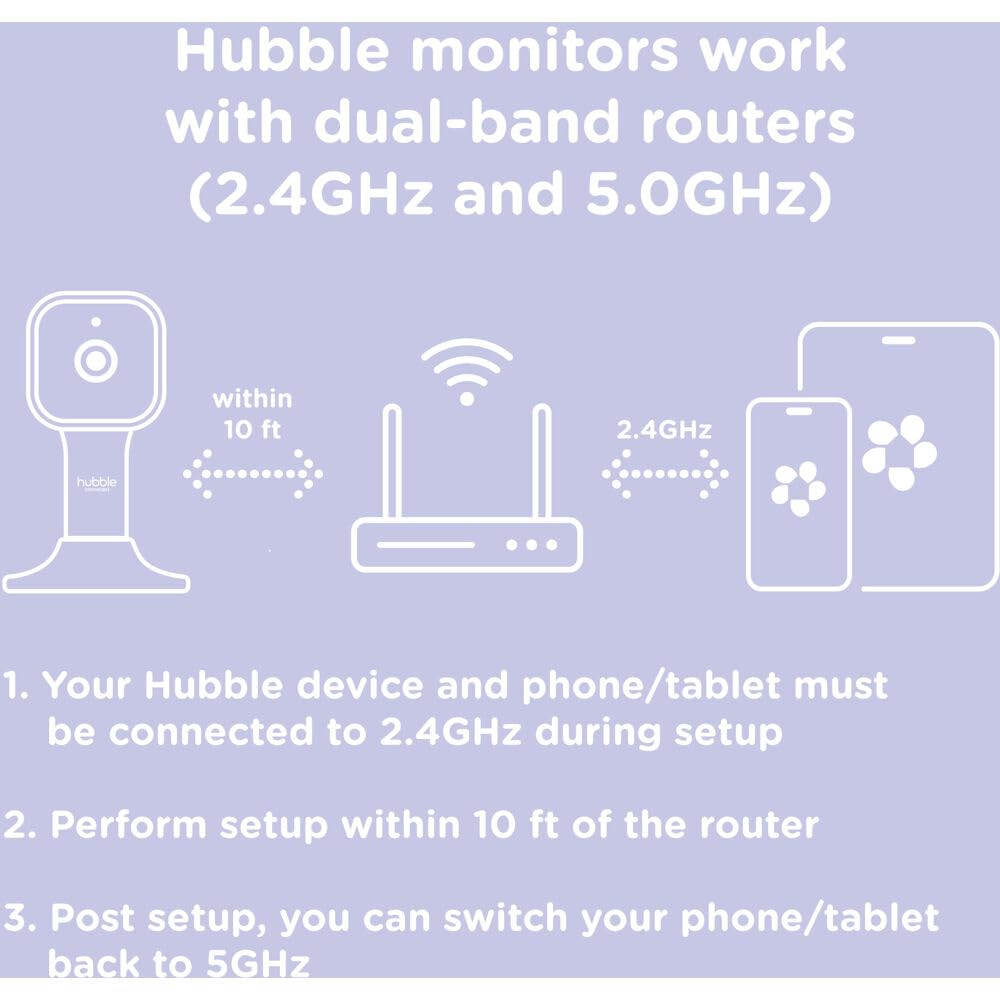

Image: Wi-Fi setup guidelines for Hubble monitors.
Image: Camera connected to the HubbleClub app on a smartphone.
5. Иштөө нускамалары
5.1 Live Monitoring and Dual Vision
Once connected, open the HubbleClub app to view the live feed from your camera. The app displays both the wide-angle and close-up views simultaneously, providing a comprehensive perspective of the nursery.
- ортосунда которулуу views or use the split-screen feature within the app.
- Use the remote pan and tilt controls for the close-up camera to adjust its angle as needed.
5.2 AI Motion Tracking
Activate the AI Motion Tracking feature in the HubbleClub app. The camera will automatically pan and tilt to follow your baby's movements within its field of view, ensuring they remain in the frame.
Image: AI Motion Tracking in action, keeping the baby in view.
5.3 Two-Way Communication (ConnectChat)
Use the ConnectChat feature in the app to speak to your baby. Press and hold the microphone icon in the app to transmit your voice through the camera's speaker. This can be used to soothe your baby or communicate with them.
Image: Push-to-Talk ConnectChat button on the camera base.
5.4 Тынчтандыруучу үндөр жана бешик ырлары
The camera comes with preloaded soothing sounds, lullabies, and stories. Access these features through the HubbleClub app to play them remotely and help your baby relax or fall asleep.
5.5 HubbleClub App Features
The HubbleClub app offers additional functionalities to enhance your monitoring experience:
- Activity Alerts: Receive notifications for motion or sound detection.
- Baby Growth Tracker: Log and monitor your baby's milestones, growth, and development.
- Уйкунун статистикасы: Track resting and waking patterns to manage sleep routines.
- Булуттагы сактагыч: Securely store precious images and videos (unlimited streaming and motion-triggered recordings stored for 24 hours in the cloud; premium service available for extended storage).
- Feeding and Diaper Log: Manage and log feeding patterns and diaper changes.
Image: Sleep routine management and tracking within the HubbleClub app.
Сүрөт: бүттүview of HubbleClub app features.
6. Техникалык тейлөө
- Тазалоо: Gently wipe the camera lens and body with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Курчап турган чөйрө: This device is designed for indoor use only. Avoid exposing it to water or high humidity, as it is not water resistant.
- Күч: Always use the provided power adapter. Disconnect power before cleaning or if the device will be unused for an extended period.
7. Кыйынчылыктарды
If you encounter issues with your Nursery Pal Dual Vision Smart Camera, refer to the following common solutions:
| Көйгөй | Мүмкүн чечим |
|---|---|
| Camera not connecting to Wi-Fi or app |
|
| Video feed lagging or cutting out |
|
| Camera freezing or turning off randomly |
|
| Night Vision not working |
|
| Inaccurate Room Temperature Sensor |
|
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | HCTNPDVX-BU |
| Бренд | Хаббл туташтырылган |
| Ички/тышкы колдонуу | Indoor |
| Шайкеш түзмөктөр | Смартфондор, планшеттер |
| Power Source | Кубат адаптери (AC) |
| Connectivity Protocol | Wi-Fi (2.4GHz for setup) |
| Монтаж түрү | Tabletop Mount, Universal Wall Mount |
| Видео тартуунун резолюциясы | 1080p толук HD |
| Түс | Ак |
| Материал | Пластик |
| Элементтин өлчөмдөрү (L x W x Y) | 6.75 x 7.25 x 4.5 дюйм |
| Элемент Салмагы | 11.7 унция (0.73 фунт) |
| Сууга туруктуулук деңгээли | Сууга чыдамдуу эмес |
| Төмөн жарык технологиясы | Түнкү түс (инфракызыл түнкү көрүү) |
| Чоңойтуу түрү | Digital Zoom |
| Эскертүү түрү | Аудио жана кыймыл |
| Башкаруу ыкмасы | App (HubbleClub) |
| Эл аралык коргоо рейтинги | IP65 |
| UPC | 810074830874 |
Note on IP65 rating: While the product lists an IP65 rating, it is also specified as "Not Water Resistant." For optimal device longevity and safety, avoid exposing the camera to water or high humidity. The IP65 rating typically refers to protection against dust and low-pressure water jets, not immersion or heavy rain. This device is intended for indoor use.
9. Кепилдик жана колдоо
Your Nursery Pal Dual Vision Smart Camera includes a warranty. Please refer to the separate warranty information document included in your package for details regarding coverage, terms, and conditions.
For technical support, troubleshooting assistance, or further inquiries, please visit the official HUBBLE CONNECTED support website or contact their customer service department. Contact information can typically be found in the Quick Start Guide or on the brand's official webсайт.
Онлайн ресурстар:
- HubbleClub App: Available on App Store жана Google Play
- HUBBLE CONNECTED Official Webсайт: www.hubbleconnected.com
