1. Киришүү

This user manual provides essential information for the safe and effective operation of your GasDog Portable O3 Gas Detector. This device is designed for high-precision ozone gas monitoring, offering real-time LCD display, sound, light, and vibration alarms, and data logging capabilities for the 0-500ppm range. Please read this manual thoroughly before using the detector.

2. Коопсуздук маалыматы

Аппаратка зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Do not attempt to open or modify the detector. This may void the warranty and pose safety risks.
• Түзмөктүн көрсөтүлгөн иштөө температурасы жана нымдуулук диапазондорунда колдонулушун камсыз кылыңыз.
• Avoid exposing the sensor to extreme concentrations of gas, which may damage it.
• Regularly check the device for any signs of damage or malfunction. Do not use if damaged.
• Аппаратты күчтүү электромагниттик талаалардан алыс кармаңыз.
• Perform regular calibration as recommended to ensure accuracy.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• GasDog Portable O3 Gas Detector
• Заряддоо кабели
• Sampling Tube
• Фильтр
• Колдонуучунун Колдонмосу (бул документ)
• Ташуу кутусу

Figure 3.1: Contents of the GasDog Portable O3 Gas Detector package, including the detector, charging cable, sampling tube, filter, and carrying case.

4. Продукциянын өзгөчөлүктөрү

The GasDog Portable O3 Gas Detector offers the following key features:

• Жогорку тактык сенсор: Equipped with an advanced gas sensor for accurate Ozone (O3) gas monitoring.
• Реалдуу убакыттагы LCD дисплей: Provides instant readings of O3 concentration.
• Бир нече ойготкучтар: Features sound, light, and vibration alarms for immediate alerts.
• Кеңири аныктоо диапазону: Monitors O3 concentration from 0 to 500 ppm.
• Маалыматтарды каттоо: Capable of recording and storing measurement data.
• Көчүрүү мүмкүнчүлүгү: Compact design with a high-strength ABS engineering plastic casing, suitable for various environments and easy to carry.
• Тез жооп берүү убактысы: Ensures quick detection of gas leaks.

5. Бөлүктөр жана башкаруу элементтери

Familiarize yourself with the components and controls of your O3 gas detector:

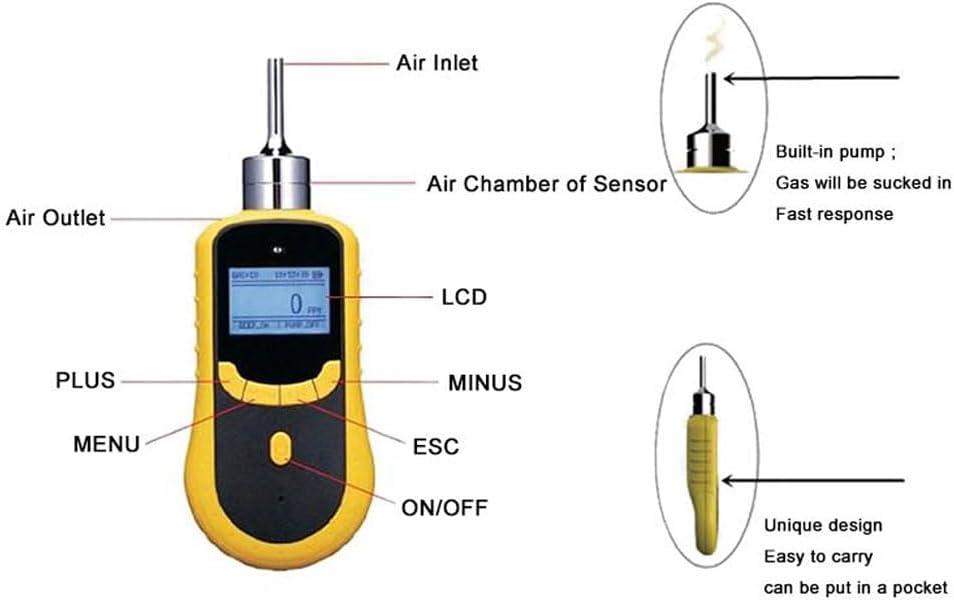

Сүрөт 5.1: Алдыңкы view of the detector with key components labeled.

• Аба кирүүсү: Point where ambient air is drawn into the sensor.
• Air Chamber of Sensor: Internal component housing the O3 sensor.
• Аба чыгаруу: Point where processed air exits the device.
• ЖК: Liquid Crystal Display for real-time readings and menu navigation.
• PLUS Button: Көбөйтүү үчүн колдонулатasing values or navigating up in menus.
• MINUS Button: Декре үчүн колдонулатasing values or navigating down in menus.
• MENU баскычы: Accesses the device's main menu and confirms selections.
• ESC баскычы: Exits current menu or cancels an operation.
• ON/OFF баскычы: Аппаратты күйгүзөт же өчүрөт.
• Орнотулган насос: Actively draws gas into the sensor for fast response.

5.2-сүрөт: Ар түрдүү views of the GasDog Portable O3 Gas Detector.

6. Орнотуу

Follow these steps to prepare your detector for first use:

1. Батареяны заряддоо: Connect the provided charging cable to the detector's charging port and plug it into a suitable power source. The battery indicator on the LCD will show charging status. Ensure the device is fully charged before initial use.
2. Күйгүзүү: басып, кармап туруңуз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button until the LCD screen illuminates. The device will perform a self-test and warm-up sequence.
3. Калибрлөөнүн баштапкы текшерүүсү: It is recommended to perform an initial zero-point calibration in a clean air environment to ensure accurate readings. Refer to the "Maintenance" section for calibration procedures.

7. Иштөө нускамалары

Operating the GasDog O3 Gas Detector for gas detection:

1. Күйгүзүү: басып, кармап туруңуз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button to turn on the device. Wait for the self-test to complete and the main measurement interface to appear.
2. Газды аныктоо: Position the air inlet near the area where O3 gas detection is required. The built-in pump will draw air for analysis.
3. Окуу дисплейи: The real-time O3 concentration (in ppm) will be displayed on the LCD. The display also shows maximum (MAX) and average (AVE) readings.
4. Ойготкучту жандыруу: If the O3 concentration exceeds the preset alarm thresholds, the device will activate its sound, light, and vibration alarms. Take immediate action to address the gas leak or move to a safe area.
5. Насос башкаруу: The pump status (PUMP ON/OFF) is indicated on the display. You can typically control the pump via the menu settings if needed.
6. Өчүрүү: басып, кармап туруңуз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button until the device powers down.

7.1. Меню навигациясы

колдонуу МЕНЮ, PLUS, МИНУС, жана ESC buttons to navigate through the device's settings and functions. Common menu options include:

• Ойготкуч орнотуулары: Adjust high and low alarm thresholds.
• Бирдикти тандоо: Change measurement units (e.g., ppm).
• Маалыматтарды каттоо: Access logged data or configure logging intervals.
• Калибрлөө: Initiate zero-point or span calibration.
• Система маалыматы: View device details, software version, etc.

7.2. Маалыматтарды каттоо

The detector is equipped with data logging capabilities. To access or manage logged data, navigate to the "Data Logging" section within the device's menu. Data can typically be reviewed on the device or exported to a computer via a compatible interface (cable not specified, assume standard USB if available).

8. Техникалык тейлөө

Proper maintenance ensures the longevity and accuracy of your detector:

• Тазалоо: Wipe the exterior of the detector with a soft, damp cloth. Do not use abrasive cleaners or solvents. Keep the air inlet and outlet free from dust and debris.
• Сактагыч: Store the detector in its carrying case in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Батареяга кам көрүү: Батареянын иштөө мөөнөтүн сактоо үчүн, түзмөк көп колдонулбаса дагы, аны үзгүлтүксүз кубаттап туруңуз.
• Калибрлөө: Regular calibration is crucial for maintaining measurement accuracy. Consult a qualified technician or the manufacturer for recommended calibration intervals and procedures.

9. Кыйынчылыктарды

Жалпы маселелер жана аларды чечүү жолдору:

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact GasDog customer support.

10. Техникалык шарттар

Key technical specifications for the GasDog Portable O3 Gas Detector:

11. Кепилдик жана колдоо

GasDog is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you have any inquiries or encounter issues with your gas detector, please feel free to contact GasDog customer support. We aim to provide a satisfactory response and assistance.

Кошумча ресурстар үчүн, сиз расмий кайрыла аласыз Колдонуу боюнча нускама (IFU) PDF онлайн жеткиликтүү.
