KNYBTHY Gaming Audio Mixer F91 User Manual

Introduction

This manual provides detailed instructions for the KNYBTHY Gaming Audio Mixer F91. This device is designed to enhance your audio experience for gaming, live streaming, podcasting, and recording. It features an XLR microphone interface with 48V phantom power, individual channel controls, customizable RGB lighting, and various audio effects.

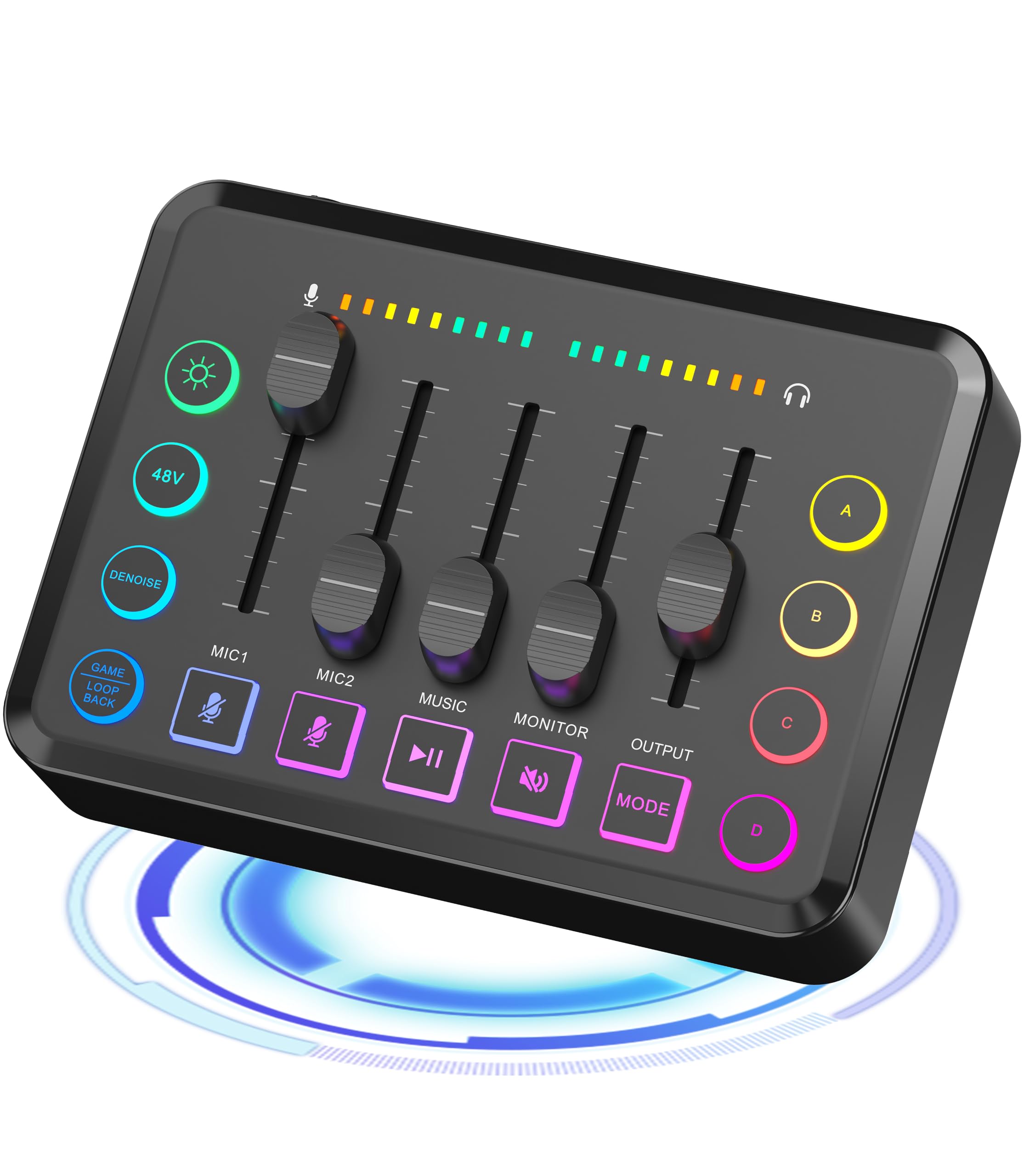

Сүрөт: алдыңкы view of the KNYBTHY Gaming Audio Mixer F91, showing its various knobs, faders, and buttons with RGB lighting.

Продукт өзгөчөлүктөрү

• Individual Sound Channel Control: Bluetooth wireless audio input offers flexibility. Smooth fader for microphone level. Four independent channels are adjustable for Microphone 1 & 2, backing tracks, ear return monitoring, and external Line Out channels.
• XLR Microphone Input with 48V Phantom Power: Integrated XLR microphone input interface for enhanced audio quality. 48V phantom power activates XLR condenser microphones, boosting sound output.
• Controllable Vibrant RGB Design: RGB button on the mixing panel for various live streaming themes. Vibrant, non-distracting lights with flowing RGB color rotation or a steady pace.
• One-Press Audio Broadcast Mixer: Four pre-recorded custom buttons for quick activation, saving post-production time. Six voice changer modes to alter output style.
• Колдонууга оңой: Simple and intuitive audio port. Supports two computer setups or audio mixing. Balances music, games, or sound settings. Broad compatibility with mobile phones, computers, tablets, or cameras.
• Enhance Live Broadcast Atmosphere: Audio interface allows voice clarity and noise reduction. Mute function prevents background noise. One-button on/off monitor switch for easy monitoring control.
• Built-in Long-Life Battery: Compact 1800mAh battery ensures uninterrupted live streaming for up to 8 hours on a full charge. Fully charges in two hours. Operates while charging.

Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• KNYBTHY Gaming Audio Mixer F91
• USB-C - USB-C кабели
• USB-C to USB-B Cable
• 3.5mm Stereo Male to Male Audio Cable
• User Manual

Note: A power adapter is not included. Please use a standard 5V USB power adapter for charging.

Түзмөктүн жайгашуусу

Familiarize yourself with the various ports and controls on your KNYBTHY Gaming Audio Mixer F91.

Сүрөт: деталдуу view of the KNYBTHY Gaming Audio Mixer F91, highlighting input/output ports, faders, knobs, and buttons.

1. Microphone 1 & 2 Faders: Adjust the volume for connected microphones.
2. Backing Track Fader: Controls the volume of background music or audio.
3. Ear Return Monitor Fader: Adjusts the volume for your monitoring headphones.
4. Line Out Fader: Жалпы чыгаруу көлөмүн көзөмөлдөйт.
5. XLR микрофон киргизүү: Connects XLR microphones. Supports 48V phantom power.
6. Bluetooth киргизүү: Wireless audio input from Bluetooth-enabled devices.
7. Custom Sound Effect Buttons (4): Pre-record and trigger custom audio effects.
8. Voice Changer Modes (6): Select different voice modulation effects.
9. RGB баскычы: Cycles through RGB lighting modes (flowing or static).
10. Үнсүз баскычы: Бардык аудио чыгышын өчүрөт.
11. Monitor On/Off Button: Toggles ear return monitoring.
12. USB-C порту: For power, charging, and data connection to computers.
13. 3.5 мм аудио уячалар: For various audio input/output connections (e.g., headphones, external devices).

Орнотуу нускамалары

1. Күйгүзүү жана заряддоо

• Connect the provided USB-C cable to the mixer's USB-C port and the other end to a 5V USB power adapter (not included) or a computer's USB port.
• The device will power on automatically or can be turned on by pressing the power button (if available, refer to device layout).
• A full charge takes approximately 2 hours and provides up to 8 hours of operation. The mixer can be used while charging.

2. Микрофондорду туташтыруу

• XLR микрофондору: Plug your XLR microphone into the XLR input port. If using a condenser microphone that requires phantom power, the 48V phantom power will be supplied automatically.
• Other Microphones: Use appropriate adapters (not included) to connect other microphone types to the available 3.5mm input jacks if necessary.

3. Connecting to a Computer/Streaming Device

• Use the USB-C to USB-C or USB-C to USB-B cable to connect the mixer to your computer.
• Your computer should recognize the mixer as an audio input/output device. Select it in your operating system's sound settings and your streaming/recording software (e.g., OBS Studio, Twitch, YouTube, TikTok).
• For mobile devices or tablets, use the appropriate 3.5mm audio cables or Bluetooth connection.

4. Connecting Headphones/Monitors

• Plug your headphones into the dedicated headphone jack for monitoring your audio.

Иштөө нускамалары

1. Үн деңгээлин жөндөө

• Use the individual faders for Microphone 1, Microphone 2, Backing Track, and Ear Return Monitor to set desired volume levels.
• The Line Out fader controls the master output volume sent to your computer or recording device.

2. Using Bluetooth Input

• Мобилдик түзмөгүңүздө Bluetooth'ду жандырыңыз.
• Издөө the mixer (e.g., "KNYBTHY Mixer") in your device's Bluetooth settings and pair.
• Once connected, audio from your device will be routed through the mixer's Bluetooth channel. Adjust its volume using the dedicated fader or your connected device.

3. Custom Sound Effects

• The four custom sound effect buttons can store pre-recorded audio clips.
• To record: Press and hold a custom button until it blinks, then speak or play the desired audio. Release the button to save.
• To play: Press the custom button once to trigger the recorded sound effect.

4. Voice Changer Modes

• Press the Voice Changer button to cycle through the 6 available voice modulation effects.
• Select the desired effect for your broadcast or recording.

5. RGB жарыкты башкаруу

• Press the RGB button to change the lighting mode. Options include flowing color rotation and static colors.

6. Mute and Monitoring

• Press the Mute button to instantly silence all audio output. Press again to unmute.
• Use the Monitor On/Off button to toggle the ear return monitoring feature, allowing you to hear your own audio mix through headphones.

Техникалык тейлөө

• Түзмөктү жумшак, кургак чүпүрөк менен сүртүп, таза кармаңыз. Суюк тазалоочу каражаттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
• Миксерди күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Аппаратты жерге түшүрүүдөн же ашыкча соккудан сактаныңыз.
• Аппаратты өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.

Проблемаларды чечүү

Техникалык шарттар

• Бренд: KNYBTHY
• Модел: F91
• Каналдардын саны: 5
• Байланыш технологиясы: Bluetooth, USB, XLR
• Кубат булагы: Батарея менен иштейт (орнотулган 1800 мАч)
• Чыгуу туташтыргычынын түрү: XLR
• Аудио киргизүү: XLR
• Батареянын иштөө мөөнөтү: 8 саатка чейин (толук заряддалган)
• Заряддоо убактысы: Болжол менен 2 саат

Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation included with your purchase or contact KNYBTHY customer service through their official webпродукт сатылып алынган сайт же сатуучу.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
