DF-MODELS Land Rover Defender 90 1/12 RTR Crawler Remote Control Vehicle Instruction Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the DF-MODELS Land Rover Defender 90 1/12 RTR Crawler. This highly detailed, licensed replica of the legendary Land Rover D-90 all-terrain vehicle is designed for robust performance and realistic appearance. It features full LED lighting with turn signals and a durable metal chassis. This Ready-To-Run (RTR) model comes with a powerful Li-Ion battery and a USB charger, allowing you to get started quickly.

Пакеттин мазмуну:

• DF-MODELS Land Rover Defender 90 1/12 RTR Crawler (Model 3190)
• 2.4 ГГц алыстан башкаруу бергичи
• 7.4 Volt - 1200 mAh Li-ion Battery
• USB заряддоо кабели
• Instruction Manual

Керектүү аксессуарлар (кошумча эмес):

• 4 x AA Batteries for the Remote Control Transmitter
• 220V USB Power Adapter (optional, for faster charging)

Image: The DF-MODELS Land Rover Defender 90 1/12 RTR Crawler, its 2.4 GHz remote control, the Li-ion battery, and the USB charging cable.

2. Коопсуздук маалыматы

Please read all safety warnings and instructions carefully before operating the vehicle. Failure to do so may result in injury or damage to the product.

• Бул продукт 14 жаштан улуу колдонуучулар үчүн сунушталат.
• Унааны ар дайым ачык жерлерде, адамдардан, үй жаныбарларынан жана тоскоолдуктардан алыс айдаңыз.
• Do not operate near public roads, busy areas, or water bodies.
• Манжаларды, чачтарды жана бош кийимдерди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Never touch the motor or battery immediately after use, as they may be hot.
• Use only the provided battery and charging cable. Do not attempt to charge non-rechargeable batteries.
• Иш учурунда балдарды көзөмөлдөңүз.
• Store the vehicle and its components in a cool, dry place when not in use.
• Disconnect the battery from the vehicle when not in use and during storage.

3. Орнотуу жана биринчи колдонуу

3.1 Унаанын аккумуляторун кубаттоо

1. Connect the included USB charging cable to the 7.4V 1200mAh Li-ion battery.
2. Plug the USB end of the charging cable into a USB power source (e.g., computer USB port, USB wall adapter).
3. The charging indicator light on the USB cable will show the charging status (refer to the charger's specific instructions for light indications).
4. Once fully charged, disconnect the battery from the charger. Do not overcharge the battery.

3.2 Өткөргүч батареяларды орнотуу

1. Locate the battery compartment on the back of the 2.4 GHz remote control transmitter.
2. Батарея уясынын капкагын ачыңыз.
3. Insert 4 x AA batteries (not included) into the compartment, ensuring correct polarity (+/-).
4. Батарея уясынын капкагын бекем жабыңыз.

3.3 Installing Vehicle Battery and Powering On

1. Carefully open the engine hood of the Land Rover Defender 90 model.
2. Connect the fully charged Li-ion battery to the vehicle's power connector.
3. Батареяны бөлүмдүн ичине бекем салыңыз.
4. Close the engine hood.
5. Turn on the power switch on the vehicle.
6. Turn on the power switch on the remote control transmitter. The vehicle and transmitter should automatically bind. If not, refer to the troubleshooting section.

4. Унааны башкаруу

4.1 Негизги башкаруу каражаттары

• Steering Wheel (on Transmitter): Rotate left or right to steer the vehicle.
• Throttle Trigger (on Transmitter): Алдыга жылуу үчүн тартыңыз, тормоздоо/артка жылдыруу үчүн басыңыз.

4.2 Айдоо боюнча кеңештер

• The DF-90 Crawler is designed for off-road crawling. It performs best on uneven terrain, rocks, and dirt.
• Start with slow movements to get accustomed to the controls.
• The vehicle features full LED lighting, including turn signals, enhancing realism during operation.
• Depending on the terrain and driving style, you can expect a run time of up to 20 minutes on a full charge.
• Avoid driving in wet conditions or through deep puddles to prevent damage to electronics.

Image: The Land Rover Defender 90 Crawler navigating rocky terrain, showcasinанын жол тандабас мүмкүнчүлүктөрү.

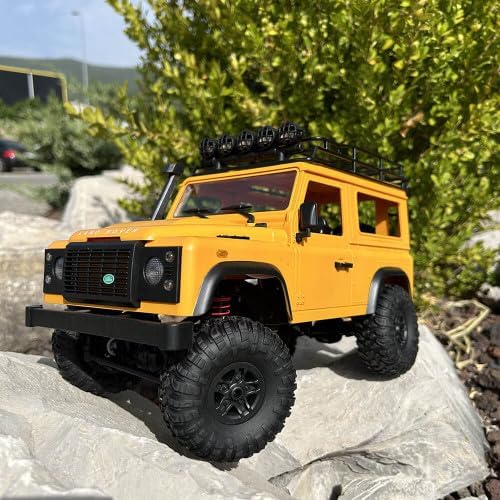

Сүрөт: алдыңкы view of the Land Rover Defender 90 Crawler positioned on rocks, highlighting its detailed scale appearance.

5. Техникалык тейлөө жана сактоо

5.1 Тазалоо

• After each use, especially after driving in dusty or dirty conditions, gently clean the vehicle.
• Шассиден, дөңгөлөктөрдөн жана асма бөлүктөрүнөн кирди жана таштандыларды кетирүү үчүн жумшак щетканы же кысылган абаны колдонуңуз.
• Денени жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же эриткичтерди колдонбоңуз.
• Ensure no dirt or moisture enters the electronic components.

5.2 Батареяга кам көрүү

• Always disconnect the battery from the vehicle after use.
• Store the Li-ion battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• For long-term storage, it is recommended to store Li-ion batteries at approximately 50% charge.
• Батареяларды эч качан кубаттоосуз калтырбаңыз.

5.3 Сактоо

• Store the vehicle and remote control in a safe, dry environment.
• Remove AA batteries from the transmitter if storing for extended periods to prevent leakage.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик маалыматы

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact DF Models customer support.

9. Кардарларды колдоо кызматы

Should you encounter any issues or have questions regarding your DF-MODELS Land Rover Defender 90 Crawler, please contact your retailer or the manufacturer's customer support.

For more information and spare parts, visit the official DF Models webсайтка же алардын колдоо каналдарына кайрылыңыз.
