FITCAMX 4K Dual Cam Dash Camera User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your FITCAMX 4K Dual Cam Dash Camera, Model 6275 No Screw. This dash camera is designed to seamlessly integrate with specific Ford F-Series trucks, offering high-resolution video recording for enhanced driving safety and evidence capture.

1.1 Шайкештик

• Ford F-150: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
• Ford F-150 Raptor: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
• Ford F-250: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Ford F-350: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022

Ensure your vehicle matches the specified models and years for proper fitment and functionality. This specific model (6275 No Screw) is designed for vehicles where the original rearview mirror cover does not require screw removal for access.

2. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1 × FITCAMX Dash Cam (Front Camera)
• 1 × Memory Card (128GB pre-installed)
• 1 × Front Cam Cable (for power connection)
• 1 × Removal Pry Tool
• 1 × Колдонуучунун колдонмосу (бул документ)
• 1 × Rear Camera (for Dual Cam models)
• 1 × Rear Camera Cable (for Dual Cam models)

3. Продукт бүтүп калдыview жана өзгөчөлүктөрү

The FITCAMX 4K Dual Cam Dash Camera is engineered for discreet integration and high-performance recording. Key features include:

• 4K UHD High Resolution: Records clear videos up to 2160P using an advanced Novatek chip and f/1.6 large aperture lens.
• Жогорку түнкү көрүнүш: Equipped with Wide Dynamic Range (WDR) technology for clear video capture in low-light conditions, including license plates and road signs.
• Үзгүлтүксүз цикл жазуусу: Эң эски тамак-ашты автоматтык түрдө кайра жазатtage эс тутум картасы толгондо, үзгүлтүксүз жаздырууну камсыз кылат.
• G-сенсор: Detects sudden collisions and automatically saves and locks relevant footagкайра жазууну алдын алуу үчүн.
• Wi-Fi & APP Control: Connects to a smartphone app for live view, video download, editing, and sharing.
• Perfect Fit Design: Designed to match the original car rearview mirror cover for a factory-integrated appearance.

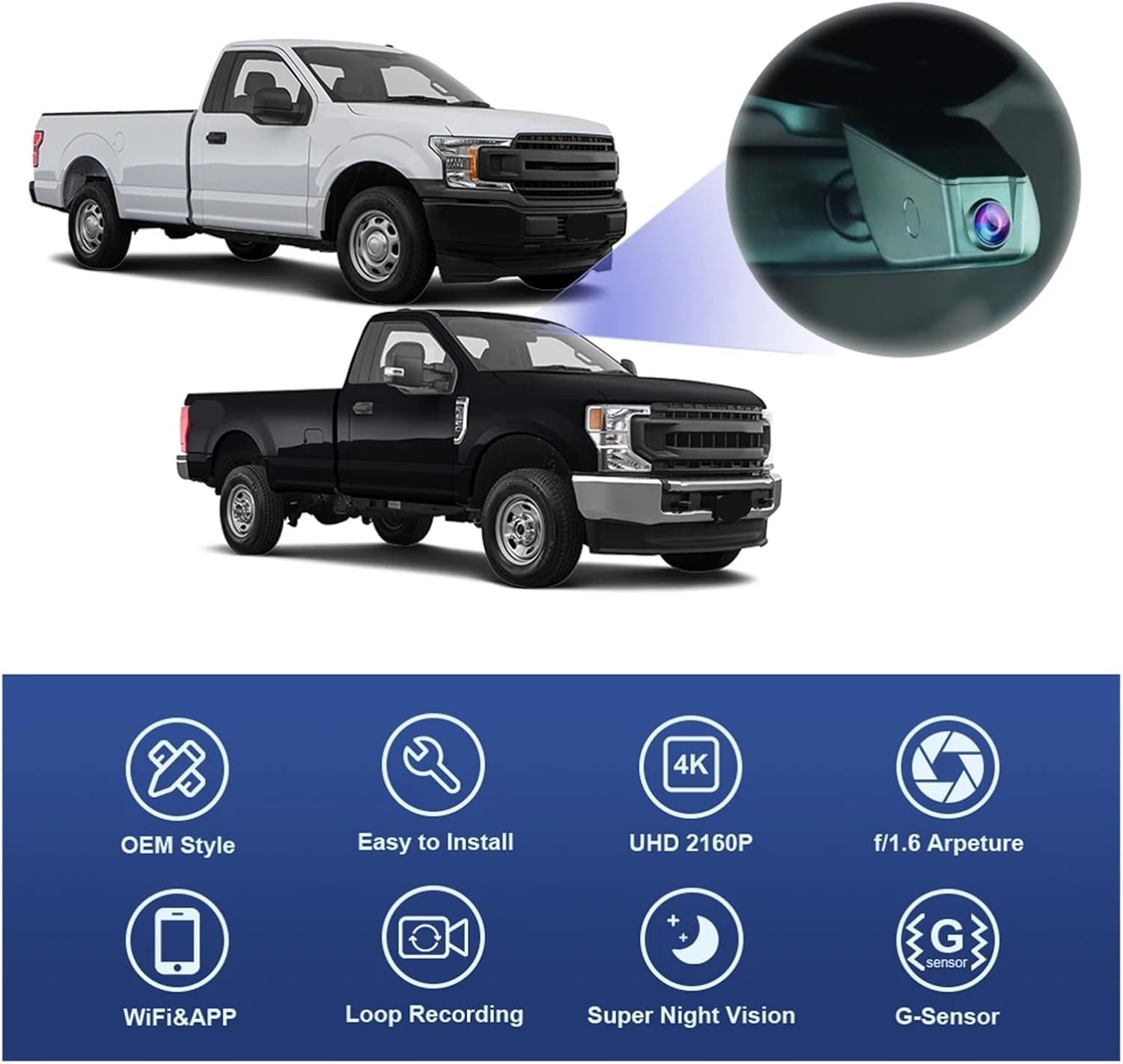

Сүрөт: бүттүview of FITCAMX dash cam features including OEM style, easy installation, UHD 2160P, f/1.6 aperture, WiFi & APP, loop recording, super night vision, and G-Sensor.

4. Орнотуу боюнча колдонмо

The FITCAMX dash camera is designed for a plug-and-play installation without damaging your vehicle's original wiring. This model (6275 No Screw) takes power directly from the rearview mirror connector.

4.1 Identifying Your Dash Cam Model and Power Connection

Image: Diagram showing different dash cam models (HD2-6275 with screw, HD2-6275 with 3M tape, DZ-00455) and their respective power connection methods (rearview mirror plug, rain sensor). This manual focuses on Model 6275 No Screw (fixed by 3M tape, power from rearview күзгү).

Your specific model, 6275 No Screw, is designed to be fixed using 3M tape and draws power from the rearview mirror plug. Ensure you have the correct model before proceeding with installation.

4.2 Этап-этабы менен орнотуу

1. аймакты даярдоо: Ensure the vehicle is turned off. Use the provided pry tool to carefully remove the original rearview күзгү капкагы.
2. Кронштейнди орнотуу: For the "No Screw" model, the dash cam unit will replace the original cover. No separate bracket with screws is typically used for this specific model. The dash cam itself integrates into the existing housing.
3. Туташуу кубаты: Locate the rearview mirror power connector. Use the provided front cam cable (Y-cable) to connect the dash cam to this power source. Ensure a secure connection.
4. Install Dash Cam: Align the FITCAMX dash cam unit with the rearview mirror housing and firmly press it into place until it clicks, ensuring it is securely mounted.
5. Арткы камераны орнотуу (эгер бар болсо): If you have a dual cam model, route the rear camera cable to the desired rear window location and mount the rear camera. Connect the rear camera cable to the main dash cam unit.
6. Сыноо функциясы: Turn on your vehicle's ignition to verify the dash cam powers on and begins recording.

Image: Four-step installation guide showing: 1. Removing the original screw (note: for "no screw" model, this step might involve removing the cover without screws), 2. Mounting the bracket with screw (note: for "no screw" model, the dash cam unit replaces the cover directly), 3. Connecting the rearview mirror with Y-cable, and 4. Mounting the dash cam.

Image: Visual comparison of "Before" and "After" for different power connection methods. The middle image shows the HD2-6275 (With 3M tape) model, which corresponds to the "No Screw" variant, drawing power from the rearview күзгү.

5. Иштөө нускамалары

Once installed, the FITCAMX dash cam operates automatically. For advanced features and video management, use the dedicated smartphone application.

5.1 Автоматтык жаздыруу

The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on. It will automatically save footage in segments (loop recording) and protect emergency recordings via the G-Sensor.

5.2 Wi-Fi туташуусу жана тиркемени колдонуу

Түз эфирге кирүү үчүн view, download videos, or adjust settings, connect your smartphone to the dash cam via Wi-Fi.

1. Колдонмону жүктөп алуу: Издөө the "FITCAMX" app on your smartphone's app store (iOS or Android).
2. Wi-Fi'га туташуу: On your smartphone, go to Wi-Fi settings and connect to the dash cam's Wi-Fi network. The network name and password can typically be found in the dash cam's settings (if accessible via a small screen) or in the quick start guide.
3. Колдонмону ачуу: Launch the FITCAMX app. You should see a live view from the dash cam.
4. Manage Videos:
   • Download Video: Browse recorded footage and select clips to download directly to your phone.
   • Видеону түзөтүү: The app may offer basic editing functions.
   • Share Video: Share downloaded clips through various platforms.

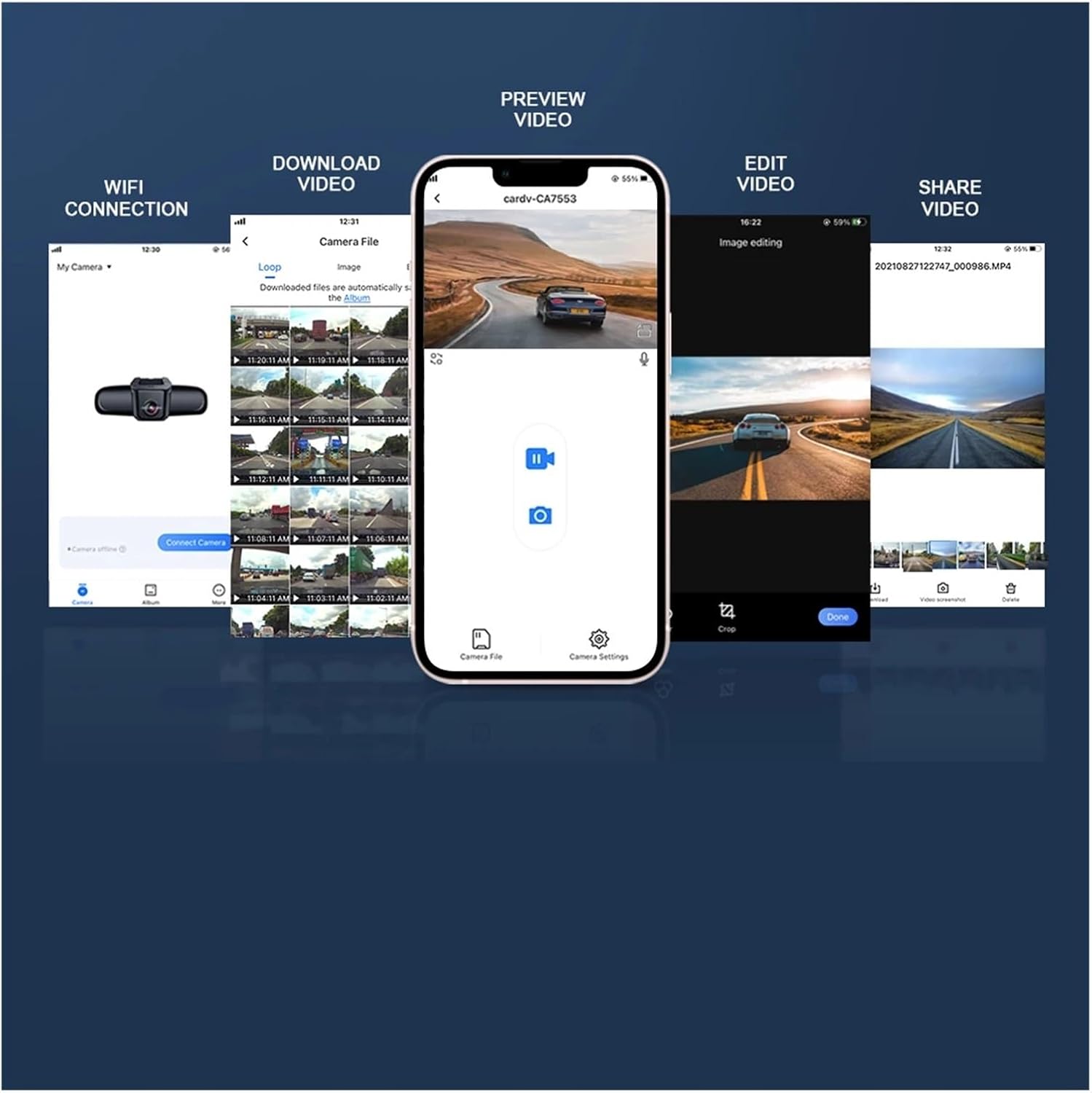

Image: Screenshots of the FITCAMX smartphone application, illustrating steps for WiFi connection, downloading videos, previewing, editing, and sharing recorded footage.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your dash camera.

• Таза линза: Regularly clean the camera lens with a soft, dry cloth to ensure clear recordings. Avoid abrasive materials.
• Эстутум картасын башкаруу:
  • Format the memory card periodically (e.g., once a month) through the app settings to prevent data corruption and maintain optimal recording performance.
  • Replace the memory card if you experience frequent recording errors or data loss.
• Программалык камсыздоонун жаңыртуулары: Check the FITCAMX app or official webиштин натыйжалуулугун жогорулатуу жана жаңы функцияларды кошуу үчүн жеткиликтүү болгон программалык камсыздоонун жаңыртуулары үчүн сайт.
• Температура: Видеорегистраторду узак убакыт бою өтө жогорку температурага дуушар кылбаңыз, анткени бул батареянын иштөө мөөнөтүнө жана компоненттердин бүтүндүгүнө таасир этиши мүмкүн.

7. Кыйынчылыктарды

If you encounter issues with your FITCAMX dash camera, refer to the following common problems and solutions:

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact the manufacturer or your point of purchase. Retain your proof of purchase for warranty claims.

For the latest information, FAQs, and support resources, please visit the official FITCAMX webсайт.
