1. Продукт бүтүп калдыview
The Rittal 3179.800 Blue e+ S wall-mounted cooling unit is designed for efficient thermal management in electrical enclosures and industrial settings. This unit provides powerful cooling to maintain optimal temperatures, ensuring the longevity and performance of your equipment.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Муздатуу кубаттуулугу: Powerful 1,706.07 BTU/hr cooling unit for efficient thermal management.
- Ар тараптуу күч: Кош томtage compatibility with 110/240V and 50/60Hz frequency for flexible installation options.
- Компакт дизайн: Wall-mounted unit measuring 22.4 inches in height, 11.8 inches in width, and 7.83 inches in depth.
- Монтаж түрү: Easy-to-install wall-mounted configuration ideal for industrial and commercial applications.
- Series Features: Part of the Blue e+ S series, incorporating advanced cooling technology for optimal temperature control.

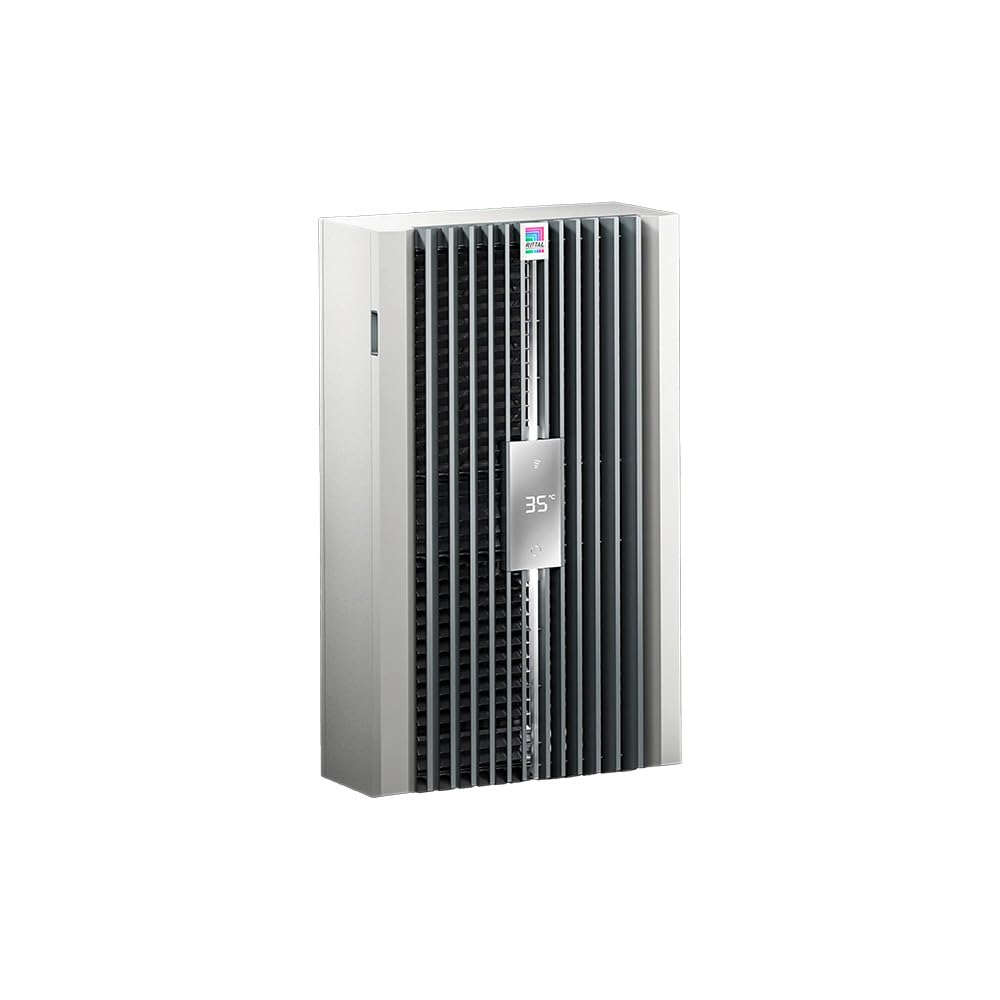

Сүрөт 1.1: Алдыңкы view of the Rittal 3179.800 Blue e+ S Wall-Mounted Cooling Unit.
2. Коопсуздук маалыматы
Please read all safety instructions carefully before installing, operating, or performing maintenance on the cooling unit. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Кандайдыр бир орнотуу же тейлөө иштеринин алдында электр кубаты өчүрүлгөнүн текшериңиз.
- Орнотуу бардык жергиликтүү жана улуттук электр эрежелерине ылайык квалификациялуу кызматкерлер тарабынан аткарылышы керек.
- Do not block air inlets or outlets of the unit. Maintain adequate clearance for proper airflow.
- Эгерде ал бузулуп же иштебей калса, аны иштетпеңиз.
- Keep hands and tools away from moving parts during operation.
3. Пакеттин мазмуну
Verify that all components are present and undamaged upon unpacking. The package should contain:
- 1 x Rittal 3179.800 Blue e+ S Wall-Mounted Cooling Unit
- Көрсөтмө (бул документ)
- Mounting hardware (if applicable, check packaging)
4. Орнотуу жана орнотуу
The Rittal 3179.800 is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety.
4.1 Сайтты тандоо
- Choose a location that allows for adequate airflow around the unit.
- Ensure the mounting surface is structurally sound and can support the weight of the unit (approximately 28.7 pounds).
- Consider proximity to the electrical enclosure requiring cooling and power source.
4.2 Агрегатты монтаждоо
- Refer to the provided mounting template (if included) for precise drilling locations.
- Securely fasten the unit to the wall using appropriate mounting hardware.
- Ensure the unit is level and stable after mounting.
4.3 Электрдик туташуу
This unit supports dual voltage 110/240V and 50/60Hz frequency. Ensure the power supply matches the unit's requirements.
- Connect the unit to a dedicated power circuit with appropriate overcurrent protection.
- Бардык зымдар жергиликтүү жана улуттук электр эрежелерине ылайык келиши керек.
- Агрегатты туура жерге туташтырууну камсыз кылыңыз.

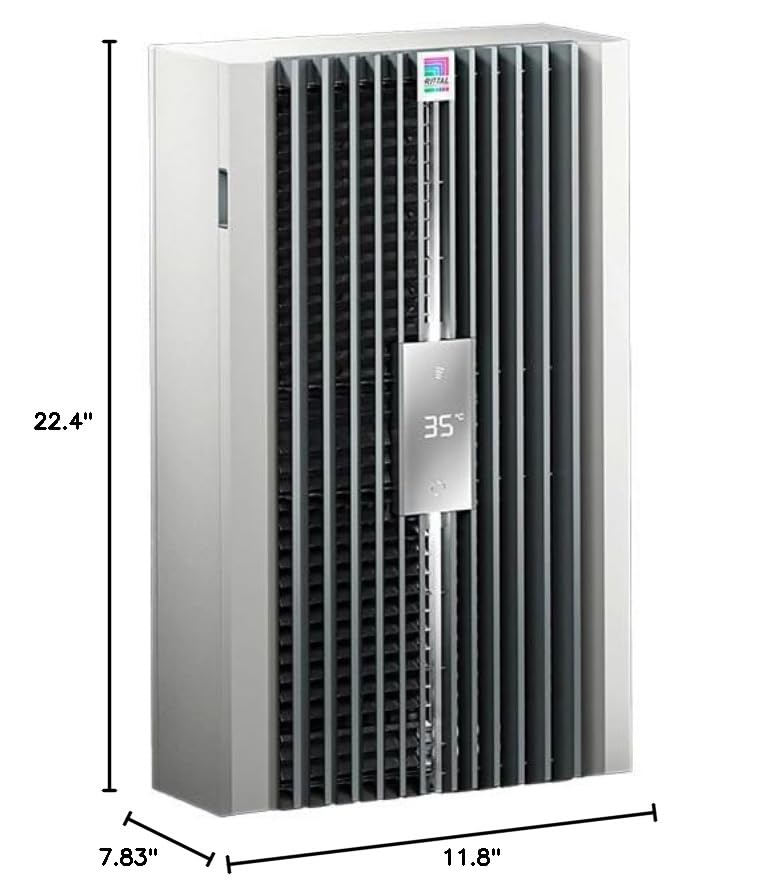

Figure 4.1: Dimensions of the Rittal 3179.800 Cooling Unit (22.4" H x 11.8" W x 7.83" D).
5. Иштөө нускамалары
Once installed and powered, the Rittal 3179.800 cooling unit will begin to regulate the temperature within the enclosure.
5.1 Баштапкы кубаттуулук
- After completing the electrical connections, restore power to the unit.
- The unit will typically initiate a self-test and then begin operation.
5.2 Температураны көзөмөлдөө
The Blue e+ S series incorporates advanced cooling technology for optimal temperature control. The unit is designed to maintain a set temperature within the enclosure. Specific temperature adjustment procedures may vary; refer to the unit's display or remote control interface for detailed instructions.
This model features a remote control capability for convenient temperature adjustments and monitoring.
6. Техникалык тейлөө
Regular maintenance ensures the efficient and reliable operation of your cooling unit. Always disconnect power before performing any maintenance.
- Фильтрди тазалоо/алмаштыруу: Periodically check and clean or replace the air filters to ensure proper airflow and cooling efficiency. The frequency depends on the operating environment.
- Катушканы тазалоо: Inspect the condenser and evaporator coils for dust and debris. Clean them gently with a soft brush or compressed air if necessary.
- Дренаж системасы: Ensure the condensate drain is clear and free of obstructions to prevent water buildup.
- Визуалдык текшерүү: Regularly inspect the unit for any signs of damage, loose connections, or unusual noises.
7. Кыйынчылыктарды
This section provides solutions to common issues you might encounter with your cooling unit. For problems not listed here, contact customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Аппарат муздабай жатат | No power; blocked air filters; low refrigerant; unit too small for enclosure. | Check power supply; clean/replace filters; contact qualified technician for refrigerant check; verify unit capacity. |
| Ашыкча ызы-чуу | Loose components; fan obstruction; worn bearings. | Check for loose parts and tighten; clear any obstructions from fan; contact qualified technician. |
| Суунун агып чыгышы | Blocked condensate drain; unit not level. | Clear the condensate drain; ensure the unit is level during installation. |
8. Техникалык шарттар
Detailed technical specifications for the Rittal 3179.800 Blue e+ S Wall-Mounted Cooling Unit:
| Спецификация | Нарк |
|---|---|
| Модель номери | 3179800 |
| Продукциянын өлчөмдөрү (D x W x Y) | 7.83" x 11.8" x 22.4" (19.89 см x 29.97 см x 56.9 см) |
| Элемент Салмагы | 28.7 фунт (13.02 кг) |
| Муздатуу кубаттуулугу | 1,706.07 BTU/hr (1774 British Thermal Units) |
| Кубаттуулугу | 0.15 тонна |
| Тtage | 110/240 вольт |
| Жыштык | 50/60 Гц |
| Ызы-чуу деңгээли | 66 дБ |
| Түс | Light Gray, Basalt Gray |
| Өзгөчө өзгөчөлүк | Алыстан башкаруу |
| BEE Star Rating | Energy Star сертификацияланган |
| Сезондук энергияны натыйжалуулук коэффициенти (SEER) | 14.5 |
| Өндүрүүчү | Rittal ЖЧКсы |
| Дата биринчи жеткиликтүү | 9-январь, 2024-жыл |
9. Кепилдик жана колдоо
This product is backed by Rittal's commitment to quality and customer satisfaction.
9.1 Кайтаруу саясаты
The Rittal 3179.800 cooling unit is eligible for a 30-day free return policy, offering a refund or replacement. Please refer to the retailer's specific return guidelines for detailed terms and conditions.
9.2 Кардарларды колдоо
For technical assistance, troubleshooting, or warranty claims, please contact Rittal customer support. You can find contact information on the official Rittal webсайт же продукт сатуучу аркылуу.
Additional resources, including a fact sheet, may be available for download from the product's listing page or the manufacturer's webсайт. Мисалы үчүнample, a Fact Sheet (Provider) (PDF) is available at https://manuals.plus/m/ee7c89404f9390aa9d124dbed31043e847073a35a8536e01784765d6c477ed06.
