1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your LUTEC Outdoor Solar Lamp Post Light with Motion Sensor. This solar-powered fixture is designed for outdoor use, featuring an integrated motion sensor and three distinct lighting modes. Constructed from durable aluminum with clear glass, it is built to withstand various weather conditions.
Image 1.1: The LUTEC Outdoor Solar Lamp Post Light, showcasing its design and integrated solar panel.
Сүрөт 1.2: Бүттүview of the solar post light highlighting its solar charging capability and motion sensor functionality.
2. Орнотуу жана орнотуу
The LUTEC Solar Lamp Post Light is designed for straightforward installation. It can be mounted on a pier or a pole, fitting a standard 3-inch lamp base or post (not included).
2.1 Пакеттен чыгаруу
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Бардык бөлүктөр таңгактоо тизмесине ылайык бар экенин текшериңиз.
- Inspect the fixture for any signs of damage. Do not install if damaged.
2.2 Монтаждоо параметрлери
Бул аппарат эки негизги орнотуу ыкмасын колдойт:
- Пир тоосу: For installation on a flat surface or pier.
- Уюлга орнотуу: For installation on a vertical pole.
Image 2.1: Visual guide demonstrating the pier mount and pole mount installation options for the lamp пост жарык.
2.3 Алгачкы заряддоо
Before first use, ensure the solar panel receives at least 6 hours of direct sunlight to fully charge the internal battery. Optimal performance relies on adequate solar exposure.
3. Иштөө нускамалары
The LUTEC Solar Lamp Post Light features a multi-function switch to select between different operating modes. The light automatically activates at dusk and deactivates at dawn.
3.1 Режимди тандоо
Locate the mode selection switch on the fixture. Choose one of the following three lighting modes:
- КҮЙҮК режими: The light will illuminate at 100% brightness continuously from dusk until dawn, for a maximum of 10 hours.
- AUTO режими: The light remains off at night until motion is detected. Upon motion detection, it illuminates at 100% brightness for 60 seconds, then turns off.
- DIM Mode: The light stays on at a continuous 10% brightness at night. When motion is detected, it brightens to 100% for 60 seconds, then returns to 10% brightness.

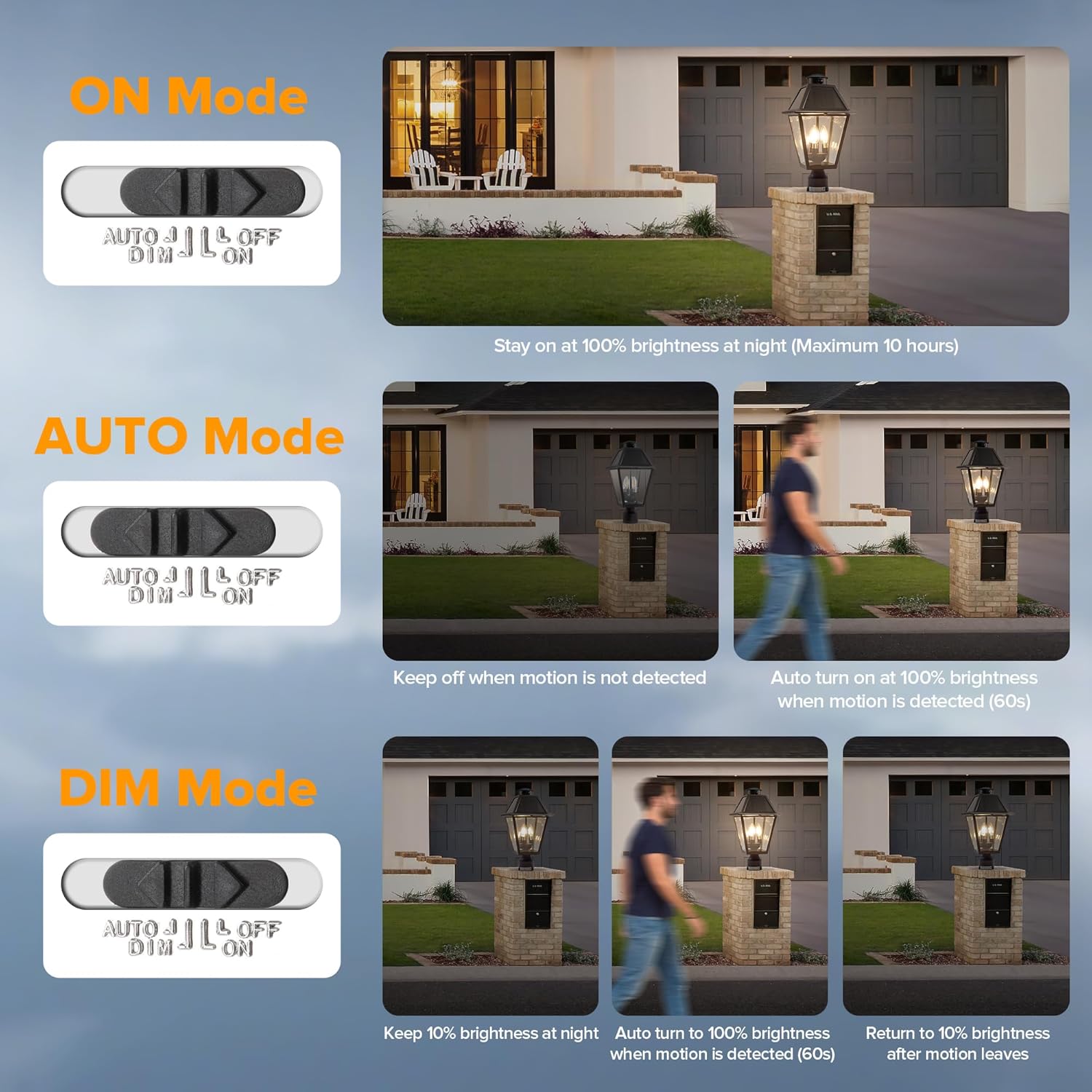

Image 3.1: Diagram illustrating the three operational modes (ON, AUTO, DIM) and their respective behaviors with motion detection.
4. Техникалык тейлөө
Regular maintenance ensures optimal performance and longevity of your solar lamp пост жарык.
4.1 Тазалоо
- Periodically clean the solar panels with a soft, damp чаңды, кирди же таштандыларды кетирүү үчүн кездеме. Таза күн батареясы натыйжалуу кубаттоону камсыз кылат.
- Clean the glass panels and aluminum body with a mild soap solution and a soft cloth. Avoid abrasive cleaners.
4.2 Battery and Bulbs
- The fixture includes a Lithium Ion battery. While designed for long life, if replacement is ever needed, consult customer support.
- The fixture uses 3 E12 bulbs, which are replaceable. Ensure replacement bulbs match the original specifications for optimal performance.
Сүрөт 4.1: Lamp post light is rated IP65 waterproof, indicating its resistance to dust and water jets, suitable for all weather conditions.
5. Кыйынчылыктарды
Эгерде сиздин күн лamp post light is not functioning as expected, refer to the following common issues and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түнкүсүн жарык күйбөйт. | Күндүн заряды жетишсиз. | Ensure the solar panel is exposed to direct sunlight for at least 6 hours daily. Clean the solar panel. |
| Жарык күңүрт же өтө эрте өчөт. | Inadequate solar charge or battery degradation. | Relocate the fixture to an area with more direct sunlight. Ensure solar panel is clean. If issue persists after prolonged use, battery may need replacement (contact support). |
| Кыймыл сенсору аныкталбай жатат. | Сенсор тоскоол же туура эмес режим. | Ensure the sensor lens is clean and unobstructed. Verify the light is set to AUTO or DIM mode. |
| Light stays on continuously in AUTO/DIM mode. | Constant motion or sensor malfunction. | Check for continuous movement near the sensor. If no motion, contact customer support. |
6. Техникалык шарттар
Key technical specifications for the LUTEC Outdoor Solar Lamp Post Light:
- Модель номери: 6974006012
- Өлчөмдөрү: 27.99 x 49 x 27.99 см (11.02 x 19.29 x 11.02 дюйм)
- Салмагы: 4.04 кг (8.9 фунт)
- Кубат булагы: Күн энергиясы
- Материал: Aluminum body, Clear Glass
- Түсү: Кара
- Жарык түрү: 3 x E12 Bulbs (included)
- Ачык түс температурасы: 2700K жылуу ак жарык
- Люмен чыгаруу: 400 Lumens
- Батарея: 1 x Lithium Ion (2200mAh, included)
- Өмүрүнүн узактыгы: 50,000 XNUMX+ саат
- Суу өткөрбөйт рейтинги: IP65
- Кыймыл сенсору: Интеграцияланган
Image 6.1: Detailed specifications including light color, lumen output, battery capacity, and estimated lifespan.
Сүрөт 6.2: Жарылып кеткен view highlighting key components such as the 4 solar panels, motion sensor, 3 E12 bulbs, and aluminum body with clear glass.
7. Колдоо
For any questions, concerns, or technical assistance regarding your LUTEC Outdoor Solar Lamp Post Light, please contact our customer service team. We offer 7*24 hour after-sales support to ensure your satisfaction.
Сураныч, сатып алуу документтериңизге же сатуучуга кайрылыңыз webконкреттүү байланыш маалыматы үчүн сайт.
