1. Киришүү
This manual provides detailed instructions for the RUIZU X52 64GB Bluetooth 5.0 MP3 Player. Please read this manual carefully before using the device to ensure proper operation and to maximize your user experience. The RUIZU X52 is a compact and versatile music player designed for sports and daily use, featuring a 1.5-inch TFT color screen, Bluetooth 5.0 connectivity, and support for up to 128GB TF cards.
Сүрөт: алдыңкы жана каптал view of the RUIZU X52 MP3 Player, showcasing its compact design, screen, and side controls.
2. Кутуда эмне бар
Пакетти ачканда, төмөндө көрсөтүлгөн бардык буюмдардын бар экендигин текшериңиз:
- 1 x RUIZU X52 Clip MP3 Player
- 1 x Зымдуу наушник
- 1 х AUX кабели
- 1 x USB Cable (for charging and data transfer)
- 1 x Protection Bag
- 1 x User Manual

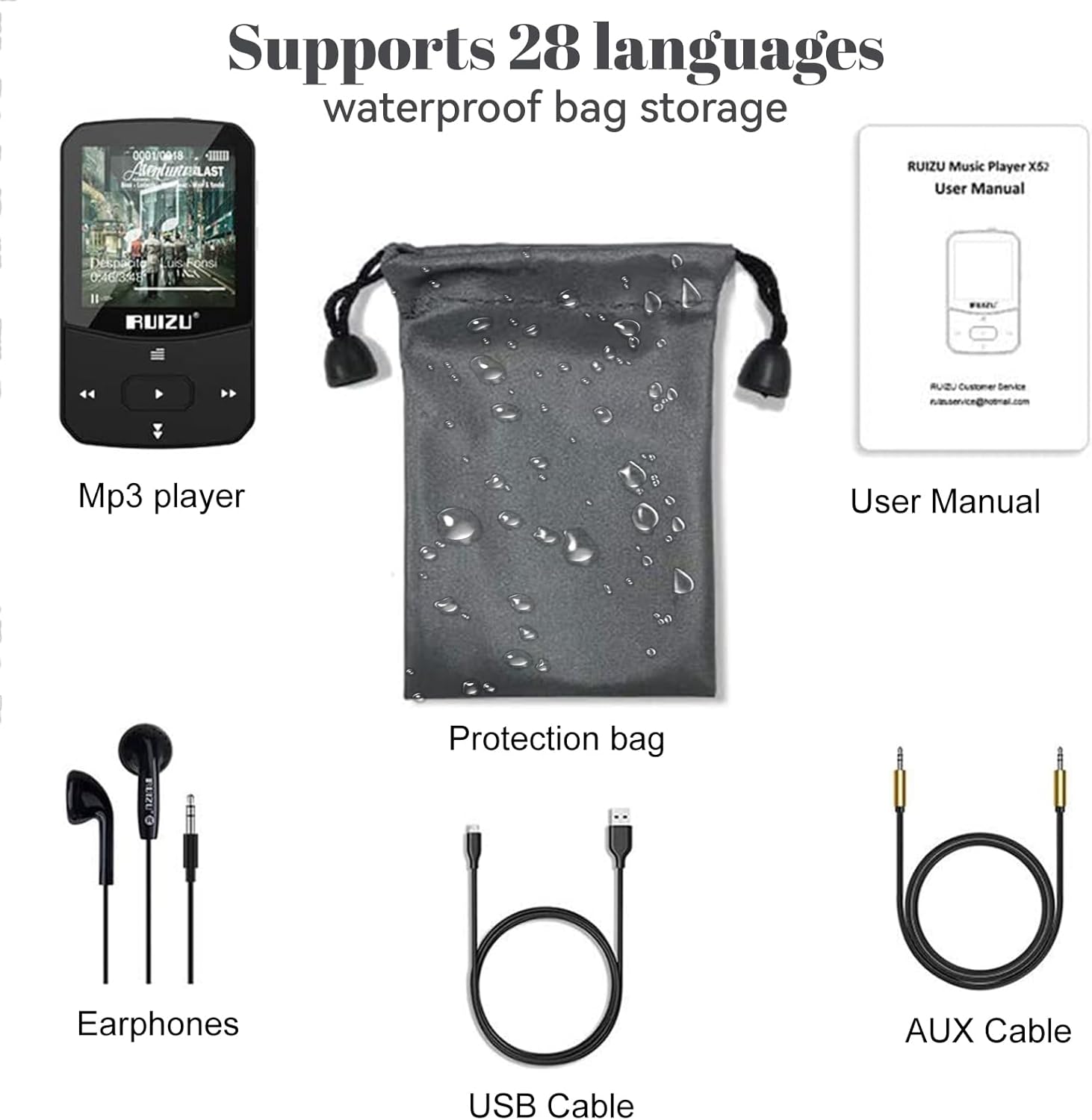

Image: All included accessories for the RUIZU X52 MP3 Player, including the player, earphones, cables, and protection bag.
3. Продукт бүтүп калдыview
The RUIZU X52 features a user-friendly interface and physical buttons for easy control. Familiarize yourself with the device's layout:
3.1. Түзмөктүн жайгашуусу
- 1.5-inch TFT Color Screen: Displays menus, music information, videos, and e-books.
- Үн баскычтары (+/-): Located on the side for independent volume control.
- Чабыттоо баскычтары: Play/Pause, Next/Previous Track, Menu, Back.
- Клип: Integrated clip for attaching the player to clothing or accessories.
- Микро USB порту: Заряддоо жана маалыматтарды өткөрүү үчүн.
- 3.5 мм аудио уячасы: For connecting wired earphones or AUX cable.
- TF карта уячасы: Supports external memory expansion up to 128GB.
Image: The RUIZU X52 MP3 Player being worn with its portable clip, demonstrating its use during physical activity.
4. Орнотуу
4.1. Аппаратты заряддоо
Before first use, fully charge the MP3 player. Connect the included USB cable to the device's Micro USB port and the other end to a computer's USB port or a compatible USB wall adapter (not included). The battery icon on the screen will indicate charging status. A full charge takes approximately 1.5 hours.
4.2. Transferring Music and Files
- MP3 ойноткучту USB кабели аркылуу компьютериңизге туташтырыңыз.
- The device will appear as a removable disk drive on your computer.
- Drag and drop your desired music files (MP3, WAV, APE, WMA, FLAC) or other supported files into the player's storage or a connected TF card.
- USB кабелин ажыратуудан мурун, түзмөктү компьютериңизден коопсуз сууруп алыңыз.
Image: The RUIZU X52 MP3 Player highlighting its 64GB internal storage and the option to expand memory with a 128GB TF card.
4.3. Inserting/Removing TF Card
To expand storage, insert a TF (Micro SD) card into the designated slot until it clicks into place. To remove, gently push the card inward until it springs out.
5. Иштөө нускамалары
5.1. Күйгүзүү/өчүрүү
Press and hold the Power button (usually the Play/Pause button) for a few seconds to turn the device on or off.
5.2. Негизги навигация
- колдонуу Өйдө/Төмөн navigation buttons to scroll through menus.
- басыңыз Ойнотуу/Тыныгуу параметрди тандоо үчүн баскыч.
- басыңыз Артка мурунку экранга кайтуу үчүн баскычты басыңыз.
- колдонуу Көлөм +/- buttons on the side to adjust audio levels.
5.3. Музыканы ойнотуу
Navigate to the "Music" option on the main menu. You can browse by artist, album, genre, or all songs. The player supports MP3, WAV, APE, WMA, and FLAC formats. Adjust equalizer settings for personalized sound.
5.4. Bluetooth Жупташтыруу
The RUIZU X52 features Bluetooth 5.0 for wireless audio. To pair with Bluetooth headphones or speakers:
- Go to the "Bluetooth" menu.
- Bluetooth күйгүзүү.
- Select "Search Device" to find available Bluetooth devices.
- Choose your device from the list to pair.
Image: The RUIZU X52 MP3 Player screen showing the Bluetooth icon and version 5.0, indicating wireless connectivity.
5.5. FM радиосу
Connect wired earphones (they act as the antenna) and navigate to the "FM Radio" menu. You can auto-scan for stations or manually tune to your preferred frequency (87.5-108MHz).
Image: A person using the RUIZU X52 MP3 Player to listen to FM radio while engaged in gardening, demonstrating its portability.
5.6. Үн жазгыч
Select "Record" from the main menu to start, pause, or save voice recordings. Recordings are saved in a dedicated folder.
5.7. Видеону ойнотуу
The device supports video playback. Ensure video files are in a compatible format for optimal viewing on the 1.5-inch screen.
5.8. E-book Reader
Access the "E-book" function to read text fileс. Камсыз кылуу files are in a compatible format (e.g., TXT).
5.9. жөө
Activate the pedometer function to track your steps during exercise. This feature is ideal for sports enthusiasts.
5.10. Башка функциялар
The RUIZU X52 also includes a Stopwatch, Alarm Clock, Calendar, Screensaver, Resume Playback, A-B Repeat, and Lyrics Synchronization. Explore these features through the main menu.
Image: The RUIZU X52 MP3 Player screen showing icons for Music, Recording, FM Radio, Bluetooth, Video, eBook, Stopwatch, Pedometer, A-B Repeat, Resume Playback, Lyrics Synchronization, and Time Screensaver.
5.11. Connecting to Car Audio
Use the included AUX cable to connect the MP3 player to your car's audio system or external speakers for a larger sound experience.

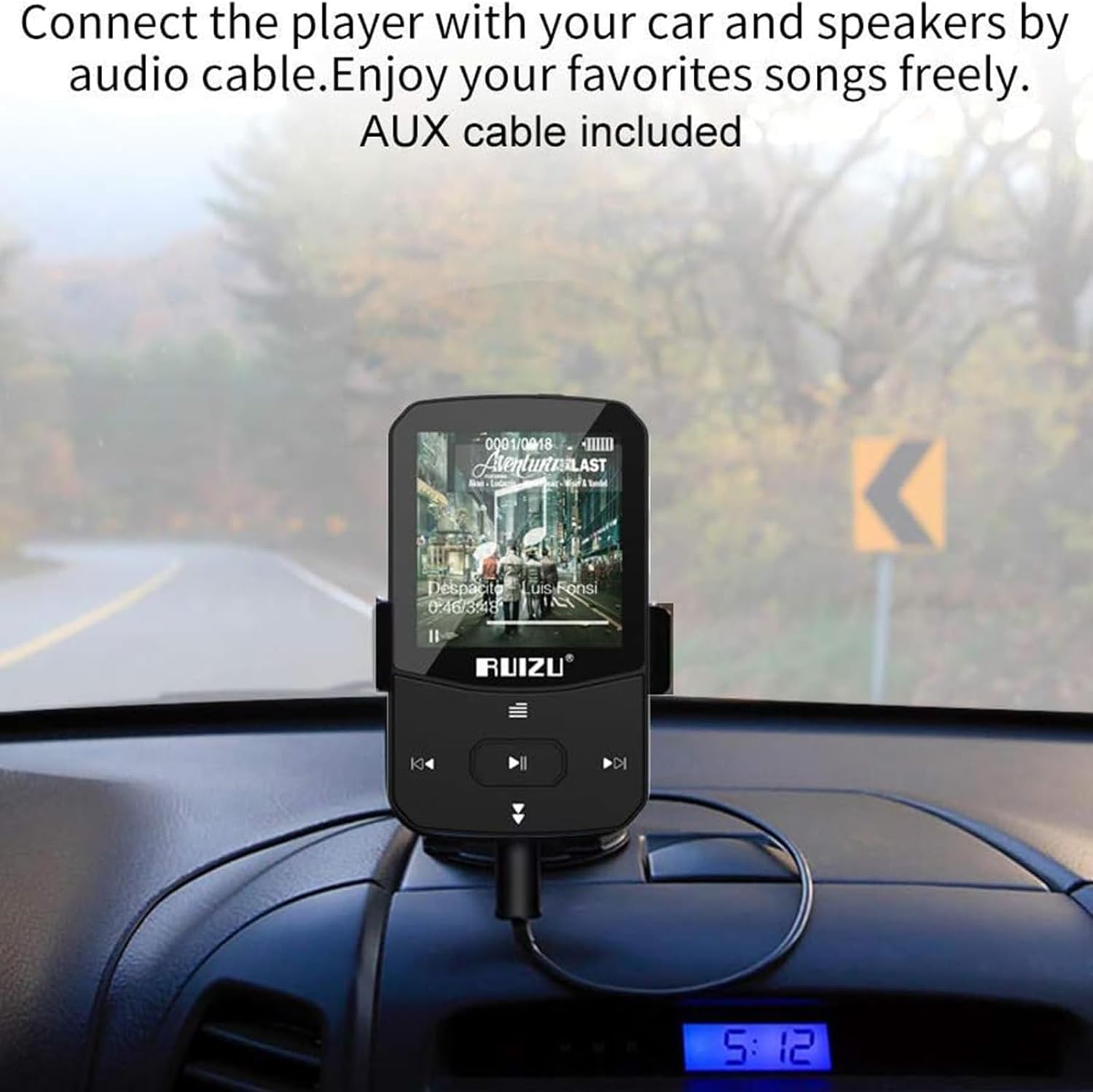

Image: The RUIZU X52 MP3 Player mounted on a car dashboard, connected to the car's audio system using an AUX cable.
6. Техникалык тейлөө
- Аппаратты кургак кармаңыз. ным же суюктуктардын таасиринен алыс болуңуз.
- Clean the screen and body with a soft, dry cloth. Do not use abrasive cleaners.
- Ашыкча температурадан сактаныңыз.
- Аппаратты кулатпаңыз же катуу таасирлерге дуушар кылбаңыз.
- Store the player in the provided protection bag when not in use.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн чечим |
|---|---|
| Түзмөк күйбөйт. | Түзмөктүн толук заряддалганын текшериңиз. Кубат булагына туташтырып, кайра аракет кылыңыз. |
| Которуу мүмкүн эмес fileс аппаратка. | Check USB cable connection. Ensure the device is properly recognized by the computer. Try a different USB port or cable. |
| Bluetooth жупташуусу болбой жатат. | Ensure the target Bluetooth device is in pairing mode and within range. Restart both devices and try again. |
| Наушниктен үн чыкпайт. | Check earphone connection. Ensure volume is not muted or too low. Test with different earphones. |
| Экран жооп бербей жатат же катып калган. | Кайра иштетүү үчүн кубат баскычын 10-15 секунд басып туруңуз. |
| Музыка files are not recognized. | камсыз кылуу files are in a supported format (MP3, WAV, APE, WMA, FLAC). |
8. Техникалык шарттар
- Бренд: РУИЗУ
- Модел: X52
- Ички сактагыч: 64 ГБ
- Кеңейтүүчү сактагыч: Up to 128GB via TF Card
- Экран: 1.5 дюймдук TFT түстүү дисплей
- Bluetooth версиясы: 5.0
- Колдоого алынган аудио форматтары: MP3, WAV, APE, WMA, FLAC
- Колдоого алынган видео форматтары: (Specific format not detailed, generally AMV/AVI converted)
- Supported E-book Format: TXT
- FM радио жыштыгы: 87.5-108 МГц
- Батарея түрү: Литий-полимер
- Заряддоо убактысы: Болжол менен 1.5 саат
- Батареянын иштөө мөөнөтү (музыканы ойнотуу): Up to 25 hours (wired), 6 hours (Bluetooth)
- Battery Life (Video Playback): 6 саатка чейин
- Battery Life (FM Radio): 8 саатка чейин
- Battery Life (Recording): 26 саатка чейин
- Байланыш: Көмөкчү, Bluetooth
- Өзгөчөлүктөр: Voice Recorder, Pedometer, Clip Design, Independent Volume Button, Multi-language support (28 languages)
Image: Infographic detailing the battery life of the RUIZU X52 MP3 Player for various activities like music playback (wired and Bluetooth), video, FM radio, and recording.
9. Кепилдик жана колдоо
9.1. Кепилдик маалыматы
This product comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. Keep your purchase receipt as proof of purchase.
9.2. Кардарларды колдоо кызматы
For any product issues or technical assistance, please contact RUIZU customer service. You can typically find contact information on the product packaging or the official RUIZU website. The product listing mentions "100% satisfaction from 24 hours Online-Kundenservice. Bei Produktproblemen wenden Sie sich bitte direkt an Tihoosky." This suggests contacting the seller "Tihoosky-eu" for support.
Сатуучу: Tihoosky-eu
