MAYBESTA Mini Wireless Lavalier Microphone (Model WM355) User Manual

1. Киришүү

The MAYBESTA Mini Wireless Lavalier Microphone system provides a convenient and high-quality audio solution for recording on various mobile devices. Designed for ease of use, this system features automatic connection, wide compatibility with iOS and Android, and effective noise cancellation for clear sound capture. It is ideal for interviews, podcasts, vlogging, live streaming, and other content creation activities.

2. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• 2 x Wireless Microphones (Transmitters)
• 1 x Receiver (with Lightning and USB-C compatibility)
• 2 x Микрофон клиптери
• 1 x USB заряддоо кабели
• 1 x User Manual

Image: The package includes two wireless microphones, one receiver, two clips, a USB charging cable, and a user manual.

3. Орнотуу нускамалары

The MAYBESTA wireless microphone system is designed for quick and easy setup. No additional apps or Bluetooth pairing are required.

1. Charge the Microphones: Before first use, ensure both microphones are fully charged using the provided USB charging cable. The charging indicator light will show charging status.
2. Кабылдагычты туташтыруу: Plug the receiver directly into your smartphone or tablet's charging port (Lightning for iOS, USB-C for Android). Ensure your device is unlocked.
3. Микрофондорду күйгүзүү: Press and hold the power button on each microphone for approximately 3 seconds. A solid green light on both the receiver and the microphone indicates a successful connection.
4. Begin Recording: Open your preferred audio or video recording application on your device and start recording. The microphone will now capture audio.

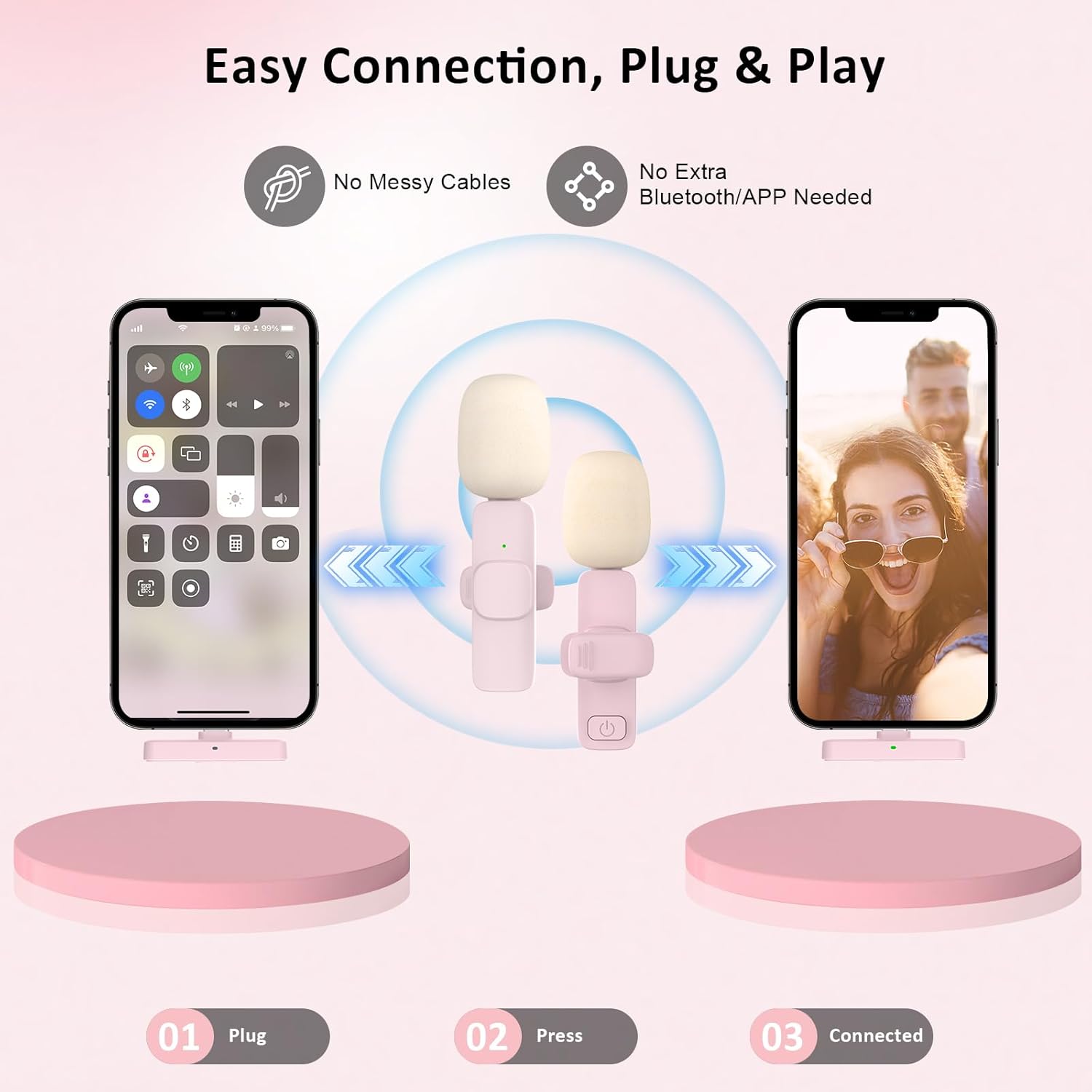

Image: Visual guide demonstrating the plug-and-play connection process: 1. Plug the receiver into your phone. 2. Press the power button on the microphone. 3. The devices are connected, indicated by a green light.

Image: A step-by-step illustration of the quick connection process, showing the phone, receiver, and microphone, with instructions to plug, press, and record.

4. Иштөө нускамалары

4.1. Audio Capture

The MAYBESTA microphone features an omnidirectional sound reception pattern, capturing audio from all directions. This is ideal for interviews, group discussions, or general recording where sound from multiple sources is desired.

Image: A visual representation of omnidirectional sound pickup, showing the microphone effectively capturing voices in a multi-person setting.

4.2. Шуудан баш тартуу

Equipped with an intelligent chip, the microphone actively reduces ambient noise, ensuring clear and clean sound quality for your recordings. This feature is particularly useful in environments with background distractions.

Сүрөт: кесилген view of the microphone highlighting its internal smart chip and noise reduction capabilities, with visual cues of sound wave processing.

4.3. Dual Microphone Use

The package includes two microphones, allowing for simultaneous recording from two separate individuals. This is beneficial for interviews, collaborative content, or any scenario requiring dual audio input.

Image: Two people using separate microphones while recording, illustrating the ability to pick up sounds from two parties simultaneously.

4.4. Wireless Freedom

The universal wireless system utilizes Bluetooth technology, providing up to 50 feet of transmission range. This allows for freedom of movement during recording without being restricted by cables, making it suitable for dynamic content creation.

Image: A visual demonstrating the wireless range of 50 feet, with two individuals using the microphones and a smartphone recording from a distance.

4.5. Колдонуу сценарийлери

This microphone system supports audio and video recording across various social media platforms and applications, including YouTube, TikTok, and for purposes such as interviews, podcasts, vlogging, and live streaming.

Сүрөт: Коллаж көрсөтүүasing diverse applications of the microphone, such as online teaching, video recording, live streaming, and interviews.

5. Шайкештик

The MAYBESTA wireless microphone system offers broad compatibility with both iOS and Android devices.

• iOS түзмөктөрү: Compatible with all iPhone and iPad series, including models with Lightning ports (e.g., iPhone 6/6s/6Plus/6s Plus, iPhone SE/SE2, iPhone 7/Plus, iPhone 8/Plus, iPhone X/XR/XS/XS Max, iPhone 11/11Pro/11ProMax, iPhone 12/12Mini/12 Pro/12 ProMax, iPhone 13/13Mini/13 Pro/13 ProMax, iPhone 14/14 Plus/14 Pro/14 Pro Max) and USB-C ports (e.g., latest iPad Pro series, iPhone 15/15 Plus/15 Pro/15 Pro Max).
• Android түзмөктөрү: Compatible with Android 6.0 or above.

Эскертүү:

• If your phone case is thick, the receiver may not connect properly. Please remove the phone case before plugging in the receiver to ensure a secure connection.

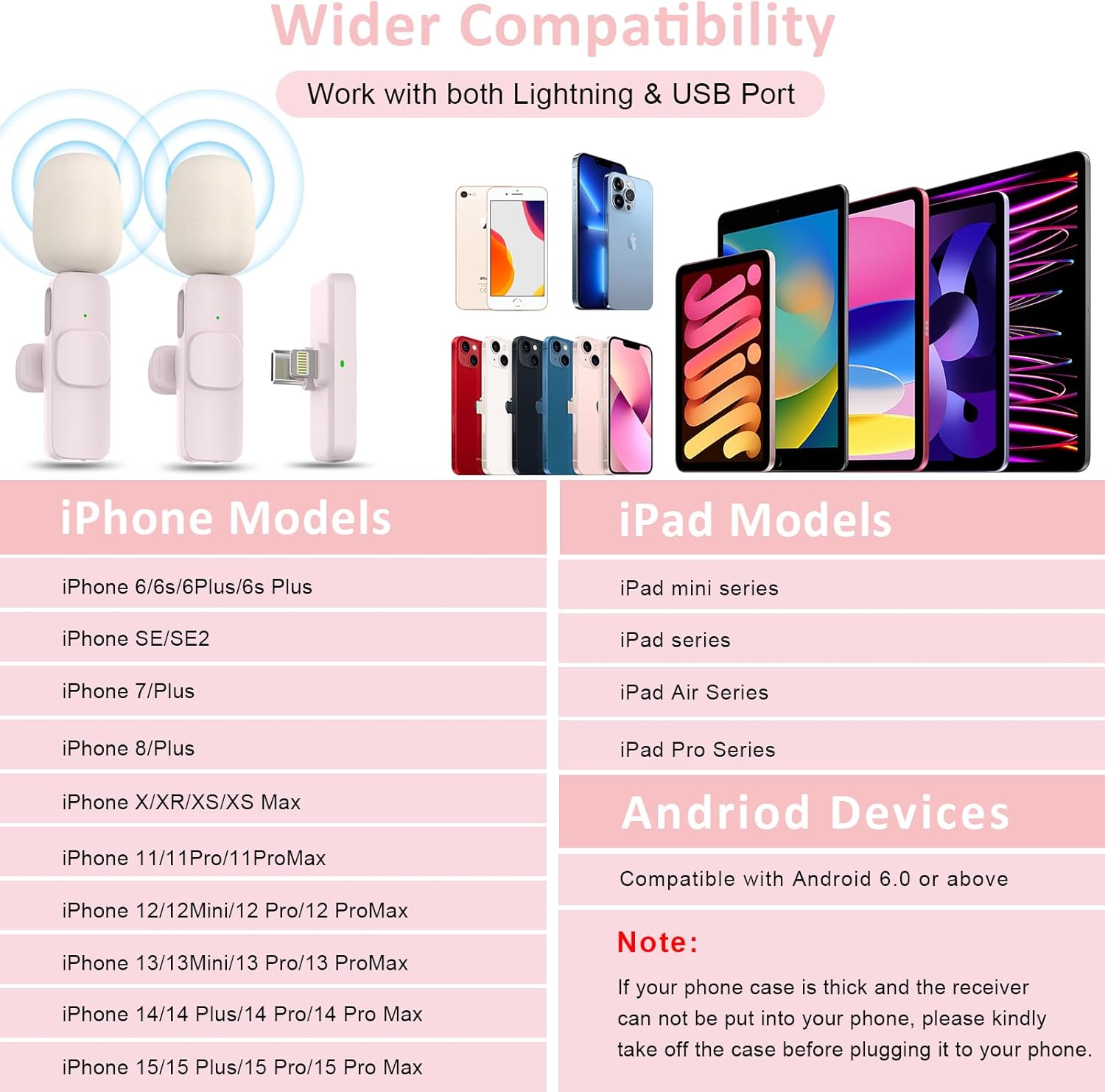

Image: A detailed chart outlining the extensive compatibility of the microphone with various iPhone, iPad, and Android devices, supporting both Lightning and USB-C connections.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your MAYBESTA wireless microphone system, follow these maintenance guidelines:

• Тазалоо: Use a soft, dry cloth to clean the microphone and receiver. Avoid using liquid cleaners or solvents, as these can damage the electronic components.
• Сактагыч: Store the devices in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, store them in their original packaging or a protective case.
• Заряддоо: Charge the microphones regularly, even if not in frequent use, to maintain battery health. Avoid overcharging or completely draining the battery.
• Колдонуу: Handle the microphones and receiver with care. Avoid dropping them or subjecting them to strong impacts.

7. Кыйынчылыктарды

If you encounter issues with your MAYBESTA wireless microphone, refer to the following troubleshooting tips:

• Microphone Not Connecting:
  • Ensure both the microphone and receiver are powered on and fully charged.
  • Кабыл алгыч түзмөгүңүздүн портуна бекем сайылып турганын текшериңиз.
  • Check if your phone case is obstructing the receiver connection; remove it if necessary.
  • Restart both the microphone and your recording device.
• Poor Sound Quality / No Sound:
  • Ensure the microphone is clipped securely and positioned correctly (e.g., near the speaker's mouth).
  • Тышкы микрофон тандалганын текшерүү үчүн түзмөгүңүздүн аудио киргизүү жөндөөлөрүн текшериңиз.
  • Confirm the distance between the microphone and receiver is within the 50-foot operating range.
  • Minimize environmental noise where possible, although the microphone has noise cancellation.
  • Test with a different recording application to rule out app-specific issues.
• Батарея бат эле түгөнөт:
  • Ensure microphones are fully charged before use.
  • Avoid operating in extremely cold environments, which can affect battery performance.
  • Батареянын иштөө мөөнөтү бир топ начарлап кетсе, кардарларды колдоо менен байланышыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the contact details provided with your purchase or visit the official MAYBESTA webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
