1. Киришүү
This manual provides essential information for the proper use, setup, and maintenance of your Wera 897/4 R BiTorsion Rapidaptor Universal Bit Holder. Please read these instructions carefully before use to ensure safe and efficient operation and to maximize the lifespan of your tool accessory.
2. Продукт бүтүп калдыview
The Wera 897/4 R BiTorsion Rapidaptor is a universal bit holder designed for use with 1/4-inch hexagon drive bits. It features Rapidaptor technology for quick bit changes and a BiTorsion zone to absorb peak loads, enhancing durability and performance, especially with impact drivers.
2.1-сүрөт: The Wera 897/4 R BiTorsion Rapidaptor Universal Bit Holder, showcasing анын бекем дизайны.
2.2-сүрөт: Graphic illustrating the BiTorsion technology, which absorbs torque peaks to prevent premature wear.
2.3-сүрөт: Кесилген view of the bit holder, showing a bit securely seated within the BiTorsion zone.
3. Орнотуу
Follow these steps to prepare your bit holder for use:
- Электр куралына уч кармагычты салыңыз: Insert the hexagonal shank of the Wera 897/4 R BiTorsion Rapidaptor into the chuck of your power drill or impact driver. Ensure it is fully seated and securely tightened.

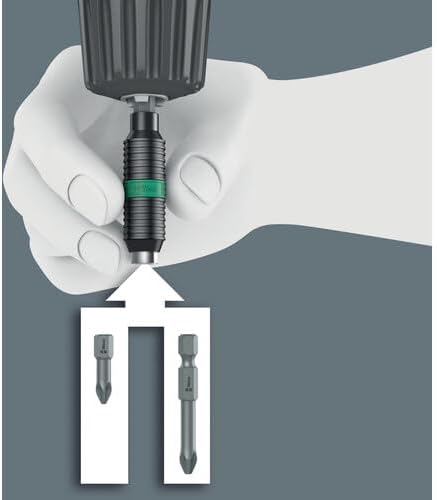

3.1-сүрөт: Proper method for inserting the bit holder into the chuck of a power tool.
- Битти кармагычка салыңыз: Push the desired 1/4-inch hexagon drive bit into the Rapidaptor bit holder. The Rapidaptor mechanism will automatically lock the bit into place without needing to pull back a collar.

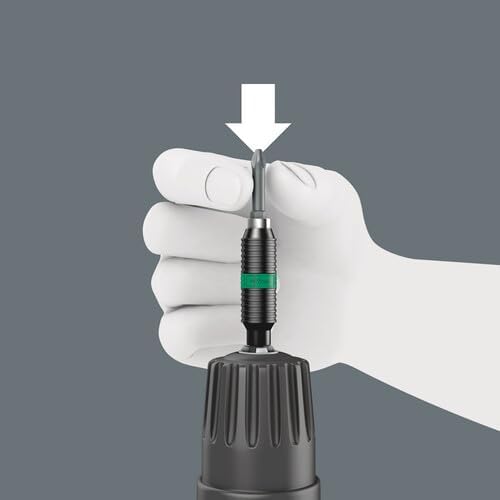

3.2-сүрөт: Demonstrating the insertion of a bit into the Rapidaptor holder.
4. Иштөө нускамалары
The Wera 897/4 R BiTorsion Rapidaptor is designed for efficient and secure bit handling.
4.1. Rapid Bit Change
- Биттерди киргизүү: Simply push the 1/4-inch hexagon bit into the holder. The Rapidaptor mechanism automatically engages, securing the bit firmly.
- Removing Bits: To remove a bit, push the collar forward. The bit will be released, allowing for quick and easy bit changes, even with one hand.
4.2. BiTorsion Functionality
The integrated BiTorsion zone is engineered to absorb kinetic energy during peak load situations, such as when an impact driver engages or disengages with a fastener. This torsional flexibility reduces stress on the bit and the bit holder, significantly extending their service life and preventing premature breakage, especially when working with high-torque applications.
4.1-сүрөт: The bit holder attached to a power tool, ready for operation.
5. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Wera bit holder.
- Тазалоо: After use, wipe the bit holder with a clean, dry cloth to remove dust, dirt, and debris. Avoid using harsh chemicals or abrasive materials that could damage the finish or internal mechanism.
- Майлоо: Periodically apply a small amount of light machine oil to the Rapidaptor collar mechanism to ensure smooth operation.
- Сактагыч: Store the bit holder in a dry environment, away from moisture and extreme temperatures, to prevent corrosion.
- Текшерүү: Regularly inspect the bit holder for any signs of wear, damage, or deformation. Discontinue use if any significant damage is observed.
6. Кыйынчылыктарды
If you encounter issues with your Wera 897/4 R BiTorsion Rapidaptor, consider the following:
- Бит бекем бекитилбей жатат: Ensure the bit is fully inserted. Check for any debris obstructing the locking mechanism. Apply a small amount of lubricant to the collar.
- Битти алып салуудагы кыйынчылык: Ensure the collar is fully pushed forward. Check for debris or corrosion. Lubricate the mechanism if necessary.
- Ашыкча термелүү: Verify that the bit holder is securely tightened in the power tool's chuck. Ensure the bit itself is not worn or damaged.
If problems persist, contact Wera customer support or consult a qualified professional.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Wera |
| Модель номери | 897/4 R (Part No. 05053923001, Item Model No. 05053923007) |
| Элементтин узундугу | 75 миллиметр |
| Материал | Эритме болот |
| Аяктоо түрү | Brushed |
| Даана саны | 1 |
| Drive System | Hex |
| Туура келген бекиткич диапазону | 0.25 inches (1/4-inch) |
| Элемент Салмагы | 2.08 унция |
| Power Source | Hand-powered (for manual use) / Power tool compatible |
8. Кепилдик жана колдоо
For detailed warranty information and customer support, please refer to the official Wera website or contact your authorized Wera dealer. Specific warranty terms may vary by region and product. You can visit the Amazon'догу Wera дүкөнү көбүрөөк продукт маалымат алуу үчүн.
