Introduction
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Fender 70th Anniversary Player Stratocaster with Rosewood Fingerboard - Nebula Noir. Please read this manual thoroughly to ensure proper use and longevity of your instrument.

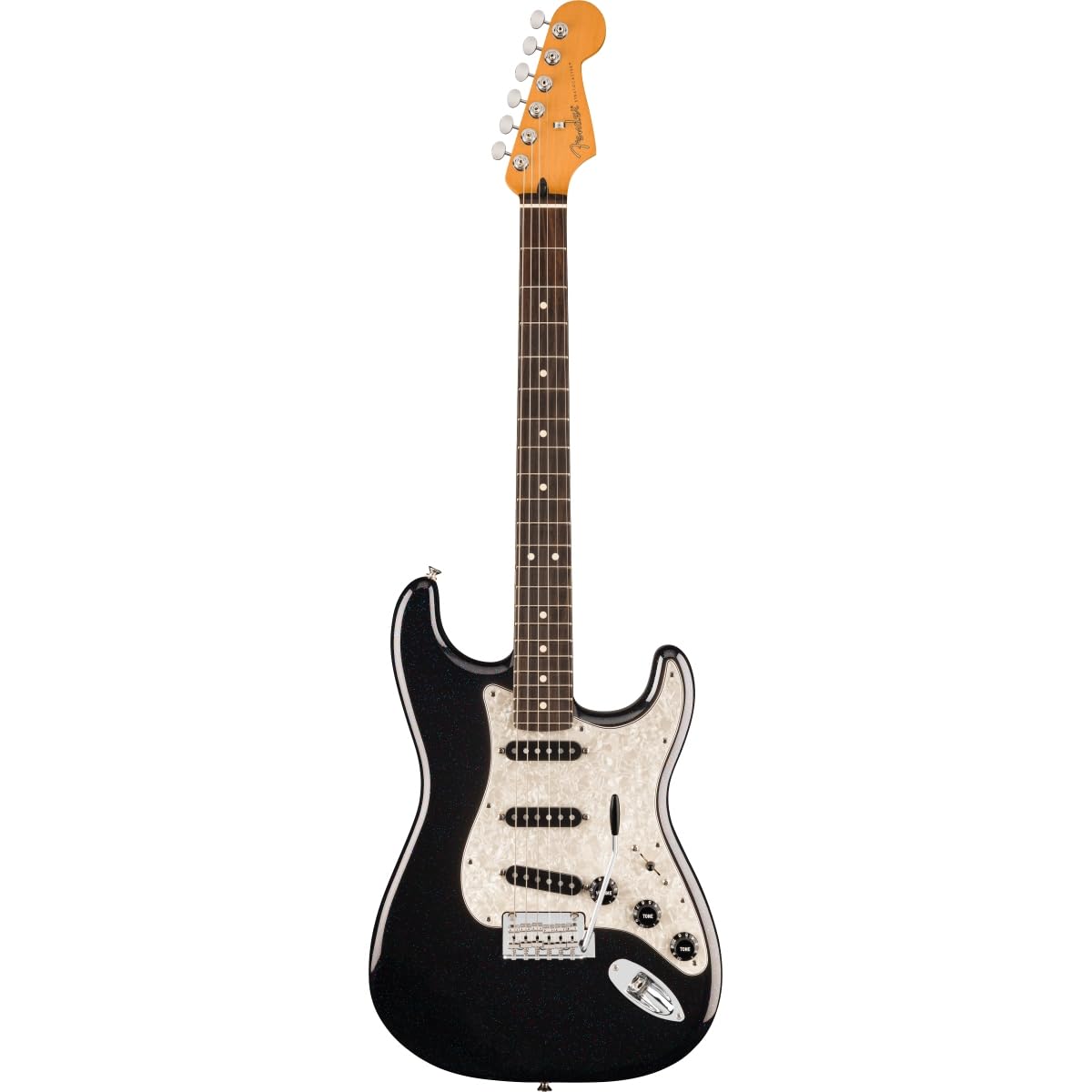

Сүрөт: алдыңкы view of the Fender 70th Anniversary Player Stratocaster in Nebula Noir, showcasing its solidbody design, three single-coil pickups, and rosewood fingerboard.
Продукт өзгөчөлүктөрү
- Solidbody Electric Guitar: Constructed with an Alder Body, providing a balanced tone and comfortable playability.
- Алып кетүү конфигурациясы: Features three single-coil pickups, offering a versatile range of tones suitable for various musical styles.
- Rosewood Fingerboard: Equipped with a smooth rosewood fingerboard for excellent playability and warm tonal characteristics.
- Maple Neck: A sturdy maple neck contributes to the guitar's bright attack and sustain.
- Nebula Noir Finish: A unique and striking finish that distinguishes this anniversary model.
Сүрөт: деталдуу view of the guitar's body, highlighting the three single-coil pickups, control knobs, and the tremolo bridge system.
Жайгашуу
Пакеттен чыгаруу жана текшерүү
Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Check the neck, body, headstock, and all hardware components. If any damage is found, contact your retailer immediately.
Баштапкы тюнинг
Before playing, tune the guitar using a reliable electronic tuner. The standard tuning for a 6-string guitar is E-A-D-G-B-e (from thickest to thinnest string).
Боону орнотуу
Attach a guitar strap to the strap buttons located on the body of the guitar. Ensure the strap is securely fastened before playing.
Сүрөт: А view of the guitar's neck and headstock, showing the tuning pegs and the Fender logo, essential for tuning and setup.
Иштөө нускамалары
Controls Overview
The Fender Stratocaster features several controls to shape your sound:
- Үн баскычы: Гитаранын жалпы үн чыгаруу көлөмүн башкарат.
- Үн баскычтары: Typically two tone knobs, one for the neck pickup and one for the middle pickup, allowing adjustment of treble frequencies.
- 5 тараптуу көтөрүп алуучу тандоо которгучу: Бул которгуч сизге ар кандай кабыл алуу айкалыштарын тандоого мүмкүндүк берет:
- 1-позиция (Көпүрө): Жаркыраган, кескин үн чыгаруу үчүн көпүрөнүн кабыл алуусун иштетет.
- Position 2 (Bridge & Middle): Combines bridge and middle pickups for a quacky, articulate sound.
- 3-позиция (Ортоңку): Тең салмактуу жана тунук үн үчүн ортоңку кабыл алууну иштетет.
- Position 4 (Middle & Neck): Combines middle and neck pickups for a warm, bell-like tone.
- Position 5 (Neck): Activates the neck pickup for a warm, full, and smooth tone.
а туташуу Ampөмүрлүү
Use a standard 1/4-inch instrument cable to connect the guitar's output jack to the input of your guitar ampөмүрлүү. Камсыз кылуу ampКатуу үндөрдүн алдын алуу үчүн, күчөткүчтү күйгүзүүдөн мурун анын үнү төмөнкү деңгээлге коюлган.
Image: A close-up of the guitar's control knobs, pickup selector switch, and the input jack, illustrating the main operational components.
Техникалык тейлөө
Тазалоо
After each use, wipe down the strings and body with a clean, soft cloth to remove sweat and oils. For the body, use a guitar-specific polish sparingly. For the rosewood fingerboard, use a dedicated fretboard conditioner periodically to prevent drying and cracking.
Сапты алмаштыруу
Strings should be replaced regularly, depending on usage. Old strings can sound dull and affect intonation. Replace one string at a time to maintain neck tension. Refer to online resources or a qualified technician for detailed string changing instructions.
Сактагыч
Store your guitar in a climate-controlled environment, away from extreme temperature fluctuations and humidity. A guitar case or gig bag is recommended for protection.
Image: The back of the guitar's headstock, showing the serial number and "Made in Mexico" inscription, important for identification and maintenance records.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн жок ampөмүрлүү | Cable not connected, amplifier off, guitar volume down, faulty cable. | Check cable connections, turn on amplifier, increase guitar volume, try a different cable. |
| Ызы-чуу же ызы-чуу | Poor grounding, faulty cable, interference from electronics, single-coil hum. | Ensure proper grounding, try a different cable, move away from electronic devices. Single-coil hum is normal for some pickup configurations. |
| Гитара үнүндө турбайт го | Old strings, improper string winding, nut friction, tuning machine issues. | Replace strings, ensure strings are wound correctly, apply graphite to nut slots, consult a technician for tuning machine issues. |
| Fret buzz | Low action, uneven frets, neck relief issues. | Adjust bridge saddle height, check neck relief, or consult a qualified guitar technician for fret leveling. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | 70th Anniversary Player Stratocaster |
| Модель номери | 70THANPLASTRWNEBNOIR |
| Дене материалы | Алдер |
| Моюн материалы | Клен |
| Fretboard материалы | Rosewood |
| Түс аты | Nebula Noir |
| Алып алуу конфигурациясы | SSS (Жалгыз-Жалгыз-Жалгыз) |
| Саптардын саны | 6 |
| Масштабдын узундугу | 25.5 дюйм |
| Гитара көпүрө системасы | Tremolo |
| Колдун багыты | Туура |
| Элемент Салмагы | 1 фунт |
| Продукциянын өлчөмдөрү | 40.5 x 15.4 x 4.4 дюйм |
| Дата биринчи жеткиликтүү | 16-ноябрь, 2023-жыл |
Кепилдик маалымат
Fender instruments typically come with a limited warranty covering manufacturing defects. For specific details regarding the warranty period and terms for your 70th Anniversary Player Stratocaster, please refer to the warranty card included with your purchase or visit the official Fender webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
For further assistance, technical support, or service inquiries, please contact Fender Customer Support. You can find contact information and additional resources on the official Fender webсайт:
Please have your model number (70THANPLASTRWNEBNOIR) and serial number ready when contacting support.
Кошумча ресурстар
While no official product videos from the seller were available for direct embedding in this manual, Fender provides a wealth of instructional videos and demonstrations on their official website and YouTube channel. These resources can offer valuable insights into playing techniques, maintenance tips, and exploring the full capabilities of your Stratocaster.
Consider exploring:
- Каптал ойноо for online lessons.
- Fender's Official YouTube Channel for product demos and tutorials.
