Introduction
Welcome to your new Best Choice Products 61-Key Electronic Keyboard Piano Set. This comprehensive set is designed for beginners and aspiring musicians, offering a full range of features to facilitate learning and musical expression. With lighted keys, multiple teaching modes, and a complete accessory bundle, you'll be playing your favorite tunes in no time. This manual provides essential information for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your instrument.
Image: The complete 61-key electronic keyboard piano set, including the keyboard, adjustable stand, padded bench, and a music rest with a tablet displaying sheet music.
Эмне камтылган
Your Best Choice Products 61-Key Electronic Keyboard Piano Set comes with the following components:
- 1 x 61-Key Electronic Keyboard
- 1 x H-Style Keyboard Stand
- 1 x Padded Stool (Bench)
- 1 x Music Stand (Holder)
- 1 х Кулакчын
- 1 x Note Stickers for keys
- Кубаттуу адаптер

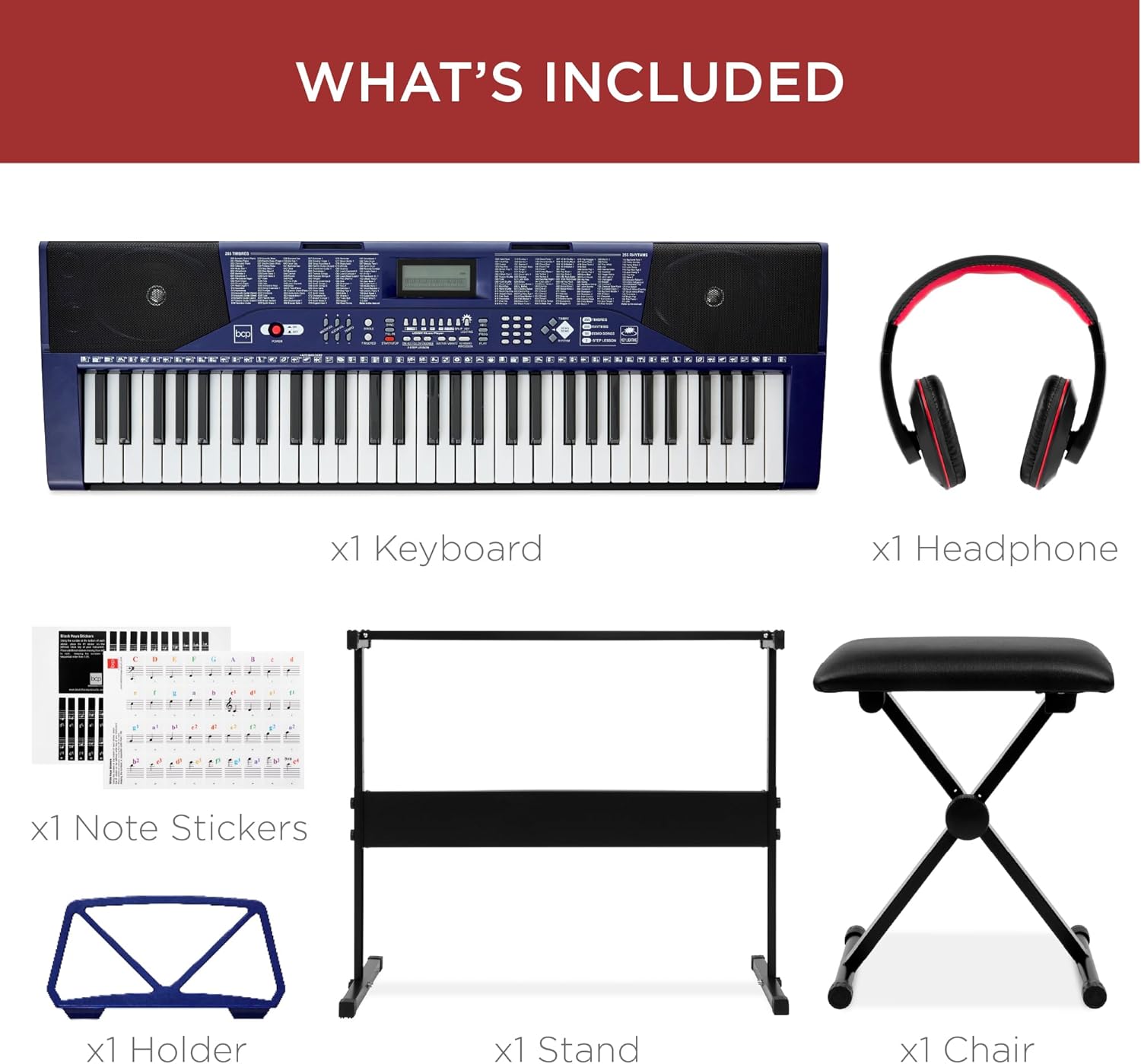

Image: A visual representation of all components included in the package: the keyboard, headphones, note stickers, a blue music holder, the black keyboard stand, and the black padded stool.
Жайгашуу
- Клавиатура стенди чогултуу: Unfold the H-style keyboard stand and adjust it to a comfortable height. Ensure all locking mechanisms are securely fastened to prevent wobbling.
- Assemble the Padded Stool: Unfold the padded stool and ensure it is stable.
- Баскычтопту жайгаштырыңыз: 61 баскычтуу электрондук клавиатураны чогултулган стендге этияттык менен коюңуз. Анын борборлоштурулганын жана туруктуу экенин текшериңиз.
- Attach the Music Stand: Insert the music stand into the designated slot on the top of the keyboard.
- Apply Note Stickers (Optional): If desired, carefully apply the provided note stickers to the keys. These can assist beginners in identifying notes.
- Туташуу кубаты: Plug the power adapter into the DC IN port on the back of the keyboard, then plug the adapter into a standard electrical outlet.
- Күйгүзүү: басыңыз КҮЧ button on the keyboard to turn it on.
Иштөө нускамалары
Негизги операция
- Үндү көзөмөлдөө: Use the volume knob or buttons to adjust the overall sound level.
- LCD экран: The LCD screen displays current settings, selected timbre, rhythm, and teaching mode information.
- Гарнитура уячасы: For private practice, plug the included headphones into the 3.5mm headphone jack. This mutes the built-in speakers.
Image: The included headphones, featuring padded speakers, designed for comfortable and private practice sessions.
Окутуу режимдери
The keyboard features three teaching modes to assist beginners:
- Бир баскычтуу режим: Allows you to play along with demo songs by pressing any key. The keyboard will play the correct note.
- Көзөмөл режими: The keyboard waits for you to play the correct note before proceeding with the song.
- Ансамбль режими: You play the melody while the keyboard plays the accompaniment.
The light-up keys feature provides visual guidance, illuminating the correct keys to press during teaching modes or demo songs.
Image: A close-up of hands playing the keyboard, with several keys illuminated in red, demonstrating the "Learn by Playing" feature with lighted keys.
Үндү ыңгайлаштыруу
Explore the various sound options to enhance your musical creations:
- Timbres (255): Select from a wide range of instrument sounds. Refer to the keyboard's panel for a list of available timbres.
- Rhythms (255): Choose from various rhythm patterns to accompany your playing.
- Demo Songs (50): Play along or listen to pre-recorded demo songs.
- Keyboard Percussion (32 types): Access different percussion sounds directly from the keys.
- Rhythm Programmer: Create and program your own rhythm sequences.
Сүрөт: деталдуу view of the keyboard's control panel, highlighting the extensive options for sound customization, including 255 timbres, 255 rhythms, 50 demo songs, and 32 percussion sounds.
USB портунун функциялары
The integrated USB port allows you to connect a USB drive and play along to songs stored on it. This feature enables you to practice with your favorite tracks or add your own melodies and rhythms to background music.
Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to wipe down the keyboard and accessories. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Сактагыч: Колдонулбай турган учурда, клавиатураны салкын, кургак жерде, күндүн түз нурунан жана өтө жогорку температурадан алыс сактаңыз.
- Колдонуу: Handle the keyboard and its components with care to prevent physical damage. Avoid dropping or placing heavy objects on the keys.
- Күч: Always turn off the keyboard and unplug it from the power outlet when not in use for extended periods or during electrical storms.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамиктерден/наушниктерден үн чыкпайт | Volume too low; Headphones not fully inserted; Power not connected. | Increase volume; Re-insert headphones firmly; Ensure power adapter is connected and keyboard is on. |
| Ачкычтар күйбөйт | Light-up key feature is off; Not in a teaching mode that uses lighted keys. | Activate the key lighting feature (refer to keyboard controls); Select a teaching mode (One-Key, Follow, Ensemble). |
| Баскычтоп күйбөй жатат | Кубат адаптери туташкан эмес; розеткада көйгөй бар. | Check power adapter connection; Try a different power outlet. |
| Бурмаланган үн | Үн өтө жогору; Байланыштар бошоп калган. | Lower volume; Check all cable connections. |
If you encounter issues not listed here, please refer to the manufacturer's support information.
Техникалык шарттар
- Бренд: Мыкты тандоо продуктылары
- Модель аты: 61 баскычтуу башталгычтар үчүн электрондук клавиатуралуу пианино, жарыктандырылган баскычтар жана кулакчындар менен
- Модель номери: SKY7174
- Ачкычтардын саны: 61
- Тембрлер: 255
- Ритмдер: 255
- Демо ырлар: 50
- Перкуссия клавиатурасы: 32 түрү
- Продукциянын өлчөмдөрү: 36.4" (L) x 12" (W) x 3.7" (H)
- Элемент Салмагы: 17.2 фунт
- Түсү: Көк
- Материал түрү: Пластик
- Байланыш технологиясы: USB
- Наушник уячасы: 3.5 мм Jack
- Чеберчилик деңгээли: Beginner
- Өзгөчө өзгөчөлүгү: Portable
- UPC: 842957136353

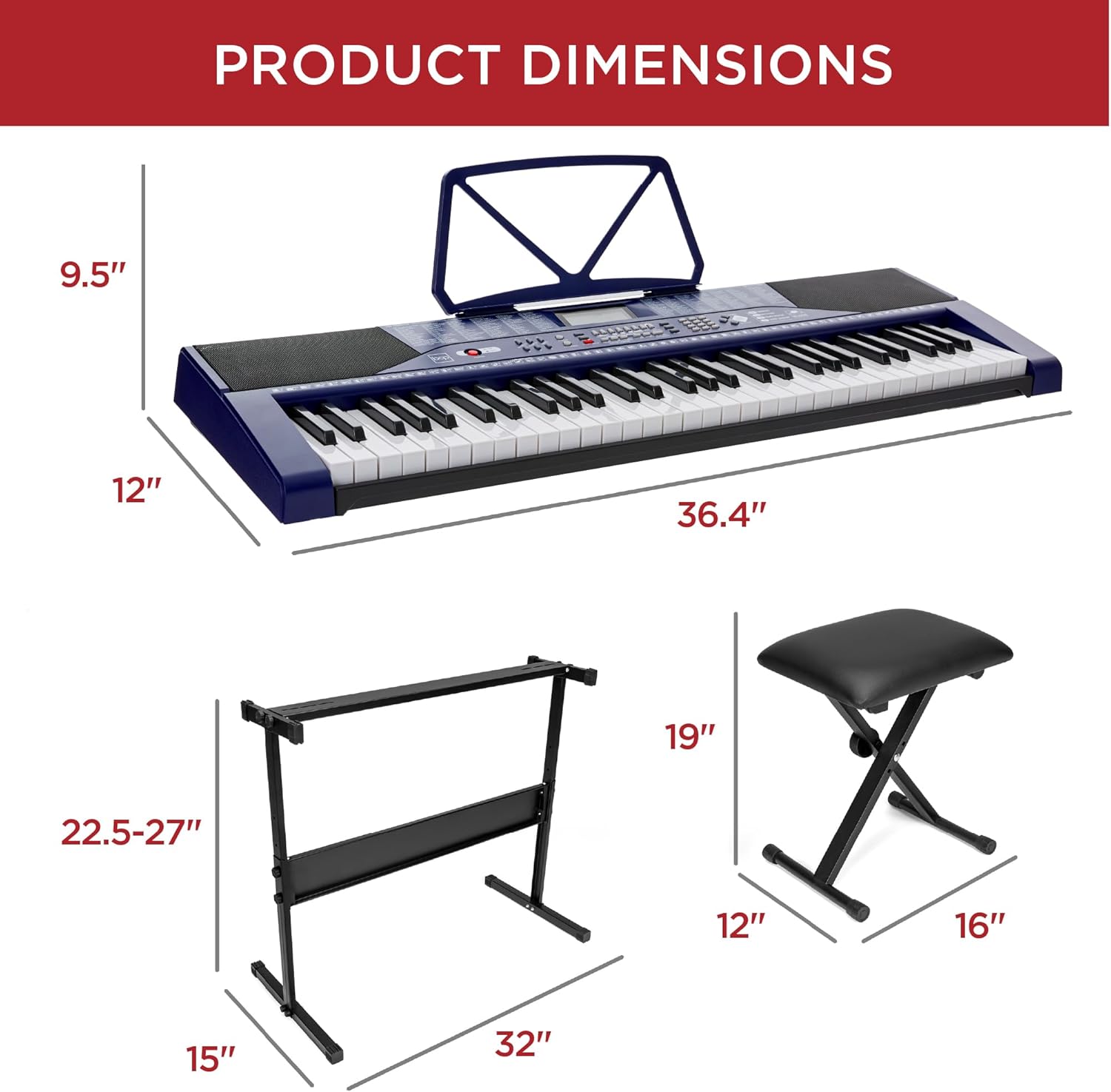

Image: A visual guide illustrating the key dimensions of the keyboard (36.4" L x 12" W x 9.5" H with music rest), the keyboard stand (32" W x 15" D x 22.5-27" H adjustable), and the padded stool (16" L x 12" W x 19" H).
Кепилдик жана колдоо
For detailed warranty information and customer support, please refer to the documentation included with your product or visit the official Best Choice Products website. You can also contact their customer service for assistance with any product-related inquiries or issues.
Protection plans are available for purchase separately. Please refer to the product listing or contact Best Choice Products for more details on extended protection options.
