Sonoro MeisterSTÜCK Compact System (Gen.2) Колдонуучунун колдонмосу

1. Киришүү

The Sonoro MeisterSTÜCK Compact System (Gen.2) is an advanced all-in-one audio system designed for high-fidelity sound and versatile connectivity. This manual provides essential information for setting up, operating, and maintaining your device, ensuring optimal performance and longevity.

Сүрөт 1: Алдыңкы view of the Sonoro MeisterSTÜCK Compact System (Gen.2).

2. Орнотуу

2.1 Пакеттен чыгаруу жана жайгаштыруу

• Carefully remove all components from the packaging. Retain packaging for future transport or service.
• Place the MeisterSTÜCK on a stable, level surface, ensuring adequate ventilation around the unit. Avoid direct sunlight, heat sources, and excessive moisture.

2-сүрөт: Мисample placement of the Sonoro MeisterSTÜCK in a home environment.

2.2 Кубат туташтыруу

• Connect the power cable to the AC IN port on the rear of the unit, then plug it into a suitable wall outlet.

2.3 Баштапкы орнотуу

• Upon first power-on, the system will guide you through initial setup steps, including language selection and network configuration (Wi-Fi).
• For optimal sound, utilize the dedicated room correction application to calibrate the audio output to your specific room acoustics.

3. Иштөө нускамалары

3.1 Негизги башкаруу каражаттары

• Күйгүзүү/өчүрүү: Алдыңкы панелдеги же алыстан башкаруу пультундагы кубат баскычын басыңыз.
• Үндү көзөмөлдөө: Use the rotary knob on the front panel or the volume buttons on the remote control.
• Булак тандоо: Press the 'Source' button on the front panel or remote to cycle through available inputs (CD, FM, DAB+, Internet Radio, Bluetooth, Aux, Optical, HDMI).

3.2 CD ойноткучтун иштеши

• Insert a CD into the slot on the front panel. The system will automatically detect and begin playback.
• Use the Play/Pause, Skip Forward, and Skip Backward buttons on the front panel or remote for control.
• To eject a CD, press the Eject button.

3.3 Radio (FM/DAB+/Internet Radio)

• Select FM, DAB+, or Internet Radio as the source.
• Use the navigation controls to browse stations. For Internet Radio, you can search by genre, location, or name.
• Тез жетүү үчүн сүйүктүү станцияларыңызды алдын ала орнотуулар катары сактаңыз.

3.4 Wireless Streaming (Bluetooth, AirPlay, Google Cast, Spotify Connect)

• Bluetooth: Select Bluetooth as the source. On your mobile device, search for 'Sonoro MeisterSTÜCK' in Bluetooth settings and pair. The system supports bidirectional Bluetooth for connecting headphones or external speakers.
• AirPlay/Google Cast: Ensure your device and the MeisterSTÜCK are on the same Wi-Fi network. Select the MeisterSTÜCK from the AirPlay or Google Cast options in your streaming application.
• Spotify Connect: Open the Spotify app on your device, play music, and select the MeisterSTÜCK as the playback device.

3.5 Алыстан башкаруу

Figure 3: The included remote control for the Sonoro MeisterSTÜCK.

The remote control provides full functionality for the MeisterSTÜCK, including power, volume, source selection, playback controls, and menu navigation. Ensure the included AAA batteries are correctly inserted.

4. Байланыштар

The MeisterSTÜCK offers a wide array of connectivity options on its rear panel to integrate with various audio and video devices.

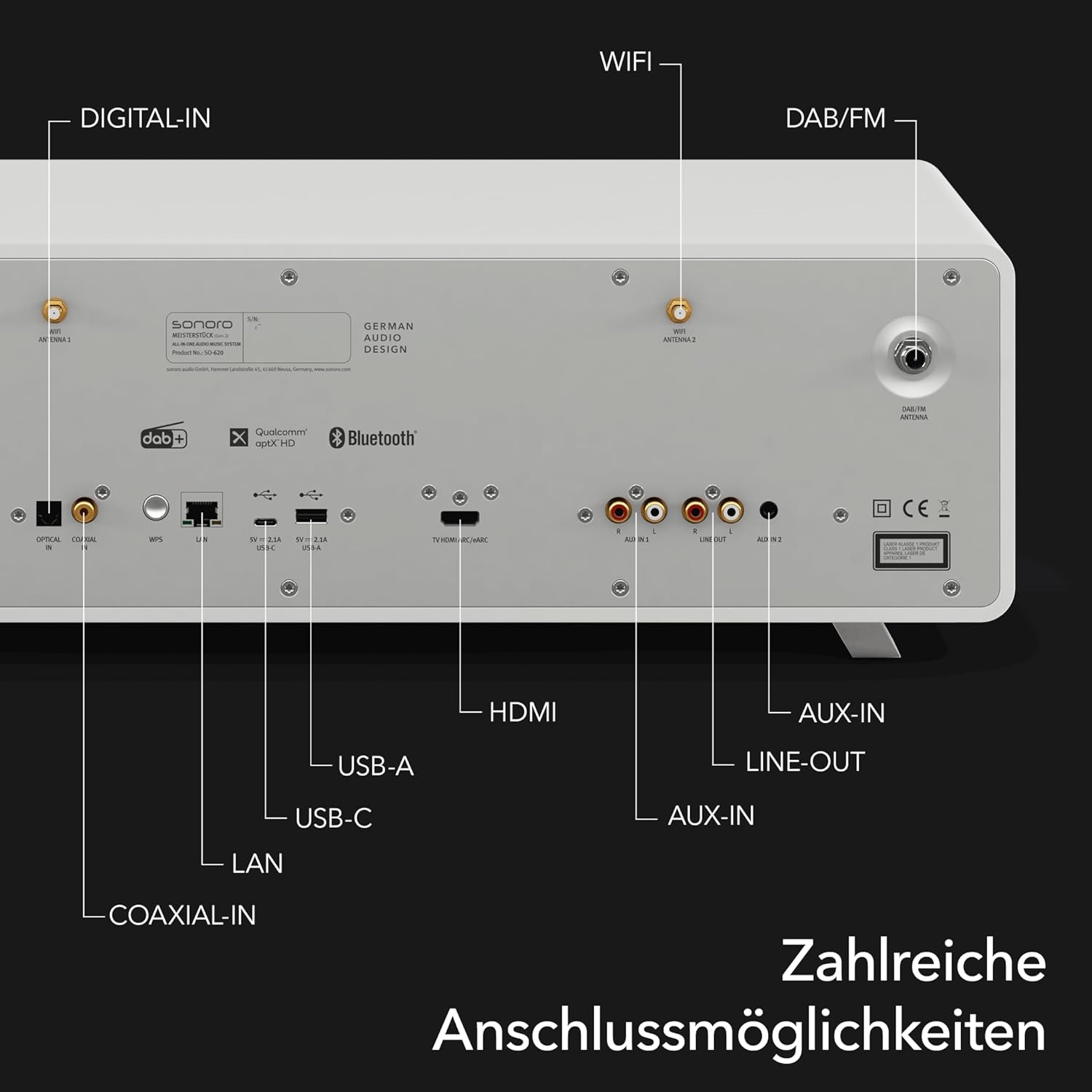

4-сүрөт: Детальдуу view of the rear connection panel.

• HDMI (eARC): Connect to a compatible TV for enhanced audio return channel functionality.
• USB-A: USB сактагыч түзмөктөрүнөн медиа ойнотуу үчүн.
• USB-C: Supports both charging external devices and media playback.
• Оптикалык санариптик киргизүү: Connect digital audio sources such as TVs or game consoles.
• Auxiliary Input (3.5mm & RCA): Connect analog audio sources like MP3 players or older audio equipment.
• LAN (Ethernet): Туруктуу зымдуу тармак туташуусу үчүн.
• DAB/FM антеннасы: Connect the included antennas for digital and analog radio reception.
• Чыгуу: Тышкы туташуу үчүн ampкөтөргүчтөр же жаздыруучу түзүлүштөр.

5. Техникалык тейлөө

5.1 Тазалоо

• Агрегатты жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды, момдорду же эриткичтерди колдонбоңуз.
• Тазалоодон мурун бирдиктин розеткадан ажыратылганын текшериңиз.

5.2 Программалык камсыздоо жаңыртуулары

• Periodically check for software updates through the system's menu or the Sonoro app to ensure optimal performance and access to new features.

6. Кыйынчылыктарды

• Кубат жок: Check if the power cable is securely connected to both the unit and the wall outlet. Ensure the outlet is functional.
• Үн жок: Verify the volume level is not muted or too low. Check source selection and ensure external devices are properly connected and powered on.
• Туташуу маселелери: For Wi-Fi, ensure the unit is within range of your router. For Bluetooth, ensure the device is in pairing mode and within range.
• CD ойнотуу каталары: CD таза жана чийиксиз экенин текшериңиз. Башка CDди колдонуп көрүңүз.

If problems persist, consult the Sonoro support webсайтка же кошумча жардам алуу үчүн кардарларды тейлөөгө кайрылыңыз.

7. Техникалык шарттар

8. Кепилдик жана колдоо

The Sonoro MeisterSTÜCK Compact System (Gen.2) comes with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Sonoro webдеталдуу кепилдик шарттары жана шарттары үчүн сайт.

For technical support, spare parts, or service inquiries, please contact Sonoro customer support through their official channels. Information regarding software updates and product registration can also be found on their webсайт.
