Hubsan H-58X Brushless Drone User Manual

1. Киришүү

This user manual provides essential information for the safe and effective operation of your Hubsan H-58X Brushless Drone. Please read this manual thoroughly before operating the drone to ensure proper usage and to prevent damage or injury. The H-58X is equipped with advanced features such as obstacle sensors, a brushless motor, and a dual camera system for an enhanced flying experience.

2. Кутуда эмне бар

Upon unboxing your Hubsan H-58X drone, please verify that all components listed below are present and in good condition:

• Hubsan H-58X Drone
• Алыстан башкаруу
• 2 x Lithium-Polymer Batteries
• USB заряддагыч
• Пропеллердин сакчылары
• Ташуу кутусу
• Кепилдик картасы

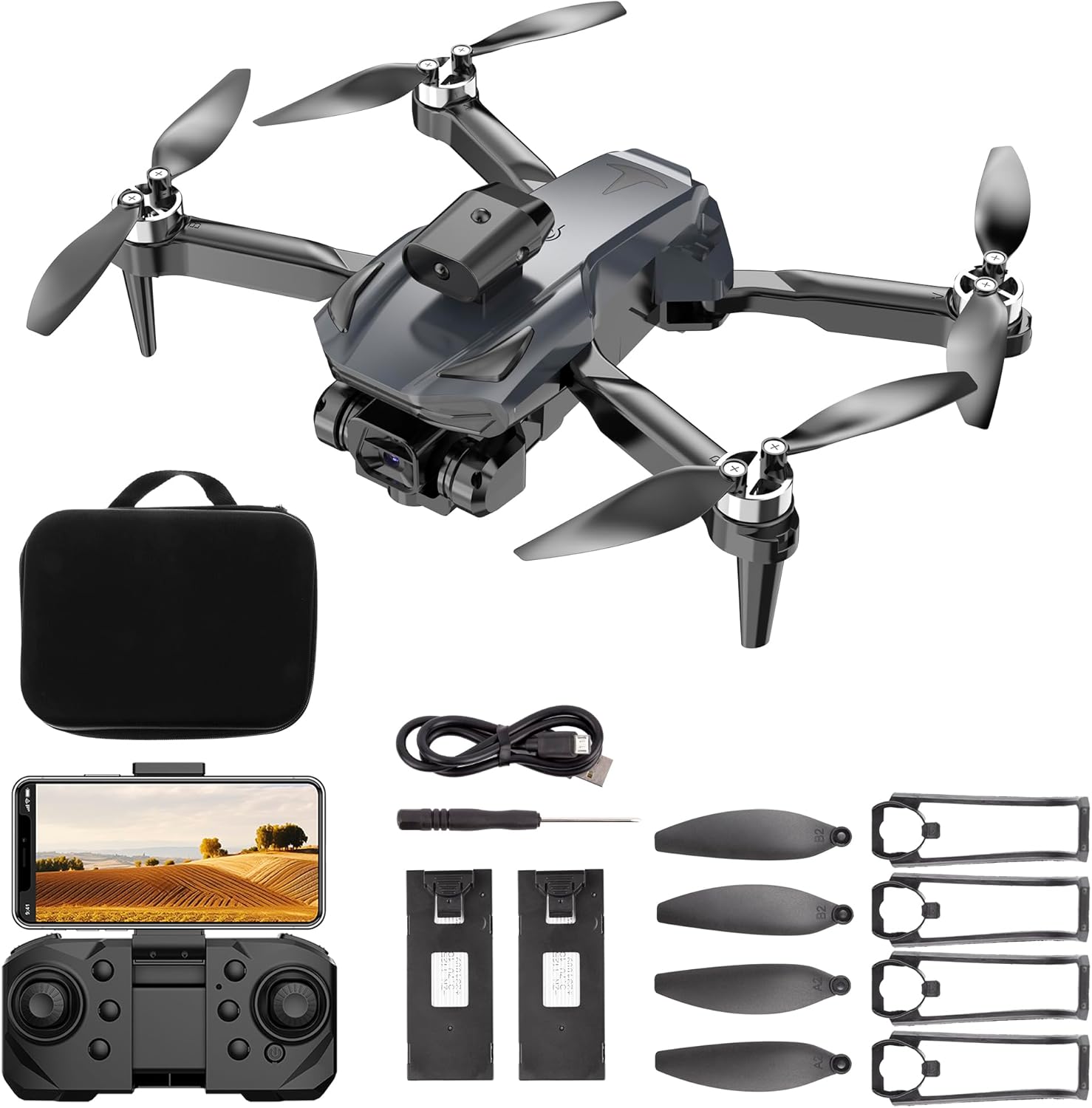

Image 2.1: All components included with the Hubsan H-58X drone, including the drone itself, remote control, batteries, charger, propeller guards, and carrying case.

3. Орнотуу

3.1 Батареяны орнотуу жана заряддоо

The Hubsan H-58X drone requires two Lithium-Polymer batteries for operation. Ensure batteries are fully charged before first use.

1. Insert the fully charged Lithium-Polymer battery into the designated battery compartment on the rear of the drone. Ensure it clicks securely into place.
2. To charge the batteries, connect the provided USB charger to a power source and then to the battery. The charging indicator will show the charging status.

Image 3.1: Illustrates the easy installation of the modular large battery into the drone's compartment.

3.2 Пропеллерди коргоону орнотуу

For added safety, especially during initial flights, attach the propeller guards:

1. Identify the four propeller guards.
2. Carefully snap each guard onto the corresponding arm of the drone, ensuring a snug fit around the propellers.

3.3 Алыстан башкарууну жөндөө

Ensure the remote control has sufficient power. If it uses replaceable batteries, insert them according to the polarity markings. The remote control is essential for operating the drone's flight and camera functions.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү жана жупташтыруу

1. Күйгүзүү: Place the drone on a flat, level surface. Press and hold the power button on the drone until the indicator lights illuminate. Power on the remote control.
2. Жупташтыруу: The drone and remote control should automatically pair. If not, follow the specific pairing sequence outlined in the quick start guide (usually involves moving the throttle stick up and down).
3. Өчүрүү: Power off the drone first, then the remote control.

4.2 Учууну башкаруу

Familiarize yourself with the remote control layout before attempting flight:

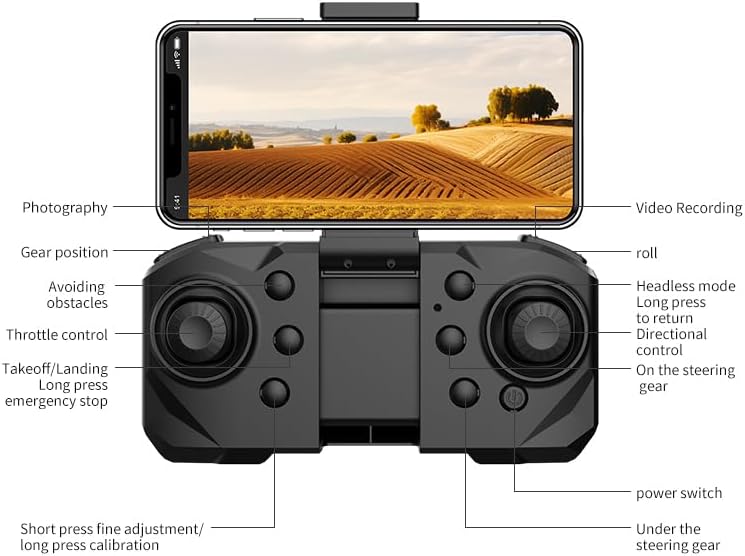

Image 4.1: Detailed layout of the Hubsan H-58X remote control, showing functions such as throttle control, directional control, photography, video recording, obstacle avoidance, and headless mode.

• дроссель башкаруу: Typically the left stick, controls altitude (up/down).
• Багыттык көзөмөл: Typically the right stick, controls forward/backward, left/right movement.
• Учуу/конуу: Dedicated button or combination stick movement for automated takeoff and landing. Long press for emergency stop.
• Тоскоолдуктан качуу: Activate this feature to utilize the drone's 720-degree obstacle sensors.
• 360-Degree Tumbling: Press the designated button and move the right stick in the desired direction to perform a 360-degree flip.

4.3 Камеранын иштеши

The H-58X features a dual camera system capable of 4K video recording.

• Сүрөт: Press the camera button on the remote to capture still images.
• Видео жаздыруу: Press the video button to start/stop recording. Ensure a compatible memory card is inserted if required.
• Жөнгө салынуучу линза: The electric tuning dual lens allows for remote adjustment of the shooting angle, including a 90-degree control for the bottom screen.

5. Features Overview

The Hubsan H-58X drone incorporates several advanced features designed to enhance flight safety and performance:

5.1 Obstacle Sensors

The H-58X is equipped with 720-degree obstacle sensors that activate during flight. This system minimizes the chance of collisions, making your flight safer and more enjoyable by detecting and avoiding obstacles in front, back, left, and right directions.

Image 5.1: Depicts the omnidirectional intelligent obstacle avoidance system, showing how the drone detects and avoids surrounding obstacles for a safer flight.

5.2 Brushless Motor

Featuring brushless motors, the H-58X offers significantly reduced wind resistance and provides quieter, smoother, and more stable flights compared to brushed motors. This also contributes to increased durability and efficiency.

5.3 Кош камера системасы

Thanks to its dual-camera technology, the H-58X strives for the highest possible fixation to capture sharper photos and 4K video. The electric tuning dual lens allows for flexible adjustment of the shooting angle.

Сүрөт 5.2: Жакын план view of the drone's electric tuning dual lens, highlighting its capability to maintain balance and switch shooting angles freely.

5.4 VPS Sensor (Visual Positioning System)

With the Visual Positioning System (VPS) sensor, the drone maintains stability in windless areas and accurately holds its position without requiring constant manual input, ensuring a steady hover.

5.5 360-Degree Tumbling

The H-58X can perform 360-degree tumbling maneuvers in any direction (front, right, or left), adding an exciting element to your flight experience.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your drone:

• Тазалоо: After each flight, gently wipe the drone's body and camera lens with a soft, dry cloth to remove dust and debris. Avoid using liquid cleaners directly on electronic components.
• Пропеллер текшерүү: Regularly check propellers for any cracks, bends, or damage. Replace damaged propellers immediately to ensure stable flight.
• Батареяга кам көрүү: Батареяларды салкын, кургак жерде сактаңыз. Батареяларды ашыкча заряддабаңыз же ашыкча разряддабаңыз. Эгер узак убакытка сактасаңыз, аларды болжол менен 50% сыйымдуулукка чейин заряддаңыз.
• Мотор инспекциясы: Ensure motors are free from obstructions and can spin freely.

7. Кыйынчылыктарды

If you encounter issues with your Hubsan H-58X drone, refer to the following common problems and solutions:

• Дрон күйбөйт: Батарея толук заряддалганын жана туура салынганын текшериңиз. Кубат баскычынын туура иштеп жатканын текшериңиз.
• Drone does not pair with remote: Ensure both the drone and remote are powered on. Try restarting both devices and repeat the pairing process. Ensure no other strong wireless signals are interfering.
• Туруксуз учуу/Дрифт: Calibrate the drone's gyroscope and compass as per the quick start guide. Check for damaged propellers and replace if necessary. Ensure you are flying in an area with minimal wind.
• Камера жаздырбай/сүрөткө тартылбайт: Ensure a compatible memory card is inserted correctly (if applicable). Check the camera settings via the app (if applicable) or remote control.
• Тоскоолдуктан качуу иштебейт: Ensure the obstacle avoidance feature is activated. Clean the obstacle sensors to ensure they are not obstructed.

If problems persist, consult the official Hubsan support resources or contact customer service.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Your Hubsan H-58X drone comes with a warranty card. Please refer to the warranty card for details regarding coverage and terms. For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact HUBSAN customer service through their official channels. Keep your proof of purchase for warranty validation.
