Introduction
This manual provides comprehensive instructions for the safe and effective use of your GardePro Video Baby Monitor. Please read this manual thoroughly before operating the device and retain it for future reference.
The GardePro Video Baby Monitor (models B180M and B180C) offers advanced features for monitoring your baby, including a 5-inch display, 1080p FHD camera, two-way audio, and super clear night vision, all without requiring a Wi-Fi connection. It is designed to provide peace of mind with its long-range capabilities and robust signal stability.
Продукт компоненттери
The GardePro Video Baby Monitor package includes the following items:
- 1 x Монитор (Ата-эне бирдиги)
- 1 x Камера (Балалар бирдиги)
- 1 x 5V/2A Power Adapter for Monitor
- 1 x 3ft/1m USB Power & Data Cord for Monitor
- 1 x 5V/2A Power Adapter for Camera
- 1 x 9ft/3m USB Power Cord for Camera
- 1 x Wall Mount for Camera

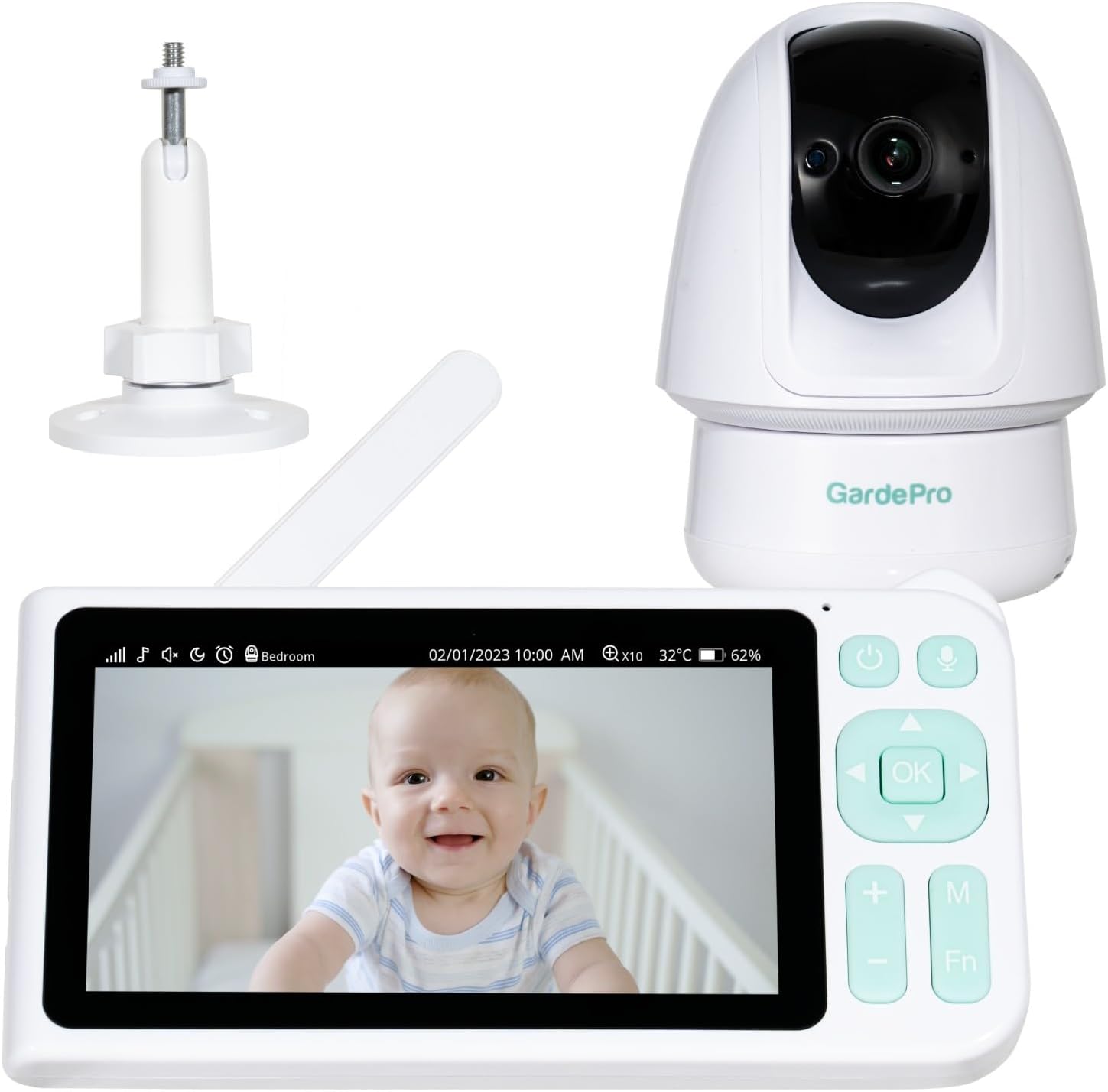

Image: The complete GardePro Video Baby Monitor system, showing the parent unit (monitor), baby unit (camera), and the included wall mount accessory.
Негизги өзгөчөлүктөрү
- 3000ft Full-House Coverage: Utilizes advanced wireless modules for extensive signal range, ensuring connectivity throughout homes of all sizes, even through walls and floors.
- 1080p Camera & Super-Clear Night Vision: Equipped with a Sony Starvis sensor for high-definition video and clear night vision, offering a 120° viewбурч.
- 5” True-Color 720p Display: A large 5-inch display provides a clear and comfortable viewтажрыйбасы.
Image: The 5-inch parent unit display, highlighting its size and clear image quality.
- Signal Stability & Plug and Play: Features a strong, stable signal that penetrates walls without interference. Supports plug-and-play functionality, eliminating the need for manual pairing.
- Sound & Motion Alerts: Provides real-time alerts for baby's sounds (giggles, cries) and any movement detected within the camera's view, enhancing safety and responsiveness.
- Pan, Tilt, Zoom Functionality: The camera offers remote pan, tilt, and zoom capabilities for comprehensive room coverage.
Image: The baby unit camera illustrating its 350-degree pan and 100-degree tilt capabilities.
- Эки тараптуу аудио: Allows for clear communication between the parent unit and the baby unit.
Image: A visual representation of the two-way audio feature, showing a parent communicating with their baby through the monitor.
- Бесик ырлары: Integrated lullaby function to soothe the baby.
- 5000 мАч Батарея: High-capacity battery in the parent unit for extended use.
Орнотуу колдонмосу
- Ата-эне блогун кубаттоо: Connect the 5V/2A power adapter to the parent unit and a power outlet. Allow the unit to fully charge before first use. The parent unit contains a 5000mAh Lithium Ion battery.
- Power the Baby Unit (Camera): Connect the 5V/2A power adapter to the baby unit and a power outlet. The camera requires continuous power to operate.
- Ымыркай бөлүмүнүн жайгашкан жери: Наристе бөлүгүн (камера) тунук болгон жерге кой view of your baby. Ensure it is at least 3 feet (1 meter) away from the baby's crib or bed to prevent entanglement hazards from the power cord. The included wall mount can be used for optimal positioning.
- Күйгүзүү: Press and hold the power button on both the parent unit and the baby unit until they turn on.
- Автоматтык жупташтыруу: The parent unit and baby unit are pre-paired at the factory. They should automatically connect once both units are powered on and within range. No manual pairing is typically required.
- Камеранын бурчун тууралоо: Once connected, use the controls on the parent unit to pan, tilt, and zoom the camera to achieve the desired viewбурч.
Image: An illustration demonstrating the effective long range of the GardePro baby monitor, showing the camera inside a house and the monitor being used outdoors.
Иштөө нускамалары
Parent Unit Controls:
- Кубат баскычы: Press and hold to turn on/off. Press briefly to turn the screen on/off.
- Үн баскычтары (+/-): Угуу үнүн тууралаңыз.
- Чабыттоо баскычтары (өйдө/төмөн/сол/оң): Control camera pan/tilt, navigate menus.
- OK баскычы: Менюлардагы тандоолорду ырастаңыз.
- Меню (M) баскычы: Орнотуулар үчүн негизги менюга кириңиз.
- Функция (Fn) баскычы: Quick access to specific features (e.g., lullabies, zoom).
- Микрофон баскычы: Press and hold to activate two-way audio to speak to your baby.
Camera Control (from Parent Unit):
- Панорама/Тилт: Use the navigation buttons on the parent unit to remotely adjust the camera's horizontal (pan up to 350 degrees) and vertical (tilt up to 100 degrees) viewбурчтар.
- Чоңойтуу: Use the Function (Fn) button or menu options to digitally zoom in on the image.
Мониторинг өзгөчөлүктөрү:
- Түнкү көрүнүш: The camera automatically switches to infrared night vision in low-light conditions, providing a clear black and white image.
- Эки тараптуу аудио: Press and hold the microphone button on the parent unit to speak. Your voice will be transmitted through the baby unit's speaker. Release the button to hear your baby.
- Үн эскертүүлөрү: The monitor will alert you to sounds detected in the baby's room. Sensitivity can be adjusted in the menu.
- Кыймыл эскертүүлөрү: Receive notifications when movement is detected by the camera.
- Бесик ырлары: Select and play pre-loaded lullabies from the parent unit's menu to soothe your baby.

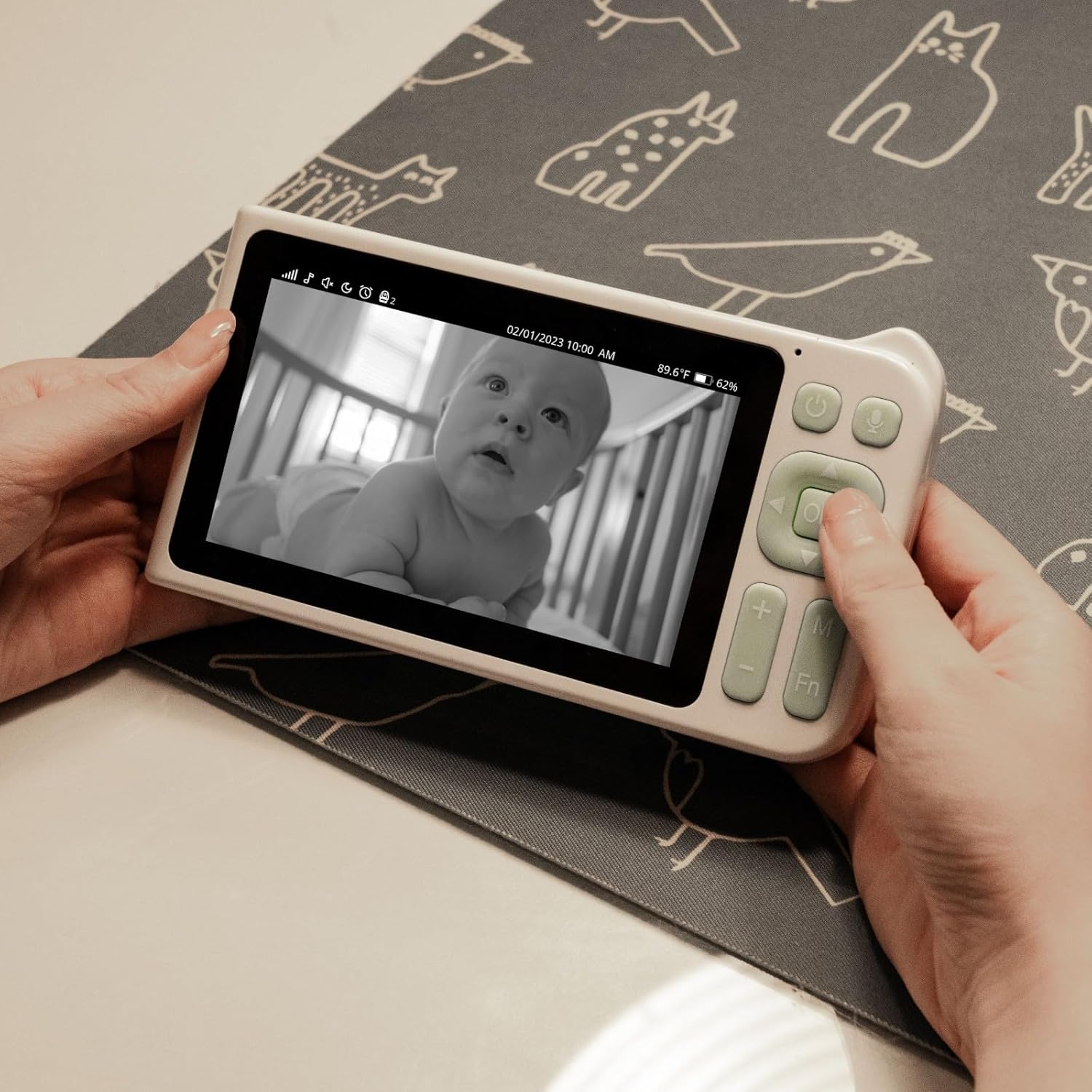

Image: The parent unit screen showing a baby in a crib, demonstrating the clear night vision capability.
Техникалык тейлөө
- Тазалоо:
- Wipe the monitor and camera surfaces with a soft, dry, lint-free cloth.
- Тазалоочу спрейлерди же суюк тазалагычтарды түз эле агрегаттарга колдонбоңуз.
- Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Battery Care (Parent Unit):
- Батареянын иштөө мөөнөтүн узартуу үчүн, бат-баттан батарейканы толук зарядсыздандырбаңыз.
- Charge the unit regularly.
- If storing the unit for an extended period, charge it to approximately 50% and store in a cool, dry place.
- Сактагыч: Колдонулбаган учурда, шаймандарды салкын, кургак жерде, күн нуру түз тийген жерден жана өтө жогорку температурадан алыс сактаңыз.
- Кабелдик башкаруу: Ensure all power cords are routed safely and are out of reach of children to prevent strangulation hazards.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ата-эне бөлүмүндө сүрөт/үн жок. | Units are not powered on or out of range. | Ensure both units are powered on and charged. Move parent unit closer to baby unit. |
| Poor image quality/signal interference. | Obstructions (walls, furniture) or other electronic devices. | Reduce distance between units. Move units away from other electronics (microwaves, Wi-Fi routers). |
| Ата-эне бөлүгүнүн батареясы бат эле түгөнөт. | Frequent use, screen always on, or aging battery. | Reduce screen brightness. Turn off screen when not actively viewing. Ensure full charge before use. |
| Эки тараптуу аудио иштебей жатат. | Microphone button not pressed or volume too low. | Press and hold the microphone button on the parent unit. Increase volume on both units. |
| Camera not responding to pan/tilt/zoom. | Туташуу маселеси же камеранын бузулушу. | Restart both units. Ensure they are properly paired. If issue persists, contact support. |
Техникалык шарттар
- Модель номерлери: B180M (Monitor), B180C (Camera)
- Видео тартуу токтому: 1080p
- Effective Video Resolution: 1080
- Дисплей өлчөмү: 5 дюйм
- Дисплейдин чечилиши: 720p (True-Color)
- Камера Viewбурч: 120°
- Camera Pan Angle: 350 градус
- Камеранын кыйшаюу бурчу: 100 градус
- Зымсыз байланыш технологиясы: No-WiFi (FHSS protocol)
- Диапазон: 3000 футка чейин (ачык аянтча)
- Ата-эне блогунун батареясы: 5000mAh литий-ион (кошулган)
- Кубат булагы: Battery Powered Screen and Plug-in Camera
- Тtage: 5 вольт (ток)
- Ватtage: 1.3 ватт
- Кадр ылдамдыгы: секундасына 30 кадр
- Камтылган компоненттер: Monitor, Camera, 2x Power Adapters, 2x USB Power Cords, Wall Mount
- Өлчөмдөрү (L x W x Y): 16.4 x 9.3 x 2.3 Centimetres (Monitor)
- Элемент Салмагы: 250 г
- Түсү: Ак
- Өзгөчөлүктөр: Long-range Connection, Starvis Night Vision, HD Display, Two-Way Audio, Lullabies, Sound & Motion Alerts
- Орнотуу түрү: Freestanding (Monitor), Wall Mount (Camera)
Кепилдик жана колдоо
GardePro products are designed for reliability and performance. For warranty information, technical support, or assistance with your GardePro Video Baby Monitor, please refer to the contact information provided with your product packaging or visit the official GardePro website. Please have your model number (B180M, B180C) and purchase details ready when contacting support.
Эң акыркы колдоо ресурстары үчүн төмөнкү дарекке кириңиз: www.gardepro.com/support
