1. Киришүү
Thank you for choosing rimthin 9005 9006 LED Fog Lamps. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new fog light bulbs. Please read these instructions carefully before installation and retain them for future reference.
2. Продукциянын өзгөчөлүктөрү
- "Пайдаланып иштетүү" дизайны: Features a miniature 1:1 design, similar to original halogen bulbs, eliminating the need for external drivers or wires for simplified installation.
- Ultra-High Brightness: Provides approximately 600% more brightness than standard halogen bulbs, enhancing visibility and road illumination.
- Perfect Beam Pattern: Engineered to deliver a focused beam without dark spots or shadow areas, preventing glare for oncoming drivers and improving overall driving safety.
- Узун өмүр: Integrated with a 12,000 RPM high-speed cooling fan and 6063 aluminum body for efficient heat dissipation, ensuring over 50,000 hours of continuous and stable operation.
- Жакшыртылган көрүнүш: Specifically designed to improve visibility and safety in adverse weather conditions such as dense fog, rain, and snow.
- Суу өткөрбөйт рейтинги: IP67 ар кандай аба ырайынын шарттарында ишенимдүү иштөө үчүн бааланган.
Image: The IP67 waterproof design ensures reliable performance in diverse weather conditions, including rain, fog, and snow.
3. Пакеттин мазмуну
Пакет төмөнкү нерселерди камтыйт:
- 2 x 9005 LED Fog Bulbs
- 2 x 9006 LED Fog Bulbs
- 1 x User Manual
Сүрөт: алдыңкы view of the rimthin product packaging.
4. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Бренд | rimthin |
| Модел | 9005+9006 (HB3+HB4) |
| Жарык булагы түрү | LED туман жарык |
| Түс | Cool White |
| Түс температурасы | 6500 Келвин |
| Жарыктык | 32000 люмен (ар бир жуп үчүн) |
| Тtage | DC 12 вольт |
| Материал | 6063 алюминий |
| Суу өткөрбөйт рейтинги | IP67 |
| Operating Life | 50,000 сааттан ашык |
| Муздатуу системасы | 12,000 RPM High-Speed Fan |
| Продукциянын өлчөмдөрү | 3.76 x 2.93 x 3.15 дюйм |
| Элемент Салмагы | 5.3 унция |
Image: Product specifications listed on the packaging.
Image: Compatible bulb models listed on the product packaging.
5. Орнотуу боюнча колдонмо
The rimthin 9005 9006 LED Fog Lamps feature a simple plug-and-play design for easy installation. No external drivers or complex wiring are required.
- 1-кадам: Locate your vehicle's existing fog light bulbs. Ensure the vehicle is turned off and the engine is cool.
- 2-кадам: Carefully remove the old halogen bulb from its housing.
- 3-кадам: Insert the new rimthin LED fog bulb into the housing. Ensure it is securely seated and properly aligned.
- 4-кадам: Connect the LED bulb's connector to your vehicle's original wiring harness.
- 5-кадам: Test the new LED fog lights to ensure they function correctly.
For specific vehicle instructions, please consult your vehicle's owner's manual.
Image: Visual guide for the 5-minute plug-and-play installation process.
6. Операция
Once installed, your rimthin LED Fog Lamps will provide bright, cool white illumination for improved driving visibility. Turn on your vehicle's fog lights as you normally would. The advanced beam pattern is designed to illuminate the road effectively without causing glare to other drivers.
Image: Comparison illustrating the perfect beam pattern of rimthin LED fog lights for safer and further illumination.
Image: Brightness comparison showing rimthin LED fog lights are significantly brighter than standard halogen bulbs.
7. Техникалык тейлөө
The rimthin LED Fog Lamps are designed for long-lasting performance with minimal maintenance. The integrated cooling system helps maintain optimal operating temperatures, contributing to their extended lifespan.
- Тазалоо: Periodically clean the surface of the fog light lenses to ensure maximum light output. Use a soft cloth and a mild cleaning solution.
- Текшерүү: Regularly inspect the bulbs and connections for any signs of damage or loose connections.
- Жылуулук таркатылышы: Ensure that the area around the cooling fan is not obstructed to allow for proper airflow and heat dissipation.

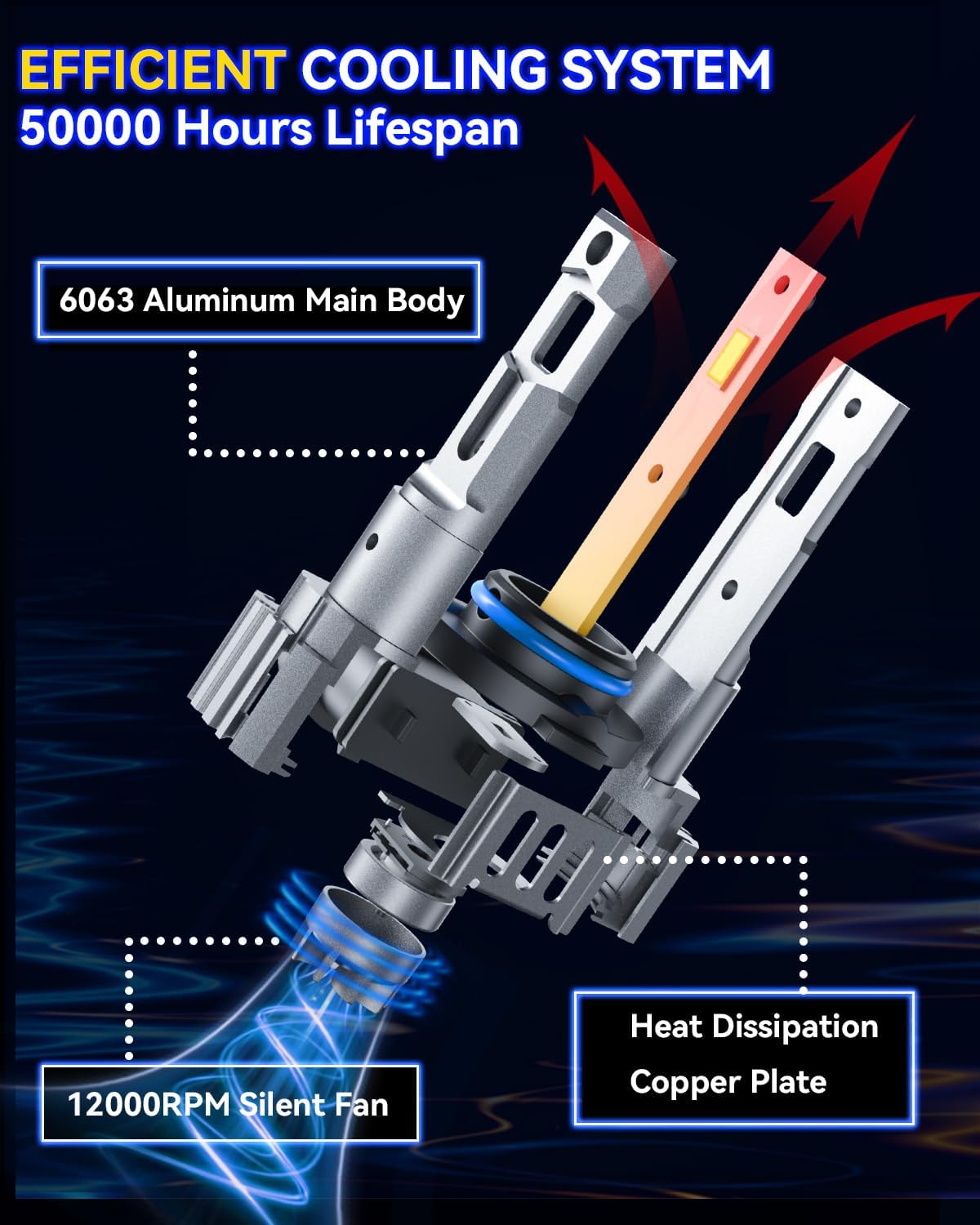

Image: Illustration of the efficient cooling system components, designed for a 50,000-hour lifespan.
8. Кыйынчылыктарды
If you encounter any issues with your rimthin LED Fog Lamps, consider the following:
- Лампочка күйбөйт: Check the electrical connections to ensure they are secure. Verify that the vehicle's fog light circuit is receiving power.
- Жылтылдап: Ensure the bulbs are correctly installed and the connections are stable. Some vehicles may require an additional CANBUS decoder to prevent flickering or error messages.
- Incorrect Bulb Size: The filter system used for vehicle compatibility may not always be 100% accurate. Always check your vehicle's owner's manual or the part number on your original bulbs to confirm the correct bulb size (9005/HB3 and 9006/HB4).
If you are unable to resolve an issue, please contact rimthin customer support for assistance.
9. Кепилдик жана колдоо
rimthin products are designed for quality and reliability. For any questions, technical support, or warranty claims, please contact the seller directly through the platform where the product was purchased. Provide your order details and a description of the issue for prompt assistance.
