1. Киришүү
This manual provides essential information for the safe and efficient operation of your Blumfeldt 400W Flat Design Bathroom Radiator. Please read these instructions carefully before installation and use, and retain them for future reference.
The Blumfeldt Flat Design Radiator is a vertical, wall-mounted electric heating unit designed for bathrooms, living rooms, and other indoor spaces. It features 400W heating power, app control, an adjustable thermostat, and a timer function for optimal comfort and energy efficiency.
Image 1.1: Blumfeldt Flat Design Bathroom Radiator (50 x 100 cm, Anthracite)
2. Коопсуздук нускамалары
ЭСКЕРТҮҮ: Бул коопсуздук көрсөтмөлөрүн аткарбоо өрткө, электр тогуна урунууга, жаракат алууга же мүлккө зыян келтирүүгө алып келиши мүмкүн.
- электр менен жабдууну камсыз кылуу voltage шаймандагы рейтинг белгисине дал келет.
- Do not operate the radiator with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Do not use the radiator in areas where flammable liquids or gases are stored.
- Keep children and pets away from the radiator during operation. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not cover the radiator. Covering the radiator can cause overheating and fire.
- Maintain a safe distance from walls and other objects to ensure proper air circulation.
- Always unplug the radiator before cleaning or performing any maintenance.
- This radiator is designed for indoor use only. Do not use outdoors.
- The radiator is equipped with overheat protection. If it overheats, it will automatically shut off. Unplug the unit and allow it to cool before restarting.
3. Пакеттин мазмуну
Кутучаны этияттык менен ачып, бардык буюмдардын бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир буюмдар жок болсо же бузулуп калса, дароо сатуучуга кайрылыңыз.
- 1 x Blumfeldt Flat Design Bathroom Radiator
- 1 x Wall mounting material (screws, anchors, brackets)
- 1 x Multilingual instruction manual (this document)
4. Орнотуу жана орнотуу
The Blumfeldt Flat Design Radiator is designed for vertical wall mounting. No complex plumbing is required as it is an electric unit.
- Жайгашкан жерди тандаңыз: Select a suitable wall location, ensuring it is away from water sources (if in a bathroom) and has a power outlet within reach of the 110 cm power cable. Ensure there is sufficient clearance around the radiator for heat dissipation.
- Бургулоо пункттарын белгилөө: Hold the radiator or mounting bracket against the wall at the desired height and mark the drilling points for the wall brackets. Use a level to ensure the radiator will be mounted straight.
- Бургулоо тешиктери: Drill holes at the marked points using an appropriate drill bit for your wall type. Insert wall anchors if necessary.
- Кашаларды тиркөө: Securely fasten the wall brackets to the wall using the provided screws.
- Радиатор тоосу: Carefully lift the radiator and hook it onto the installed wall brackets. Ensure it is securely seated.
- Туташуу кубаты: Plug the radiator's power cord into a suitable electrical outlet.
Image 4.1: Illustration of wall mounting process.
Image 4.2: Detail of the wall mounting bracket.
Image 4.3: Radiator dimensions (50 cm width, 100 cm height, 10.5 cm depth) and 110 cm cable length.
5. Иштөө нускамалары
The radiator can be controlled via its integrated electronic thermostat with an LED display or through the Blumfeldt app.
5.1. Кол менен башкаруу (термостат)
The electronic thermostat allows for precise temperature control and timer settings.
Image 5.1: Close-up of the electronic thermostat with LED display.
- Күйгүзүү/өчүрүү: Кубат баскычын басыңыз (U) to turn the radiator on or off.
- Температураны жөндөө: Жогору жакты колдонуу (^) жана Down (v) buttons to set the desired temperature. The temperature range is typically 30°C to 70°C.
- Меню/режим тандоо: Press the 'MENU' button to cycle through different operating modes or settings, such as timer functions.
- Таймер функциясы: The radiator features a programmable weekly timer. Refer to the on-screen prompts or the app for detailed timer setup.
- Балдар кулпусу: A child lock feature is available to prevent accidental changes to settings. Consult the specific thermostat interface for activation/deactivation.
5.2. App Control (Blumfeldt App)
For convenient remote control and advanced scheduling, use the Blumfeldt app.

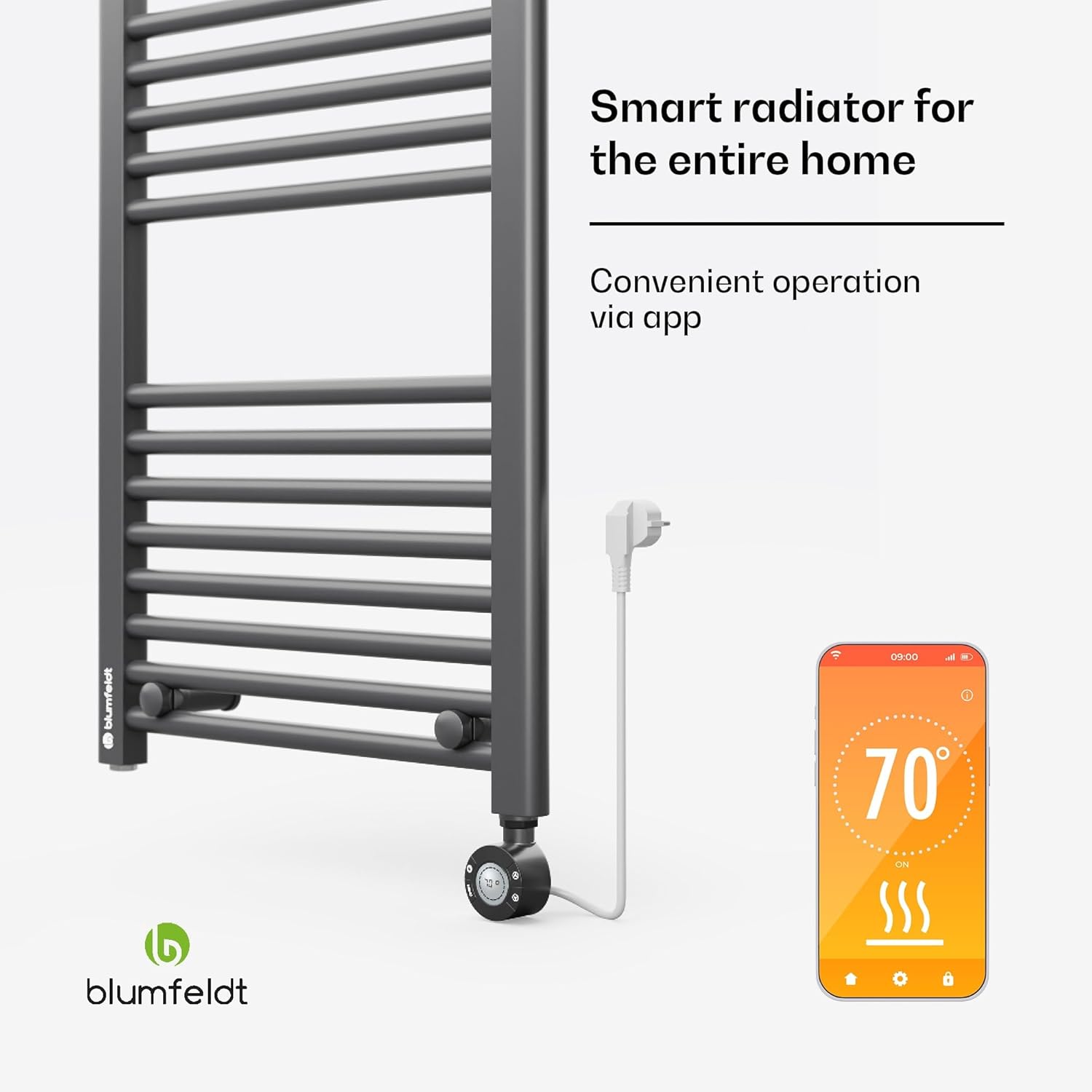

Image 5.2: Smartphone interface showing the Blumfeldt app for radiator control.
- Колдонмону жүктөп алуу: Download the official Blumfeldt app from your smartphone's app store (iOS or Android).
- Түзмөктү жупташтыруу: Follow the in-app instructions to pair your radiator with your smartphone. This typically involves putting the radiator into a pairing mode and connecting via Wi-Fi or Bluetooth.
- Башкаруу функциялары: Once paired, you can use the app to:
- Turn the radiator on/off.
- Температураны тууралаңыз.
- Set and manage weekly heating schedules.
- Activate/deactivate the child lock.
- Monitor current operating status.
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө радиаторуңуздун узак мөөнөттүү жана натыйжалуу иштешин камсыздайт.
- Тазалоо: Before cleaning, always unplug the radiator and allow it to cool completely. Wipe the flat heating ribs and exterior surfaces with a soft, damp кездеме. Абразивдүү тазалагычтарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз, анткени алар финишке зыян келтириши мүмкүн.
- Сактагыч: If storing the radiator for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.
- Текшерүү: Periodically inspect the power cord and plug for any signs of damage. If damage is found, do not use the radiator and contact qualified personnel for repair.
7. Кыйынчылыктарды
If you encounter issues with your Blumfeldt radiator, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Радиатор күйбөйт. | Электр энергиясы жок; Кубат баскычы басылган эмес; Ашыкча ысып кетүүдөн коргоо иштетилди. | Check if the plug is securely in the outlet. Ensure the power outlet is functional. Press the power button. Unplug and allow to cool for 30 minutes before restarting. |
| Радиатор натыйжалуу жылыбайт. | Temperature setting too low; Room size too large for radiator; Obstruction blocking heat. | Increase the set temperature. Ensure the radiator is appropriately sized for the room. Remove any objects covering or blocking the radiator. |
| Колдонмону башкаруу иштебей жатат. | Radiator not paired; Wi-Fi connectivity issues; App outdated. | Ensure the radiator is in pairing mode and correctly paired with the app. Check your Wi-Fi connection. Update the Blumfeldt app to the latest version. |
| адаттан тыш үндөр же жыттар. | чаң топтоо; Ички күнөө. | Unplug the radiator and clean it thoroughly. If the issue persists, discontinue use and contact customer support. |
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | blumfeldt |
| Модель номери | HTR5-RT-CN-01 |
| Күч | 400 Вт |
| Өлчөмдөрү (W x Y x D) | 50 x 100 x 12.5 см |
| Салмагы | 11 кг |
| Түс | Антрацит |
| Энергия булагы | Электр зымы менен |
| Өзгөчөлүктөр | Adjustable thermostat, Timer function, Energy-saving, Overheat protection, App control, Child lock |
| Жылытуу ыкмасы | мантиядагы |
| Бөлмө түрү | Bathroom, Living Room, Office |
| Орнотуу түрү | Дубалга орнотулган |
9. Кепилдик жана колдоо
Your Blumfeldt Flat Design Bathroom Radiator comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions.
For technical support, service, or spare parts, please contact the Blumfeldt customer service department or your authorized dealer. Keep your purchase receipt and model number (HTR5-RT-CN-01) handy when contacting support.
