1. Киришүү
Thank you for choosing the ROOMTEC Glass Display Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new display cabinet. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
This elegant display cabinet features tempered glass panels and sturdy particle board construction, designed to showcase your valuable collections, such as jewelry, bags, shoes, figurines, books, wine, and whisky. Its double-door design and three spacious shelves offer ample storage and display opportunities for various items in your living room, bedroom, office, or collection room.
Image 1.1: The ROOMTEC Glass Display Cabinet, elegantly displaying various items in a home environment.
2. Коопсуздук нускамалары
Сиздин коопсуздугуңуз баарынан маанилүү. Сураныч, төмөнкү коопсуздук эрежелерин сактаңыз:
- Эки адамдык жыйын: Assembly requires at least two adults. Do not attempt to assemble alone due to the weight and fragility of the glass components.
- Айнекти этияттык менен кармаңыз: All glass panels are tempered for safety, but they can still break if mishandled or subjected to sharp impacts. Wear protective gloves during assembly.
- Чакырууга каршы түзмөк: Always secure the cabinet to the wall using the provided anti-tipping device. This prevents accidental tipping, especially in households with children or pets.
- Салмактык чектөөлөр: Do not exceed the maximum weight capacity for each shelf or the overall cabinet. Refer to the "Specifications" section for detailed weight limits.
- Туруктуу бети: Place the cabinet on a flat, level, and stable surface to ensure proper balance and prevent wobbling. Use the adjustable feet to level the cabinet if necessary.
- Ашыкча жүктөөдөн качыңыз: Distribute weight evenly across shelves. Avoid placing heavy items on the top of the cabinet.
- Кабинетти жылдыруу: Once assembled and filled, the cabinet is very heavy. If relocation is necessary, empty the cabinet first and move it carefully with assistance to prevent damage or injury.
Image 2.1: Key safety and installation features of the display cabinet.
3. Пакеттин мазмуну
Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.
- Tempered Glass Panels (Side, Back, Doors, Shelves)
- Top and Bottom Particle Board Panels
- Adjustable Base Feet
- Hardware Kit (Screws, Hinges, Locks, Anti-tipping device, Shelf supports)
- Assembly Tools (Hex key, Screwdriver - may be included or required)
- Көрсөтмө (бул документ)
4. Орнотуу жана чогултуу
Follow these steps carefully for proper assembly. It is highly recommended to have two people for this process.
- аймакты даярдоо: Choose a clean, flat, and spacious area for assembly. Lay down a soft blanket or cardboard to protect the glass panels and your floor.
- Attach Base Feet: Secure the adjustable base feet to the bottom particle board panel using the provided screws. Ensure they are tightened securely.
- Рамканы чогултуу: Attach the side glass panels to the bottom panel, followed by the back glass panels. Use the designated connectors and screws to create the basic frame.
- Текчелерди орнотуу: Insert the shelf supports into the pre-drilled holes at your desired heights. Carefully place the tempered glass shelves onto the supports.
- Жогорку панелди тиркөө: Place the top particle board panel onto the assembled frame, securing it with the appropriate hardware.
- Эшиктерди орнотуу: Attach the hinges to the glass doors and then to the cabinet frame. Adjust the hinges to ensure the doors align properly and close smoothly.
- Кулпуну орнотуу: If your model includes a lock, install it according to the instructions in the hardware kit.
- Кабинетти тегиздеңиз: Once fully assembled, adjust the base feet to ensure the cabinet is perfectly level and stable on your floor.
- Дубалга коопсуз: Attach the anti-tipping device to the top rear of the cabinet and secure it firmly to a wall stud using appropriate wall anchors (not always included, depending on wall type). This step is crucial for safety.
Эскертүү: Some users have reported that the instructions can be challenging. If you encounter difficulties, refer to the provided diagrams carefully or seek assistance from the seller if a video guide is available.
Image 4.1: The cabinet features HD Shatter-proof Glass for enhanced safety and durability.
5. Кабинеттин иштөөсү
Using your ROOMTEC Glass Display Cabinet is straightforward:
- Эшиктерди ачуу/жабуу: Gently pull the handles to open the double doors. Push them firmly to close. Ensure they latch properly.
- Бөгөттөө механизми: If your cabinet has a lock, insert the key and turn to lock or unlock the doors. Remove the key after locking to prevent loss.
- Текчелерди жөндөө: To change shelf height, carefully remove items from the shelf, lift the glass shelf, reposition the shelf supports to desired holes, and then place the shelf back.
- Объекттерди көрсөтүү: Arrange your items on the shelves, ensuring even weight distribution and adherence to weight limits. The glass doors help protect your collections from dust.
Image 5.1: The cabinet is versatile for displaying various items, such as handbags in a bedroom setting.
6. Техникалык тейлөө жана кам көрүү
Proper care will ensure the longevity and appearance of your display cabinet:
- Айнек тазалоо: Use a soft, lint-free cloth and a glass cleaner (ammonia-free recommended) to clean glass surfaces. Spray cleaner onto the cloth, not directly onto the glass, to avoid streaks and protect the wood panels.
- Cleaning Wood Panels: Wipe wood particle board panels with a soft, damp кездеме. Абразивдүү тазалагычтардан же ашыкча нымдуулуктан качыңыз.
- Чаңдандыруу: Ички жана тышкы беттерди таза жана тунук кармоо үчүн чаңды үзгүлтүксүз сүртүп туруңуз.
- Аппараттык камсыздоону текшерүү: Мезгил-мезгили менен бардык бурамалар менен байланыштарды текшерип туруңуз, алар бекем бойдон калууда. Керек болсо кайра тартыңыз.
- Түздөн-түз күндүн нурунан качуу: Prolonged exposure to direct sunlight may cause fading or damage to the wood panels.
- Температура жана нымдуулук: Maintain a stable room temperature and humidity level to prevent warping or damage to the materials.
7. Кыйынчылыктарды
Бул жерде сиз кабылышы мүмкүн болгон жалпы маселелерди чечүү жолдору бар:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кабинет солкулдап/туруктуу эмес. | Uneven floor; loose base feet; not secured to wall. | Adjust the base feet until the cabinet is level. Ensure all screws are tightened. Secure the cabinet to the wall using the anti-tipping device. |
| Эшиктер туура эмес же жабылбайт. | Hinges are loose or misaligned; cabinet is not level. | Check and adjust the hinges. Ensure the cabinet is level. |
| Small gaps between doors or panels. | Minor manufacturing tolerance; assembly not perfectly flush. | This can be a minor aesthetic issue. Ensure all connections are as tight as possible. While minimal gaps may exist, they typically do not affect functionality. |
| Glass shattered during assembly. | Improper handling; excessive force; defect. | Immediately stop assembly. Carefully clean up all glass shards. Contact customer support for replacement parts. |
If you encounter issues not listed here, or if the suggested solutions do not resolve the problem, please contact ROOMTEC customer support for assistance.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | W-B10400523D |
| Өлчөмдөрү (H x W x D) | 125.7 cm x 80.7 cm x 36.5 cm (approx. 49.5" H x 31.7" W x 14.3" D) |
| Материал | Tempered Glass, Solid Wood Particle Board |
| Айнек калыңдыгы | 5 мм |
| Текчелердин саны | 3 (жөндөлүүчү) |
| Текче салмагынын сыйымдуулугу (ар бири) | 7.3 кг (болжол менен 16 фунт) |
| Top/Bottom Plate Weight Capacity (each) | 38.1 кг (болжол менен 84 фунт) |
| Adjustable Feet Weight Capacity | Up to 90.7 kg (approx. 200 lbs) |
| Өзгөчөлүктөрү | Double Doors, Lockable, Adjustable Base Stand, Anti-Tipping Device |
| Продукт Салмагы | 48.1 кг (болжол менен 106 фунт) |

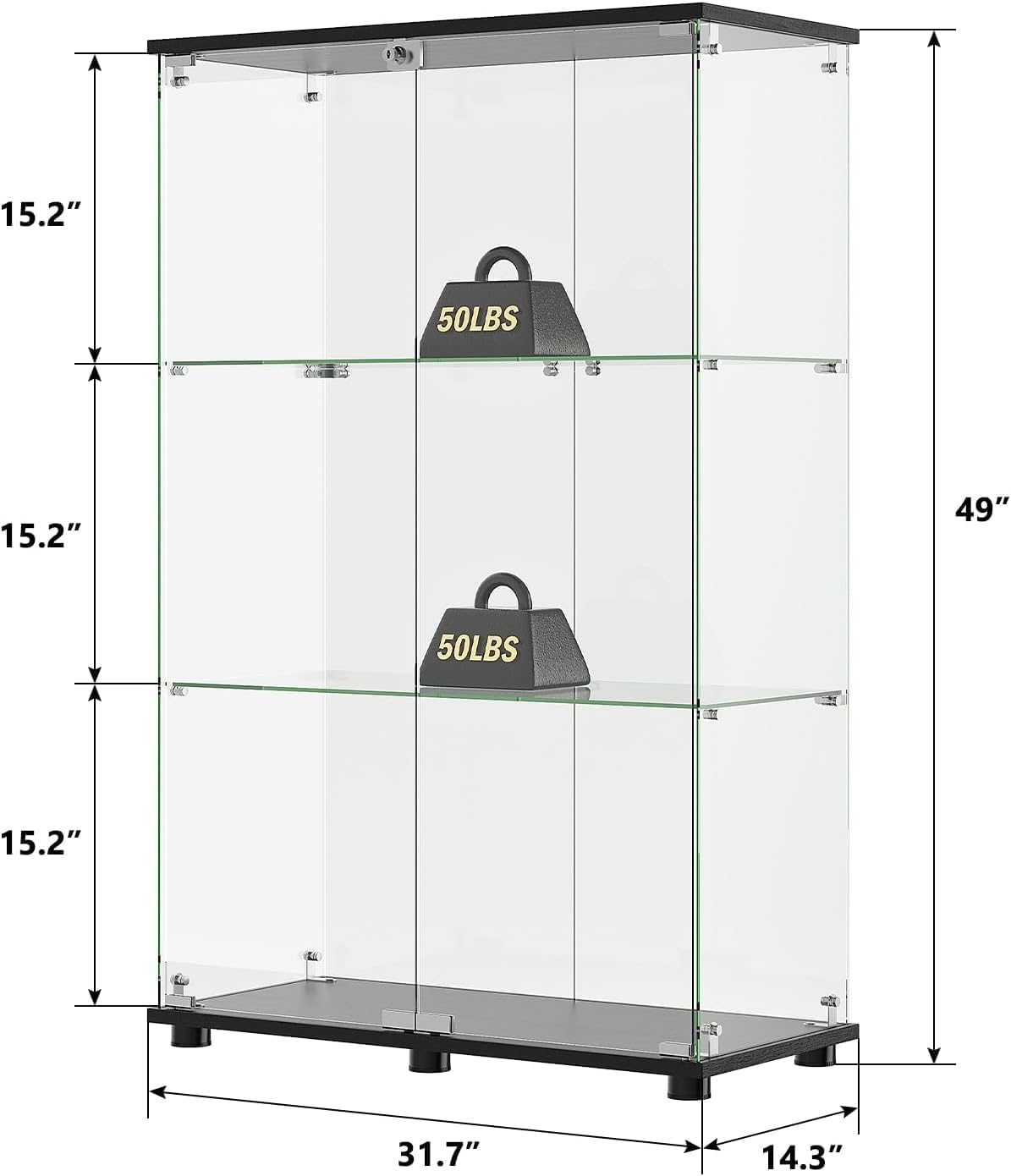

Image 8.1: Detailed dimensions and shelf weight capacity of the display cabinet.
9. Кепилдик жана колдоо
ROOMTEC products are designed for quality and durability. For information regarding warranty coverage, please refer to the purchase documentation or contact your retailer.
If you have any questions, require assistance with assembly, or need replacement parts, please contact ROOMTEC customer support. Provide your model number (W-B10400523D) and purchase details for faster service.
Кардарларды колдоо кызматы менен байланыш: Please refer to the contact information provided with your purchase or visit the official ROOMTEC webколдоо чоо-жайы үчүн сайт.
