Introduction
Сатып алганыңыз үчүн рахматasing the Parrot Uncle Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new TV stand with an integrated electric fireplace. Please read all instructions carefully before assembly and use, and retain this manual for future reference.
This product combines a rustic wooden TV cabinet with an 18-inch electric fireplace, designed to accommodate televisions up to 47 inches. It features storage compartments and an electric fireplace capable of providing supplemental heat and ambient flame effects.
Коопсуздук маалыматы
- Электр коопсуздугу: Электр розеткасынын т.бtage requirements of the electric fireplace. Do not overload circuits. Keep power cords away from heated surfaces and foot traffic.
- Жайгашкан жери: Place the TV stand on a flat, stable, and level surface. Avoid placing it near flammable materials, curtains, or in areas with high humidity.
- Вентиляция: Do not block the air vents of the electric fireplace. Ensure adequate clearance around the unit for proper air circulation.
- Ассамблея: Follow all assembly instructions precisely. Do not use power tools for assembly unless specifically instructed, as this may overtighten screws and damage the material.
- Балдар жана үй жаныбарлары: Keep children and pets away from the fireplace unit, especially when it is operating and hot.
- Ашыкча ысып кетүүдөн коргоо: The electric fireplace is equipped with an overheat protection feature that automatically shuts off the unit if it becomes too hot. If this occurs, unplug the unit, allow it to cool, and check for any obstructions to the air vents before restarting.
Пакеттин мазмуну
Монтаждоону баштоодон мурун, төмөндө келтирилген бардык бөлүктөрдүн бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, чогултууну улантпаңыз жана кардарларды колдоо менен байланышыңыз.
- Wooden panels for TV stand frame
- Аппараттык пакет (буроолор, дюбельдер, камера кулпулары ж.б.)
- Glass doors with metal mesh inserts
- Эшик туткалары
- Electric fireplace insert (18-inch)
- Remote control for fireplace
- Колдонмо
Монтаждоо көрсөтмөлөрү
Assembly typically requires two adults. Lay out all components on a soft, clean surface to prevent scratches. Refer to the diagram below for component identification and assembly sequence.

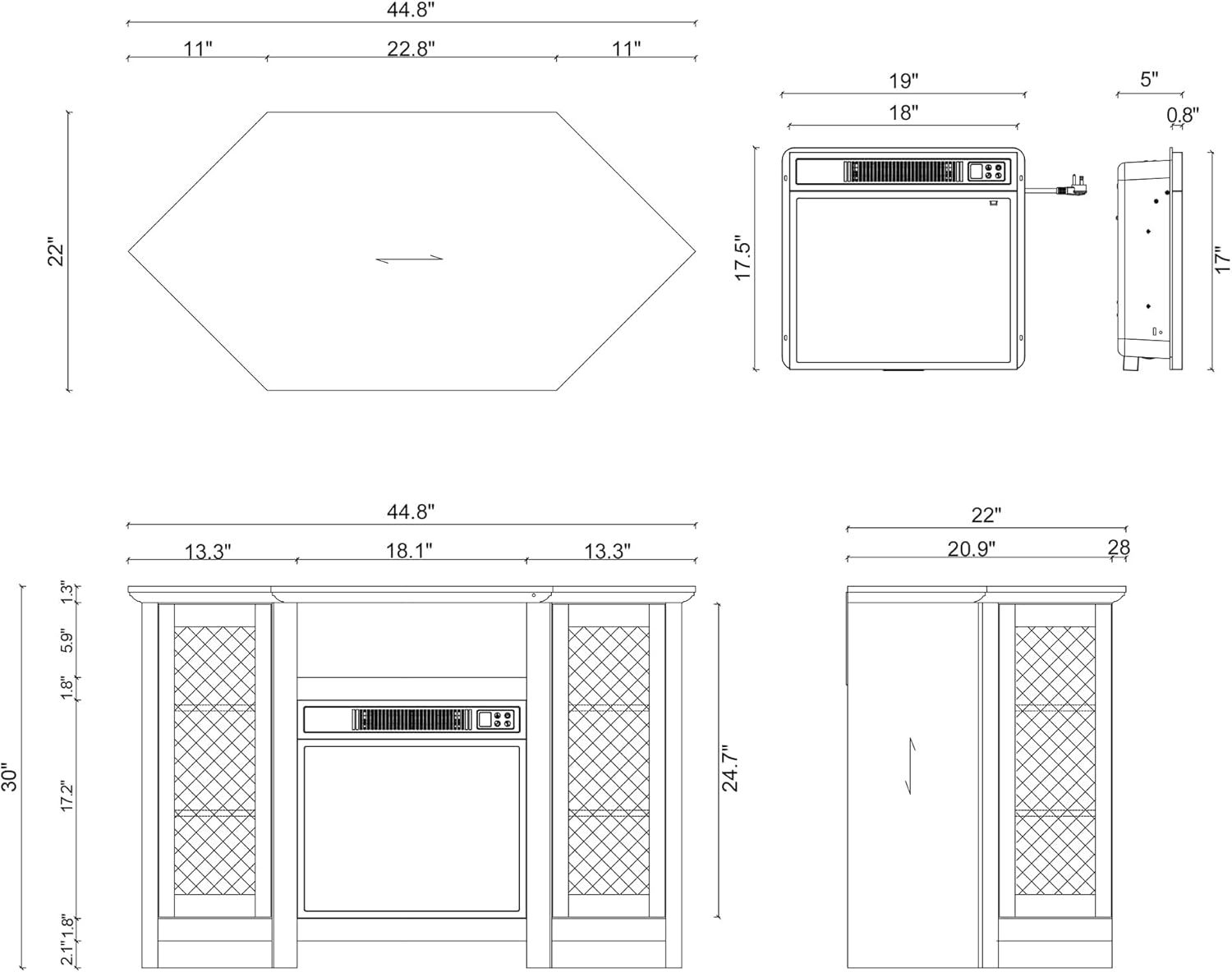

Figure 1: Detailed assembly diagram showing dimensions and component placement.
- 1-кадам: Бөлүктөрдү таңгактан чыгарып, аныктоо. Carefully remove all components from the packaging. Compare each part to the parts list and the assembly diagram (Figure 1) to ensure everything is present and undamaged.
- 2-кадам: Негизди чогултуңуз. Attach the side panels to the bottom panel using the provided hardware (dowels and cam locks). Ensure all connections are secure.
- Step 3: Install Shelves and Dividers. Insert the fixed shelves and vertical dividers into their designated slots, securing them with the appropriate fasteners.
- Step 4: Attach Top Panel. Secure the top panel to the assembled frame using screws and cam locks.
- Step 5: Install Electric Fireplace Insert. Carefully slide the 18-inch electric fireplace insert into the central opening of the TV stand. Ensure it fits snugly and is centered. Do not force it.
- Step 6: Attach Doors. Mount the glass doors to the side compartments using the hinges provided. Adjust hinges as necessary for proper alignment.
- Step 7: Install Door Handles. Attach the door handles to the glass doors.
- 8-кадам: Акыркы текшерүү. Ensure all screws and fasteners are tightened. Place the TV stand in its desired location, ensuring it is level and stable.
Figure 2: Assembled Parrot Uncle Fireplace TV Stand.
Operating Instructions (Electric Fireplace)
The electric fireplace can be operated using the control panel on the unit or the included remote control.
Башкаруу панели / Пульттун функциялары:
- Кубат баскычы: Каминди күйгүзүү же өчүрүү үчүн басыңыз.
- Жалындын жарыктыгынын баскычы: Cycle through different flame brightness levels (e.g., low, medium, high).
- Жылытуу баскычы: Press to activate the heating function. Press again to turn off the heat. The unit can operate with flame effect only, or with both flame and heat.
- Температураны көзөмөлдөө: Adjust the desired temperature setting. The fireplace will cycle on and off to maintain the set temperature.
- Таймер баскычы: Set the operating timer from 0.5 hours to 6 hours. The fireplace will automatically shut off after the set time.
Маанилүү эскертүүлөр:
- Always plug the fireplace directly into a wall outlet. Do not use extension cords or power strips.
- The heating element is designed for supplemental heat for areas up to 300 square feet.
- If the unit experiences overheating, the automatic shut-off feature will activate. Unplug the unit and allow it to cool for at least 10-15 minutes before plugging it back in. Check for any blocked vents.
Кароо жана тейлөө
Стенд:
- Тазалоо: Беттерди жумшак менен сүртүңүз, гamp кездеме. Финишке зыян келтирүүчү катаал химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
- Төгүлүүлөр: Инженердик жыгачка булганып калбаш үчүн же төгүлгөн жерлерди дароо сүртүңүз.
- Айнек эшиктер: Clean glass with a standard glass cleaner and a soft cloth.
- Аппараттык камсыздоо: Мезгил-мезгили менен бардык бурамалар жана бекиткичтер бекем болушу үчүн текшерип туруңуз. Керек болсо кайра тартыңыз.
Электр Камин:
- Тазалоо: Ensure the unit is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use water or liquid cleaners on the electrical components.
- Тешиктер: Keep the air intake and exhaust vents clear of dust and debris. Use a vacuum cleaner with a brush attachment to gently clean the vents.
- Электр лампалары: The flame effect uses LED technology, which typically does not require bulb replacement. If issues arise, consult customer support.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Камин күйбөйт. | No power, unit unplugged, circuit breaker tripped, overheat protection activated. | Check power cord connection. Ensure outlet is functional. Reset circuit breaker. If overheat protection activated, unplug and allow to cool for 15 minutes. |
| No heat, but flame effect works. | Heat function not activated, temperature setting too low, air vents blocked. | Press the heat button. Increase temperature setting. Clear any obstructions from air vents. |
| Пульт иштебей жатат. | Батареялар түгөнүп калган, пульт иштеп турган аймактан тышкары, сенсор бөгөттөлгөн. | Replace batteries. Ensure remote is pointed at the fireplace sensor. Remove any obstructions between remote and sensor. |
| TV stand feels unstable. | Бош бекиткичтер, тегиз эмес бет. | Бардык чогултуу бурамаларын кайра бекемдеңиз. Тирөөчтү тегиз жерге жылдырыңыз же турукташтыруу үчүн төшөмөлөрдү колдонуңуз. |
Продукт спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Тоту куш байке |
| Модель аты | TV Stand (Model 001) |
| Продукциянын өлчөмдөрү | 18"D x 44.8"W x 30"H |
| Материал | Инженердик жыгач |
| Аяктоо түрү | боёлгон |
| Түс | Боз |
| Орнотуу түрү | бурун |
| Power Source | Электр |
| Өзгөчө өзгөчөлүк | Flame Effect, TV Stand |
| Вентиляция түрү | Vent Free |
| Элемент Салмагы | 30 фунт |
| Камтылган компоненттер | TV Stand, Electric Fireplace Insert |
Кепилдик маалымат
For specific warranty details regarding your Parrot Uncle Fireplace TV Stand, please refer to the warranty card included with your purchase or contact the retailer/manufacturer directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
Кардарларды колдоо
If you have any questions, require assistance with assembly, or encounter issues not covered in this manual, please contact Parrot Uncle customer support. Contact information can typically be found on the product packaging, the manufacturer's webсайты же сатуучу аркылуу.
