RAINPOINT Sprinkler Timer Instruction Manual

1. Киришүү

This manual provides detailed instructions for the setup, operation, and maintenance of your RAINPOINT Sprinkler Timer. Designed for garden, lawn, and yard watering, this timer offers 3 independent programs, rain delay, and manual watering options to ensure efficient and precise irrigation.

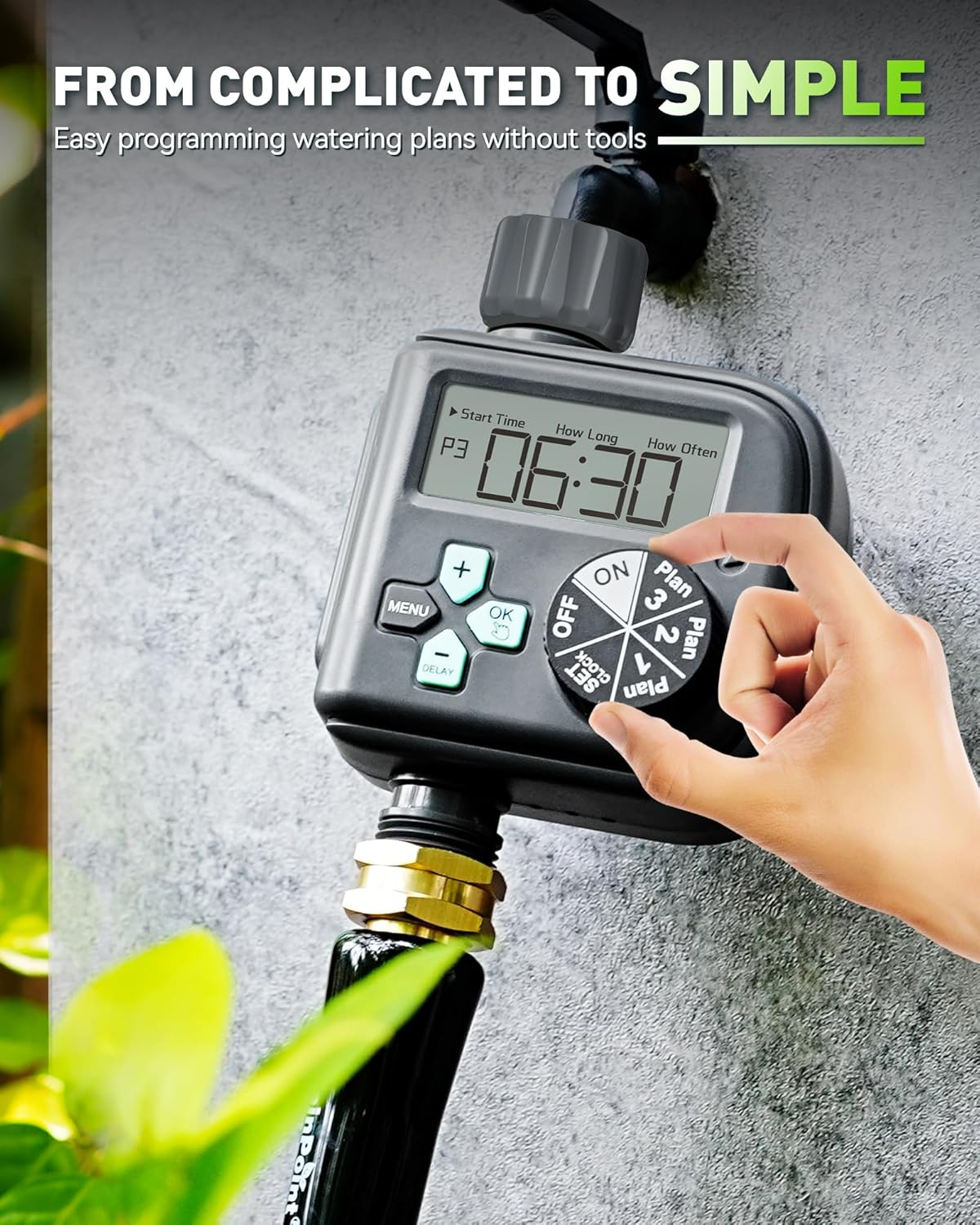

Figure 1: RAINPOINT Sprinkler Timer (Plastic Model)

The timer features an easy-to-read LCD display and intuitive controls, making it simple to customize your watering schedule to meet the specific needs of your plants and landscape.

2. Орнотуу

2.1. Батареяны орнотуу

The timer requires two (2) AAA alkaline batteries (not included). To install:

1. Таймердин артындагы батарея бөлүкчөсүн табыңыз.
2. Батареянын капкагын жылдырыңыз.
3. Туура полярдуулукту (+/-) камсыз кылуу менен эки AAA батарейкасын салыңыз.
4. Батареянын капкагын бекем жабыңыз. Ensure the battery cover is sealed and installed firmly to maintain the timer's performance and waterproof rating.

2.2. Физикалык орнотуу

To install the timer to your faucet:

1. For optimal leak prevention, wrap Teflon tape around the faucet's threaded opening a few times.
2. Screw the RAINPOINT Sprinkler Timer onto the faucet. Ensure it is installed vertically for proper operation.
3. Connect your garden hose to the bottom outlet of the timer.

Figure 2: Timer controls and display

2.3. Баштапкы активдештирүү

For first-time use, the valve needs to be manually activated to ensure proper function. Rotate the dial to the "ON" position. Then, long press the "OK" button for 3-5 seconds to manually activate the valve. Water should flow from the timer. Once confirmed, long press "OK" again to turn off the flow.

3. Иштөө нускамалары

3.1. Учурдагы убакытты коюу

Before programming watering schedules, set the current time and day:

1. Тергичти "СААТТЫ ОРНОТУУ" абалына буруңуз.
2. Long press the "OK" button to switch between 12-hour and 24-hour time formats.
3. Use the "+" and "-" buttons to select the current day of the week. Press "OK" to confirm.
4. The display will automatically move to the hour setting. Use "+" and "-" to adjust the hour. Press "OK" to confirm.
5. Adjust the minutes similarly using "+" and "-", then press "OK" to confirm.

Figure 3: Customizing your garden plan with start time, duration, and frequency.

3.2. Programming Watering Plans (P1, P2, P3)

The timer allows for three independent watering programs (P1, P2, P3). Rotate the dial to select the desired plan (Plan 1, Plan 2, or Plan 3) to begin programming.

3.2.1. Баштоо убактысын коюңуз

1. With the dial on your chosen plan (e.g., Plan 1), the display will show "Start Time".
2. Use "+" and "-" buttons to set the desired hour for the watering to begin. Press "OK" to confirm.
3. Adjust the minutes similarly using "+" and "-", then press "OK" to confirm.

3.2.2. Сугаруу узактыгын коюңуз

1. Press the "MENU" button to navigate to the "How Long" setting.
2. Use "+" and "-" buttons to set the watering duration. The duration can be set from 1 minute up to 3 hours and 59 minutes. Press "OK" to confirm.

3.2.3. Канчалык көп сугарууну белгилеңиз (сугаруу жыштыгы)

Press the "MENU" button again to navigate to the "How Often" setting. There are three frequency modes:

• Every X Hours: Use "+" and "-" to select 6, 8, or 12 hours. This means the timer will water every 6, 8, or 12 hours from the start time. Press "OK" to confirm.
• Ар бир X күн сайын: Press "MENU" to switch to this mode. Use "+" and "-" to select a frequency from 1 to 7 days. For example, "Every 2 Days" means it waters every other day. Press "OK" to confirm.
• Specific Days of the Week: Press "MENU" to switch to this mode. Use "+" and "-" to toggle specific days (Sunday, Monday, Tuesday, etc.) on or off. Press "OK" to confirm your selection for each day.

Figure 4: Three independent watering schedules (Plan 1, Plan 2, Plan 3).

Figure 5: Tailor your garden's needs with hourly, daily, or weekly watering modes.

3.2.4. Программаны жокко чыгаруу

To cancel a specific program (P1, P2, or P3), rotate the dial to that plan's setting. Navigate to the "How Long" setting using the "MENU" button. Use the "-" button to decrease the duration until the display shows "0H 0M". This will disable the program.

3.3. Starting Automatic Watering

After setting up your desired watering plans, rotate the dial to the "ON" position. The timer will display the current time and the start time of the next scheduled watering. The timer will now automatically execute the programmed schedules.

3.4. Кол менен сугаруу режими

For immediate, on-demand watering, you can use the manual mode:

1. With the dial in any position (except "OFF"), long press the "OK" button for 3-5 seconds. The display will show "M" for manual mode.
2. Use the "+" and "-" buttons to adjust the manual watering duration, from 1 minute up to 8 hours.
3. The watering will begin immediately for the set duration.
4. To cancel manual mode at any time, long press the "OK" button for 3-5 seconds. The timer will return to its automatic schedule mode.

Figure 6: Manual watering mode allows on-demand irrigation for up to 8 hours.

3.5. Жамгырдын кечиктирилиши режими

To conserve water during rainy periods, use the rain delay function:

1. With the dial in any position (except "OFF"), long press the "DELAY" button for 3-5 seconds.
2. Use the "+" and "-" buttons to select a delay period of 24, 48, or 72 hours. Press "OK" to confirm.
3. The timer will pause all programmed watering schedules for the selected delay period and automatically resume once the delay ends.
4. To cancel the rain delay at any time, long press the "DELAY" button for 3-5 seconds. The timer will resume its automatic schedule.

Figure 7: Rain delay options to conserve water during wet weather.

4. Техникалык тейлөө

• Regularly check the battery level on the LCD display. Replace batteries when the low battery indicator appears.
• Ensure the battery compartment is always securely sealed to prevent water ingress.
• Clean the filter washer at the inlet periodically to prevent debris from clogging the timer.
• During freezing temperatures, remove the timer from the faucet and store it indoors to prevent damage.

5. Кыйынчылыктарды

For further assistance, refer to the official product video for visual guidance on setup and programming.

6. Техникалык шарттар

• Бренд: ЖАМГЫР
• Модел: ITV517P
• Материал: Пластик
• Продукциянын өлчөмдөрү: 4.51"D x 6.68"W x 3.54"H
• Элемент Салмагы: 0.82 фунт (13.1 унция)
• Орнотуулардын саны: 3 көз карандысыз программа
• Экрандын өлчөмү: 1.5 дюйм
• Суу өткөрбөйт рейтинги: IP54

Figure 8: Product dimensions for the RAINPOINT Sprinkler Timer.

7. Кепилдик жана колдоо

RAINPOINT offers a 5-year warranty for this sprinkler timer upon registration. For detailed warranty information, product support, or to register your product, please refer to the product packaging or visit the official RAINPOINT webсайт.

For additional resources and frequently asked questions, you may also visit the RAINPOINT Store on Amazon: RAINPOINT дүкөнү
