VIOFO A229 Pro Dash Camera User Manual

1. Киришүү

Thank you for choosing the VIOFO A229 Pro Dash Camera. This manual provides detailed instructions on how to set up, operate, and maintain your device. Please read this manual carefully before using the product to ensure proper operation and to prevent damage.

Негизги өзгөчөлүктөрү:

• 4K токтому: Enables high-quality video recordings with a 4K front camera.
• HDR (жогорку динамикалык диапазон): The HDR feature helps achieve clearer and more vibrant images by increasing contrast, especially in situations with variable daylight.
• Sony Starvis 2 Sensors: The camera aims to capture clear and high-quality images even in low-light conditions using Sony Starvis 2 sensors, featuring an IMX678 8MP sensor for the front camera.
• GPS модулу: With the built-in GPS module, you can record your vehicle's location and speed.
• Wi-Fi туташуусу: The device can connect to your smartphone via Wi-Fi, allowing live viewing and access to recordings through the application.
• Паркинг режими: A feature that automatically starts recording when motion is detected while the vehicle is parked.
• G-сенсор: Includes a G-sensor to automatically protect recordings in the event of an unexpected collision.
• Smart Voice Control and Notification: Provides ease of use and enhances driving safety with smart voice control and notifications (supported in certain languages only).
• Wide Angles: The 140° wide-angle front camera covers every direction of your road.
• Эстутум картасын колдоо: Supports a maximum of 512GB memory card.

2. Пакеттин мазмуну

Please check the contents of your package upon unboxing. If any items are missing or damaged, please contact your retailer.

• VIOFO A229 Pro Dash Camera
• Унаа заряддагыч
• USB кабели
• Кронштейн орнотуу
• Колдонуучунун Колдонмосу (бул документ)
• Продукциянын таңгагында көрсөтүлгөн башка аксессуарлар.

3. Продукт бүтүп калдыview

Familiarize yourself with the various parts of your VIOFO A229 Pro dash camera.

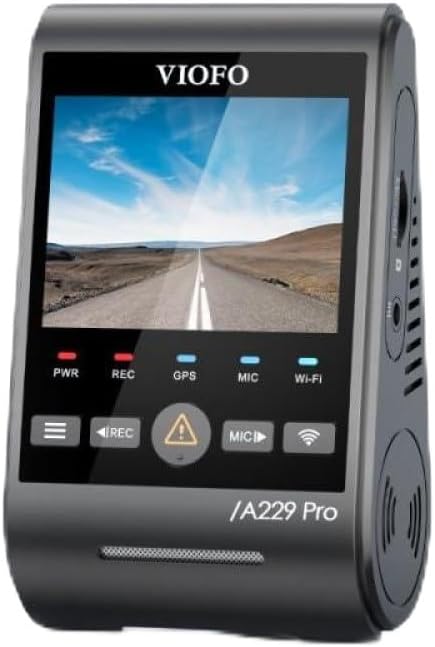

3.1-сүрөт: Фронт view of the VIOFO A229 Pro Dash Camera, showing the display screen and control buttons.

3.2-сүрөт: Side view of the VIOFO A229 Pro Dash Camera, highlighting the rear camera connection port.

3.3-сүрөт: Side view of the VIOFO A229 Pro Dash Camera, showing the MicroSD card slot.

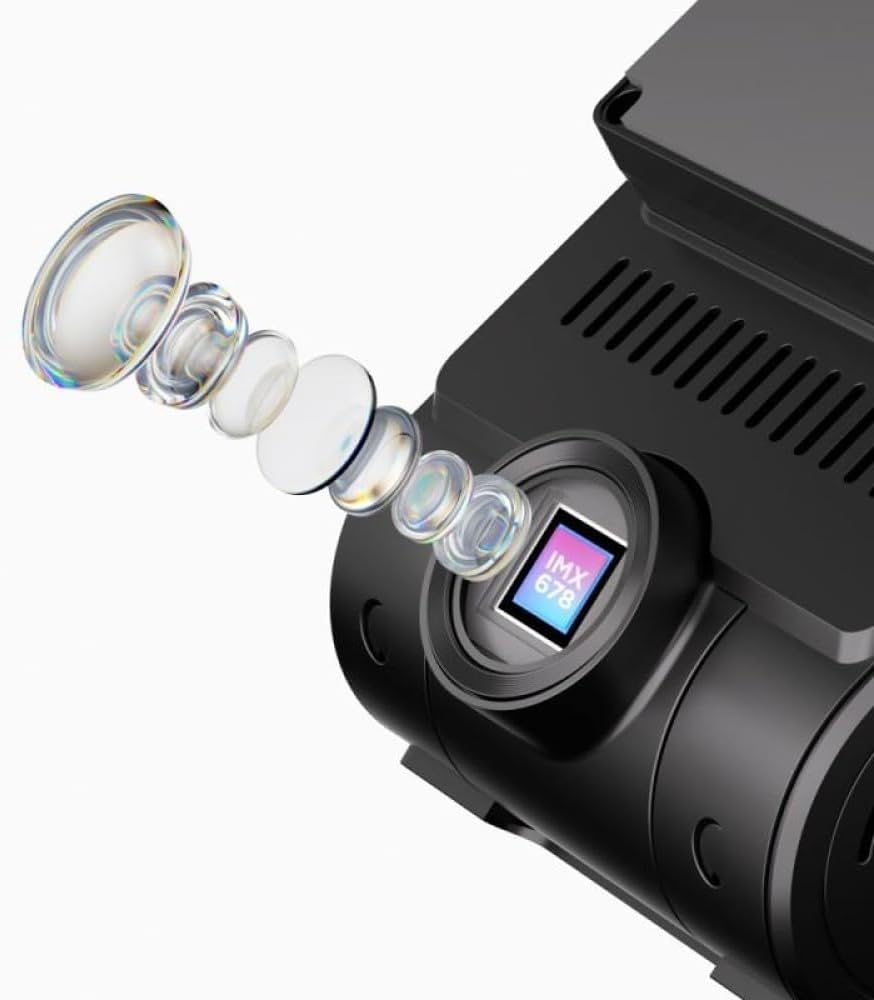

3.4-сүрөт: Close-up illustration of the Sony Starvis 2 IMX678 sensor, indicating its advanced imaging capabilities.

3.5-сүрөт: Diagram illustrating the product dimensions of the VIOFO A229 Pro Dash Camera (approximately 3.9 inches height, 2.3 inches width, 1.8 inches depth).

4. Орнотуу

4.1. Эстутум картасын салуу

1. Ensure the dash camera is powered off.
2. Камеранын капталынан MicroSD карта уячасын табыңыз (3.3-сүрөттү караңыз).
3. Insert a high-speed MicroSD card (Class 10 or higher, up to 512GB) into the slot until it clicks into place.
4. Чыгаруу үчүн картаны сыртка чыкканга чейин акырын түртүңүз.

Эскертүү: It is recommended to format the memory card regularly to ensure optimal performance and prevent data corruption. Refer to the Maintenance section for instructions.

4.2. Камераны орнотуу

1. Камераны орното турган алдыңкы айнекти тазалаңыз.
2. Attach the mounting bracket to the dash camera.
3. Монтаждоо кронштейниндеги жабышчаак тактадан коргоочу пленканы алып салыңыз.
4. Firmly press the bracket onto the windshield, ensuring a clear view of the road and avoiding obstruction of the driver's vision.
5. Adjust the camera lens angle to capture the desired field of view.

4.3. Power Connection

1. Унаа кубаттагычын камеранын кубат киргизүү портуна туташтырыңыз.
2. Унаа кубаттагычтын экинчи учун унааңыздын 12V электр розеткасына (тамеки от алгычтын розеткасына) сайыңыз.
3. The camera will automatically power on and begin recording when the vehicle's ignition is turned on.

5. Иштөө нускамалары

5.1. Негизги жаздыруу

Once powered on, the camera will automatically start continuous loop recording. Video files are saved in segments to the MicroSD card. When the card is full, the oldest files will be overwritten by new ones, unless they are locked.

• Кол менен жаздыруу: Press the REC button to manually start/stop recording.
• Шашылыш жазуу: In case of a sudden impact or collision, the G-sensor will automatically trigger emergency recording, locking the current video file анын үстүнөн жазылышына жол бербөө үчүн.

5.2. Wi-Fi байланышы

The VIOFO A229 Pro features built-in Wi-Fi for connecting to your smartphone via the VIOFO app.

1. Download the VIOFO app from your smartphone's app store.
2. On the dash camera, enable Wi-Fi through the settings menu or by pressing the dedicated Wi-Fi button (if available).
3. Смартфонуңузда камеранын Wi-Fi тармагына туташыңыз (SSID жана сырсөз камеранын экранында көрсөтүлөт).
4. Open the VIOFO app to view жаша фооtage, access recorded videos, change settings, and download files.

5.3. GPS функциясы

The integrated GPS module records your vehicle's speed and location data, which can be viewed during playback using compatible software.

• Ensure the GPS module is enabled in the camera settings.
• GPS signal acquisition may take a few minutes, especially in areas with limited sky visibility.

5.4. Паркинг режими

Parking Mode provides surveillance when your vehicle is parked. It automatically starts recording when motion or impact is detected.

• To use Parking Mode, the camera typically requires a continuous power supply (e.g., via a hardwire kit, sold separately).
• Configure Parking Mode settings (e.g., motion detection sensitivity, buffered recording) in the camera menu.

5.5. Үн менен башкаруу

The A229 Pro supports smart voice control for certain functions, enhancing driving safety by allowing hands-free operation. (Supported in specific languages only).

• Refer to the camera's on-screen prompts or the VIOFO app for a list of supported voice commands.
• Ensure the voice control feature is enabled in the settings.

6. Техникалык тейлөө

6.1. Эстутум картасын форматтоо

Regularly formatting your MicroSD card helps maintain its performance and prevents potential recording issues. It is recommended to format the card at least once a month.

1. Камераны күйгүзүңүз.
2. Navigate to the 'System Settings' or 'Format' option in the camera's menu.
3. Select 'Format SD Card' and confirm the action. All data on the card will be erased.

6.2. Камераны тазалоо

• Камеранын корпусун тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз.
• For the lens, use a lens cleaning cloth and specialized lens cleaning solution to avoid scratches.
• Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз.

7. Кыйынчылыктарды

If you encounter any issues with your VIOFO A229 Pro, refer to the following common problems and solutions:

If the problem persists, please contact VIOFO customer support for further assistance.

8. Техникалык шарттар

9. Кепилдик жана колдоо

VIOFO products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official VIOFO webдеталдуу кепилдик шарттары жана шарттары үчүн сайт.

For technical support, firmware updates, or any inquiries regarding your VIOFO A229 Pro Dash Camera, please visit the official VIOFO support page or contact their customer service directly. Contact information can typically be found on the VIOFO webсайтында же продуктунун таңгагында.

Webсайт: www.viofo.com
