LIECTROUX YW610 терезе тазалоочу робот колдонуучунун колдонмосу

1. Коопсуздук маалыматы

Please read all safety instructions carefully before using the LIECTROUX YW610 Window Cleaning Robot. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always connect the robot to a power source during operation. The integrated UPS battery is for emergency power-off protection only.
• Ensure the safety rope is securely fastened to a sturdy indoor anchor point before placing the robot on the window.
• Роботту жарака кеткен же бузулган айнек беттерде колдонбоңуз.
• Колдорду, чачтарды жана бош кийимдерди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Do not operate the robot in rainy or extremely humid conditions.
• Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Use only the original power adapter and accessories provided with the robot.

Image: The robot's power connection and safety features, including the 4m safety cable, 1.5m extension cable, and 20-minute UPS power-off protection.

2. Продукт бүтүп калдыview

The LIECTROUX YW610 is an intelligent window cleaning robot designed to provide deep and efficient cleaning for various glass surfaces. It features a powerful 2800PA suction motor, dual spiral cleaning heads with microfiber cloths, and an automatic water spray system for effective dirt removal.

Пакеттин мазмуну

• LIECTROUX YW610 Window Cleaning Robot
• Алыстан башкаруу
• Power Adapter and Cable (4m + 1.5m extension)
• Коопсуздук аркан
• Microfiber Cleaning Pads (multiple pairs)
• Water Filling Bottle
• User Manual

Продукт диаграммасы

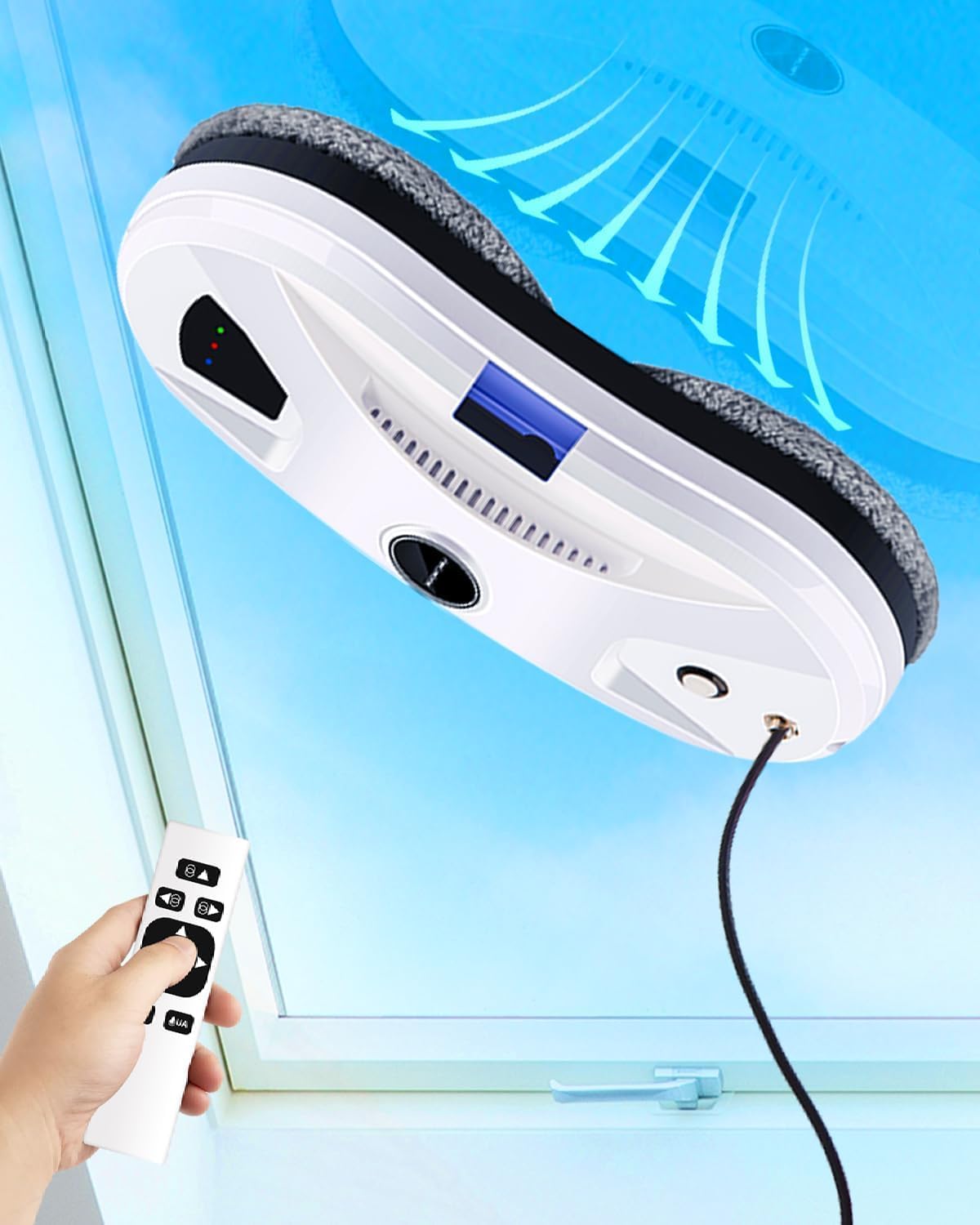

Image: The LIECTROUX YW610 Window Cleaning Robot shown on a window with its remote control, illustrating its compact design and operation.

3. Орнотуу

3.1 Attaching Cleaning Pads

Attach the clean microfiber pads to the two rotating disks on the underside of the robot. Ensure they are securely fastened and cover the entire disk surface.

3.2 Суу резервуарын толтуруу

Locate the water tank inlet on the robot. Use the provided water filling bottle to fill the tank with clean water or a recommended window cleaning solution. Do not overfill.

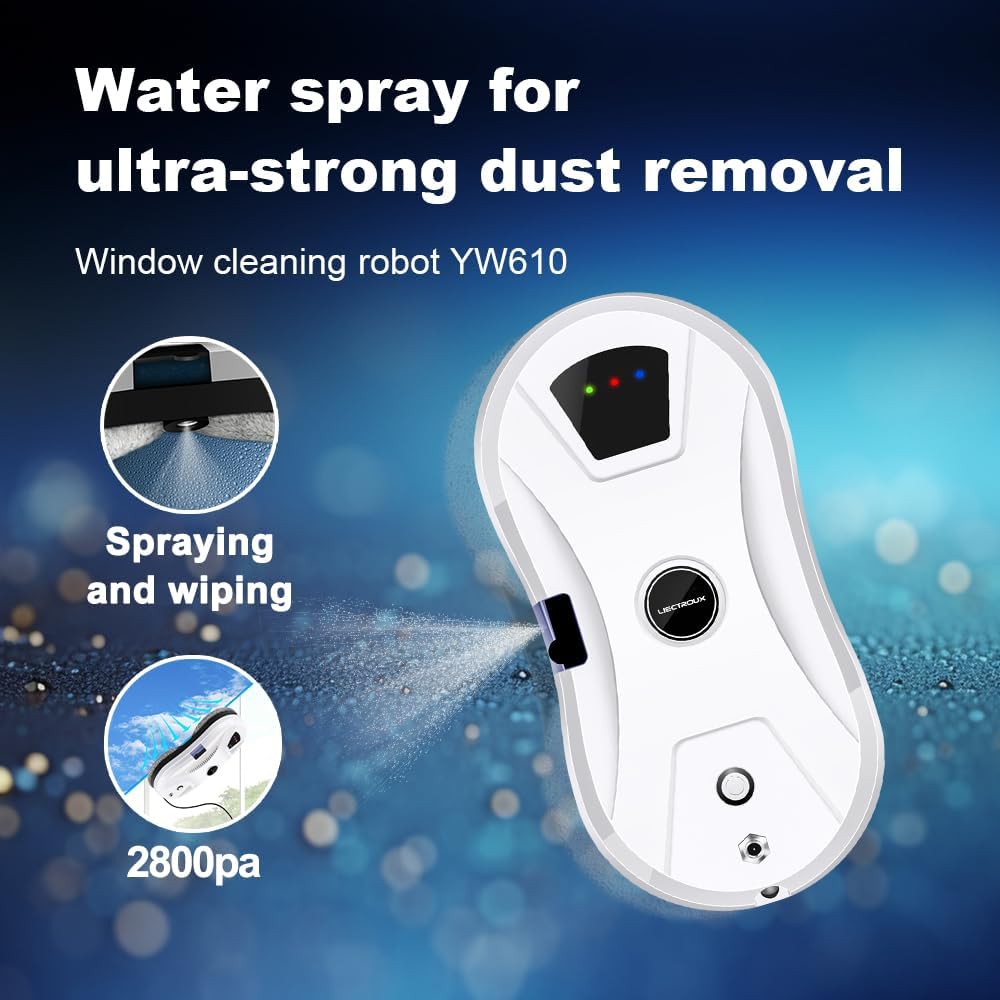

Image: The robot's automatic water spray function, highlighting its effectiveness for dust removal.

3.3 Power Connection and Safety Rope

Connect the power adapter to the robot and then plug it into a power outlet. Securely attach the safety rope to the designated anchor point on the robot and then to a strong, fixed object indoors, such as a heavy piece of furniture or a window frame anchor.

4. Иштөө нускамалары

4.1 Initial Placement and Start

Place the robot on the window surface, ensuring it is flat against the glass. Press the power button on the robot or the 'Start' button on the remote control. The robot will automatically adhere to the glass using its suction.

Image: A visual representation of the robot's four-stage cleaning process: 2800Pa vacuum suction, initial wiping for dust, water spray to soften dirt, and final wiping for dirt and water stains.

4.2 Тазалоо режимдери

The robot features three automatic cleaning modes. You can select these modes using the remote control:

• Up-to-down: The robot cleans from the top of the window downwards.
• Left-to-down: The robot cleans from the left side of the window downwards.
• Right-to-down: The robot cleans from the right side of the window downwards.

Image: A visual guide to the three intelligent cleaning routes the robot can follow: Up-to-down, Left-to-down, and Right-to-down, controlled by a single press.

4.3 Алыстан башкаруунун иштеши

The remote control allows you to start/stop the robot, select cleaning modes, and manually control its movement. Refer to the remote control diagram in the quick start guide for button functions.

Image: The robot's dual-disk simulated twisting and sweeping motion, designed for complete and close cleaning of surfaces.

4.4 Automatic Water Spray

The robot is equipped with an automatic water spray function that dispenses a fine mist to loosen dirt and dust, enhancing cleaning efficiency. This feature operates automatically during cleaning cycles.

Image: Key technologies of the robot, including ultrasonic water spray, micro-air nucleus water dialysis, targeted homogenization technology, and one-press start on framework.

5. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө роботуңуздун оптималдуу иштешин камсыздайт жана анын иштөө мөөнөтүн узартат.

5.1 Cleaning the Microfiber Pads

After each use, remove the microfiber cleaning pads from the robot. They can be hand-washed or machine-washed with mild detergent. Allow them to air dry completely before reattaching or storing.

5.2 Роботтун корпусун тазалоо

Роботтун сыртын жумшак, d менен сүртүңүзamp cloth. Do not use abrasive cleaners or immerse the robot in water. Ensure the suction area and sensors are free from debris.

5.3 Cleaning the Water Nozzle

Periodically check the water spray nozzle for any blockages. If necessary, gently clean it with a small brush or pin to ensure proper water dispersion.

6. Кыйынчылыктарды

If you encounter issues with your LIECTROUX YW610, refer to the table below for common problems and solutions.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation provided with your purchase or contact LIECTROUX customer service through their official webсайтына же продукт сатып алынган сатуучуга кайрылыңыз. Кепилдик талаптары үчүн сатып алгандыгыңызды тастыктаган документти сактап коюңуз.
