1. Продукт бүтүп калдыview
The Korg TM-70T is a versatile combo tuner and metronome designed for musicians. It offers ultra-high tuning accuracy with a precision of ±0.1 cents, ensuring reliable tuning for various instruments. The device features an improved display for better visibility and a compact, portable design. Key functionalities include a new transpose function allowing switching between F, B♭, and E♭ in addition to chromatic tuning, enhanced sound quality for both metronome and Sound Out mode, and a wide tempo range from 30 to 252 beats per minute. Its adjustable calibration supports various concert pitches, making it ideal for musicians of all skill levels, including band and orchestra players.
Сүрөт 1: Алдыңкы view of the Korg TM-70T Tuner and Metronome, showcasing its clear display and control buttons.
Видео 1: Бүттүview of the Korg TM-70T Tuner and Metronome, demonstrating its features and compact design.
2. Орнотуу
2.1. Батареяны орнотуу
The Korg TM-70T requires two AAA batteries for operation. To install, locate the battery compartment on the rear of the unit. Open the cover, insert the batteries according to the polarity indicators (+/-), and close the cover securely.
2.2. Күйгүзүү/өчүрүү
Press and hold the power button (usually located on the side or front panel) to turn the unit on or off. The display will illuminate upon successful power-on.
2.3. Тышкы түзмөктөрдү туташтыруу
For enhanced tuning precision, especially with acoustic instruments, an optional CM-400 contact microphone (sold separately) can be connected to the 3.5 mm audio jack. This allows for direct vibration detection from the instrument, minimizing interference from ambient noise.
2-сүрөт: Каптал view of the Korg TM-70T, highlighting the 3.5 mm audio jack for external microphone connection.
3. Иштөө нускамалары
3.1. Тюнер режими
The TM-70T features a precise LCD needle meter for accurate tuning. In Tuner Mode, the display shows the detected pitch and deviation. The unit supports chromatic tuning, allowing you to tune any note.
- Транспозиция функциясы: Utilize the dedicated "TRANSPOSE" button to switch between different transposition settings (F, B♭, E♭) for various instruments. This feature is particularly useful for brass and woodwind players.
- Калибрлөө: Adjust the calibration (A4 pitch) to match different concert pitches, typically ranging from 410 Hz to 480 Hz. This ensures compatibility with various ensembles and orchestras.
- Sound Out Mode: This mode provides an audible reference tone for a selected pitch, aiding in ear training and manual tuning.
Figure 3: The Korg TM-70T positioned on a music stand, demonstrating its practical use during practice sessions.
3.2. Метроном режими
The metronome function provides a steady beat for rhythm practice. It features a wide tempo range from 30 to 252 beats per minute (BPM) and improved audio quality for clearer sound.
- Темпти жөндөө: Use the tempo control buttons to increase or decrease the BPM.
- Beat and Rhythm Settings: Select various beat patterns and rhythms to suit your practice needs, including different time signatures and subdivisions.

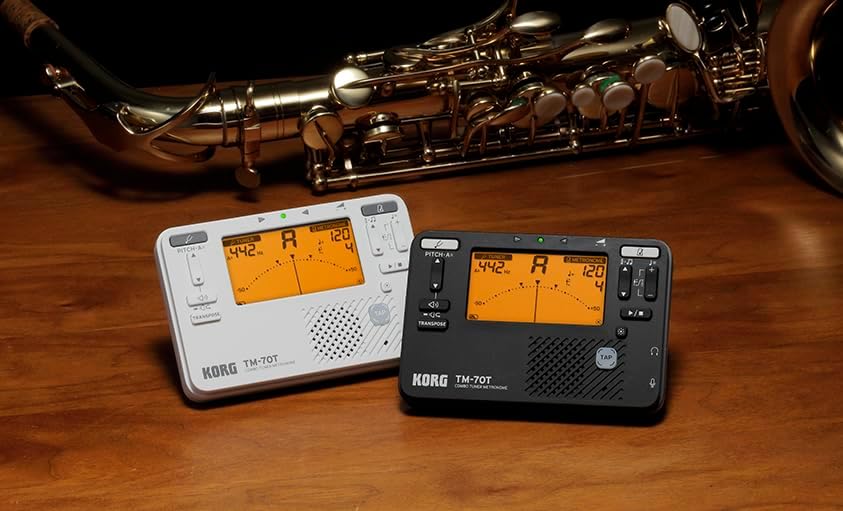

Figure 4: Both black and white versions of the Korg TM-70T, illustrating their compact size alongside musical instruments.
3.3. Simultaneous Use
The TM-70T allows for simultaneous use of both the tuner and metronome functions, enabling musicians to practice rhythm and pitch accuracy concurrently.
4. Техникалык тейлөө
To ensure the longevity and optimal performance of your Korg TM-70T, follow these maintenance guidelines:
- Тазалоо: Wipe the plastic body with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or strong chemicals, as they may damage the finish or internal components.
- Батареяны алмаштыруу: Replace batteries promptly when the low battery indicator appears on the display. Remove batteries if the unit will not be used for an extended period to prevent leakage.
- Сактагыч: Агрегатты күн нурунан, өтө температурадан жана жогорку нымдуулуктан алыс салкын, кургак жерде сактаңыз.
5. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Өлүк же туура эмес орнотулган батарейкалар. | Туура полярдуулукту камсыз кылуу менен батарейкаларды жаңысына алмаштырыңыз. |
| Туура эмес тюнинг. | Incorrect calibration setting; high ambient noise; improper microphone placement. | Adjust calibration (A4 pitch); move to a quieter environment; ensure contact mic is securely attached to the instrument. |
| Metronome sound is too low or distorted. | Volume setting is too low; speaker obstruction; low battery. | Increase volume; ensure speaker is clear; replace batteries. |
| Дисплей күңүрт же окулбайт. | Low battery; backlight setting. | Replace batteries; adjust backlight brightness if available. |
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Элемент Салмагы | 3.87 унция |
| Элемент моделинин номери | TM70TBK |
| Батареялар | 2 AAA batteries required (Alkaline) |
| Дене материалы | Пластик |
| Түс аты | Кара |
| Туташтыргыч түрү | 3.5 мм аудио уячасы |
| Өлчөмү | TM70 |
| Тунинг тактыгы | ±0.1 цент |
| Темп диапазону | 30 - 252 BPM |
7. Кепилдик жана колдоо
Korg products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Korg webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
For further assistance, you may contact Korg customer support through their official channels.
