SHARPAL 129N

SHARPAL 129N Multipurpose Garden Tool Blade Sharpener Instruction Manual

Модель: 129N | Бренд: SHARPAL

1. Киришүү

The SHARPAL 129N Multipurpose Garden Tool Blade Sharpener is an advanced edition tool designed to restore and hone a wide variety of blades. It features a durable tungsten carbide blade for quick sharpening and repair, and a pure ceramic blade for fine honing and burr removal. Its portable design with a pen clip and lanyard hole makes it convenient for various applications, from gardening to kitchen use.

2. Продукциянын өзгөчөлүктөрү

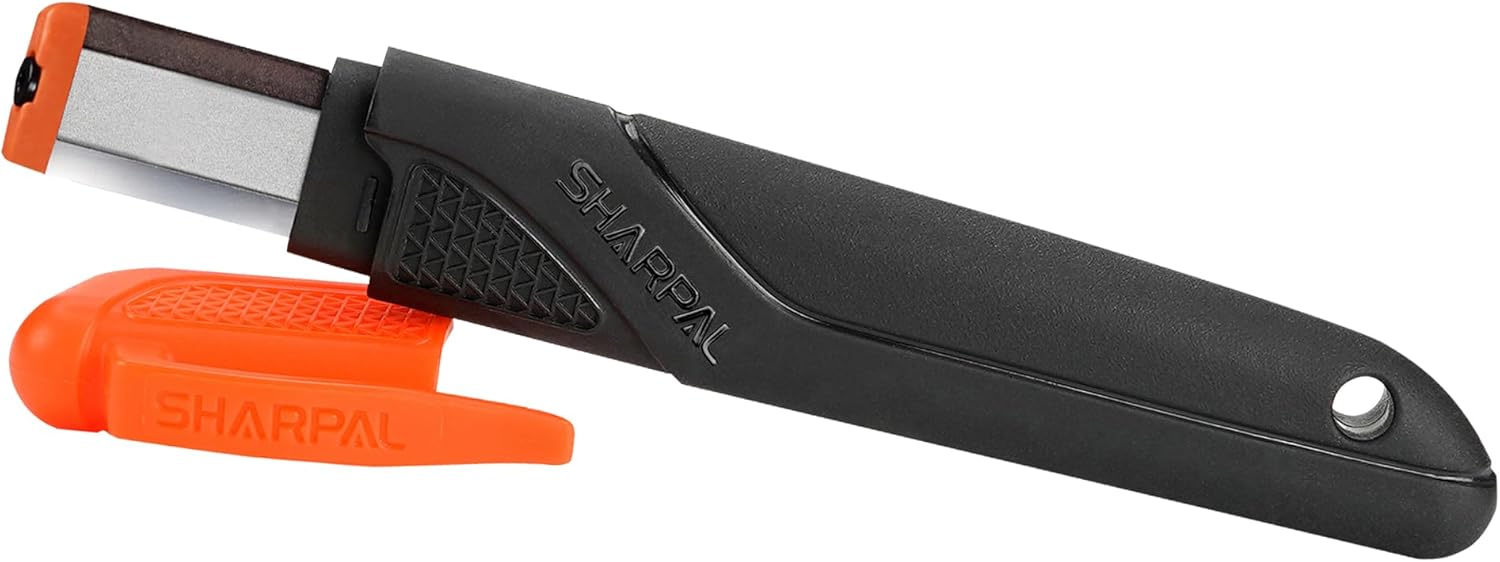

SHARPAL 129N Multipurpose Sharpener with cap

Figure 1: SHARPAL 129N Multipurpose Sharpener with protective cap removed, showing the sharpening elements.

Close-up of SHARPAL 129N showing tungsten carbide and ceramic blades

2-сүрөт: Детальдуу view of the sharpener's two main components: the durable tungsten carbide blade for sharpening and the pure ceramic blade for fine honing.

  • Durable Tungsten Carbide Blade: Ideal for quickly sharpening or repairing damaged blades, commonly used for garden tools. Ensure to use the corner of the tool against the cutting edge, not the flat surface.
  • Pure Ceramic Blade: Designed for fine honing tasks, removing residual burrs, and suitable for delicate blades like kitchen knives.
  • Patented Versatile Design: Capable of restoring and honing various tools including pruners, knives, lawn mower blades, garden shears, axes, and other garden tool edges.
  • Portable Design with Pen Clip: The cap features a pen clip for secure storage in a pocket. The ergonomic handle includes a lanyard hole for easy carrying.

3. Иштөө нускамалары

The SHARPAL 129N features a two-stage sharpening process: coarse sharpening with the tungsten carbide blade and fine honing with the ceramic blade.

3.1. Sharpening Pruners and Shears

For pruners and shears, use the tungsten carbide corner of the sharpener. Align the sharpener with the blade's angle and draw it across the cutting edge several times. For best results, follow up with the ceramic blade for a finer edge.

Person sharpening garden shears with SHARPAL 129N

Figure 3: Sharpening garden shears. The sharpener is drawn across the blade at the correct angle.

Person sharpening pruners with SHARPAL 129N

Figure 4: Sharpening pruners. The compact design allows for precise sharpening of curved blades.

3.2. Sharpening Knives and Axes

For kitchen knives, utility knives, axes, and machetes, use the tungsten carbide blade for initial sharpening, drawing the sharpener along the blade from heel to tip. Then, use the ceramic blade for fine honing to remove any burrs and achieve a polished edge. Always maintain a consistent angle.

Person sharpening a kitchen knife with SHARPAL 129N

Figure 5: Sharpening a kitchen knife. The sharpener effectively creates a new edge.

Person sharpening a lawn mower blade with SHARPAL 129N

Figure 6: Sharpening a lawn mower blade. The sharpener's design allows for effective sharpening of larger, more robust blades.

Person sharpening a machete with SHARPAL 129N

Figure 7: Sharpening a machete. The sharpener's robust construction is suitable for heavy-duty tools.

Person sharpening an axe with SHARPAL 129N

Figure 8: Sharpening an axe. The sharpener can be used on various blade types and sizes.

3.3. Sharpening Serrated Knives and Scissors

For serrated knives, carefully align the tungsten carbide corner with each serration and draw it through. For scissors, use the tungsten carbide blade on the cutting edge, drawing it from the pivot to the tip. Only sharpen the side with the bevel. Do not sharpen the flat side.

4. Техникалык тейлөө

5. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
Blade not sharp after sharpening.1. Incorrect sharpening angle.
2. Not enough passes.
3. Blade is too dull or damaged.
1. Ensure the sharpener is held at the correct angle for the blade type.
2. Make more passes (5-10 passes per side).
3. For very dull blades, start with the tungsten carbide and then finish with ceramic.
Blade feels rough or has burrs.Skipped the honing stage or insufficient honing.Use the ceramic blade for fine honing after using the tungsten carbide blade. Make sure to apply light pressure.
Sharpener not cutting.1. Tungsten carbide blade is worn.
2. Using the flat side instead of the corner.
1. Replace the sharpener if heavily worn.
2. Always use the corner of the tungsten carbide blade for sharpening.

6. Техникалык шарттар

7. Кепилдик жана колдоо

SHARPAL offers a 3-year commitment to quality and provides support for sharpening solutions. For any inquiries or support, please visit the official SHARPAL website or contact their customer service. SHARPAL is headquartered in California, USA, with branches in Germany and Australia.

Көбүрөөк маалымат алуу үчүн, киргиле SHARPAL Store on Amazon.
