Dardoo Foldable Racing Steering Wheel Stand (Model 19-stand) User Manual

1. Киришүү

Thank you for choosing the Dardoo Foldable Racing Steering Wheel Stand. This stand is designed to enhance your racing simulation experience by providing a stable and adjustable platform for your steering wheel, pedals, and shifter. Its robust construction and foldable design offer both durability and convenient storage. This manual provides essential information for the safe and effective use of your new racing stand.

Figure 1: Dardoo Foldable Racing Steering Wheel Stand fully assembled with compatible racing peripherals.

2. Коопсуздук маалыматы

• Ensure all bolts and fasteners are securely tightened before each use to prevent instability.
• Place the stand on a flat, stable, and non-slip surface to avoid tipping.
• Be aware of pinch points when adjusting or folding the stand. Keep hands and fingers clear of moving parts.
• Do not exceed the maximum weight capacity of 450 lbs (204 kg) for attached equipment.
• Keep children and pets away from the stand during assembly and use.
• This product is intended for gaming use only. Do not modify the stand or use it for purposes other than its intended design.

3. Орнотуу жана чогултуу

The Dardoo Racing Steering Wheel Stand arrives approximately 80% pre-assembled, significantly reducing setup time. Follow these steps to complete the assembly and attach your racing peripherals.

Figure 2: Main components of the stand as they arrive, highlighting pre-assembly.

3.1. Таңгактан чыгаруу жана алгачкы текшерүү

1. Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Verify that all parts are present according to the included parts list (if provided). Contact customer support if any parts are missing or damaged.

3.2. Attaching the Steering Wheel Platform

• Position your racing steering wheel onto the designated steering wheel platform.
• Align the mounting holes on your steering wheel with the pre-drilled holes on the platform.
• Secure the steering wheel using the provided bolts or your steering wheel's clamping mechanism. Ensure it is firmly attached.

Figure 3: Detail of the steering wheel platform with multiple mounting holes.

3.3. Attaching the Pedal Platform

• Place your pedal set onto the pedal platform.
• Utilize the long horizontal mounting slots to adjust the forward/backward position of your pedals for optimal comfort.
• Secure the pedals using the appropriate fasteners.

Figure 4: Detail of the pedal platform with adjustable mounting slots.

3.4. Attaching the Shifter Platform

• Mount your shifter onto the dedicated shifter platform.
• The shifter platform can be installed on either the left or right side of the stand, depending on your preference.
• Secure the shifter using its clamping mechanism or bolts.

Figure 5: Detail of the shifter platform, showing its mounting options.

4. Иштөө жана тууралоо

The Dardoo Racing Steering Wheel Stand offers multiple adjustment points to customize your racing setup for optimal comfort and performance.

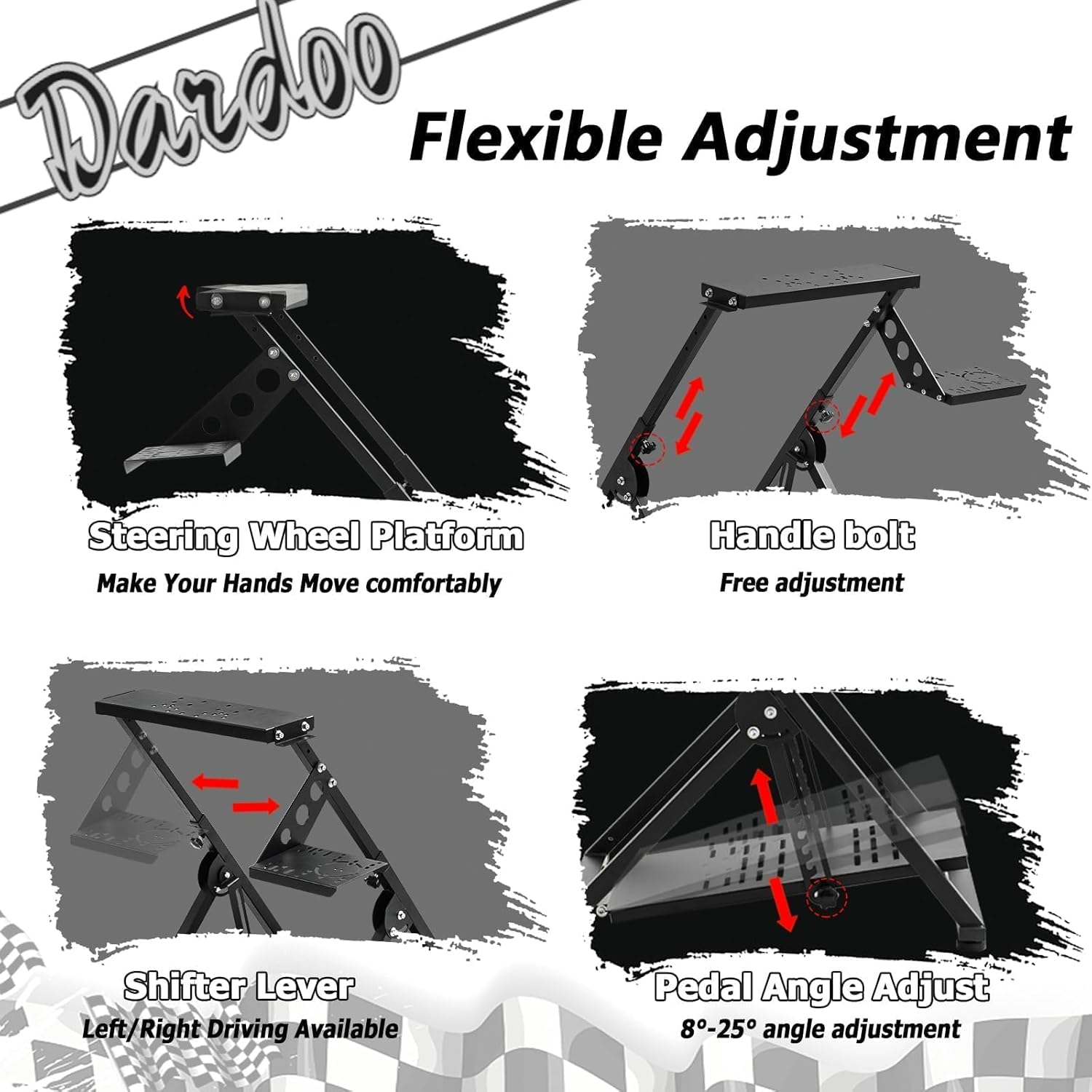

Figure 6: Visual guide to the stand's flexible adjustment features.

4.1. Бийиктигин тууралоо

• Loosen the handle bolts located on the main frame.
• Adjust the height of the steering wheel platform to your desired level.
• Retighten the handle bolts firmly to secure the height.

4.2. Steering Wheel Platform Angle Adjustment

• The steering wheel platform can be adjusted from -4° to 4° to find your preferred angle.
• Loosen the relevant bolts, set the angle, and then retighten.

4.3. Педаль бурчун жөндөө

• The pedal platform angle can be adjusted within a range of 8° to 25°.
• Loosen the adjustment bolts on the pedal section, set the desired angle, and secure by retightening.

4.4. Shifter Position Adjustment

• The shifter panel can be adjusted left or right to suit your driving style.
• Loosen the mounting bolts, slide the shifter platform to the desired position, and retighten.

4.5. Seat Slot Usage

• The integrated seat slot at the rear of the stand is designed to hold a roller seat in place.
• Place your gaming chair's wheels into this slot to prevent unwanted movement during intense gameplay.

4.6. Сактоо үчүн бүктөлүүчү

The stand features a quick-fold mechanism for easy storage without needing to remove your peripherals.

1. Ensure all adjustment bolts are slightly loosened to allow movement.
2. Rotate the stand at the U-shaped structure points to fold it compactly.
3. Once folded, it can be stored in a small space.

Figure 7: Illustration of the stand's quick folding process for compact storage.

5. Техникалык тейлөө

• Тазалоо: Стендди жумшак менен сүртүңүз, гamp кездеме. Финишке зыян келтирүүчү абразивдүү тазалагычтардан же эриткичтерден качыңыз.
• бекиткичтер: Periodically check all bolts, screws, and adjustment knobs to ensure they are tight. Retighten as necessary to maintain stability.
• Сактагыч: When not in use, fold the stand and store it in a dry place away from extreme temperatures or direct sunlight.

6. Кыйынчылыктарды

6.1. Туруктуу сезилүүдө

• Чечим: Ensure all assembly bolts are fully tightened. Verify the stand is placed on a flat, level surface. Check the four non-slip feet at the bottom for proper contact.

6.2. Difficulty Adjusting Components

• Чечим: Loosen the corresponding adjustment bolts sufficiently before attempting to reposition. Ensure no cables or other obstructions are interfering with the movement.

6.3. Peripherals Not Fitting Correctly

• Чечим: Refer to the compatibility list in Section 7. Ensure your steering wheel, pedals, and shifter are compatible with the stand's mounting points. Some devices may require their original clampмеханизмдер.

7. Техникалык шарттар

Figure 8: Detailed dimensions for both usage and storage configurations.

Figure 9: Visual representation of compatible racing peripherals.

8. Кепилдик маалыматы

Specific warranty details for the Dardoo Foldable Racing Steering Wheel Stand are not provided in the product information. Please refer to your purchase documentation or contact the retailer for warranty terms and conditions.

9. Кардарларды колдоо кызматы

For further assistance, technical support, or inquiries regarding your Dardoo Racing Steering Wheel Stand, please contact Dardoo customer service through the retailer's platform or visit the official Dardoo brand store on Amazon:

Dardoo Brand Store on Amazon
