ATOMSTACK A24 Pro лазердик оюгуч колдонуучу колдонмосу

1. Киришүү

The ATOMSTACK A24 Pro is a professional-grade laser engraver and cutting machine designed for high precision and efficiency. Featuring a unibody frame, it requires no assembly, allowing for immediate use. This machine is equipped with a 24000mW output laser, making it suitable for engraving and cutting a wide range of materials including wood, metal, plastic, and more. Its advanced features ensure stable motion, high-speed operation, and precise results for both personal and professional projects.

Figure 1.1: The ATOMSTACK A24 Pro laser engraver showcasing its compact design and examples of intricate engravings on different materials like wood, metal, and plastic.

2. Коопсуздук маалыматы

Operating a laser engraver involves inherent risks. Adhere strictly to all safety guidelines to prevent injury and damage to the equipment.

• Көздү коргоо: Always wear the provided UV-filtering eye protection when the laser is active. The machine includes a protective cover, but additional eyewear is recommended.
• Вентиляция: Ensure adequate ventilation in the work area to dissipate fumes and smoke produced during engraving and cutting.
• Өрт коркунучу: Laser engraving can ignite flammable materials. Keep a fire extinguisher nearby and never leave the machine unattended during operation.
• Материалдык шайкештик: Коопсуз деп көрсөтүлгөн материалдарды гана оюп же кесиңиз. Уулуу түтүн чыгаруучу же жогорку деңгээлде чагылдыруучу материалдардан алыс болуңуз.
• Шашылыш токтотуу: Авариялык токтотуу баскычынын жайгашкан жери жана функциясы менен таанышып алыңыз.
• Балдар жана үй жаныбарлары: Keep children and pets away from the operating area. The laser protective cover helps prevent accidental contact with the laser spot.
• Чектөө которгучтары: The A24 Pro is equipped with 4-way limit switches for enhanced safety and precise positioning.
• Tilt Detector: An integrated tilt detector with a 15-degree alarm provides an additional layer of safety, alerting users if the machine is not level.

3. Орнотуу жана биринчи колдонуу

The ATOMSTACK A24 Pro features an unibody design, eliminating the need for complex assembly. It is ready for use directly out of the box.

3.1 Кутудан чыгаруу жана жайгаштыруу

• Carefully remove the A24 Pro from its packaging.
• Place the machine on a stable, level, and non-flammable surface. Ensure there is sufficient space around the machine for ventilation and safe operation.
• Кубат адаптерин машинага, андан кийин ылайыктуу розеткага (100-240V AC, 50/60Гц) туташтырыңыз.

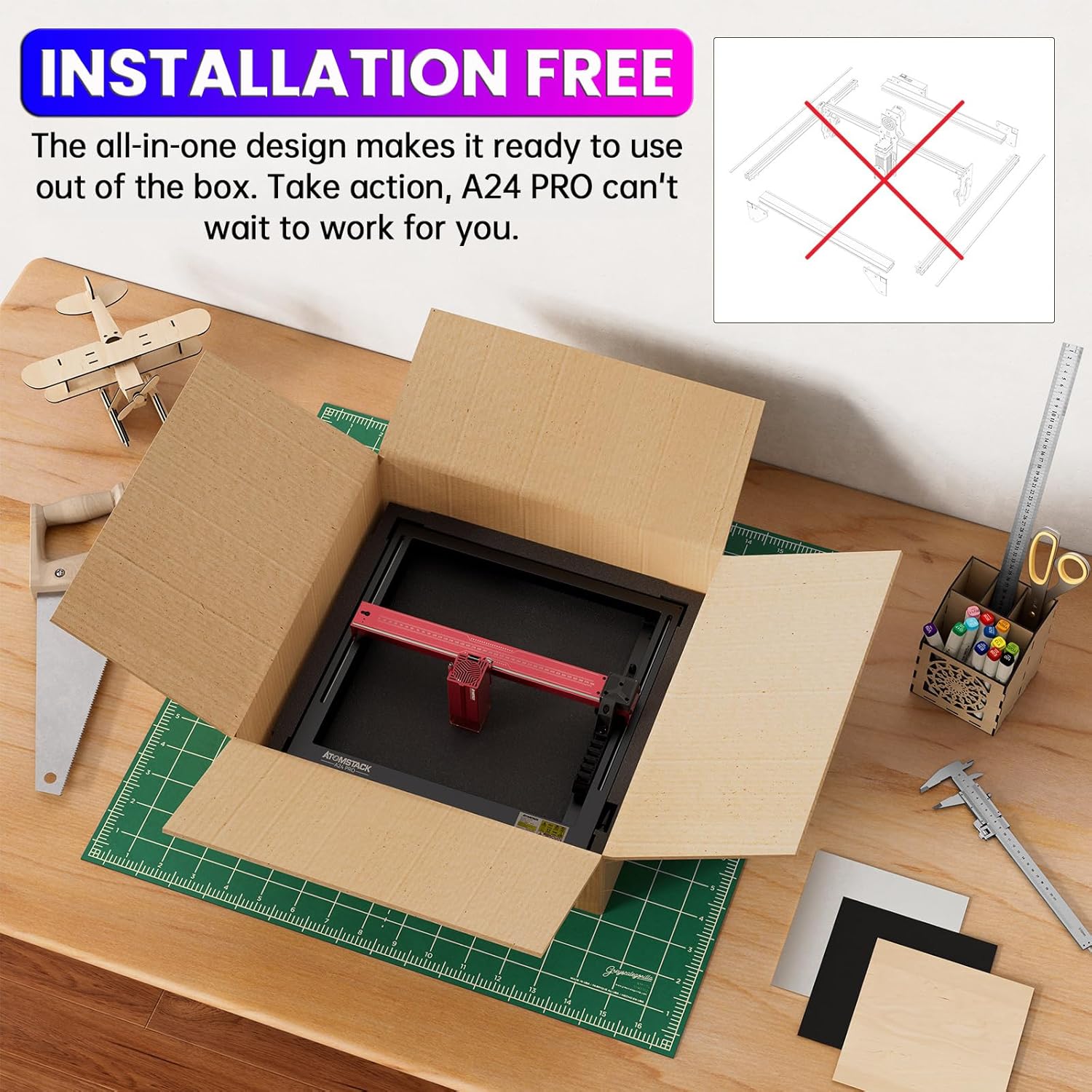

Figure 3.1: The ATOMSTACK A24 Pro laser engraver shown directly out of its packaging, highlighting its installation-free design, ready for immediate use.

3.2 Фокусту баштапкы тууралоо

The A24 Pro utilizes a fixed-focus laser, simplifying the focusing process. Rapid and precise focusing can be achieved in approximately 10 seconds.

• Place the material to be engraved or cut on the working surface.
• Follow the instructions in your chosen software (LaserGRBL, LightBurn, or ATOMSTACK PC software) for initial material height and focus calibration.

4. Operating the ATOMSTACK A24 Pro

4.1 Программалык камсыздоо жана байланыш

The A24 Pro offers multiple control methods for flexibility:

• Компьютердик Программалык камсыздоо: Compatible with LaserGRBL and LightBurn. ATOMSTACK also provides its own self-developed PC software for a more beginner-friendly experience.
• Smartphone APP: Control the machine via WiFi using the ATOMSTACK mobile APP, available on Android and Apple App Stores.
• Маалыматтарды өткөрүү: Connect to your computer via USB for data transfer.

Figure 4.1: ашыкview of the diverse control methods for the ATOMSTACK A24 Pro, including dedicated PC software, popular third-party software like LaserGRBL and LightBurn, and a mobile application for smartphone control via WiFi.

4.2 Колдоого алынган File Форматтар

The machine supports common file formats for engraving and cutting projects:

• NC
• BMP
• JPG
• PNG
• DXF

4.3 Engravable and Cuttable Materials

The A24 Pro is versatile, capable of working with a wide array of materials:

Figure 4.2: A visual representation of the diverse materials compatible with the ATOMSTACK A24 Pro, including acrylic, glass, metal, wood, paper, cardboard, stainless steel, food, leather, fabric, and rubber.

4.4 Гравировка жана кесүү процесси

• Дизайнды даярдоо: Create or import your design in one of the supported file formats using your chosen software.
• Материалды жайгаштыруу: Place the material securely on the engraving bed. Utilize the cross-positioning system for accurate alignment.
• Параметр орнотуулары: Adjust laser power, speed, and passes according to the material type and desired effect. Refer to the software's material library or conduct test engravings.
• Ишти баштоо: Initiate the engraving or cutting process from the software or mobile app. Monitor the operation closely.
• Power Failure Recovery: The A24 Pro features an automatic power failure recovery system. In case of power interruption, it memorizes the exact engraving position and can resume from the paused point, minimizing material waste.

Figure 4.3: Demonstration of the cross-positioning system, which automatically aligns objects and locks to edges, ensuring precise horizontal carving and accurate object alignment.

5. Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your ATOMSTACK A24 Pro.

• Линзаны тазалоо: Periodically clean the laser lens with a soft, lint-free cloth and lens cleaning solution to maintain laser efficiency.
• Машинаны тазалоо: Wipe down the machine's frame and working area to remove dust and debris.
• Майлоо: Apply a small amount of lubricant to the guide rails as recommended in the detailed product manual (not provided here) to ensure smooth movement of the laser module.
• Программалык камсыздоонун жаңыртуулары: Check the ATOMSTACK website or app for any available firmware updates to ensure your machine has the latest features and improvements.

6. Кыйынчылыктарды

Бул бөлүмдө ATOMSTACK A24 Pro менен кездешиши мүмкүн болгон жалпы көйгөйлөр каралат.

6.1 Жалпы маселелер жана чечимдер

• Лазер күйбөйт:
  • Электр кабелинин бекем туташтырылганын текшериңиз.
  • Авариялык токтотуу баскычы иштебей турганын текшериңиз.
  • Verify that the laser module is properly seated and connected.
  • Confirm that the software settings for laser power are not set to zero.
• Engraving/Cutting Quality is Poor:
  • Blurry Engraving: Re-check the laser focus. Even with fixed focus, ensure the material height is correct.
  • Weak Engraving/Incomplete Cuts: Increase laser power or reduce engraving/cutting speed. Ensure the laser lens is clean.
  • Uneven Engraving: Check if the material is flat and securely placed. Ensure the machine is on a level surface.
• Machine Not Responding to Software:
  • Verify USB connection. Try a different USB port or cable.
  • Restart the software and the machine.
  • Ensure correct COM port is selected in the software.
  • Check for driver issues or software compatibility.
• Иш учурунда анормалдуу ызы-чуу:
  • Check for any obstructions in the movement path of the laser module.
  • Inspect the guide rails for debris or damage. Lubricate if necessary.

If you encounter issues not covered here, please refer to the official ATOMSTACK support resources or contact customer service.

7. Техникалык шарттар

Figure 7.1: Illustration of the ATOMSTACK A24 Pro's laser module, highlighting its 24W optical power and the ultra-fine 0.06x0.06mm compressed laser spot for superior precision compared to ordinary spots.

Figure 7.2: Detailed chart demonstrating the enhanced laser cutting capabilities of the A24 Pro, showing maximum cutting thickness in a single pass for materials such as black acrylic (5mm), balsa (10mm), paulownia (8mm), MDF (3mm), basswood plywood (5mm), pine wood (6mm), stainless steel (0.02mm), and vinyl (3 layers).

Figure 7.3: Comparison illustrating the impressive working speed of the ATOMSTACK A24 Pro (up to 600mm/s), which is significantly faster (3-6 times) than traditional frame machines, demonstrating efficiency gains in engraving tasks.

8. Кепилдик жана колдоо

ATOMSTACK provides professional technical and support teams available 24/7 to assist with any questions or concerns you may have regarding your A24 Pro laser engraver.

• Техникалык колдоо: For technical assistance, troubleshooting, or operational guidance, please contact ATOMSTACK customer service through their official channels.
• Кепилдик маалыматы: Specific warranty terms and conditions are typically provided with your purchase documentation. Please refer to these documents for details on coverage and duration.
• Онлайн ресурстар: Visit the official ATOMSTACK website for FAQs, software downloads, and additional resources.
