RAM-4X Wet/Dry/Air-Flush Tube Cleaner

Продукт бүттүview

The Goodway RAM-4X Tube Cleaner is a powerful and versatile machine designed for efficient cleaning of tubes and pipes. Equipped with a 1 HP (0.75 kW) drive motor, it effectively removes hard deposits and scale from tubes/pipes with an internal diameter of 1 inch (25.4mm) and up. This unit supports wet, dry, and air-flush applications, making it suitable for various cleaning requirements.

Негизги өзгөчөлүктөрү:

• Күчтүү мотор: Features a full 1 HP (0.75 kW) drive motor for tackling tough deposits.
• Flexible Shaft System: Utilizes a heavy-duty flexible shaft with a cleaning tool for effective cleaning in hard-to-reach areas.
• Ар тараптуу колдонмолор: Supports wet/air-flush applications by feeding water or air, and dry applications with the GTC-DPA Dry Powder Air-Flush Attachment.
• Туруктуу курулуш: Built with a rugged cast aluminum housing, stainless steel shaft with corrosion-resistant nylon coating, and a high-impact polymer base for longevity.
• Колдонуучуга ыңгайлуу дизайн: Simple to operate with an intuitive control panel and designed for easy transport.

Продукт визуалдык

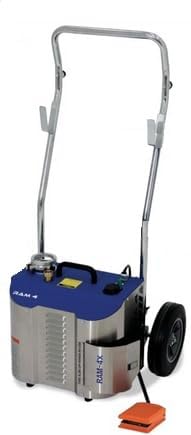

Image of the Goodway RAM-4X Wet/Dry/Air-Flush Tube Cleaner. The machine features a blue top housing, a silver-colored main body, and is mounted on a wheeled cart with a handle for portability. An orange foot pedal is visible at the base.

Орнотуу нускамалары

Before operating the RAM-4X Tube Cleaner, ensure proper setup to guarantee safe and efficient performance.

1. Таңгактан чыгаруу жана текшерүү: Carefully remove the unit from its packaging. Inspect for any visible damage that may have occurred during transit. Report any damage to the carrier and supplier immediately.
2. Жайгашкан жери: Position the RAM-4X on a stable, level surface near the area where cleaning will take place. Ensure adequate ventilation.
3. Кубат туташуу: Connect the 5-foot (1.5 m) power cord with the molded plug to a suitable electrical outlet. Verify that the power supply matches the unit's requirements (refer to specifications).
4. Flexible Shaft Attachment: Select the appropriate flexible shaft for your application (wet, dry, or air-flush). Securely attach the flexible shaft to the drive motor output. Ensure it is properly seated and locked.
5. Cleaning Tool Installation: Attach the chosen cleaning tool (e.g., brush, scraper) to the tip of the flexible shaft. Ensure it is firmly secured.
6. Water/Air Supply (for Wet/Air-Flush): For wet or air-flush applications, connect a water hose or air line to the designated inlet on the unit. Ensure connections are tight to prevent leaks.
7. Dry Powder Air-Flush Attachment (for Dry Applications): If performing dry cleaning, connect the GTC-DPA Dry Powder Air-Flush Attachment as per its specific instructions.

Иштөө нускамалары

Follow these steps for safe and effective operation of your RAM-4X Tube Cleaner.

1. Ишке чейинки текшерүү: Before starting, ensure all connections (power, flexible shaft, cleaning tool, water/air supply) are secure. Verify that the area around the machine is clear of obstructions.
2. Күйгүзүү: Turn on the main power switch located on the control panel. The LED display should illuminate.
3. Select Application Mode: If applicable, select the desired mode (wet, dry, or air-flush) on the control panel.
4. Тазалоону баштоо: Carefully insert the cleaning tool and flexible shaft into the tube or pipe to be cleaned.
5. Моторду ишке киргизүү: Press the foot pedal or activate the start button to engage the drive motor. The flexible shaft will begin to rotate, and water/air will flow if in wet/air-flush mode.
6. Advance and Retract: Slowly advance the flexible shaft into the tube, allowing the cleaning tool to remove deposits. Maintain a steady pace. Once the end of the tube is reached, slowly retract the shaft.
7. Монитор аткаруу: Observe the cleaning process. The intuitive control panel and LED display provide feedback on operation.
8. Өчүрүү: Once cleaning is complete, release the foot pedal or press the stop button to disengage the motor. Turn off the main power switch.
9. Disconnect Supplies: Disconnect water/air supply lines and then unplug the unit from the power outlet.

Маанилүү: Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during operation. Refer to local safety guidelines.

Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your RAM-4X Tube Cleaner.

• Ар бир колдонуудан кийин:
  • Clean the flexible shaft and cleaning tool thoroughly to remove any debris or residue.
  • Жарнама менен блоктун сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды колдонбоңуз.
  • Ensure all connections are free of moisture before storage.
• Flexible Shaft Care: Inspect the flexible shaft for kinks, wear, or damage. Replace if necessary. Lubricate the shaft according to manufacturer recommendations to ensure smooth operation.
• Cleaning Tool Inspection: Regularly inspect cleaning tools for wear. Worn tools reduce cleaning effectiveness and can damage tubes. Replace as needed.
• Электр шнурунун текшерүүсү: Check the power cord for any cuts, fraying, or damage. Do not use the unit if the power cord is damaged.
• Сактагыч: Store the RAM-4X in a clean, dry environment, away from extreme temperatures and direct sunlight. Coil the flexible shaft neatly to prevent kinking.
• Кесиптик тейлөө: For internal components or complex issues, contact a qualified service technician or Goodway customer support.

Проблемаларды чечүү

This section provides solutions to common operational issues. For problems not listed here, contact customer support.

Техникалык мүнөздөмөлөр

• Модел: RAM-4X-ID-60-2:1
• Drive мотору: 1 HP (0.75 кВт)
• Tube/Pipe I.D. Compatibility: 1 inch (25.4mm) and up
• Тиркемелер: Wet, Dry, Air-Flush
• Турак материалы: Rugged Cast Aluminum
• Вал материалы: Stainless Steel with Corrosion-Resistant Nylon Coating
• Негизги материал: High-Impact Polymer
• Электр кабели: 5-foot (1.5 m) with molded plug
• Сертификаттар: CE, CSA
• Продукциянын өлчөмдөрү: 20 x 17 x 37 дюйм
• Элемент Салмагы: 55 фунт
• Өндүрүүчү: Goodway
• Түсү: Көк
• Кубат булагы: Электр зымдары

Кепилдик жана колдоо

For detailed warranty information, please refer to the documentation provided with your purchase or visit the official Goodway webсайт. Кепилдиктин шарттары жана шарттары ар кандай болушу мүмкүн.

If you require technical assistance, have questions about operation, or need to order replacement parts, please contact Goodway customer support. Contact information can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.

Goodway Technologies Corp.
(Contact details typically provided by manufacturer)
