Genmitsu MD13 Smoke Purifier User Manual

1. Киришүү

This manual provides essential information for the safe and effective operation and maintenance of your Genmitsu MD13 Smoke Purifier. The MD13 is designed to combat engraving fumes, providing a cleaner and safer working environment, especially when paired with enclosed machines like the Genmitsu L8. Please read this manual thoroughly before use and retain it for future reference.

Коопсуздук маалыматы

• Always operate the unit in a well-ventilated area.
• Ensure the power supply matches the unit's requirements.
• Аба кирүүчү же чыгаруучу вентиляторлорду жаппаңыз.
• Keep the unit away from water and flammable materials.
• Тейлөө же чыпканы алмаштыруу иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
• Do not attempt to modify the unit. Refer all servicing to qualified personnel.

2. Продукт бүтүп калдыview

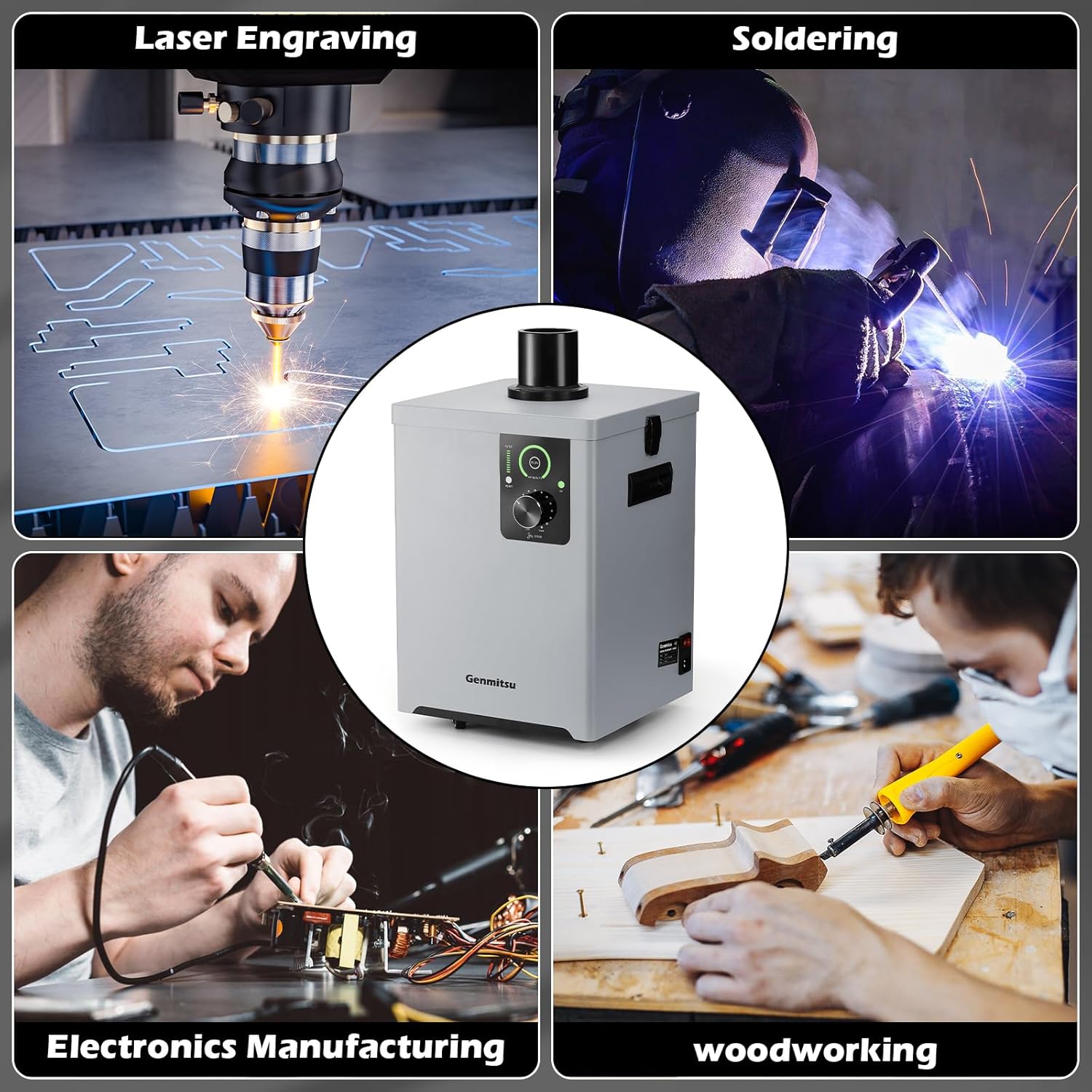

The Genmitsu MD13 Smoke Purifier is an advanced fume extraction system featuring a multi-layer filtration process and user-friendly design elements for enhanced air quality in various workshop applications.

Негизги өзгөчөлүктөрү

• Four-Layer Filtration System: Includes a coarse cotton pre-filter, intermediate cartridge, high-efficiency coconut shell activated carbon, and a high-efficiency HEPA filter for 99.97% smoke elimination.
• Integrated UV Function: Absorbs and neutralizes smoke emissions, contributing to a healthier workspace.
• LED интерфейси: Provides easy monitoring of filter status, air quality, and UV function.
• Stepless Airflow Adjustment: A rotary knob allows for precise control over the air suction speed.
• Жакшыртылган мобилдүүлүк: Equipped with universal wheels for easy repositioning and dual handles for convenient lifting.

3. Орнотуу

3.1 Пакеттен чыгаруу жана компоненттерди текшерүү

Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Төмөндө саналган нерселердин бардыгы бар экенин жана бузулбаганын текшериңиз.

3.2 Чыпканы орнотуу

The filters are typically pre-installed. If not, or if you are replacing them, ensure they are inserted in the correct order as shown in Figure 2.2, with the coarse filter at the top and the HEPA filter at the bottom.

3.3 Чыгаруу шлангынын туташуусу

1. Attach one end of the exhaust hose to the outlet port on top of the MD13 unit. Secure it with a hose clamp.
2. Connect the other end of the exhaust hose to your fume-generating equipment (e.g., laser engraver, soldering station). Ensure a tight seal to prevent fume leakage.

3.4 Орнотуу

Position the MD13 on a stable, level surface. Utilize the universal wheels for easy movement. Ensure adequate space around the unit for proper airflow and maintenance access.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү

Connect the power cable to the unit and a suitable power outlet. Use the main power switch located on the unit to turn it on or off.

4.2 Башкаруу панелинин үстүнөview

• LED экраны: Displays real-time air quality and filter status.
• UV Function Button: Press to activate or deactivate the integrated UV light for enhanced fume neutralization. An indicator light will confirm its status.
• Аба агымын жөндөө баскычы: Rotate clockwise to increase airflow speed (MAX) and counter-clockwise to decrease it (OFF).
• Чыпканы баштапкы абалга келтирүү баскычы: Used to reset the filter life indicator after replacing a filter.

4.3 Аба агымын жөндөө

Turn the airflow adjustment knob to set the desired suction power. Start with a lower setting and increase as needed based on the amount of smoke or fumes generated by your application.

4.4 Using the UV Function

Press the UV button to activate the ultraviolet light. This function helps to further break down and neutralize harmful particles and odors. It is recommended to use the UV function during operations that produce significant fumes.

5. Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your MD13 Smoke Purifier.

5.1 Фильтрди алмаштыруу

The MD13 features an indicator light for cartridge usage and an average cartridge life of up to 300 hours. However, actual filter life will vary significantly depending on the type and volume of smoke being filtered.

1. Өчүрүү: Бирдиктин өчүрүлгөнүн жана электр булагынан ажыратылганын текшериңиз.
2. Open Latches: Release the metal latches on the sides of the unit to open the top cover.
3. Эски чыпкаларды алып салуу: Carefully lift out the used filter layers. Dispose of them according to local regulations.
4. Жаңы чыпкаларды орнотуу: Place the new filters into the unit in the correct order (refer to Figure 2.2).
5. Мукабаны жабуу: Securely close the top cover and fasten the metal latches.
6. Чыпка көрсөткүчүн баштапкы абалга келтирүү: Plug in the unit and press the 'RESET' button on the control panel to reset the filter life indicator.

5.2 Сырты тазалоо

Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

6. Кыйынчылыктарды

If you encounter issues with your Genmitsu MD13, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Genmitsu customer support for further assistance.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or to purchase replacement parts and filters, please contact Genmitsu customer service. Refer to the official Genmitsu webБайланыш маалыматы үчүн сайтка же сатып алуу документтериңизге кайрылыңыз.

Өндүрүүчү: Genmitsu
