1. Киришүү
The Vivitek NovoDS DS310 is a high-performance 4K digital signage player designed for creating dynamic visual displays in various environments, including corporate and public spaces. This device facilitates the integration of media files, rich text, webpages, and social media content into customizable configurations. The NovoDS solution offers convenient content updates via NovoDS Studio and DS Cloud, utilizing a drag-and-drop interface for layout customization and intuitive playlist editing, making it accessible for users of all technical skill levels.
2. Коопсуздук маалыматы
Аппаратка зыян келтирбөө же өзүңүзгө зыян келтирбөө үчүн бардык коопсуздук нускамаларын кылдаттык менен окуп чыгып, аткарыңыз. Бул колдонмону келечекте маалымат алуу үчүн сактаңыз.
- Электр камсыздоо: Use only the power adapter provided with the device. Ensure the power source matches the voltagд талаптар.
- Вентиляция: Do not block ventilation openings. Ensure adequate airflow around the device to prevent overheating.
- Курчап турган чөйрө: Түзмөктү өтө жогорку температурага, нымдуулукка, чаңга же түз күн нуруна дуушар кылбаңыз.
- Тазалоо: Тазалоодон мурун электр кубатынан ажыратыңыз. Жумшак, кургак чүпүрөктү колдонуңуз. Суюк же аэрозоль тазалагычтарды колдонбоңуз.
- Тейлөө: Аппаратты өзүңүз тейлөөгө аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- Vivitek NovoDS DS310 Digital Signage Player
- Кубаттуу адаптер
- Алыстан башкаруу
- Quick Start Guide
- Wi-Fi Antennas (x2)
4. Продукт бүтүп калдыview
Familiarize yourself with the components and ports of the NovoDS DS310 player.

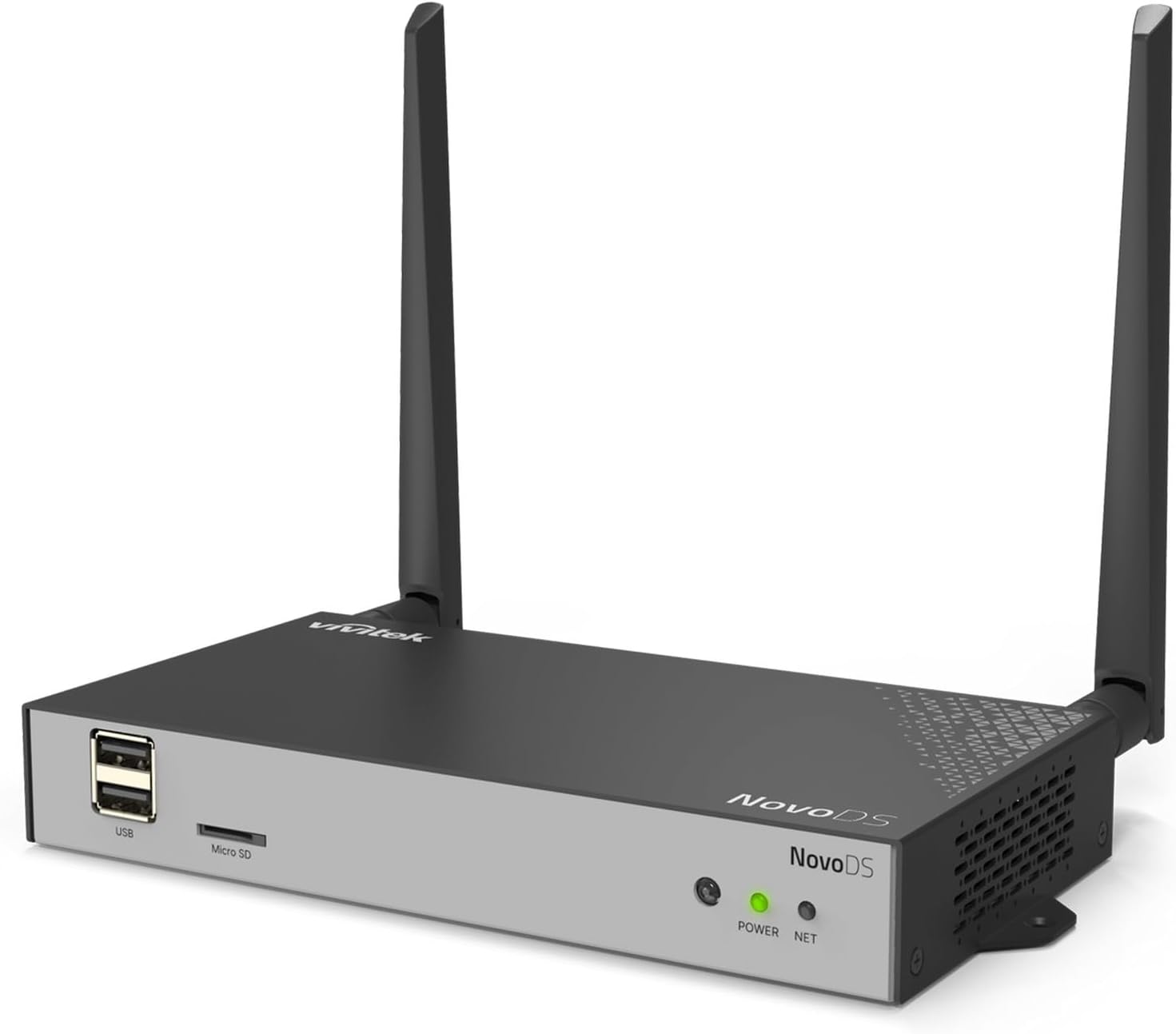

4.1-сүрөт: Overall front-left view of the Vivitek NovoDS DS310 player, showcasing its compact design with two Wi-Fi antennas, USB port, Micro SD slot, and status indicators.
4.1 алдыңкы панели
4.2-сүрөт: Детальдуу алдыңкы view of the NovoDS DS310 player, clearly showing the USB ports, Micro SD slot, POWER indicator (green LED), and NET indicator (green LED).
- USB порттору: Two USB-A ports for connecting USB storage devices, keyboards, mice, or other peripherals.
- Micro SD оюгу: For inserting a Micro SD card to expand storage or load content.
- POWER көрсөткүчү: A green LED that illuminates when the device is powered on.
- NET көрсөткүчү: A green LED that illuminates when the device has an active network connection (wired or wireless).
4.2 Арткы панель
4.3-сүрөт: Арткы бетинин деталдары view of the NovoDS DS310 player, illustrating all available connectivity ports from left to right: LAN, HDMI-IN, HDMI-OUT, RS232, Type-C, Audio-IN, Audio-OUT, Reset button, and DC power input.
- LAN порту: RJ45 Ethernet port for a wired network connection.
- HDMI-IN: HDMI input for connecting an external video source to be displayed or integrated into signage content.
- HDMI-OUT: HDMI output for connecting the player to a display device (monitor, TV, projector).
- 232: Serial port for advanced control and integration with external systems.
- C түрү: USB Type-C port for data transfer or peripheral connection.
- AUDIO-IN: 3.5mm audio input jack.
- AUDIO-OUT: 3.5mm audio output jack for connecting external speakers or audio systems.
- RESET баскычы: A small recessed button used to reboot the device or perform a factory reset.
- DC IN: Power input port for the included power adapter.
4.3 каптал панели
4.4-сүрөт: Сол жагы view of the NovoDS DS310 player, showing ventilation grilles and the GPIO port for custom integrations.

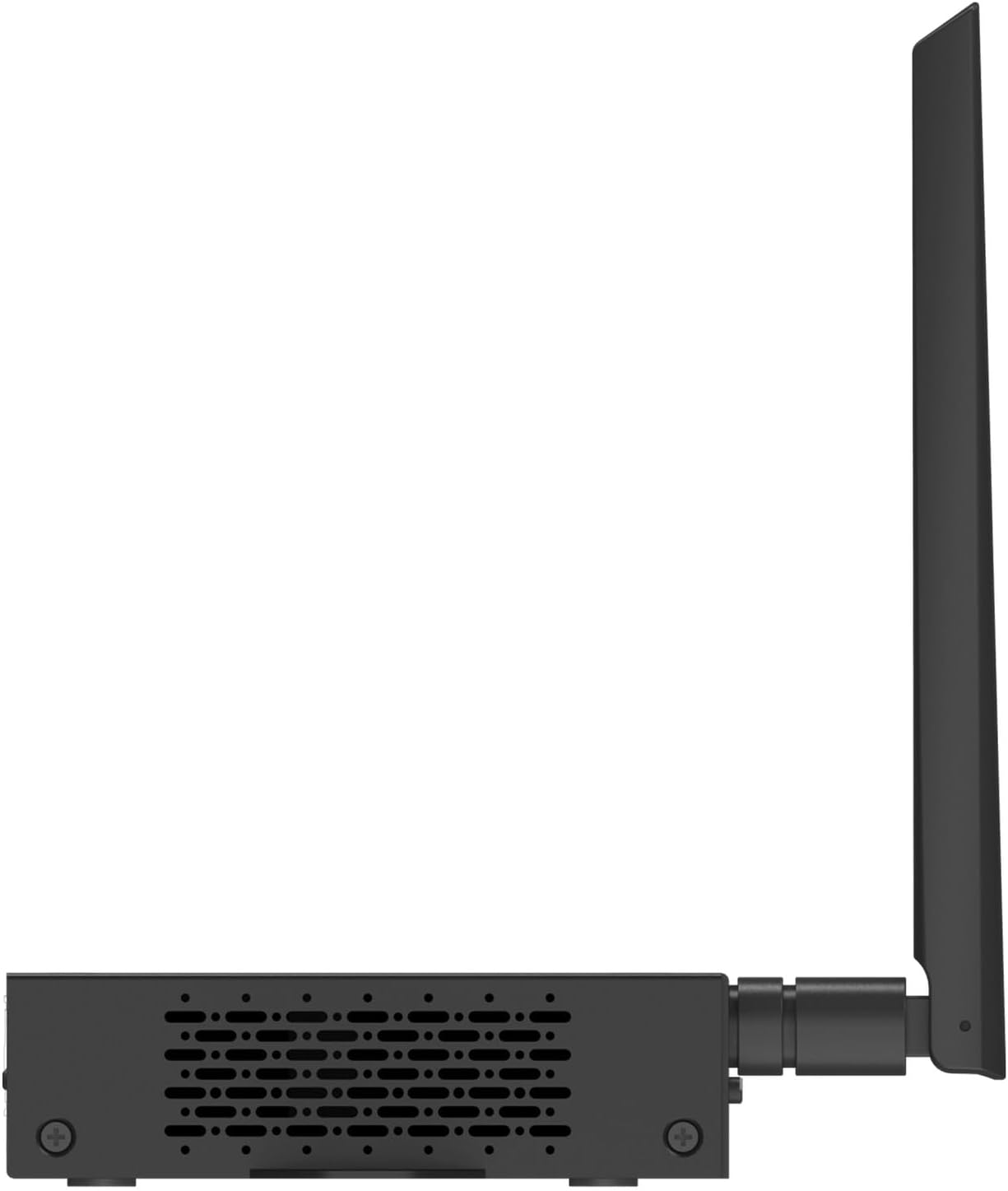

4.5-сүрөт: Оң тарап view of the NovoDS DS310 player, showing ventilation grilles.
- GPIO порту: General Purpose Input/Output terminal for connecting external sensors or control devices, enabling interactive signage solutions.
- Вентиляция торлору: Located on both side panels to ensure proper heat dissipation and maintain optimal operating temperature.
4.4 Жогору View жана орнотуу
4.6-сүрөт: Жогорку view of the NovoDS DS310 player, showing integrated mounting brackets for secure installation.
- Монтаждоо кронштейндери: Integrated into the chassis for easy and secure installation on various surfaces or behind displays.
5. Орнотуу нускамалары
Follow these steps to set up your NovoDS DS310 player:
- Антенналарды туташтыруу: Screw the two Wi-Fi antennas onto the designated connectors on the rear of the device. Ensure they are securely fastened.
- Дисплейге туташуу: Connect one end of an HDMI cable to the HDMI-OUT port on the NovoDS DS310 and the other end to an HDMI input on your display device (monitor, TV, projector).
- Тармак туташуусу:
- текст: Connect an Ethernet cable from your network router/switch to the LAN port on the NovoDS DS310.
- Зымсыз: The device will prompt you to configure Wi-Fi during initial setup or you can configure it via the system settings.
- Күйгүзүү: Берилген кубат адаптерин туташтырыңыз DC IN port on the NovoDS DS310, then plug the adapter into a power outlet. The POWER indicator will illuminate.
- Баштапкы жүктөө: The device will power on automatically and begin the boot process. Follow the on-screen instructions for initial configuration, including language selection and network setup.
6. Иштөө нускамалары
This section outlines basic operation of the NovoDS DS310 player.
6.1 Content Management with NovoDS Studio/Cloud
The NovoDS DS310 is managed using the NovoDS Studio software (for local management) or NovoDS Cloud service (for remote management). These platforms allow you to create, schedule, and deploy digital signage content.
- NovoDS Studio: Download and install the NovoDS Studio software on your computer. Connect the DS310 to the same local network as your computer. The software will detect the player, allowing you to upload content, design layouts, and manage playlists.
- NovoDS Cloud: Register your DS310 device with the NovoDS Cloud service. This enables remote content updates and management from any internet-connected location. Refer to the NovoDS Cloud documentation for detailed setup and usage.
6.2 Алыстан башкарууну колдонуу
The included remote control allows for basic navigation and system settings adjustments on the connected display.
- Навигация: Use the arrow keys to move through menus and options.
- Select/OK: Тандоолорду ырастаңыз.
- Артка/Меню: Return to the previous screen or access the main menu.
- Көлөмү: Adjust audio output volume (if applicable).
6.3 USB and Micro SD Card Usage
Content can also be loaded directly onto the device via USB drives or Micro SD cards.
- Insert a USB drive into a USB порт же Micro SD картаны Micro SD оюгу.
- The system may automatically detect new content or you may need to navigate to the storage device through the system's file browser to import media.
7. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your NovoDS DS310.
- Тазалоо: Regularly wipe the exterior of the device with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or spray directly onto the device.
- Вентиляция: Ensure that the ventilation openings are clear of dust and obstructions. Periodically check for dust buildup and gently clean if necessary using compressed air.
- Программалык камсыздоонун жаңыртуулары: Check for and install firmware updates as recommended by Vivitek to ensure the device has the latest features and security enhancements. These updates are typically managed through NovoDS Studio or NovoDS Cloud.
- Сактагыч: Аппаратты узак убакытка сактасаңыз, аны электр кубатынан ажыратып, салкын, кургак жерде сактаңыз.
8. Кыйынчылыктарды
This section addresses common issues you might encounter with the NovoDS DS310.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Кубат адаптери туташкан эмес же туура эмес. розетка иштебей жатат. | Ensure the power adapter is securely connected to the device and a working power outlet. Test the outlet with another device. |
| Дисплей чыгаруу жок | HDMI cable loose or faulty. Incorrect input selected on display. | Check HDMI cable connections. Ensure the display is set to the correct HDMI input source. Try a different HDMI cable. |
| Тармак туташуусу жок | Ethernet cable disconnected. Wi-Fi not configured or out of range. Network issues. | For wired connection, check Ethernet cable. For Wi-Fi, ensure correct network is selected and password entered. Verify router/network functionality. |
| Content not updating | Network connectivity issues. Incorrect content schedule. Device not registered with NovoDS Studio/Cloud. | Verify network connection. Check content schedule in NovoDS Studio/Cloud. Ensure the device is properly registered and online in the management platform. |
| Түзмөк жооп бербей жатат | Убактылуу программалык ката. | басыңыз RESET button briefly to reboot the device. If the issue persists, perform a factory reset (refer to advanced settings in NovoDS Studio/Cloud documentation). |
9. Техникалык шарттар
Technical specifications for the Vivitek NovoDS DS310.
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Vivitek |
| Модель номери | DS310 |
| Резолюция | 4K |
| Эстутум сактоо сыйымдуулугу | 8 ГБ |
| Controller Type | Алыстан башкаруу |
| Продукциянын өлчөмдөрү | Approximately 1 x 1 x 1 inches (actual dimensions may vary slightly from placeholder) |
| Элемент Салмагы | Болжол менен 2 фунт |
| Байланыш | LAN, Wi-Fi, HDMI-IN, HDMI-OUT, USB, Micro SD, RS232, Type-C, Audio-IN, Audio-OUT, GPIO |
| UPC | 813097025746 |
10. Кепилдик жана колдоо
For warranty information and technical support, please refer to the official Vivitek website or contact their customer service directly. Details regarding warranty periods and service procedures are typically provided with your purchase documentation or available online.
Vivitek Official Webсайт: www.vivitekcorp.com
When contacting support, please have your product model (DS310) and serial number ready.
