Protmex PT6708 Digital Sound Level Meter User Manual

1. Киришүү

This user manual provides detailed instructions for the operation and maintenance of the Protmex PT6708 Digital Sound Level Meter. This device is designed for accurate measurement of sound levels in various environments, offering a range of 30 to 130 decibels with high precision. Please read this manual thoroughly before using the device to ensure proper function and safety.

Image: The Protmex PT6708 Digital Sound Level Meter, shown with its protective foam cover over the microphone and two AAA batteries.

2. Продукт бүтүп калдыview

The PT6708 Sound Level Meter is a compact and reliable instrument for noise measurement.

2.1 Компоненттер жана дисплей

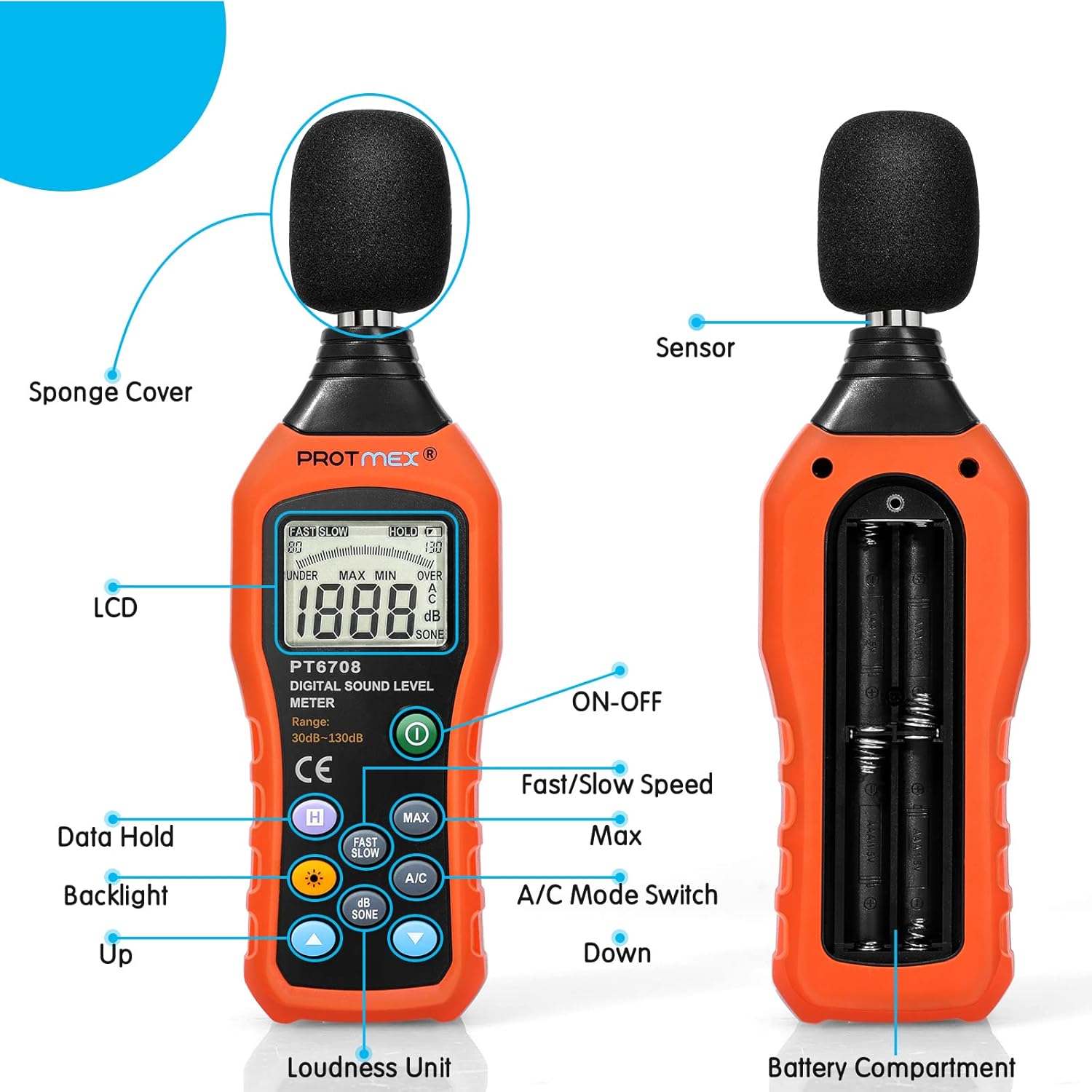

Image: A detailed diagram illustrating the various components of the PT6708 Sound Level Meter, including the sponge cover, LCD, ON-OFF button, data hold button, backlight button, up/down buttons, fast/slow speed button, max button, A/C mode switch, sensor, and battery compartment.

• Sponge Cover: Protects the microphone from wind noise and dust.
• Сенсор: High-precision noise sensor for accurate sound detection.
• LCD дисплей: Large screen showing decibel readings, measurement modes, and battery status.
• ON-OFF баскычы: Аппаратты күйгүзөт же өчүрөт.
• Дайындарды кармоо баскычы (H): Учурдагы өлчөөнү дисплейде тоңдурат.
• Арткы жарык баскычы: Activates or deactivates the display backlight for visibility in low light.
• Өйдө/ылдый баскычтары: Used for adjusting settings or navigating menus (if applicable).
• Fast/Slow Speed Button: Toggles between fast and slow response times.
• MAX баскычы: Displays the maximum sound level recorded during a measurement session.
• A/C Mode Switch: Selects between A-weighting and C-weighting modes.
• Loudness Unit (dB/SONE): Button to switch between decibel and SONE units.
• Батарея бөлүмү: Located at the rear, holds the AAA batteries.

3. Негизги өзгөчөлүктөрү

• Accurate and Sensitive Measurement: Utilizes a high-quality AD636 chip and an electric condenser microphone for precise sound level monitoring from 30 to 130 dB with an accuracy of +/-1.5 dB and 0.1 dB resolution.
• Fast and Slow Response Rates:
  • Fast Response (0.125s): Ideal for general environmental measurements and quickly changing noise levels.
  • Slow Response (1s): Suitable for environmental measurements with relatively stable noise levels or for averaging fluctuating sounds.
• A/C Weighting Network Selection:
  • A-Weighting: Simulates human hearing characteristics, suitable for ambient noise detection.
  • C-Weighting: Measures the actual sound level, suitable for sound pressure analysis of machine motors and mechanical noise.
• Data Hold and MAX Functions: Allows freezing the current reading and displaying the maximum recorded value.
• Арткы жарыктуу LCD экран: Ensures clear visibility of readings in various lighting conditions, with an auto power-off function for energy saving.
• Слипке каршы дизайн: Composite material injection molding process with an anti-drop structure for durability and ease of handling.

Image: Visual representation of the meter's high-precision noise sensor, the clarity of its backlit LCD display, and the ergonomic anti-slip design of its casing.

Image: A composite image detailing the internal premium chip, the polarized capacitive microphone for excellent performance, the dynamic characteristics of sound pressure (Fast/Slow response times), and the A and C weighting mode selection for different types of noise measurement.

4. Орнотуу

4.1 Мазмунун ачуу

Пакетти ачканда, бардык компоненттер бар экенин текшериңиз:

Image: The complete package contents, including the product box, carrying case, the PT6708 sound level meter, user manual, and AAA batteries.

• Protmex PT6708 Sound Level Meter
• Ташуу баштыгы
• User Manual
• AAA батареялары (4 камтылган)

4.2 Батареяны орнотуу

1. Аппараттын артындагы батарея бөлүкчөсүн табыңыз.
2. Use a small Phillips head screwdriver to loosen the screw securing the battery cover.
3. Батареянын капкагын алып салыңыз.
4. Туура полярдуулукту (+/-) камсыз кылып, төрт (4) AAA батарейкасын салыңыз.
5. Батарейканын капкагын ордуна коюп, бурамасын бекемдеңиз.

Эскертүү: The device requires 4 AAA batteries. Ensure they are inserted correctly for proper operation.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү

басыңыз КҮЙГҮЗҮҮ ӨЧҮРҮҮ button (green power symbol) to turn the meter on. Press it again to turn the meter off.

5.2 Негизги өлчөө

Once powered on, the meter will immediately begin displaying the current sound level in decibels (dB). Ensure the microphone is pointed towards the sound source.

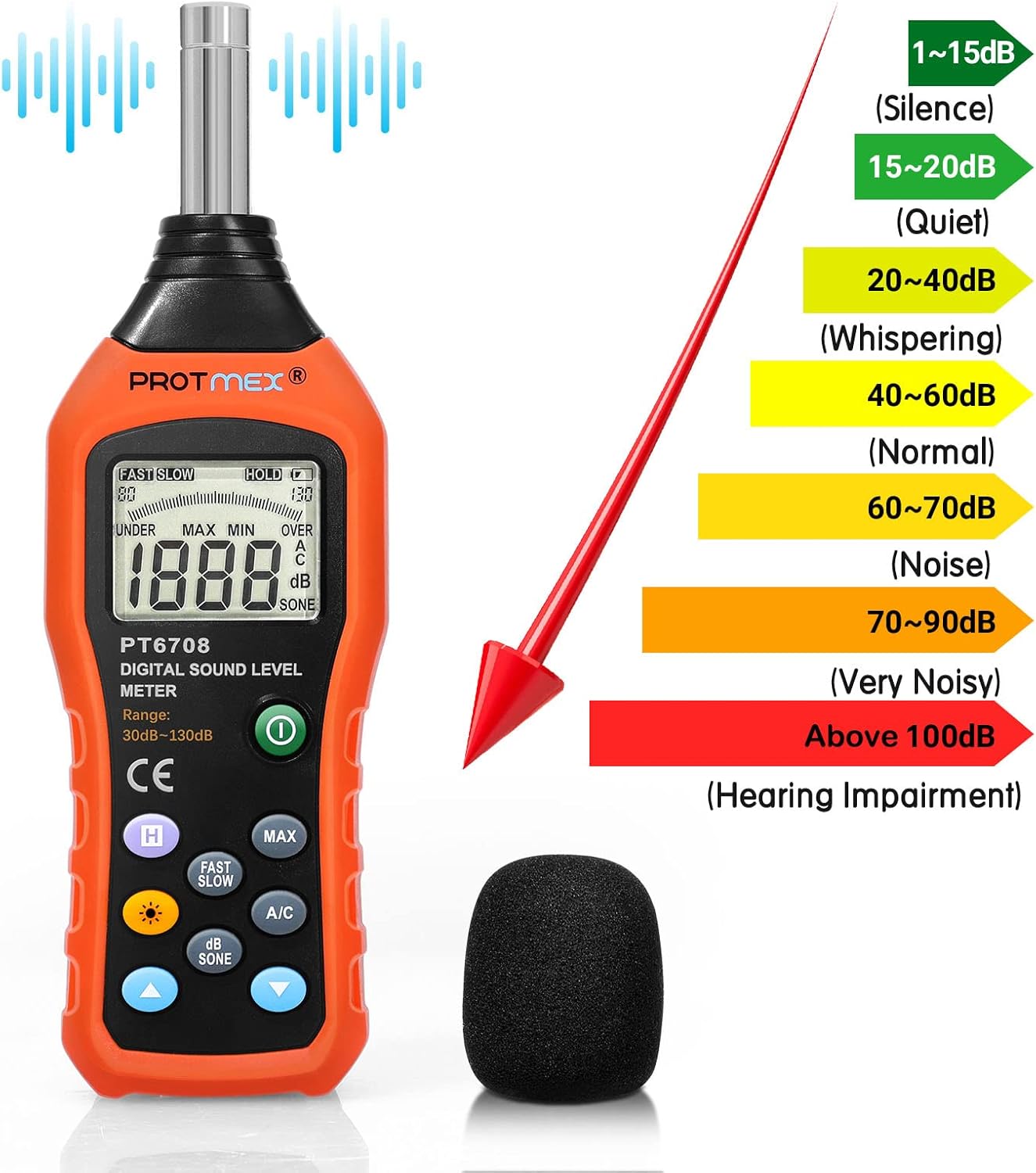

Image: A visual chart illustrating different sound level ranges in decibels (dB) and their corresponding descriptions, from silence (1-15dB) to hearing impairment (above 100dB).

5.3 Кондиционердин салмак тандоосу

басыңыз A/C button to toggle between A-weighting and C-weighting modes. The selected mode will be indicated on the LCD.

• A-Weighting Mode: Simulates the human ear's response to sound. Use this for general environmental noise measurements, such as in offices, residential areas, or for assessing noise exposure.


  Image: A diagram illustrating A-weighting mode, which simulates the auditory characteristics of the human ear for environmental noise measurement.

• C-Weighting Mode: Provides a flatter frequency response, measuring the actual sound level without mimicking human hearing. Use this for analyzing mechanical noise, motor sounds, or when assessing peak sound pressure levels.


  Image: A diagram illustrating C-weighting mode, which measures the actual sound level, suitable for mechanical noise analysis.

5.4 Тез/Жай жооп берүү убактысы

басыңыз ТЕЗ/ЖАЯН button to switch between fast and slow response times.

• ТЕЗ: Responds quickly to changes in sound level (0.125 seconds). Useful for capturing transient noises or rapidly fluctuating sounds.
• ЖАЯН: Provides a more stable reading by averaging the sound level over a longer period (1 second). Ideal for measuring average noise levels or sounds that are relatively constant.

5.5 Дайындарды кармоо (H)

басыңыз H button to freeze the current reading on the display. Press it again to release the hold and resume live measurement.

5.6 Maximum (MAX) Measurement

басыңыз МАКС button to display the maximum sound level recorded since the meter was powered on or since the MAX function was last reset. Press it again to exit MAX mode.

5.7 Арткы жарык

басыңыз Арткы жарык button (sun symbol) to turn the LCD backlight on or off. The backlight will automatically turn off after a period of inactivity to conserve battery power.

5.8 Unit Selection (dB/SONE)

басыңыз dB/SONE button to switch the display unit between decibels (dB) and SONE.

Image: A visual representation of the various function buttons on the meter, including A/C mode, Data Hold, Max/Min, Unit Change (dB/SONE), Fast/Slow, and Manual/Auto.

6. Тиркемелер

The Protmex PT6708 Sound Level Meter is suitable for a wide range of applications, including:

• Environmental noise assessment in residential areas, offices, and schools.
• Industrial noise measurement in factories and workshops.
• Traffic noise monitoring.
• Quality control in product manufacturing.
• Health and safety compliance.
• Audio equipment testing and calibration.

Image: The digital sound level meter depicted in various common environments where noise measurement is relevant, such as offices, factories, near road traffic, and in a bedroom.

Image: A child covering their ears, symbolizing the impact of loud noise and the need for sound level measurement.

Image: The sound level meter positioned in a concert setting, demonstrating its use for measuring crowd noise levels.

Image: A worker wearing ear protection in an industrial environment, with the sound level meter nearby, highlighting its application in occupational safety.

7. Техникалык тейлөө

• Тазалоо: Аппаратты жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Сактагыч: Store the meter in its protective pouch in a cool, dry place away from direct sunlight and extreme temperatures.
• Батареяны алмаштыруу: Replace batteries when the low battery indicator appears on the display. Remove batteries if the device will not be used for an extended period to prevent leakage.
• Микрофонго кам көрүү: Keep the microphone clean and free from dust or debris. Always use the sponge cover to protect the microphone.

8. Кыйынчылыктарды

9. Техникалык шарттар

Image: A diagram showing the physical dimensions of the PT6708 Sound Level Meter: 7.59 inches in length, 2.36 inches in width, and 1.14 inches in depth.

10. Кепилдик жана колдоо

Protmex is committed to providing quality products and customer satisfaction.

10.1 Кепилдик маалыматы

The PT6708 sound meter complies with IEC651 Type 2 and SI.4 Type2 standards, and is CE and RoHS approved. For specific warranty details, please refer to the documentation included with your purchase or contact Protmex customer support.

10.2 Кардарларды колдоо

Protmex offers 24/7 online friendly support. For any inquiries, technical assistance, or support needs, please visit the official Protmex webсайтка же кардарларды тейлөө тобуна кайрылыңыз.

Көбүрөөк маалымат жана байланыш маалыматтарын даректен таба аласыз Protmex Store on Amazon.

For a digital copy of the user manual, you may also refer to the Колдонуучунун колдонмосу (PDF).
