1. Киришүү
This manual provides essential information for the safe and efficient operation of your CONTOURE DE-1350W RV Stackable Front-Load Electric Dryer. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper installation, use, and maintenance are crucial for optimal performance and longevity of the dryer.
2. Коопсуздук боюнча маанилүү маалымат
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read all instructions before using this appliance.
- Always follow local codes and ordinances for installation.
- Мурда бензин, химиялык тазалоочу эриткичтер же башка күйүүчү же жарылуучу заттар менен тазаланган, жуулган, чыланган же тактары бар буюмдарды кургатпаңыз.
- Балдардын шаймандын үстүндө же ичинде ойношуна жол бербеңиз. Шайман балдардын жанында колдонулганда балдарды тыкыр көзөмөлгө алуу зарыл.
- Шайманды иштен чыгаруудан же жарактан чыгаруудан мурун, кургатуу бөлүгүнүн эшигин алып салыңыз.
- Барабан кыймылдаса, шаймандын ичине колун тийгизбеңиз.
- Бул шайманды аба ырайы таасир эте турган жерге орнотуп же сактабаңыз.
- кылбаampбашкаруу элементтери менен.
- Ар бир жүктөө алдында же андан кийин түктүү экранды тазалаңыз.
- Курамында пенопласт же ушуга окшош текстуралуу резина сыяктуу материалдары бар буюмдарды кургатуу үчүн жылуулукту колдонбоңуз.
- Чыгаруучу тешиктин айланасын жана ага чектеш аймактарды түктүн, чаңдын жана кирдин топтолбоосунан сактаңыз.
- Шаймандын ичин жана газ чыгаруучу түтүктү квалификациялуу тейлөө кызматкерлери мезгил-мезгили менен тазалап турушу керек.
- Кургаткычка тамак майы тийген нерселерди салбаңыз. Бышыруучу майлар менен булганган заттар жүктүн күйүп кетишине алып келиши мүмкүн болгон химиялык реакцияга өбөлгө түзүшү мүмкүн.
- Бул шайманды максаттуу колдонуудан башка максаттарда колдонбоңуз.
3. Продукт бүтүп калдыview
The CONTOURE DE-1350W is a compact, front-load electric dryer designed for space-saving applications such as RVs, boats, and tiny homes. It features user-friendly electronic controls, a digital display, and a durable stainless steel drum.

3.1-сүрөт: Фронт view of the CONTOURE DE-1350W RV Stackable Front-Load Electric Dryer. This image shows the control panel at the top, the circular front-loading door, and the "RapidClean" branding on the door.
Негизги өзгөчөлүктөрү:
- Компакт дизайн: Optimized for small living spaces.
- Электрондук башкаруу каражаттары: Intuitive interface with a clear digital display.
- Кургатуу циклдери: Four distinct drying cycles for various fabric types.
- Температура Орнотуулары: Three temperature options (High, Medium, Low).
- Дат баспас болоттон жасалган барабан: Ensures durability and gentle garment care.
- Ыңгайлуу өзгөчөлүктөрү: Includes a lock function, wide-angle door opening, and a transparent window for monitoring.

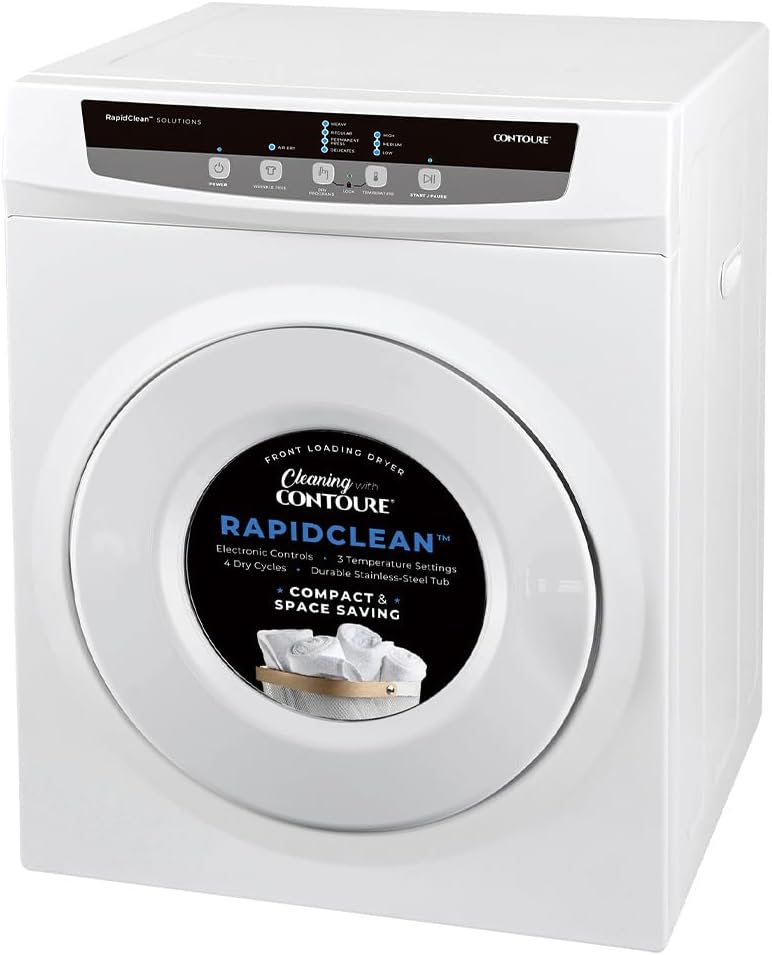

3.2-сүрөт: The CONTOURE DE-1350W dryer with text overlays emphasizing its compact design, four drying cycles, three temperature settings, and easy-to-use electronic controls with a digital display.
4. Орнотуу жана орнотуу
Proper installation is critical for the safe and efficient operation of your dryer. It is recommended that installation be performed by a qualified technician.
4.1 Пакеттен чыгаруу
- Carefully remove all packaging materials, including the base packaging.
- Inspect the dryer for any shipping damage. Report any damage to your retailer immediately.
- Бардык аксессуарлар бар экенин текшериңиз.
4.2 Жайгашкан жерге талаптар
- The dryer must be installed on a firm, level floor capable of supporting its weight (76.5 lbs).
- Ensure adequate clearance around the dryer for proper ventilation and maintenance.
- Do not install the dryer in an area where it may be exposed to freezing temperatures.
- This dryer is designed for freestanding installation.

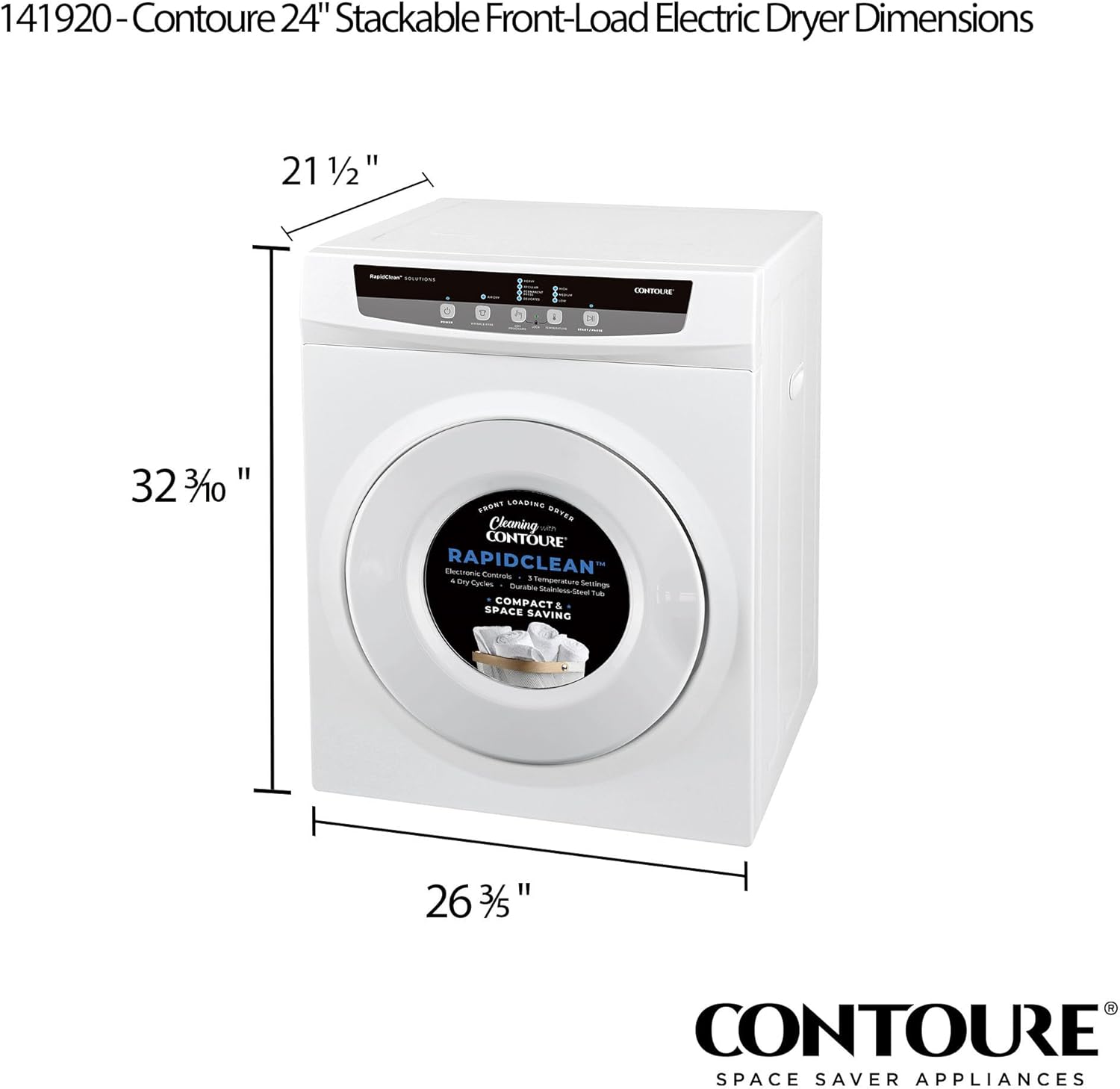

4.1-сүрөт: Dimensions of the CONTOURE DE-1350W dryer. The image shows the dryer with measurements: 32 3/10 inches height, 26 3/5 inches width, and 21 1/2 inches depth.
4.3 Электрдик талаптар
- The dryer requires a dedicated 120 Volts (AC) electrical supply.
- Ensure the electrical outlet is properly grounded and meets all local electrical codes.
- Бул шайман менен узартуу шнурларын колдонбоңуз.
4.4 Вентировкага талаптар
- The dryer must be properly vented to the outside to prevent lint and moisture buildup.
- Use rigid or flexible metal ducting for venting. Avoid plastic or foil ducting.
- Keep the vent duct as short and straight as possible to ensure efficient drying.
5. Иштөө нускамалары
Follow these steps for optimal drying performance.
5.1 Кургаткычты салуу
- Sort laundry by fabric type and desired drying temperature.
- Do not overload the dryer. Clothes should tumble freely. The capacity is 13.2 pounds.
- Close the dryer door firmly. The door hinges are reversible for convenience.
5.2 Башкаруу панелинин үстүнөview
The control panel features electronic controls and a digital display for easy cycle and setting selection.

5.1-сүрөт: Бурчтуу view of the CONTOURE DE-1350W dryer, showcasing the control panel with various buttons and the digital display. The front-loading door is also visible.
5.3 Selecting a Drying Cycle
Your dryer offers four drying cycles:
- Кадимки: Күнүмдүк пахтадан жасалган жана аралаш кездемелер үчүн.
- Назик: For delicate fabrics that require lower heat.
- Оор жүк: For bulky items and heavy fabrics.
- Кургак аба: No heat, for fluffing items or drying heat-sensitive materials.
Use the cycle selector button on the control panel to choose the desired cycle.
5.4 Selecting Temperature Settings
Үч температура орнотуулары бар:
- Жогорку: For sturdy fabrics like towels and jeans.
- Орточо: For permanent press, synthetics, and light cottons.
- Төмөн: For delicate items and heat-sensitive fabrics.
Press the temperature button to cycle through the available options.
5.5 Циклды баштоо
- After selecting the cycle and temperature, press the "Start/Pause" button to begin the drying cycle.
- The digital display will show the remaining drying time.
5.6 Балдарды кулпулоо функциясы
To activate the child lock, press and hold the designated lock button (refer to your control panel for specific icon) for a few seconds. This prevents accidental operation by children. Repeat the action to deactivate.
6. Техникалык тейлөө жана кам көрүү
Regular maintenance ensures efficient operation and extends the life of your dryer.
6.1 Cleaning the Lint Screen
- Clean the lint screen before or after every load. A clogged lint screen reduces drying efficiency and increases fire risk.
- Pull the lint screen out from its housing (usually located inside the door opening).
- Remove accumulated lint by hand. If necessary, wash the screen with warm, soapy water and a soft brush, then rinse thoroughly and dry completely before reinserting.
6.2 Cleaning the Dryer Interior
- Кургаткычтын барабанын жарнама менен сүртүңүзamp керек болсо, кездеме жана жумшак жуучу каражат.
- For stubborn stains, a non-abrasive cleaner can be used, followed by a thorough wipe with a damp ар кандай калдыктарды алып салуу үчүн кездеме.
- Шаймандын ичин жана газ чыгаруучу түтүктү квалификациялуу тейлөө кызматкерлери мезгил-мезгили менен тазалап турушу керек.
6.3 Сырты тазалоо
- Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме.
- Финишке зыян келтирүүчү абразивдүү тазалагычтарды же эриткичтерди колдонуудан алыс болуңуз.
7. Кыйынчылыктарды
Кызматка чакыруудан мурун, кайраview төмөнкү жалпы маселелер жана аларды чечүү жолдору.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кургаткыч башталбайт |
|
|
| Кийим туура кургабайт |
|
|
| Кургаткыч ызы -чуу |
|
|
8. Продукттун спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | КОНТУР |
| Модель номери | DE-1350W |
| Продукциянын өлчөмдөрү (Ж x В x D) | 35.12 x 25.75 x 23.25 дюйм |
| Элемент Салмагы | 76.5 фунт |
| Кубаттуулугу | 13.2 фунт |
| Орнотуу түрү | бурун |
| Форма фактору | Front Load |
| Түс | Ак |
| Жайгашуу мүмкүнчүлүгү | Front Load |
| Тtage | 120 вольт (AC) |
| Эшик илгичтери | Reversible |
| Сертификация | ETL |
| Материалдын түрү | Дат баспаган болот |
| Кургатуу циклдери | 4 |
| Температура орнотуулары | 3 |
9. Кепилдик жана Кардарларды колдоо
For warranty information or technical assistance, please contact CONTOURE customer support. Details regarding your product's specific warranty coverage are typically included with your purchase documentation.
For customer support, please refer to the contact information provided at the point of purchase or on the official CONTOURE webсайт.
