1. Маанилүү коопсуздук нускамалары
Please read all instructions carefully before using the AMZCHEF Double Induction Cooktop. Retain this manual for future reference.
- Ensure the cooktop is placed on a stable, flat, and heat-resistant surface.
- Шайманды, электр шнурун же сууга же башка суюктуктарды розеткага салбаңыз.
- Keep out of reach of children. Supervise children when the appliance is in use.
- Individuals with pacemakers or similar medical implants should consult their doctor before using an induction cooktop.
- Do not place metal objects such as knives, forks, spoons, or lids on the cooktop surface as they can become hot.
- Ensure adequate ventilation around the appliance. Do not block air vents.
- Always use induction-compatible cookware. Non-compatible cookware will not heat.
- The cooktop surface remains hot after use. Avoid touching it immediately.
- Do not operate the appliance with an empty pot or pan.
- Пайдаланылбаганда жана тазалоодон мурун плитаны розеткадан сууруп алыңыз.
2. Продукт бүтүп калдыview
The AMZCHEF 3500W Double Induction Cooktop features two independent heating zones, offering efficient and versatile cooking. The sleek black crystal glass surface is designed for durability and easy cleaning.
Image: The AMZCHEF Double Induction Cooktop in use, featuring a pan with shrimp and broccoli on one burner.
Негизги өзгөчөлүктөрү:
- Dual Heating Zones: One 2000W zone and one 1500W zone for simultaneous cooking.
- Сенсордук башкаруу панели: Intuitive digital controls for easy operation.
- Бир нече температура жөндөөлөрү: 10 temperature levels ranging from 60°C to 240°C.
- Интегралдык таймер: Adjustable timer from 0 to 180 minutes.
- Балдардын коопсуздук кулпусу: Орнотууларды кокусунан өзгөртүүгө жол бербейт.
- Бири -бирине шайкеш келген идиш -аяктар: Works with magnetic induction-ready pots and pans.
- Туруктуу бети: High-quality black crystal glass plate, resistant to high temperatures and scratches.
3. Орнотуу жана орнотуу
3.1 Пакеттен чыгаруу
Carefully remove the cooktop from its packaging. Inspect for any damage during transit. Keep packaging materials for future transport or disposal.
3.2 Орнотуу
- Place the cooktop on a dry, stable, and level surface.
- Ensure there is at least 10 cm of clear space around the appliance for proper ventilation. Do not place it near heat sources or water.
- The cooktop dimensions are approximately 36 cm (depth) x 56.6 cm (width) x 6.8 cm (height).
Image: The cooktop displaying its dimensions (36cm depth, 58cm width, 6.8cm height).
3.3 Кубат туташтыруу
Plug the power cord into a standard 220V electrical outlet. Ensure the outlet is properly grounded and can support the 3500W power requirement of the cooktop.
4. Иштөө нускамалары
4.1 Башкаруу панелинин үстүнөview
The cooktop features a touch-sensitive control panel for each heating zone. Each zone has independent controls for power, temperature, timer, and a child lock function.
Сүрөт: деталдуу view of the touch control panel with buttons for timer, lock, decrease, increase, power/temp, and ON/OFF.
4.2 Күйгүзүү/өчүрүү
- To turn on: Place compatible cookware on the desired heating zone. Touch the КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button for that zone.
- Өчүрүү үчүн: басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button again for the respective zone. The cooktop will automatically turn off if no cookware is detected or after a period of inactivity.
4.3 Adjusting Power and Temperature
- After turning on a zone, use the Көбөйтүү жана Азайтуу buttons to adjust the power level.
- басыңыз Power/Temp button to switch between power (W) and temperature (°C) modes.
- The cooktop offers 10 temperature levels, ranging from 60°C to 240°C, suitable for various cooking methods like simmering, frying, boiling, and stewing.
Image: Visual representation of temperature settings from 60°C (heating) to 240°C (steak), indicating suitable cooking applications.
4.4 Таймер функциясы
- To set the timer: With a heating zone active, touch the Таймер баскычы.
- колдонуу Көбөйтүү жана Азайтуу buttons to set the desired cooking time from 0 to 180 minutes.
- The cooktop will automatically turn off once the set time has elapsed.
Image: A clock graphic indicating the 3-hour timer function, with a couple observing the cooktop.
4.5 Балдардын коопсуздук кулпусу
- To activate: Touch and hold the Кулпу button for a few seconds. An indicator light will illuminate, and the controls will be disabled.
- To deactivate: Touch and hold the Кулпу button again for a few seconds.
- This feature prevents accidental operation or changes to settings, especially useful in households with children.
Image: A child reaching towards the cooktop, with a lock icon overlay, demonstrating the child safety lock feature.
4.6 Идиш идиштеринин шайкештиги
The AMZCHEF Double Induction Cooktop requires magnetic induction-compatible cookware. To check compatibility, hold a magnet to the bottom of your pot or pan. If the magnet sticks, the cookware is compatible.
- Шайкеш материалдар: Cast iron, iron, steel, enameled iron.
- Шайкеш келбеген материалдар: Glass, ceramic, copper, aluminum, or non-magnetic stainless steel.
- Ensure the bottom of the cookware is flat and has a diameter between 10cm and 26cm for optimal performance.

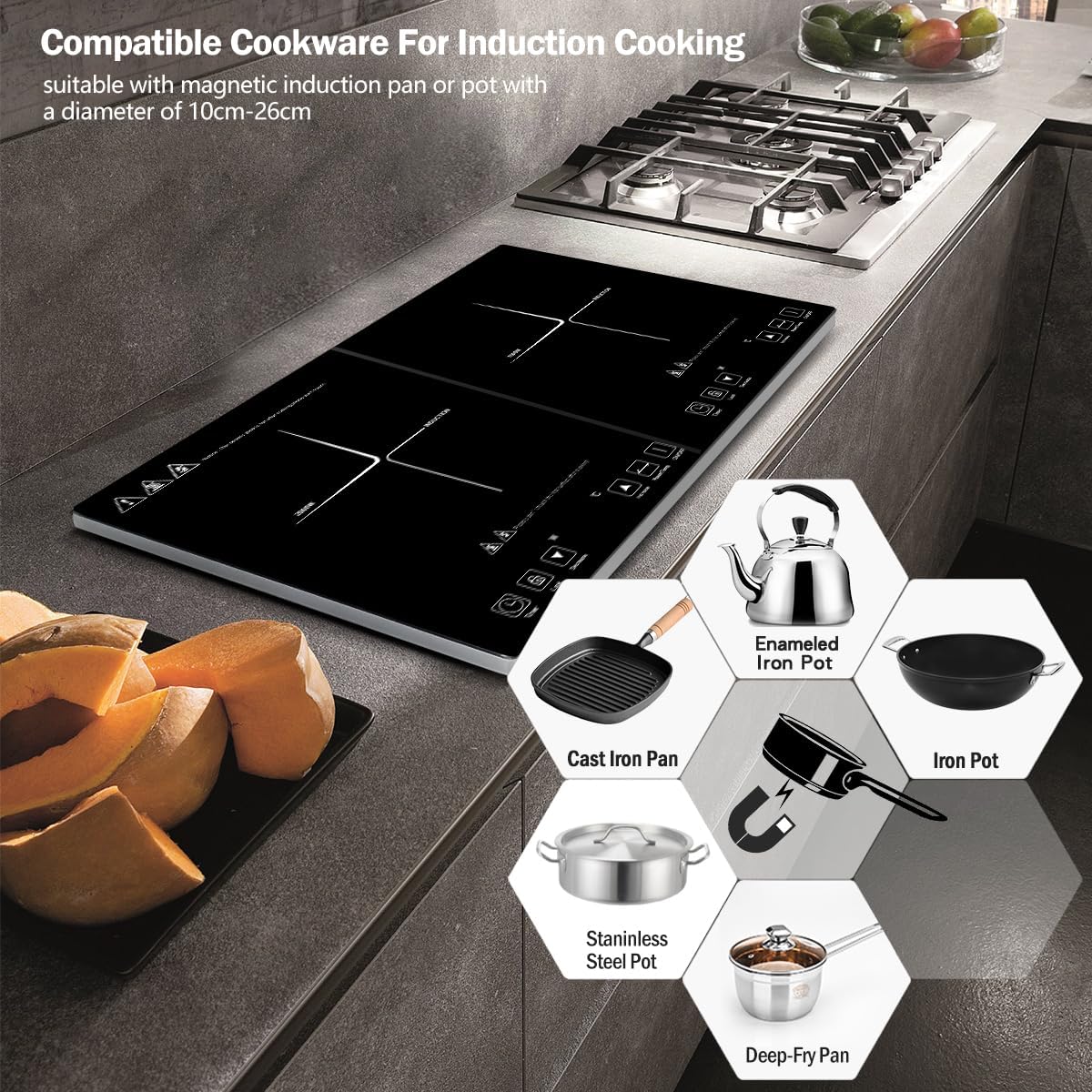

Image: A visual guide to compatible cookware, including cast iron, enameled iron, stainless steel, and iron pots, along with a magnet test illustration.
5. Техникалык тейлөө жана тазалоо
Regular cleaning ensures the longevity and optimal performance of your cooktop.
- Тазалоодон мурун ар дайым плитаны электр розеткасынан сууруп, толугу менен муздаганга чейин күтүңүз.
- Кара кристалл айнектин бетин жумшак, d менен сүртүңүзamp кездеме жана жумшак жуугуч.
- Кежир тактар үчүн, атайын айнек плиталар үчүн иштелип чыккан абразивдүү эмес тазалагычты колдонуңуз.
- Do not use abrasive pads, harsh chemicals, or scouring agents, as these can scratch or damage the surface.
- Ensure no water enters the internal components of the cooktop.
- Clean the ventilation openings on the underside regularly to prevent dust buildup.
Image: A hand wiping the cooktop surface with a sponge, demonstrating easy cleaning.
6. Кыйынчылыктарды
If you encounter issues with your AMZCHEF Double Induction Cooktop, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ашкана күйбөйт. | No power supply; Power cord not properly plugged in; Cooktop is locked. | Check power outlet and plug connection. Ensure the child safety lock is deactivated. |
| Идиш ысытылбайт. | Cookware is not induction-compatible; Cookware is too small or too large; Cookware not centered on heating zone. | Use induction-compatible cookware. Ensure cookware diameter is between 10cm and 26cm and centered on the zone. |
| Иш учурунда адаттан тыш ызы-чуу. | Normal fan noise for cooling; Cookware material. | A slight humming sound from the cooling fan is normal. Some cookware may produce a faint buzzing sound, which is also normal for induction. |
| Ката коду көрсөтүлдү. | Specific internal issue or sensor error. | Unplug the cooktop for 5 minutes, then plug it back in. If the error persists, contact customer support. |
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | AMZCHEF |
| Модель номери | FYM35-S16-VC |
| Жалпы күч | 3500 Ватт |
| Жылытуу зоналары | 2 (2000W жана 1500W) |
| Өлчөмдөрү (L x W x Y) | 56.6 x 36 x 6.8 см |
| Салмагы | 5.62 килограмм |
| Материал | Кара кристалл айнек |
| Башкаруу түрү | Digital Touch |
| Power Source | Electric Mains (220V) |
| Температура орнотуулары | 10 levels (60°C - 240°C) |
| Таймер диапазону | 0 - 180 мүнөт |
8. Кепилдик жана Кардарларды колдоо
8.1 Продукциянын кепилдиги
The AMZCHEF Double Induction Cooktop comes with a 24 айлык кепилдик against non-artificial damages, effective from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
8.2 Кардарларды колдоо
AMZCHEF offers lifetime customer service for this product. If you have any questions, concerns, or require technical assistance, please do not hesitate to contact our customer service team.
Колдоо кызматы менен кантип байланышса болот:
- Please reach out to us via the Amazon message system.
- Our customer service team aims to respond to all inquiries within 24 hours.
