Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Nilight Running Boards, model JL-97B. These running boards are designed specifically for 2018-2024 Jeep Wrangler JL 2 Door vehicles. Please read this manual thoroughly before beginning installation to ensure proper fitment and safe operation.

Маанилүү эскертүү: These running boards are not compatible with Jeep Wrangler JK models or JL 4 Door models. Please verify your vehicle's model and door configuration before proceeding.

Image: Fitment type illustration showing a Jeep Wrangler JL 2 Door (highlighted in green) and a Jeep Wrangler JL 4 Door (marked with an X), indicating compatibility.

Эмне камтылган

Verify that all components listed below are present in your package before starting the installation process.

• 2 x Running Boards (Driver & Passenger Side)
• All necessary mounting hardware (brackets, bolts, washers, nuts)
• 1 х Инструкция (бул документ)

Сүрөт: деталдуу view of the two running boards and a complete set of mounting hardware, including brackets, bolts, washers, and nuts, with quantities indicated.

Техникалык шарттар

Image: Cross-section diagram illustrating the multi-layer construction of the running board, highlighting the durable ABS, electro-galvanized, and powder-coated layers for enhanced durability and rust resistance.

Орнотуу нускамалары

Follow these steps carefully for a successful and secure installation. It is recommended to have a second person assist with the installation.

1. Унаа даярдоо: Park your vehicle on a level surface and engage the parking brake. Ensure the area around the vehicle is clear.
2. Монтаждоо пункттарын аныктоо: Locate the factory mounting points along the rocker panel of your Jeep Wrangler JL 2 Door. These are typically pre-drilled holes in the vehicle's frame.
3. Кашаларды тиркөө: Secure the mounting brackets to the vehicle's frame using the provided bolts, washers, and nuts. Do not fully tighten the hardware at this stage; allow for some adjustment. Ensure the brackets are oriented correctly for the driver and passenger sides.
4. Position Running Boards: Carefully lift one running board and align it with the attached mounting brackets. The running board is designed to fit snugly against the vehicle's body.
5. Коопсуз чуркоо такталары: Attach the running board to the brackets using the remaining hardware. Again, do not fully tighten yet.
6. Жөндөө жана тегиздөө: Once both running boards are loosely attached, adjust their position to ensure they are level and properly aligned with the vehicle's body.
7. Акыркы бекемдөө: Systematically tighten all bolts and nuts, starting from the center and working outwards. Ensure all connections are secure. Do not overtighten.
8. Башка тарап үчүн кайталаңыз: Follow the same steps for the opposite side of the vehicle.

Image: A red Jeep Wrangler JL 2 Door with the Nilight running board successfully installed, showcasing its integration with the vehicle's exterior.

Иштетүү жана коопсуздук

The Nilight Running Boards provide a convenient step for easier entry and exit from your vehicle. They also offer additional protection against road debris and minor impacts.

• Тайга каршы бети: The textured surface of the running boards is designed to prevent slips, especially in wet or muddy conditions. Always step firmly and maintain balance.
• Жүктөө жөндөмдүүлүгү: Do not exceed the maximum load bearing capacity of 450 lbs per side. Overloading can cause damage to the running boards or the vehicle's mounting points.
• Таасирге каршылык: While designed to be impact-resistant, these running boards are not intended for severe off-road impacts. Avoid using them as rock sliders in extreme conditions.

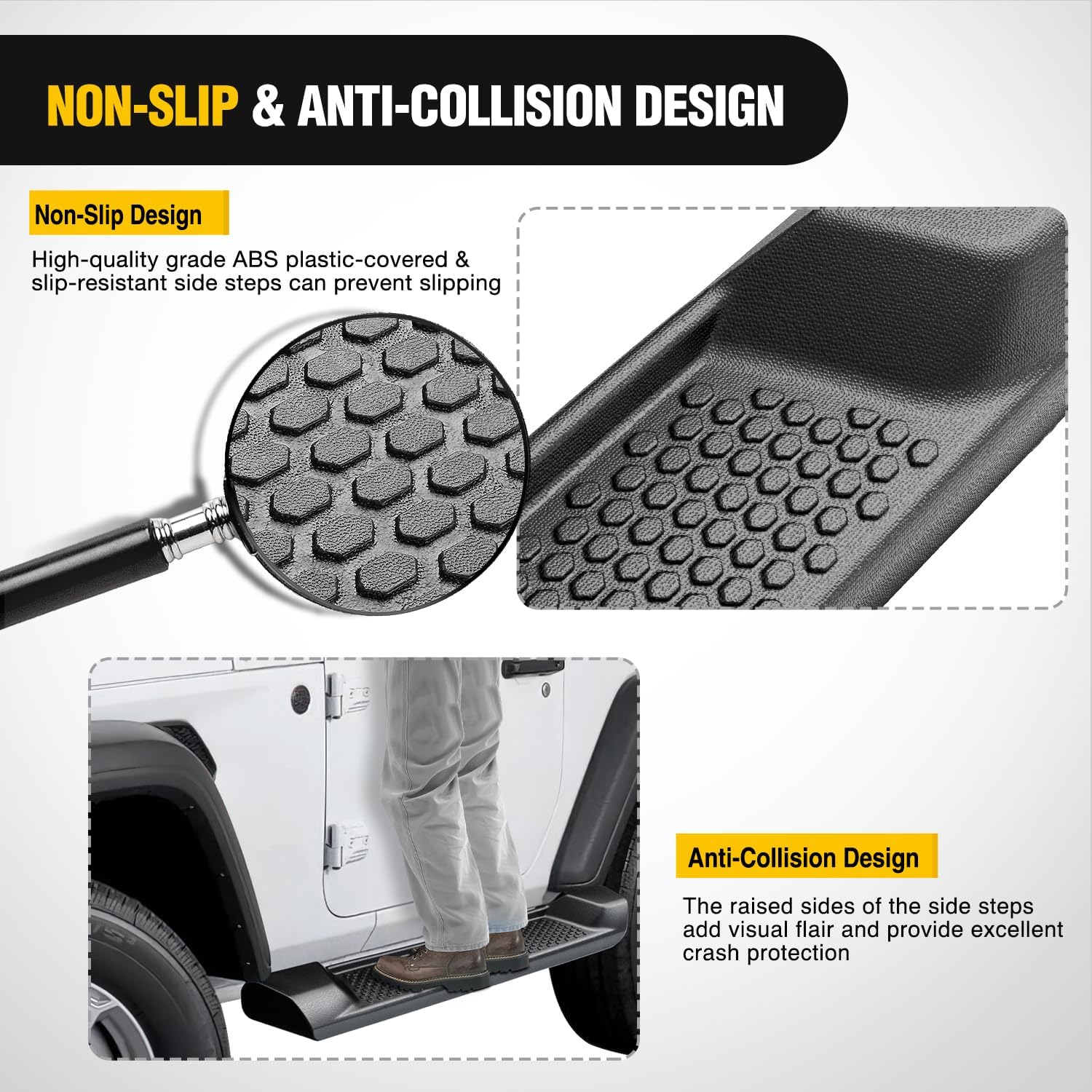

Image: Magnified view of the hexagonal textured pattern on the running board surface, designed to provide enhanced grip and prevent slipping.

Image: Before and after comparison showing the running board protecting the vehicle's rocker panel from a large rock, demonstrating its impact-resistant design.

Image: A visual representation of the running board's 450 lbs load bearing capacity, depicted by a bear standing on the vehicle's hood.

Техникалык тейлөө

Regular maintenance will ensure the longevity and appearance of your Nilight Running Boards.

• Тазалоо: Тактайларды жумшак самын жана суу менен үзгүлтүксүз тазалап туруңуз. Каптамага зыян келтире турган абразивдүү тазалоочу каражаттардан же катуу химиялык заттардан алыс болуңуз.
• Жабдууларды текшерүү: Periodically check all mounting hardware (bolts, nuts, brackets) for tightness. Vibrations from driving can sometimes loosen connections over time. Retighten as necessary.
• Зыянды текшерүү: Inspect the running boards for any signs of damage, such as cracks, dents, or excessive wear, especially after off-road use. Address any damage promptly to prevent further issues.

Проблемаларды чечүү

Кепилдик жана колдоо

Nilight products are designed for durability and performance. For warranty information or technical support, please refer to the official Nilight webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

Official Nilight Webсайт: www.nilight.com
