Hammersmith AirStorm Instruction Manual

1. Киришүү

Thank you for choosing the Hammersmith AirStorm. This versatile 5-in-1 cordless device combines the functionality of a powerful handheld vacuum cleaner, an efficient air compressor, and an integrated SOS light, making it an indispensable tool for your vehicle, home, and outdoor activities. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

The Hammersmith AirStorm is designed for cordless use anywhere, offering quick inflation and an integrated SOS light.

2. Коопсуздук нускамалары

Please read all safety warnings and instructions carefully before using the Hammersmith AirStorm. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Аппаратты балдардан жана үй жаныбарларынан алыс кармаңыз.
• Do not expose the device to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Берилген USB кубаттоо кабелин гана колдонуңуз.
• Do not operate the device if it is damaged. Contact customer support for assistance.
• Do not block the vacuum inlet or air outlet during operation.
• Avoid prolonged use of the air compressor to prevent overheating. Allow the device to cool down between uses.
• When inflating tires, always check the recommended pressure and do not overinflate.
• The SOS light is for emergency signaling; do not stare directly into the light.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

The complete 11-piece set of the Hammersmith AirStorm and its accessories.

• 1 x Hammersmith AirStorm Unit
• 1 x Dust Container
• 1 х HEPA чыпкасы
• 1 х жарака сопло
• 1 x Mini Brush
• 1 x Surface Brush
• 1 x USB заряддоо кабели
• 1 x Аба шланг
• 1 x Needle Valve
• 1 x Valve Adapter (for various inflatables)
• Additional valves (total of 4 valves included)

4. Продукт бүтүп калдыview

Familiarize yourself with the main components of your Hammersmith AirStorm:

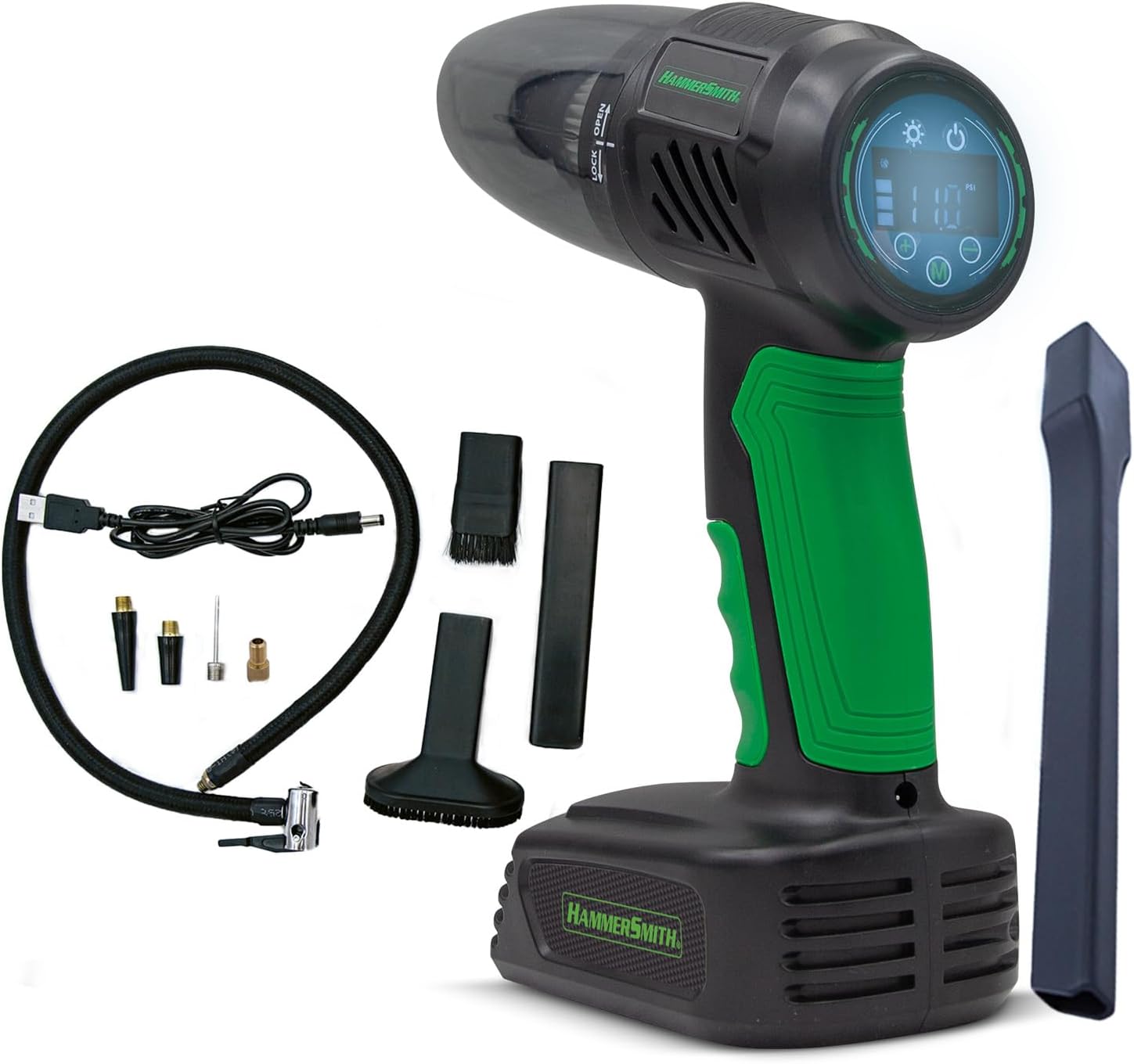

The Hammersmith AirStorm unit and its comprehensive accessory set.

• Негизги блок: Ergonomic handle, integrated display, power button, mode selection buttons.
• Vacuum Inlet: Located at the front, where dust container and nozzles attach.
• Аба чыгаруу: Located at the bottom, for connecting the air hose.
• Санариптик дисплей: Shows battery level, pressure readings, and selected mode.
• SOS жарыгы: Integrated LED light for illumination and emergency signaling.
• Заряддоо порту: USB port for charging the device.

Деталдаштырылган view of the digital display and control buttons on the Hammersmith AirStorm.

5. Орнотуу

5.1 Аппаратты заряддоо

Before first use, fully charge the Hammersmith AirStorm. Connect the provided USB charging cable to the device's charging port and plug the other end into a compatible USB power source (e.g., wall adapter, car charger, power bank). The charging indicator on the display will show the charging status. A full charge takes approximately 15 minutes.

5.2 Аксессуарларды тиркөө

• Чаң соргуч үчүн: Twist the dust container onto the main unit until it clicks into place. Insert the desired nozzle (crevice, mini brush, or surface brush) firmly into the dust container opening.
• For Air Compressor: Screw the air hose onto the air outlet at the bottom of the unit. Attach the appropriate valve adapter (needle valve, standard valve adapter, or other included valves) to the end of the air hose, depending on the item you wish to inflate.

6. Иштөө нускамалары

6.1 Vacuum Function

To activate the vacuum function, press the power button. The device will start in vacuum mode. Use the appropriate nozzle for the surface you are cleaning. After use, press the power button again to turn off the device.

Cleaning car interiors with the crevice nozzle.

Using the mini brush for kitchen surfaces.

Reaching tight spots like window sills.

Effective cleaning of upholstery.

6.2 Air Compressor Function

After attaching the air hose and appropriate valve, press the mode button to switch to air compressor mode. The display will show the current pressure. Use the '+' and '-' buttons to set your desired target pressure. Press the power button to start inflation. The compressor will automatically stop once the target pressure is reached. Press the power button again to manually stop inflation.

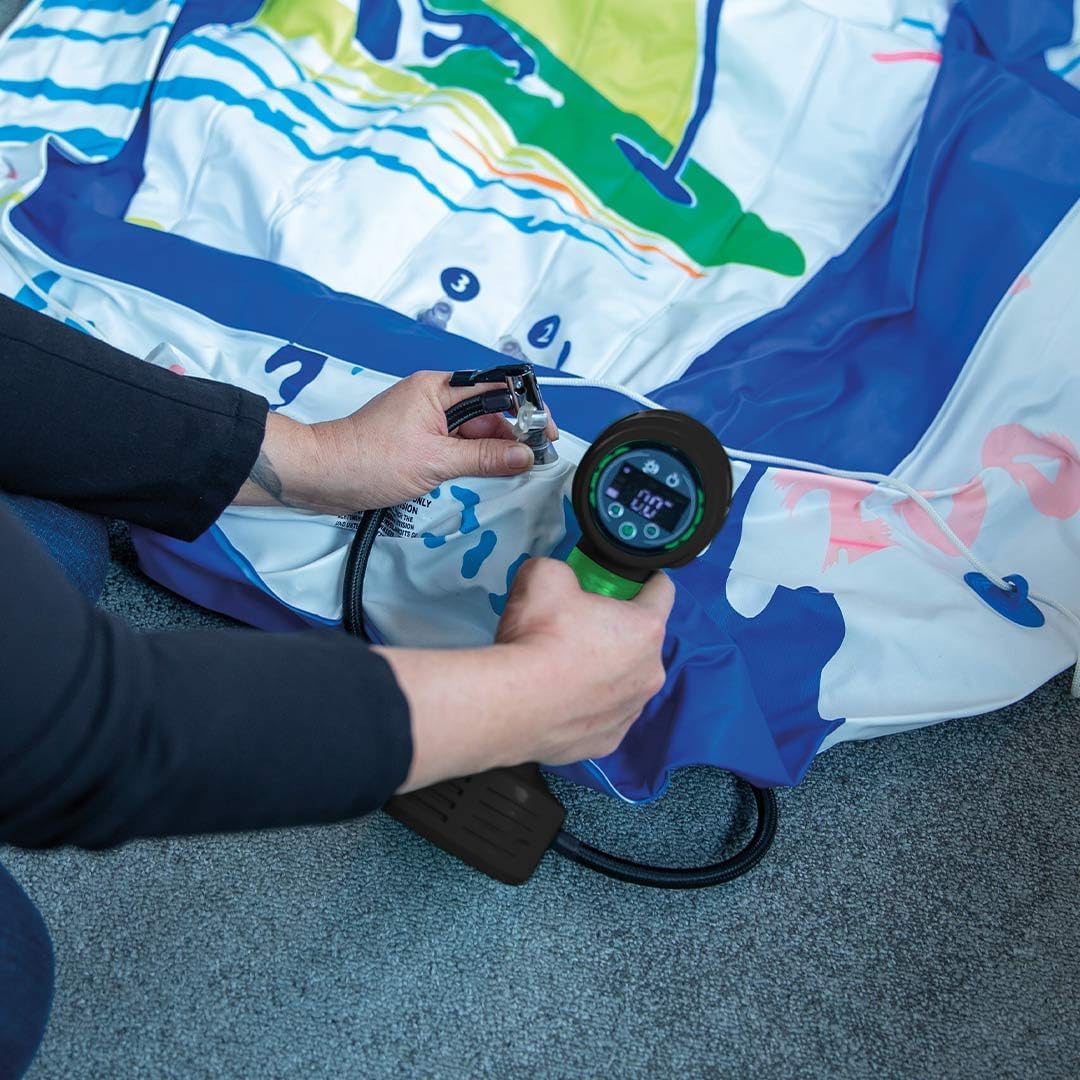

Inflating large inflatables with ease.

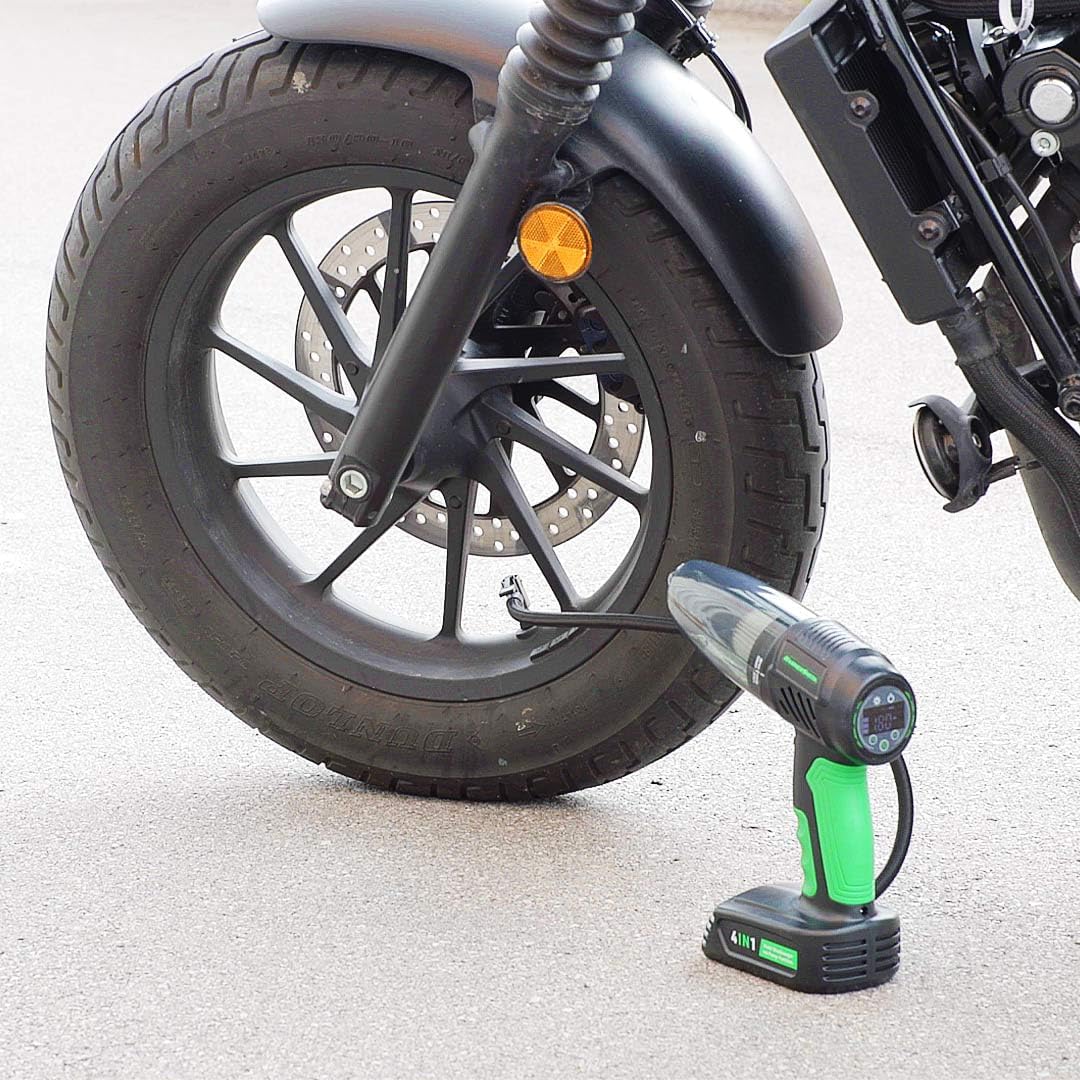

Inflating bicycle tires quickly.

Checking and adjusting motorcycle tire pressure.

Versatile use for various tires, including wheelbarrows.

6.3 SOS Light Function

The integrated SOS light can be activated independently. Press the dedicated light button to cycle through different light modes: steady illumination, flashing, and SOS signal. This feature is useful for roadside emergencies, working in dark areas, or signaling for help.

Using the integrated light for illumination in dark spaces.

The SOS light provides an additional safety feature for emergencies.

7. Техникалык тейлөө

7.1 Чаң контейнерин бошотуу

For optimal suction performance, empty the dust container regularly. Twist the dust container counter-clockwise to detach it from the main unit. Dispose of the collected debris and reattach the container.

7.2 HEPA чыпкасын тазалоо

The HEPA filter should be cleaned periodically to maintain suction efficiency. Remove the filter from the dust container. Tap it gently to remove loose dust. If necessary, rinse the filter with cold water. Ensure the filter is completely dry before reinserting it into the dust container and reattaching it to the unit.

7.3 Жалпы тазалоо

Аппараттын сыртын жумшак, г менен сүртүңүзamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is turned off and unplugged before cleaning.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

The Hammersmith AirStorm comes with a standard manufacturer's warranty. Please refer to the product packaging or your purchase receipt for specific warranty terms and conditions. For technical support, replacement parts, or any other inquiries, please contact the seller or manufacturer directly through the contact information provided at the point of purchase.
