farbrothersonline PTX12-BS 12V 10Ah Motorcycle Battery User Manual

1. Киришүү

This manual provides essential instructions for the safe installation, operation, and maintenance of your farbrothersonline PTX12-BS 12V 10Ah motorcycle battery. Please read this manual thoroughly before using the product to ensure proper function and longevity. This battery is a fully sealed, maintenance-free unit designed for motorcycles and scooters, compatible with various models including the Kawasaki ZX6R Ninja (ZX600F1/F2/F3/G1/G2/J2P) 600 from 1996 to 2001.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Батареялар күкүрт кислотасын камтыйт жана жарылуучу газдарды бөлүп чыгарат. Туура эмес колдонуу оор жаракатка же өлүмгө алып келиши мүмкүн.

• Always wear eye protection and protective clothing when handling batteries.
• Keep batteries away from sparks, open flames, and smoking materials.
• Заряддоодо же батарейкалардын жанында иштөөдө тийиштүү вентиляцияны камсыз кылыңыз.
• Балдар жетпеген жерде сактаңыз.
• Батарея терминалдарынын кыска туташуусунан алыс болуңуз.
• Do not attempt to open or modify the sealed battery.
• Dispose of old batteries responsibly at an authorized recycling center.

3. Продукт бүтүп калдыview

The farbrothersonline PTX12-BS is a high-performance, fully sealed, and maintenance-free 12-volt motorcycle battery with a 10 Ampere-hour (Ah) capacity. It is designed to provide reliable starting power for your motorcycle or scooter. This battery is pre-filled and sealed at the factory, making it ready for immediate installation without the need for initial acid filling or activation.

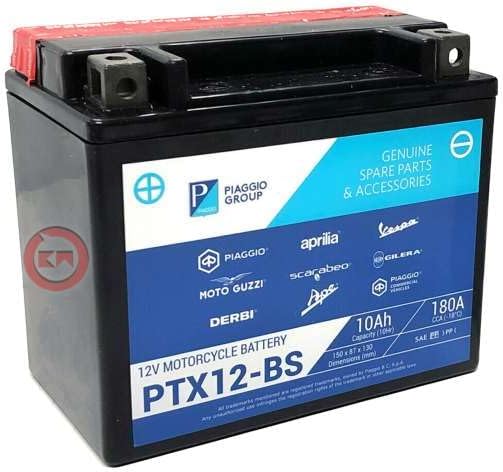

Image 1: The farbrothersonline PTX12-BS 12V 10Ah Motorcycle Battery. This image displays the battery's compact design and clearly visible label indicating its model number and specifications.

4. Орнотуу жана орнотуу

Before installation, ensure your vehicle's ignition is off and the key is removed. Always wear appropriate safety gear, including eye protection and gloves.

4.1. Даярдоо

• Inspect the new battery for any signs of damage.
• Батарея терминалдары таза жана коррозияга учурабагандыгын текшериңиз.
• Confirm the battery dimensions (150mm L x 87mm W x 130mm H) match the battery compartment of your vehicle.

4.2. Эски батареяны алып салуу

1. Locate the vehicle's battery compartment.
2. Using an appropriate wrench, disconnect the negative (-) terminal cable first to prevent accidental short circuits.
3. Next, disconnect the positive (+) terminal cable.
4. Батареяны кармап туруучу боолорду же бекиткичтерди этияттык менен алып салыңызamps.
5. Lift the old battery out of the compartment. Be aware of its weight.

4.3. Жаңы Батареяны орнотуу

1. Place the new PTX12-BS battery into the battery compartment, ensuring it sits securely.
2. Батареяны кармагыч боолор же бекиткичтер менен бекитиңизamps.
3. Connect the positive (+) terminal cable to the positive (+) battery post first. Tighten securely.
4. Connect the negative (-) terminal cable to the negative (-) battery post. Tighten securely.
5. Ensure all connections are tight but do not overtighten. Loose connections can cause poor performance or damage.
6. Дат басуунун алдын алуу үчүн терминалдарга диэлектрикалык майдын жука катмарын сүйкөңүз.

5. Иштөө нускамалары

The farbrothersonline PTX12-BS battery is a sealed, maintenance-free unit that comes ready for use. Once properly installed, it will provide power to your vehicle's electrical system and enable engine starting.

• After installation, turn the ignition key to the 'ON' position and check if all electrical components (lights, horn, dashboard indicators) are functioning correctly.
• Attempt to start the engine. If the engine cranks slowly or does not start, refer to the Troubleshooting section.
• The vehicle's charging system will maintain the battery's charge during normal operation.

6. Техникалык тейлөө

As a fully sealed, maintenance-free battery, the PTX12-BS does not require regular fluid level checks or refilling. However, some general care practices will help prolong its lifespan:

• Терминалдык текшерүү: Periodically check the battery terminals for cleanliness and tightness. Clean any corrosion with a wire brush and baking soda solution (1 part baking soda to 10 parts water), then rinse with clean water and dry thoroughly.
• Батарея Case: Keep the battery case clean and dry. Wipe away any dirt or grime.
• Заряддоо: If the vehicle is stored for extended periods (e.g., over winter), it is recommended to use a trickle charger or battery maintainer specifically designed for AGM/sealed lead-acid batteries. This prevents deep discharge and extends battery life. Do not use automotive chargers that are not compatible with motorcycle batteries or sealed types.
• Сактагыч: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures if removed from the vehicle. Ensure it is fully charged before storage.

7. Кыйынчылыктарды

If you experience issues with your battery, perform the following basic checks:

• No Power / Dim Lights:
  • Check battery terminal connections for tightness and corrosion. Clean if necessary.
  • Батареянын көлөмүн текшериңизtage with a multimeter. A fully charged 12V battery should read approximately 12.6V or higher. If significantly lower, the battery may need charging or replacement.
• Жай айлануу:
  • This often indicates a low state of charge. Charge the battery using a suitable charger.
  • Inspect the vehicle's charging system (alternator/stator, regulator/rectifier) if the battery repeatedly discharges.
• Батарея зарядды кармабайт:
  • Ensure there are no parasitic drains on the vehicle's electrical system (e.g., aftermarket accessories, faulty wiring).
  • If the battery is old, it may have reached the end of its service life and require replacement.

If these steps do not resolve the issue, consult a qualified motorcycle mechanic or contact customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the specific terms and conditions provided by your retailer or the manufacturer, farbrothersonline, at the time of purchase. Keep your proof of purchase for any warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact the seller or manufacturer directly through their official support channels.
