1. Киришүү
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Relion RB36V40 36V 40Ah Lithium Deep Cycle Battery. The RB36V40 is a robust 36V lithium iron phosphate battery designed for marine environments, offering durability, ease of installation, and extended capacity for prolonged use on the water.
2. Коопсуздук маалыматы
Always read and understand all safety warnings and instructions before installing or operating the battery. Failure to do so may result in serious injury or property damage.
- Сунуш 65 Эскертүү: Бул продукт California сунушу 65 тарабынан эскертилген материалдарды камтышы мүмкүн.
- Ensure proper ventilation during charging and operation.
- Батарея терминалдарын кыска туташтырбаңыз.
- Use only compatible chargers and equipment specifically designed for LiFePO4 batteries.
- Avoid exposing the battery to extreme temperatures outside the specified operating range.
- Батарейканы бөлбө, тешпегиле жана бузбаңыз.
- Consult an ABYC certified electrical professional for specific application design, especially for complex wiring.
3. Продукт бүтүп калдыview
The Relion RB36V40 is a high-performance lithium iron phosphate (LiFePO4) battery engineered for demanding applications, particularly in marine settings. Its design prioritizes ease of use, longevity, and enhanced power delivery, making it suitable for various uses including commercial applications like floor cleaning equipment.
Сүрөт 3.1: Алдыңкы view of the Relion RB36V40 battery, showcasing анын көк casing and terminal posts.

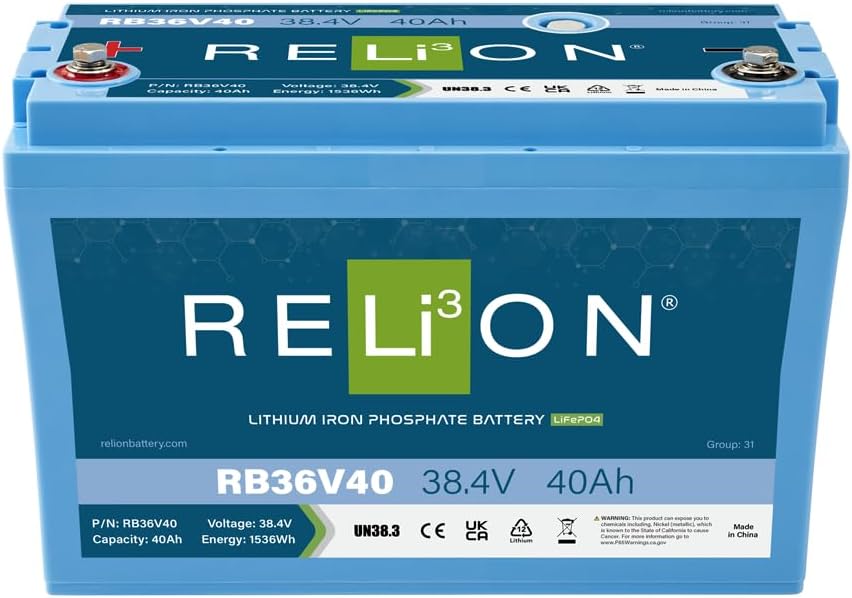

3.2-сүрөт: Бурчтуу view of the Relion RB36V40 battery, highlighting its compact design and robust construction.
3.3-сүрөт: Жогорку view of the Relion RB36V40 battery, showing the positive and negative terminals clearly labeled.
Негизги өзгөчөлүктөрү:
- Parallel Set-Up: Designed for simpler installation and increased capacity, allowing for max voltage with minimum hassle.
- Extended Run Times: Offers enhanced run times compared to series equivalents, providing more time on the water.
- Marine-Optimized Design: Features an IP67 waterproof rating, enhanced case, and a new glue channel and screw-latched enclosure to protect against airborne contaminants.
- Тезирээк заряддоо: The parallel setup facilitates quicker and easier charging.
- Жеңил салмак: Its low weight helps maintain speed in marine applications.
- Туруктуу курулуш: Ensures longevity and reliability in demanding environments.
4. Орнотуу жана орнотуу
The RB36V40 battery is designed for straightforward installation, particularly in parallel configurations to achieve maximum voltage with minimal complexity. Always consult an ABYC certified electrical professional for specific application design.
Parallel Wiring Diagram (Example: 36V Trolling Motor):
Figure 4.1: Wiring diagram illustrating a parallel setup for two RB36V40 batteries with a 36V DC charger and connections to a 36V DC trolling motor and boat switching. Also shows a cranking battery setup.
Эскертүү: This diagram is for marketing purposes only. Circuit protection is not referenced. Please consult an ABYC certified electrical professional for specific application design.
Орнотуу кадамдары:
- Даярдоо: Ensure all components are present and undamaged. Verify the battery's voltage and capacity match your system requirements.
- Монтаждоо: Securely mount the battery in a well-ventilated area, away from direct heat sources or flammable materials. The battery's small footprint facilitates on-board installation.
- Зымдар: Connect the battery terminals using appropriate gauge cables and connectors. For parallel configurations, ensure all connections are tight and secure to prevent resistance and overheating. Refer to Figure 4.1 for an example зымдар диаграммасы.
- Заряддоо: Before initial use, fully charge the battery using a compatible lithium iron phosphate charger.
- Системалык интеграция: Connect the battery system to your application (e.g., trolling motor, inverter) following the manufacturer's guidelines.
5. Иштөө нускамалары
The RB36V40 battery is designed for reliable performance in various applications, including marine and commercial uses like floor cleaning settings.
Жалпы операция:
- Күйгүзүү/өчүрүү: Use an appropriate battery switch or system control to connect or disconnect the battery from the load.
- Мониторинг: If your system includes a battery monitor, regularly check the battery's state of charge (SOC) and voltagе оптималдуу аткарууну камсыз кылуу.
- Discharge Limits: Avoid discharging the battery below the recommended low voltage disconnect of 30.0 V to preserve battery life. The discharge under-voltage protection is set at 27.6 V.
- Температура диапазону: Operate the battery within the specified discharge temperature range of -4 to 140 °F (-20 to 60 °C).
Заряддоо:
- Use a charger specifically designed for LiFePO4 batteries with a 36V nominal output.
- Ensure the charge temperature is within -4 to 113 °F (-20 to 45 °C).
- The parallel setup of the RB36V40 allows for quicker and easier charging.
6. Техникалык тейлөө
The Relion RB36V40 battery is designed for low maintenance, contributing to reduced downtime and operational costs. Regular checks can help ensure its longevity and performance.
- Терминалдык текшерүү: Periodically inspect battery terminals and connections for corrosion, looseness, or damage. Clean and tighten as necessary.
- Casing Integrity: Check the battery casing for any signs of physical damage, cracks, or swelling. The enhanced case with IP67 waterproof rating provides robust protection.
- Тазалоо: Keep the battery clean and free of dust and debris. Use a dry cloth for cleaning.
- Сактагыч: If storing the battery for an extended period, ensure it is charged to a recommended storage temperature of 23 to 95 °F (-5 to 35 °C). The self-discharge rate is less than 3% per month.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your RB36V40 battery. For problems not listed here, contact customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Батарея заряддалбай жатат | Charger not connected, faulty charger, or temperature outside charging range. | Ensure charger is properly connected. Verify charger functionality. Check ambient temperature is within -4 to 113 °F (-20 to 45 °C). |
| Төмөн кубаттуулукту чыгаруу | Battery not fully charged, loose connections, or excessive load. | Fully charge the battery. Inspect and tighten all connections. Reduce load if exceeding maximum continuous discharge current (50 A). |
| Battery not turning on | Батареянын көлөмү азtage disconnect mode or internal protection activated. | Charge the battery to reactivate (reconnect voltage 30.0 V). If protection is activated due to short circuit, remove load and allow battery to reset. |
| Unusual odors or sounds | Internal damage or malfunction. | Immediately disconnect the battery from all loads and chargers. Do not attempt to use or repair. Contact customer support. |
8. Техникалык шарттар
Detailed technical specifications for the Relion RB36V40 Lithium Deep Cycle Battery.
| Параметр | Нарк |
|---|---|
| Модел | RB36V40 |
| Номиналдуу томtage | 38.4 V |
| Номиналдуу кубаттуулук | 40 Ah |
| Capacity @ 25 A | 96 мин |
| Каршылык | ≤50 mΩ @ 50% SOC |
| Натыйжалуулук | 99% |
| Өзүн-өзү разряд | Айына <3% |
| Сериялар туташуулары | No. 36V system only. |
| Параллель байланыштар | Чексиз |
| Максималдуу үзгүлтүксүз разряддык ток | 50 А |
| Агымдын чокусу | 175 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 200A +/- 35A (100 +/- 50ms) |
| Сунушталган Төмөн Көлtage Ажыратуу | 30.0 V |
| Discharge Under-Voltage Коргоо | 27.6 V (2.3 ±0.01 vpc) |
| Reconnect Voltage | 30.0 V (2.5 ±0.08 vpc) |
| Short Circuit Protection Response Time | 200-800 мкс |
| Чыгуу температурасы | -4…140°F (-20…60°C) |
| Заряддоо температурасы | -4…113°F (-20…45°C) |
| Сунушталган сактоо температурасы | 23…95°F (-5…35°C) |
| Элемент Салмагы | 30.9 фунт |
| Продукциянын өлчөмдөрү (L x W x Y) | 13 x 6.8 x 8.4 дюйм |
| Өндүрүүчү | Relion Battery |
| UPC | 850044617623 |
9. Кепилдик жана колдоо
For warranty information and technical support, please refer to the official Reli On website or contact their customer service directly. The product has an EU Spare Part Availability Duration of 5 Years for spare parts.
Онлайн ресурстар: www.relionbattery.com
For specific inquiries or assistance with troubleshooting, it is recommended to contact Reli On customer support through their official channels.
