Karinear Sous Vide Machine WIFI, 1100W Instruction Manual

Introduction

Thank you for choosing the Karinear Sous Vide Machine. This precision cooker is designed to provide consistent and accurate temperature control for sous vide cooking, ensuring perfectly cooked results every time. With Wi-Fi connectivity, you can control and monitor your cooking remotely via a mobile application. Please read this manual thoroughly before use to ensure safe and optimal operation of your device.

Маанилүү коопсуздук нускамалары

• Шайманды иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
• ысык беттерге тийбеңиз. Туткаларды же туткаларды колдонуңуз.
• To protect against electrical shock, do not immerse the power cord, plugs, or the upper part of the appliance in water or other liquid.
• Кандайдыр бир шайманды балдар же алардын жанында колдонуп жатканда, катуу көзөмөл керек.
• Колдонбогондо жана тазалоодон мурун розеткадан ажыратыңыз. Тетиктерди кийүүдөн же чечүүдөн мурун жана шайманды тазалоодон мурун муздатыңыз.
• Эч кандай шайманды зымы же сайы бузулган, же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз. Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.
• Шаймандын өндүрүүчүсү сунуш кылбаган кошумча тиркемелерди колдонуу жаракатка алып келиши мүмкүн.
• Сыртта колдонбоңуз.
• Шнурды столдун же столдун четине илинип салбаңыз же ысык беттерге тийбеңиз.
• Ыстык газ же электр мешине же ысытылган мештин жанына коюуга болбойт.
• Always attach the sous vide machine to a suitable cooking container before plugging it in.
• Ensure the water level is always between the minimum and maximum fill lines indicated on the device.
• Шайманды максаттуу колдонуудан башка максатта колдонбоңуз.

Продукт бүттүview

The Karinear Sous Vide Machine is an immersion circulator designed for precise temperature cooking. It features a robust stainless steel construction, an intuitive LED display, and Wi-Fi connectivity for remote control.

Image: Karinear Sous Vide Machine highlighting its features including Wi-Fi control, app recipes, manual settings, 99-hour timer, and quiet operation.

Негизги өзгөчөлүктөрү:

• 1100W жылытуу күчү: Efficiently heats water to the desired temperature.
• Температураны так көзөмөлдөө: Maintains water temperature between 10°C and 90°C (50°F and 194°F) with an accuracy of ±0.3°C (±0.6°F).
• Wi-Fi туташуусу: Connects to a 2.4GHz Wi-Fi network for remote control via a mobile application.
• LED Display & Touch Controls: Easy-to-read display and intuitive touch buttons for manual operation.
• 99 сааттык таймер: Allows for extended cooking durations.
• Төмөн ызы-чуу операциясы: Operates at approximately 15dB, ensuring a quiet cooking environment.
• Коопсуздук өзгөчөлүктөрү: Automatic shut-off and alerts for water levels exceeding maximum or falling below minimum.
• Туруктуу курулуш: Made with stainless steel for longevity and easy cleaning.

Сүрөт: деталдуу view of the Karinear Sous Vide Machine's control panel, showing temperature range, accuracy, and timer settings.

Жайгашуу

1. Таңылганын ачуу: Carefully remove the sous vide machine and all packaging materials.
2. Контейнерге тиркөө: Securely attach the sous vide machine to the side of a heat-safe pot or container using the integrated clamp. Ensure the device is stable and upright.
3. Суу менен толтуруу: Fill the container with water. The water level must be between the minimum and maximum fill lines indicated on the stainless steel sleeve of the device.
4. Кубат туташуу: Plug the power cord into a standard electrical outlet. The device will typically beep and the display will illuminate.

Image: Illustration of attaching the sous vide machine to a pot and placing a sealed food bag into the water.

Иштөө нускамалары

Кол менен башкаруу:

Operate the device directly using the touch controls on the LED display.

1. Күйгүзүү: басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ аппаратты иштетүү үчүн баскыч.
2. Температураны коюу: колдонуу + жана - buttons to adjust the desired cooking temperature.
3. Таймерди коюу: басыңыз Таймер баскычын басып, андан кийин + жана - buttons to set the cooking duration in hours and minutes.
4. Даярдоону баштоо: басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button again to begin the heating and circulation process. The display will show the current water temperature.

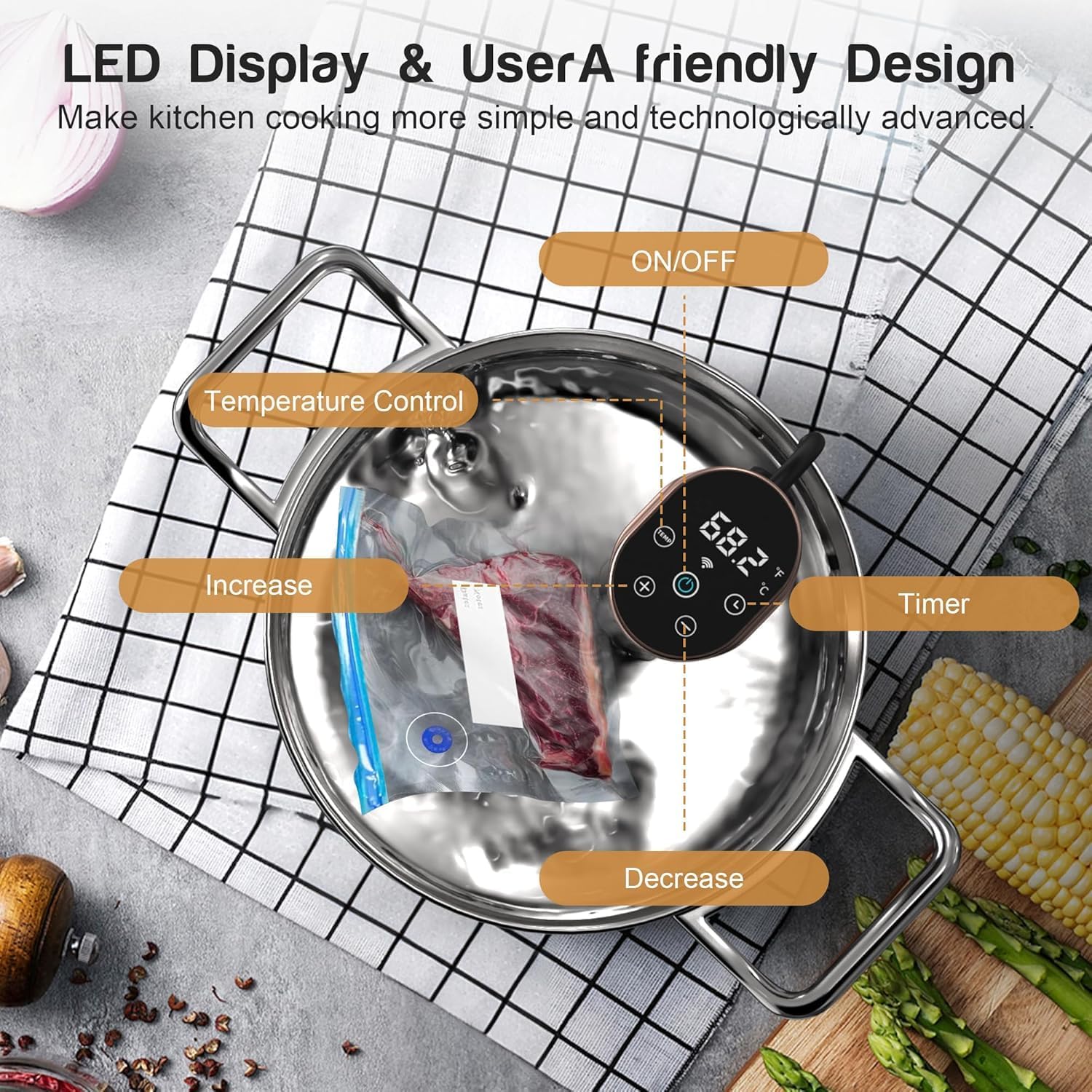

Сүрөт: деталдуу view of the LED display and control buttons for manual temperature and timer settings.

App Control (WIFI):

Control and monitor your sous vide machine remotely using the dedicated mobile application.

1. Колдонмону жүктөп алуу: Download the Karinear app from your smartphone's app store.
2. Wi-Fi'га туташуу: Ensure your sous vide machine is plugged in and powered on. Open the app and follow the on-screen instructions to connect the device to your 2.4GHz Wi-Fi network. Note: The device does not support 5GHz Wi-Fi networks.
3. Параметрлерди коюу: Once connected, use the app interface to set the desired cooking temperature and time.
4. Monitor & Adjust: The app allows you to monitor the cooking progress, current temperature, and remaining time. You can also adjust settings remotely.

Image: The sous vide machine in a pot, demonstrating remote control capabilities via a smartphone app.

General Cooking Process:

1. Тамак даярдоо: Place your food item (e.g., meat, vegetables) into a vacuum-sealable bag. Remove as much air as possible from the bag and seal it completely.
2. Сууну алдын ала ысытуу: Start the sous vide machine and allow the water to reach the set temperature.
3. Тамактануу: Carefully place the sealed food bag into the preheated water bath. Ensure the bag is fully submerged. You may need to use clips or weights to keep it submerged.
4. тамак: Allow the food to cook for the specified duration. The machine will maintain the precise temperature throughout the cooking time.
5. Finish (Optional): After cooking, carefully remove the food bag. For items like meat, you may wish to briefly sear them in a hot pan or on a grill to develop a flavorful crust.

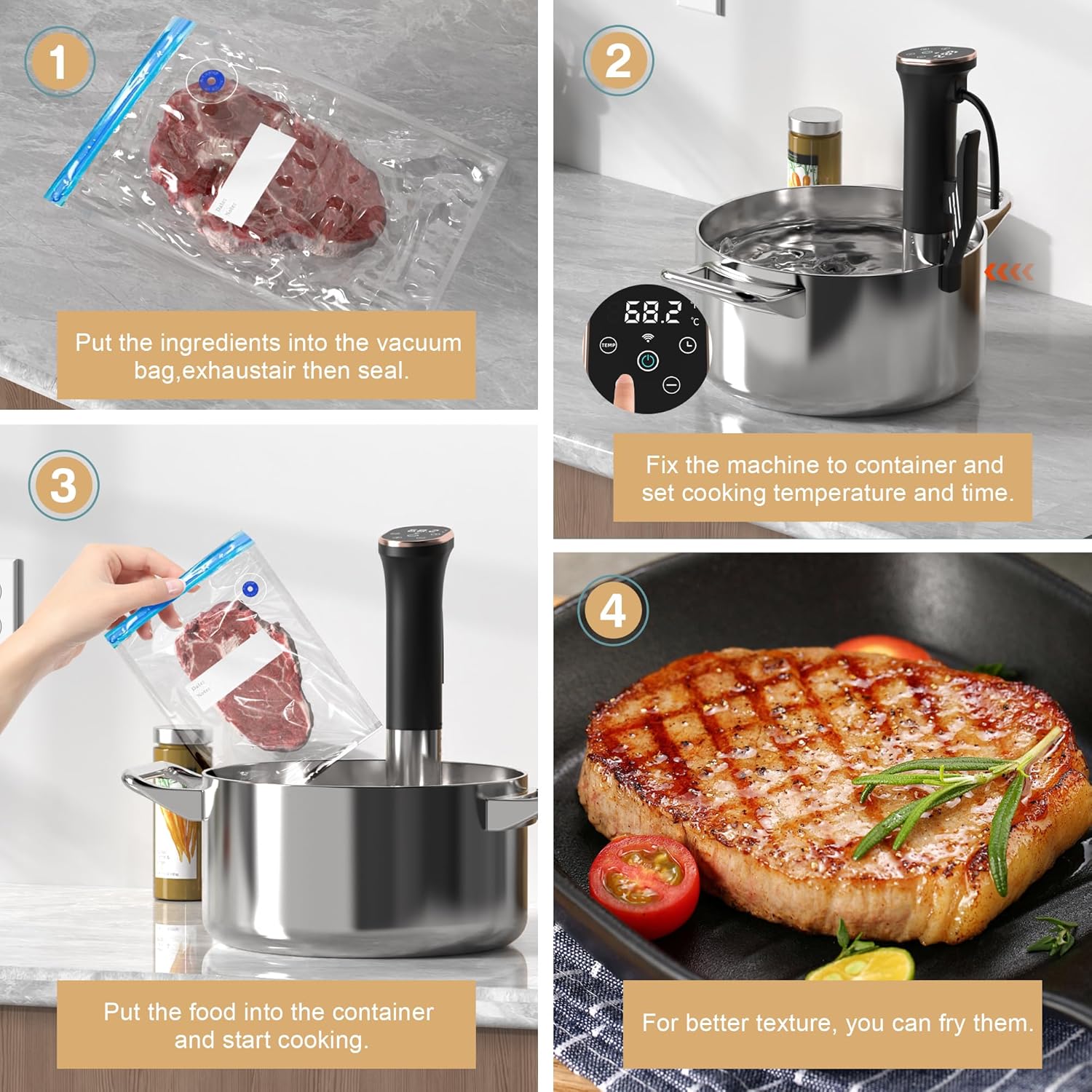

Image: A visual guide demonstrating the four main steps of sous vide cooking, from sealing food to searing.

Тейлөө жана тазалоо

үзгүлтүксүз тазалоо:

1. Ажыратып, муздатуу: Always unplug the device from the power outlet and allow it to cool completely before cleaning.
2. Сырты тазалоо: Wipe the exterior of the sous vide machine with a soft, damp cloth. Do not use abrasive cleaners or immerse the top part of the unit in water.
3. Clean Stainless Steel Sleeve: The stainless steel sleeve can be carefully removed (if applicable to your model) and rinsed under running water. Gently clean any food residue from the heating coil and pump cover using a soft brush or sponge.
4. Кылдат кургатуу: Аппаратты кайра чогултуудан же сактоодон мурда бардык бөлүктөрү толугу менен кургаганын текшериңиз.

Тазалоо:

Over time, mineral deposits (limescale) may accumulate on the heating element, especially in areas with hard water. This can affect performance. Descale your unit regularly.

1. Кирешеден тазалоо үчүн чечим даярдаңыз: Fill a pot with water and add white vinegar (e.g., 1 cup of white vinegar for every gallon of water).
2. Кабыкты кетирүү циклин иштетиңиз: Attach the sous vide machine to the pot. Set the temperature to approximately 60°C (140°F) and run the device for 30 minutes.
3. Чайкоо: After the descaling cycle, unplug the device, allow it to cool, and rinse the stainless steel sleeve and heating element thoroughly with clean water to remove any vinegar residue.

Проблемаларды чечүү

• Түзмөк күйбөйт:
  • Электр шнурунун иштеген электр розеткасына бекем сайылганын текшериңиз.
  • Ensure the ON/OFF button has been pressed.
• Water not heating or temperature inaccurate:
  • Verify that the water level is between the minimum and maximum fill lines.
  • Check for mineral buildup on the heating element; descale the unit if necessary.
  • If the device consistently overheats or displays incorrect temperatures, contact customer support.
• Wi-Fi туташуу көйгөйлөрү:
  • Confirm that your Wi-Fi router is operating on a 2.4GHz frequency. The device does not support 5GHz Wi-Fi.
  • Түзмөк Wi-Fi роутериңиздин диапазонунда экенин текшериңиз.
  • Try restarting both the sous vide machine and your Wi-Fi router.
  • Follow the app's instructions to re-pair the device with your network.
• Low water level alert:
  • Add water to the container until it is between the minimum and maximum fill lines. The device will automatically resume operation.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information, technical assistance, or any questions regarding your Karinear Sous Vide Machine, please contact Karinear customer support. Refer to the product packaging or the official Karinear webбайланыш маалыматы үчүн сайт.
