Natec FURY SHOBO SH4F RGB MIDI TOWER PC кап колдонуучунун колдонмосу

1. Киришүү

Welcome to the user manual for your Natec FURY SHOBO SH4F RGB MIDI TOWER PC Case. This guide provides essential information for the proper assembly, installation, operation, and maintenance of your new computer chassis. Please read this manual thoroughly before beginning installation to ensure optimal performance and longevity of your components.

2. Коопсуздук боюнча көрсөтмөлөр

• Компьютердин корпусунун ичиндеги кандайдыр бир компоненттерди орнотуудан же алып салуудан мурун, ар дайым кубат булагын розеткадан сууруп алыңыз.
• Handle components with care to avoid damage from electrostatic discharge (ESD). Consider using an anti-static wrist strap.
• Keep small parts, such as screws, away from children.
• Ашыкча ысып кетүүнүн алдын алуу үчүн PC корпусунун айланасында туура желдетүүнү камсыз кылыңыз.
• Do not expose the case to extreme temperatures, humidity, or direct sunlight.
• Avoid placing heavy objects on top of the case.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• Natec FURY SHOBO SH4F RGB MIDI TOWER PC Case
• Accessory box (containing screws, cable ties, and other small parts)
• Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

The Natec FURY SHOBO SH4F is a MIDI TOWER PC case designed for gaming and general-purpose computing, offering ample space for components and efficient cooling. It features a modern design with RGB lighting.

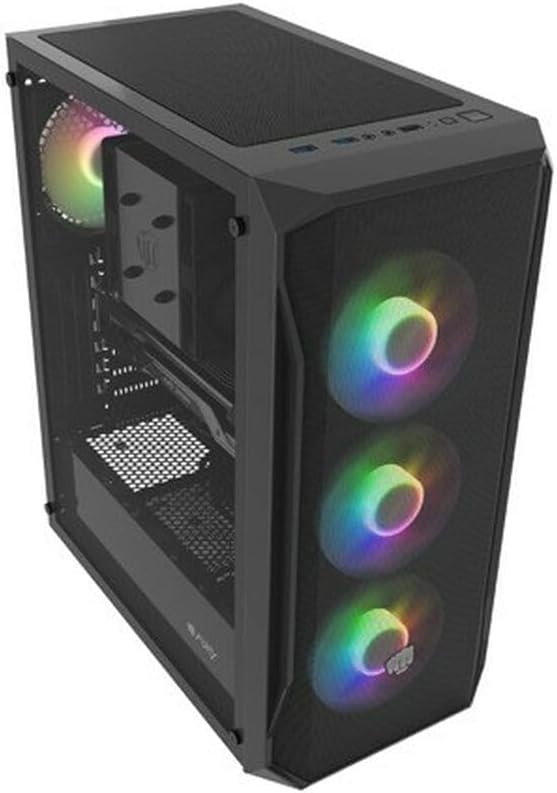

4.1-сүрөт: бурчтуу view of the Natec FURY SHOBO SH4F RGB MIDI TOWER PC Case, showcasing its black metal and tempered glass construction. The front panel features a mesh design with three illuminated RGB fans, and a single RGB fan is visible at the rear exhaust. The top panel includes I/O ports and a mesh filter.

4.1 Алдыңкы I/O панели

• Кубат баскычы
• Калыбына келтирүү баскычы
• USB 2.0 порту (x1)
• Аудио уячалар (кулакчын/микрофон)
• RGB Control Button (if applicable)

4.2 Internal Layout

The case supports Micro ATX and Mini ATX motherboards and features a bottom-mounted power supply bay. It includes dedicated areas for storage drives and efficient cable management.

5. Орнотуу жана Компонентти орнотуу

Follow these steps to install your PC components into the FURY SHOBO SH4F case.

5.1 Ишти даярдоо

1. Корпусту тегиз, туруктуу бетке коюңуз.
2. Remove the side panels. Typically, the tempered glass side panel is secured with thumbscrews.

5.2 Motherboard орнотуу

1. I/O калканын (эгер энелик платаңызга алдын ала орнотулбаган болсо) корпустун арткы тешигине орнотуңуз.
2. Ensure the motherboard standoffs are correctly aligned for your Micro ATX or Mini ATX motherboard. Adjust or install additional standoffs if necessary.
3. Бурамалар тешиктерин тегиздеп, энелик платаны этияттык менен тирөөчтөргө коюңуз.
4. Энелик платаны берилген бурамалар менен бекитиңиз. Өтө катуу тартпаңыз.

5.3 Power Supply Installation

1. Locate the power supply bay at the bottom rear of the case.
2. Slide your power supply unit (PSU) into the bay from the rear of the case, ensuring the fan faces downwards (if the case has a bottom vent) or upwards.
3. PSUну корпустун артындагы бурамалар менен бекитиңиз.

5.4 Сактоочу дискти орнотуу

Refer to your case's specific drive bay design for 2.5" SSDs and 3.5" HDDs. Typically, these involve trays or direct screw mounting.

5.5 Expansion Card Installation (e.g., Graphics Card)

1. Remove the necessary PCI-E slot covers from the rear of the case.
2. Insert your expansion card into the corresponding PCI-E slot on the motherboard.
3. Secure the card with a screw or the case's retention mechanism.

5.6 Кабелди башкаруу

Кабельдерди багыттоо жана бекитүү үчүн энелик плата лотоктун артындагы кесилген жерлерди жана байлаган жерлерди колдонуңуз. Бул аба агымын жана эстетиканы жакшыртат.

5.7 Connecting RGB Fans

The pre-installed RGB fans typically connect to a central RGB controller or directly to your motherboard's RGB headers. Consult your motherboard manual for specific RGB header locations and software control. Ensure all fan power cables are connected to appropriate fan headers on the motherboard or a fan hub.

6. Компьютериңизди иштетүү

6.1 Күйгүзүү/өчүрүү

After all components are installed and cables connected, plug your power supply into a wall outlet. Press the power button on the front I/O panel to turn on your system. To turn off, use the operating system's shutdown function or press and hold the power button for several seconds.

6.2 RGB жарыкты башкаруу

If your case features an RGB control button on the front I/O panel, press it to cycle through various lighting modes and colors. For advanced customization, use your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion) if the fans are connected to compatible headers.

7. Техникалык тейлөө

Regular maintenance helps ensure optimal performance and extends the lifespan of your PC components.

7.1 Чаң чыпкасын тазалоо

The FURY SHOBO SH4F case includes dust filters (e.g., on the top and bottom). Periodically remove and clean these filters by rinsing them with water and allowing them to dry completely before re-installing. This prevents dust buildup and maintains airflow.

7.2 Тышкы тазалоо

Корпустун сыртын жумшак менен сүртүңүз, гamp cloth. Avoid abrasive cleaners or solvents that could damage the finish or tempered glass.

8. Кыйынчылыктарды

Көйгөйгө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:

• Кубат жок: Ensure the power supply is properly connected to the wall outlet and the motherboard. Check all internal power cables (24-pin ATX, 8-pin CPU, GPU power). Verify the power button cable is correctly connected to the motherboard's front panel header.
• Айланбаган күйөрмандар: Check if fan power cables are securely connected to the motherboard or fan hub. Ensure the power supply is functioning.
• RGB жарыктандыруу иштебейт: Verify RGB cables are correctly connected to the RGB controller or motherboard header. If using a button, try cycling through modes. If using software, ensure it's installed and configured correctly.
• Ашыкча ысып кетүү: Ensure all fans are spinning correctly and oriented for proper airflow (intake/exhaust). Clean dust filters and internal components. Verify CPU cooler and GPU cooler are properly installed.

9. Техникалык шарттар

10. Кепилдик жана колдоо

Natec products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Natec website. If you encounter any issues not covered in this manual or require further assistance, please contact Natec customer support through their official channels.

Өндүрүүчү: Натек
