1. Киришүү
Thank you for choosing the Philips 196074 SF100-SCT-T-G2 Outdoor Flood LED Fixture. This manual provides essential information for the safe installation, operation, and maintenance of your new LED floodlight. Please read these instructions thoroughly before installation and retain them for future reference.
This fixture is designed for outdoor use, providing powerful and efficient illumination with selectable lumen output and color temperature options. It features a durable construction and an integrated photocell for automatic operation.
2. Коопсуздук нускамалары
ЭСКЕРТҮҮ: Өрттөн, электр шокунан, бөлүкчөлөрдөн, кесүүлөрдөн/сыркоодон жана башка коркунучтардан өлүм, жеке жаракат алуу же мүлккө зыян келтирүү коркунучун азайтуу үчүн арматура кутучасында жана орнотулган бардык эскертүүлөрдү жана нускамаларды жана бардык арматура этикеткаларын окуп чыгыңыз.
- Орнотуу квалификациялуу электрик тарабынан бардык тиешелүү улуттук жана жергиликтүү электр эрежелерине ылайык жүргүзүлүшү керек.
- Орнотуудан же тейлөөдөн мурун сактагычтагы же автоматтык өчүргүчтөгү электр кубатын өчүрүңүз.
- камсыз кылуу voltage is compatible with the fixture's requirements (120 to 347V AC).
- Do not handle energized fixtures with wet hands or when standing on wet or damp беттер.
- Use only UL-approved wire for connections.
- This fixture is rated IP65 for protection against dust and water jets. Do not submerge.
- Do not look directly into the operating LED light source.
3. Пакеттин мазмуну
Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- Philips 196074 SF100-SCT-T-G2 Outdoor Flood LED Fixture (1 unit)
- Yoke/Trunnion Mount (pre-attached or separate)
- Installation Hardware (screws, washers, nuts)
- Көрсөтмө (бул документ)

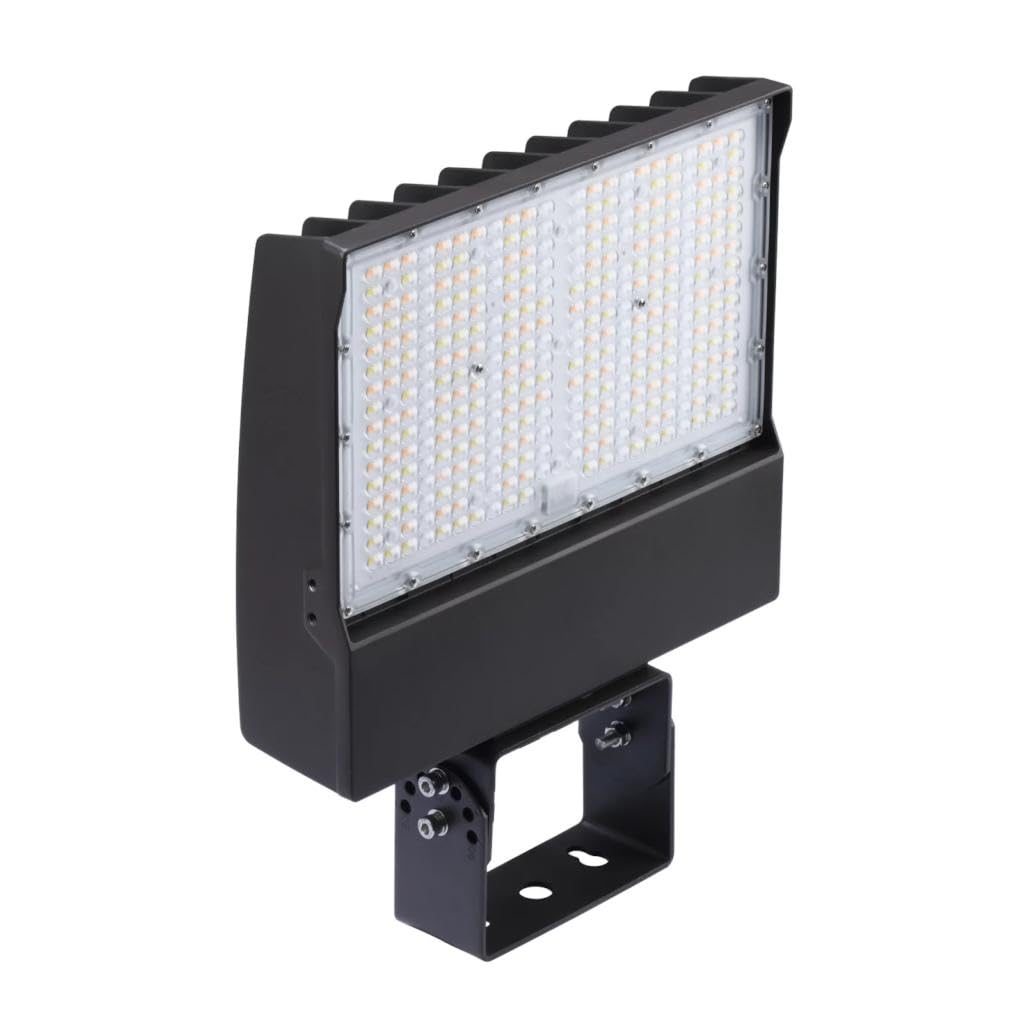

Image 1: Philips 196074 Flood LED Fixture with included mounting hardware. The fixture is a rectangular bronze unit with an integrated LED panel and a U-shaped yoke mount.
4. Орнотуу жана орнотуу
This fixture is designed for ground, pole, or wall mounting using the provided yoke/trunnion mount.
4.1 Алдын ала орнотуу
- Электр кубатын өчүрүү: Ensure power to the installation area is disconnected at the circuit breaker or fuse box.
- Select mounting location: Choose a sturdy surface capable of supporting the fixture's weight. Ensure adequate clearance for light distribution.
- Зымдарды даярдоо: Run appropriate electrical wiring (120-347V AC) to the chosen mounting location.
4.2 Арматураны орнотуу
- Position the yoke/trunnion mount against the desired surface. Mark the drilling points.
- Пилоттук тешиктерди белгиленгендей бургула.
- Secure the yoke/trunnion mount to the surface using the provided hardware. Ensure it is firmly attached.
- Adjust the angle of the fixture as needed and tighten the pivot bolts on the yoke to secure its position.
4.3 Электрдик туташуу
- Open the wiring compartment on the fixture (if applicable) or access the wiring leads.
- Connect the fixture's black wire to the supply's live/hot wire.
- Connect the fixture's white wire to the supply's neutral wire.
- Connect the fixture's green or bare copper wire to the supply's ground wire.
- Ensure all connections are secure using UL-approved wire connectors.
- Close and seal the wiring compartment to maintain the IP65 rating.
5. Иштөө нускамалары
The Philips 196074 fixture features selectable lumen output and color temperature, along with an integrated photocell for automatic dusk-to-dawn operation.
5.1 Lumen and Color Temperature Selection
Before powering on the fixture, locate the selector switches on the side or back of the unit. These switches allow you to choose the desired lumen output and color temperature.
- Lumen Output Options: 9,540 лм, 12,320 лм, 14,800 лм
- Түс температурасынын параметрлери: 3000K (Warm White), 4000K (Cool White), 5000K (Daylight)
Set the switches to your preferred combination. Changes made while the fixture is powered may not take effect immediately or may require a power cycle.
5.2 Photocell Operation
The integrated photocell automatically turns the fixture ON at dusk and OFF at dawn. Ensure the photocell sensor is not obstructed by objects, dirt, or debris, as this can interfere with its operation.
Once power is restored to the fixture, it will operate according to the photocell's light detection. There is no manual override for the photocell unless specified in advanced models (not applicable to this model).
6. Техникалык тейлөө
The Philips 196074 LED Flood Fixture requires minimal maintenance. Regular cleaning and inspection will ensure optimal performance and longevity.
- Тазалоо: Линзаны жана корпусту мезгил-мезгили менен жумшак, d менен тазалап туруңузamp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or lens. Ensure power is off before cleaning.
- Текшерүү: Annually inspect the fixture for any signs of damage, loose wiring, or corrosion. Ensure mounting hardware remains secure.
- Диоддордон: The LED light source is integrated and not user-replaceable. Do not attempt to open the sealed LED compartment.
7. Кыйынчылыктарды
Эгерде сизде жабдуу менен көйгөйлөр жаралса, төмөнкү көйгөйлөрдү чечүү боюнча көрсөтмөнү караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Арматура күйбөйт. | Электр энергиясы жок. Туташуу туура эмес зымдар. Photocell detecting too much light. | Автоматтык өчүргүчтү/ сақтандыргычты текшериңиз. Verify all electrical connections are secure (power off first). Ensure photocell is not obstructed and it is dark enough for activation. |
| Түзмөк күндүз күйүп турат. | Фотоэлемент тыгылып калган же бузук. | Clean photocell sensor. Ensure no external light source is shining directly on the photocell. |
| Жарыктын чыгышы күтүлгөндөн төмөн. | Lumen selection switch set to lower output. | Verify the lumen selection switch is set to the desired output (power off first). |
| Туура эмес түс температурасы. | Color temperature selection switch set incorrectly. | Verify the color temperature selection switch is set to the desired setting (power off first). |
If the problem persists after attempting these solutions, contact Philips customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 196074 |
| Бөлүмдүн номери | SF100-SCT-T-G2-10-PCB-BZ |
| Бренд | Philips |
| Type | Outdoor Flood LED Fixture |
| Люмен чыгаруу (тандалган) | 9,540 лм, 12,320 лм, 14,800 лм |
| Fixture Wattage | 150 Вт |
| Тtage | 120дөн 347V AC |
| Light Distribution Shape | 110 градус |
| Fixture Sensor Type | Фотоселл |
| Монтаждоо жери | Ground, Pole, Wall |
| Тоо түрү | Yoke/Trunnion |
| Color Temperature (Selectable) | 3000K, 4000K, 5000K |
| Fixture Housing Color | Бронза |
| Fixture Lens Material | Поликарбонат |
| IP рейтинги | IP65 |
| Элемент Салмагы | 8 фунт |
| UPC | 190096196074 |
9. Кепилдик жана колдоо
Philips products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Philips lighting webсайт.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Philips customer service:
- Webсайт: www.lighting.philips.com
- Телефон: Refer to your regional Philips support contact information.
Please have your model number (196074) and part number (SF100-SCT-T-G2-10-PCB-BZ) available when contacting support.
