KEMPER PK5809 Foldable 2-Burner Gas Stove User Manual

Introduction

This manual provides essential instructions for the safe and efficient use of your KEMPER PK5809 Foldable 2-Burner Gas Stove. Designed for outdoor cooking, this portable appliance offers convenience and performance for camping, picnics, and other outdoor activities. Please read this manual thoroughly before operating the stove and retain it for future reference.

Коопсуздук маалыматы

WARNING: Failure to follow these safety instructions may result in fire, explosion, property damage, personal injury, or death.

• Сыртта гана колдонуу: This appliance is designed for outdoor use in well-ventilated areas. Never operate it indoors, in tents, or in enclosed spaces, as this can lead to carbon monoxide poisoning.
• Газдын агышын текшерүү: Before each use, check for gas leaks. Apply soapy water to all connections. Bubbles indicate a leak. Do not use the stove if a leak is detected.
• Вентиляция: Ensure adequate ventilation around the stove during operation.
• Туруктуу бети: Always place the stove on a firm, level, non-combustible surface.
• Тазалоо: Maintain a safe distance from combustible materials (walls, curtains, etc.).
• Балдар жана үй жаныбарлары: Балдарды жана үй жаныбарларын меш иштеп жатканда жана ысык болгондо алыс кармаңыз.
• Gas Cartridge Handling: Use only 7/16" valve butane/propane gas cartridges. Connect and disconnect cartridges in a well-ventilated area, away from ignition sources. Do not store gas cartridges near heat or open flames.
• Ысык беттер: The stove and cooking surfaces become very hot during use. Allow to cool completely before handling or storing.
• Эч качан кароосуз калтырбаңыз: Иштеп жаткан мешти кароосуз калтырбаңыз.

Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• KEMPER PK5809 Foldable 2-Burner Gas Stove
• Газ берүүчү шланг
• 2 x 450g 7/16" valve gas cartridges (Butane/Propane mix)

Image: The KEMPER PK5809 Foldable 2-Burner Gas Stove shown with two included gas cartridges.

Жайгашуу

1. Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Unfold the Stove: Place the stove on a stable, level surface. Unlatch the stove and unfold it to reveal the two burners and cooking grates. Ensure it is fully extended and stable.
3. Газ картриджин туташтырыңыз: In a well-ventilated area, away from any ignition sources, screw the gas supply hose securely onto the 7/16" valve gas cartridge. Do not overtighten.
4. Connect Hose to Stove: Attach the other end of the gas supply hose to the gas inlet on the side of the stove. Ensure a tight and secure connection.
5. Агышууларды текшерүү: Before lighting, perform a gas leak check. Apply soapy water to all gas connections. If bubbles appear, tighten the connection. If bubbles persist, do not use the stove and contact customer support.

Image: The KEMPER PK5809 stove unfolded and ready for use, with the gas cartridge connected via the supply hose.

Иштөө нускамалары

1. От алдырууга даярдануу: Ensure the stove is on a stable surface and gas connections are secure. Place your cookware on the grate.
2. От алдыруу: Turn the control knob for the desired burner slowly counter-clockwise to the 'ON' position while simultaneously pressing the knob inward to activate the automatic piezo ignition. You should hear a click and see the burner ignite.
3. Жалынды тууралоо: Бир жолу күйгөндөн кийин, башкаруу баскычын бурап, жалындын күчүн тууралаңыз. Жалынды азайтуу үчүн саат жебеси боюнча, ал эми көбөйтүү үчүн саат жебесине каршы буруңуз.
4. Бышыруу: Cook as desired. The two independent burners allow for simultaneous cooking at different heat levels.
5. Өчүрүү: To turn off a burner, rotate its control knob fully clockwise to the 'OFF' position. Ensure the flame is extinguished.
6. Колдонгондон кийин: After cooking, turn off both burners and allow the stove to cool completely. Once cool, disconnect the gas cartridge from the hose and the hose from the stove. Store the cartridge in a cool, well-ventilated place.

Сүрөт: жакын план view of the KEMPER PK5809 stove's two burners, showing the blue flames during operation.

Техникалык тейлөө

• Тазалоо: After each use, ensure the stove is completely cool. Wipe down the stainless steel burners and painted steel structure with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or scouring pads, as these can damage the finish.
• Сактагыч: Once clean and dry, fold the stove back into its compact form. Store the stove and gas cartridges separately in a cool, dry, well-ventilated area, away from direct sunlight and heat sources.
• Текшерүү: Periodically inspect the gas hose and connections for any signs of wear, cracks, or damage. Replace any damaged components immediately.

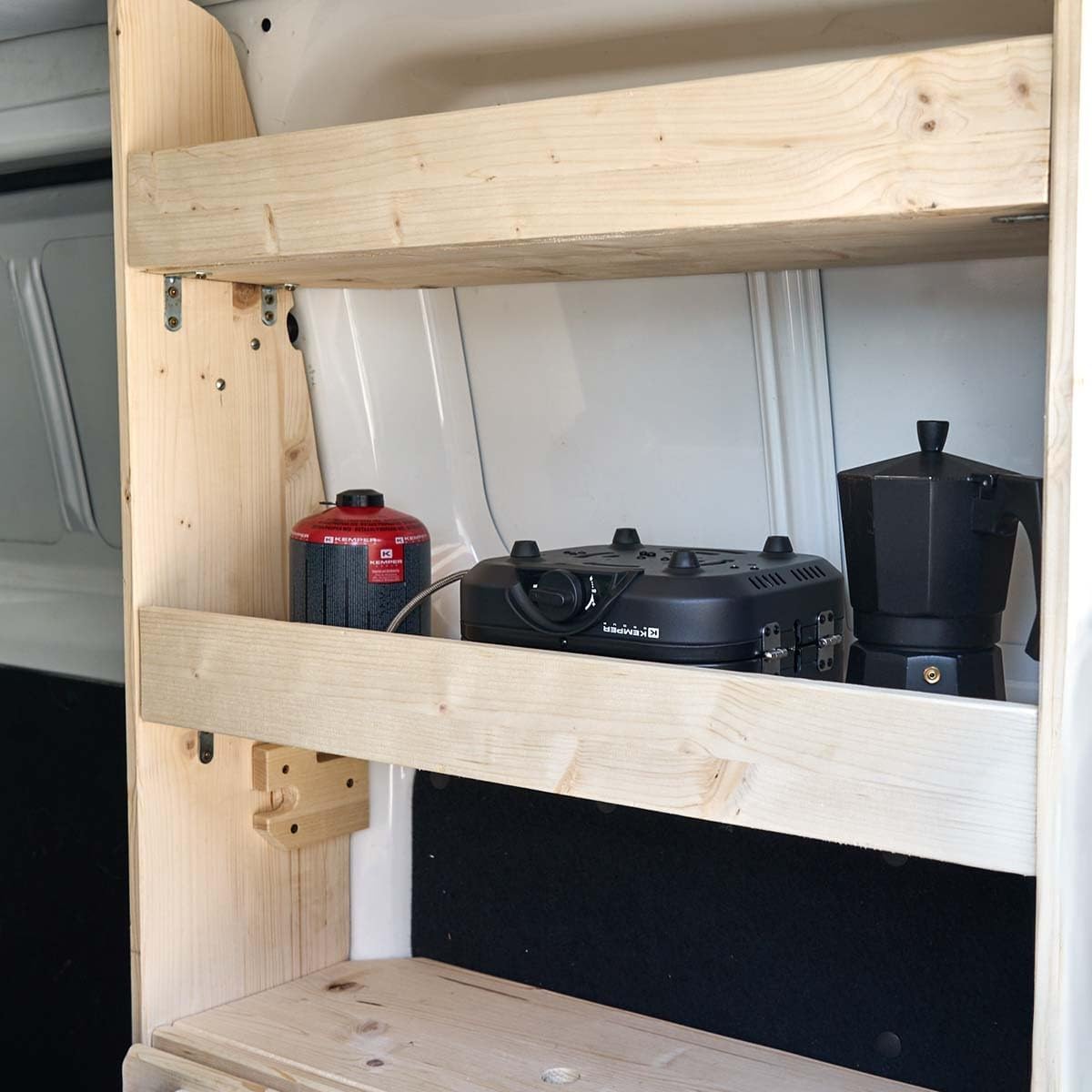

Image: The KEMPER PK5809 stove in its folded, compact state, stored on a wooden shelf alongside a gas cartridge, demonstrating its portability and ease of storage.

Проблемаларды чечүү

• От алдырбоо керек:
  • Ensure the gas cartridge is properly connected and has gas.
  • Check that the control knob is pressed inward while turning to activate the piezo ignition.
  • Verify that the gas flow is not obstructed.
• Weak Flame:
  • The gas cartridge may be running low. Replace with a new one.
  • Ensure the control knob is fully open for maximum flame.
  • Check for any blockages in the burner or gas line.
• Газ агып кеткен жыт:
  • Immediately turn off the gas supply at the cartridge.
  • Move the stove to a well-ventilated area.
  • Perform a leak test with soapy water on all connections. Tighten any leaking connections. If the leak persists, do not use the stove and seek professional assistance.

Техникалык шарттар

Кепилдик жана колдоо

The KEMPER PK5809 Foldable 2-Burner Gas Stove comes with a 2-year availability for spare parts. This ensures that components for repair or replacement will be accessible for a period of two years from the date of purchase.

For technical assistance, warranty claims, or to inquire about spare parts, please contact your retailer or the manufacturer directly. Ensure you have your proof of purchase and the product model number (PK5809) available when contacting support.
