Introduction
Thank you for choosing the ACEMIC G6 2.4G Wireless Microphone Audio Transmitter and Receiver System. This system is designed to convert your traditional dynamic XLR microphone into a wireless setup, offering freedom of movement and high-quality audio transmission. It is ideal for various applications including live performances, presentations, and studio recording. Please read this manual thoroughly to ensure proper setup and operation.
Image: The ACEMIC G6 wireless transmitter (TX) and receiver (RX) units.
Продукт бүттүview
Пакеттин мазмуну
- 1 x ACEMIC G6 Wireless Transmitter (TX)
- 1 x ACEMIC G6 Wireless Receiver (RX)
- 1 x Dual USB-C заряддоо кабели
- 1 x User Manual
Негизги өзгөчөлүктөрү
- 2.4G зымсыз технологиясы: Provides stable and reliable audio transmission.
- XLR Plug-on Design: Easily converts dynamic XLR microphones to wireless.
- 6 тандалуучу каналдар: Allows for multiple units to operate simultaneously without interference.
- Кеңири шайкештик: Works with dynamic microphones, audio mixers, and PA systems.
- Батареянын узак иштөө мөөнөтү: Built-in rechargeable lithium polymer batteries offer up to 10 hours of continuous working time.
- Кеңейтилген берүү диапазону: Ачык жерлерде 100 футка (30 метрге) чейин.
- Төмөн күтүү: Audio latency of less than 5ms ensures real-time performance.
- Жогорку сапаттагы аудио: 24-bit/48kHz sampling rate for clear sound reproduction.
- Жеңил жана портативдик: Each unit weighs approximately 40g for easy handling.
- Бир ачкыч операция: Simple power on/off and mute/unmute functions.

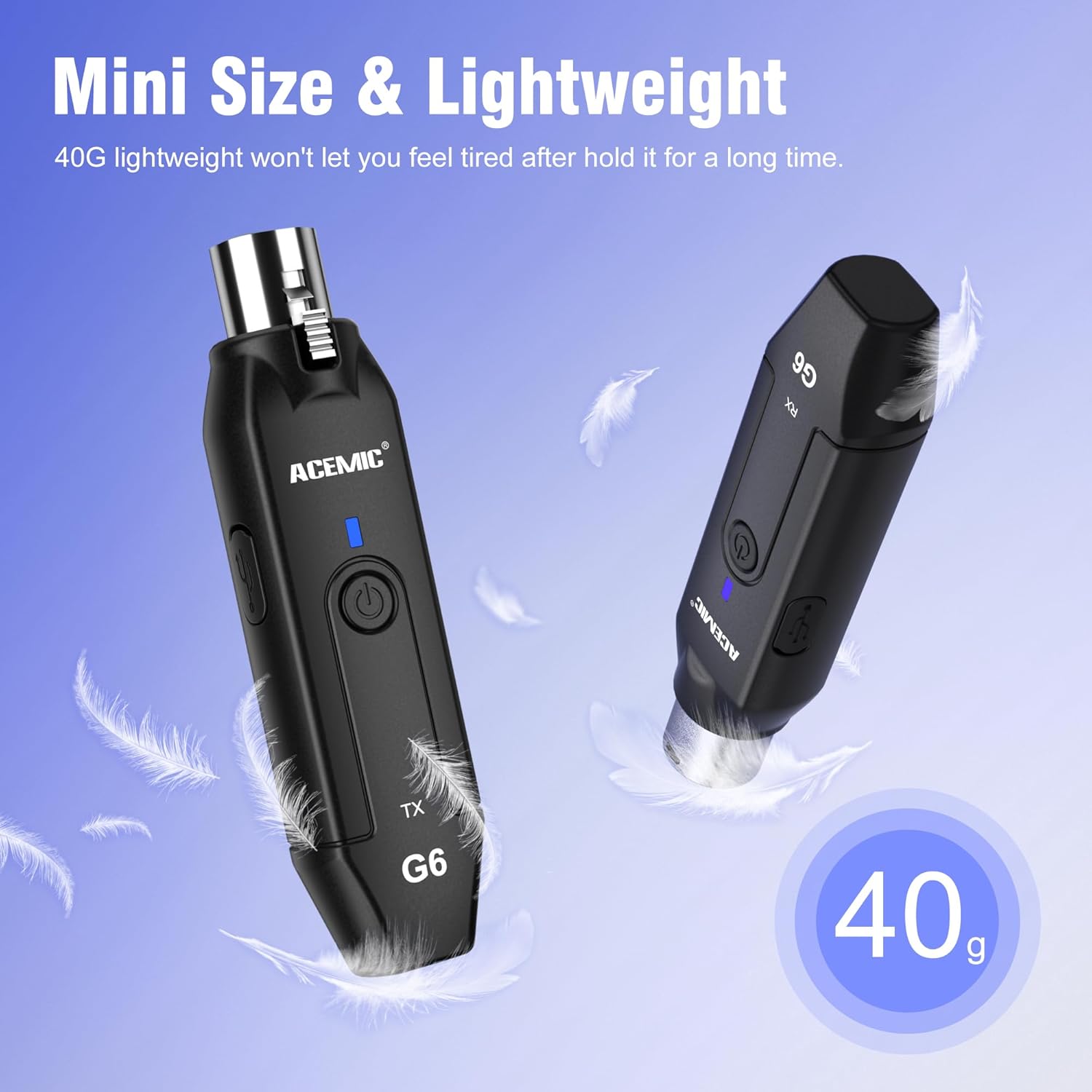

Image: The lightweight design of the ACEMIC G6, weighing 40 grams per unit.
Компоненттин идентификациясы
Each unit (Transmitter and Receiver) features:
- XLR Plug/Socket: For connecting to microphones or audio equipment.
- Lock Design (Transmitter): Secures the unit to the microphone.
- Type-C заряддоо порту: Ички батареяны кайра заряддоо үчүн.
- Кубат баскычы: Long press to power on/off, short press for mute/unmute.
- Power/Pairing Indicator: LED light indicating power status, charging status, and pairing status.
Image: The ACEMIC G6 system demonstrating one-key pairing and connectivity with various audio devices.
Орнотуу нускамалары
1. Баштапкы заряддоо
Before first use, fully charge both the transmitter and receiver. Use the provided dual USB-C charging cable to connect both units to a USB power adapter (not included). The status indicator will be red during charging and turn blue when fully charged. A full charge typically takes 3-4 hours.
Image: ACEMIC G6 units indicating charging status with LED lights.
2. Күйгүзүү / Өчүрүү
Long press the power button on both the transmitter (TX) and receiver (RX) for 3 seconds to turn them on or off. The power indicator will light up.
3. Жупташуу
The transmitter and receiver are designed to automatically pair when powered on. If they do not connect automatically, or if you need to re-pair them:
- Ensure both units are powered off.
- Long press the power button on both units simultaneously for 5 seconds.
- The system will enter pairing mode, and the power indicator will flash.
- Once successfully paired, the power indicator will stay blue.
4. Connecting to Equipment
- Бергич (TX): Plug the XLR end of the transmitter directly into the XLR output of your dynamic microphone. Ensure it is securely locked.
- Алуучу (RX): Plug the XLR end of the receiver into the XLR input of your audio mixer, PA system, or other audio interface.
Important Note: This system does not support phantom power. It is designed for use with dynamic microphones only. Do not attempt to use it with condenser microphones that require phantom power.
Image: A dynamic microphone made wireless with the ACEMIC G6 transmitter.
Иштөө нускамалары
Үнсүз функция
While the unit is powered on, a short press of the power button on either the transmitter or receiver will mute the audio. The power indicator will flash. Short press again to unmute, and the indicator will return to a solid blue.
Multiple Sets Operation
The ACEMIC G6 system supports 2-3 sets operating simultaneously in the same location. Each set will automatically select an available channel upon pairing to minimize interference.
Image: The ACEMIC G6 system supporting multiple wireless microphone setups simultaneously.
Оптималдуу аткаруу
For best performance, ensure a clear line of sight between the transmitter and receiver. Avoid placing units near strong electromagnetic interference sources (e.g., Wi-Fi routers, microwave ovens) which may affect signal quality and range.

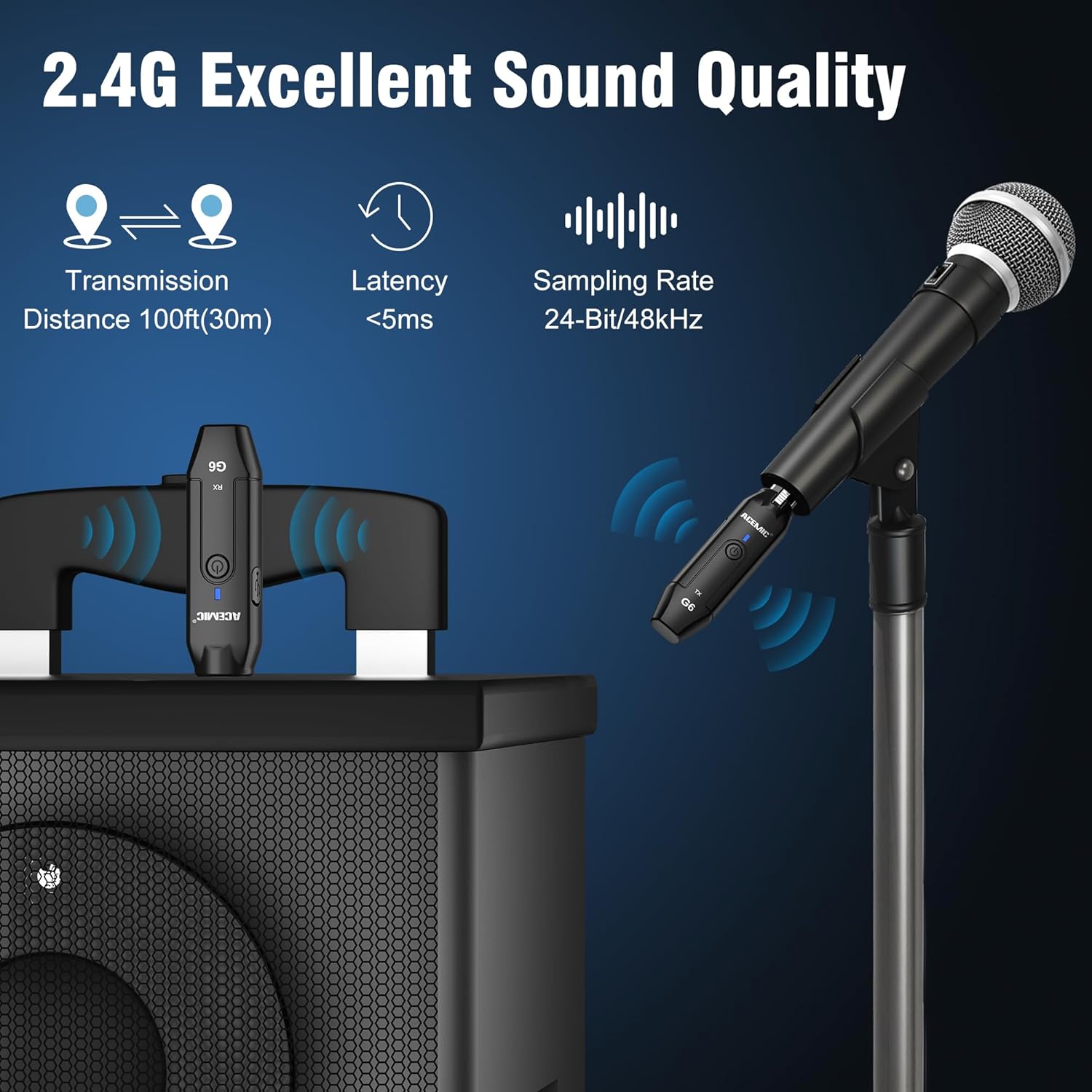

Image: Key performance specifications of the ACEMIC G6 system.
Техникалык тейлөө
Батареяга кам көрүү
- Recharge the units when the power indicator shows low battery (flashing red).
- Батареянын иштөө мөөнөтүн узартуу үчүн бат-баттан батареяны толугу менен түгөтпөңүз.
- If storing for an extended period, charge the units to approximately 50% every few months.
Тазалоо
Wipe the units with a soft, dry cloth. Do not use liquid cleaners or solvents, as they may damage the device.
Сактагыч
Системаны күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
Проблемаларды чечүү
- Үн жок:
- Ensure both transmitter and receiver are powered on and paired (solid blue indicator).
- Check if the microphone is properly connected to the transmitter.
- Verify the receiver is correctly connected to your audio input device.
- Confirm the microphone is a dynamic type and does not require phantom power.
- Check volume levels on your mixer/PA system.
- Интерференция/Начар үн сапаты:
- Move closer to the receiver to reduce distance.
- Өткөргүч менен кабыл алгычтын ортосунда эч кандай тоскоолдуктар жок экенин текшериңиз.
- Avoid operating near other 2.4G wireless devices (e.g., Wi-Fi routers, Bluetooth devices).
- Re-pair the units to allow them to select a different channel.
- Жупташтырылбаган бирдиктер:
- Эки түзмөк тең толук заряддалганын текшериңиз.
- Follow the re-pairing instructions in the Setup section.
- Кыска батареянын иштөө мөөнөтү:
- Ensure units are fully charged before use.
- Батареянын иштеши көп колдонулганда убакыттын өтүшү менен начарлашы мүмкүн.
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | G6 |
| Frequency Band | 2.4 ГГц |
| Frequency Response | 20Гц-20КГц |
| Power Source | Батарея менен иштейт (2 литий-полимердик батарейка камтылган) |
| Литий батарейканын кубаттуулугу | 600mAh (each unit) |
| Үзгүлтүксүз иштөө убактысы | 10 саатка чейин |
| Заряддоо убактысы | 3-4 саат |
| Өткөрмө аралык | Ачык жерде 30 м (100 фут) чейин |
| Аудио кечигүү | <5 мс |
| Sampling Rate | 24-бит / 48kHz |
| Ызы-чуунун катышы | 48 дБ |
| Каналдардын саны | 6 |
| Өлчөмдөрү (L x W x Y) | 0.98 x 0.71 x 4.13 дюйм |
| Элемент Салмагы | 7 ounces (total for both units, approx. 40g each) |
| Материал | Пластик |
Кепилдик жана колдоо
ACEMIC products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included in your package or contact ACEMIC customer support.
If you encounter any issues or have questions regarding your ACEMIC G6 system, please contact our customer support team. You can find contact information on the ACEMIC official webсайт же сатуучу аркылуу.
