EMKE LED Bathroom Mirror User Manual

1. Киришүү

Thank you for choosing the EMKE LED Bathroom Mirror. This frameless, asymmetric mirror is designed to enhance your bathroom with modern aesthetics and practical features. It includes integrated LED lighting with adjustable colors and brightness, an anti-fog function, and smart memory capabilities. Please read this manual thoroughly before installation and use to ensure proper operation and safety.

2. Коопсуздук маалыматы

• Орнотуу аянты: Always measure your installation space carefully before purchasing and installing the mirror to avoid errors.
• Кесиптик орнотуу: Electrical installation should be performed by a qualified electrician to prevent electric shock or fire hazards.
• Колдонуу: Exercise extreme caution when handling the mirror during installation to prevent injury. The mirror is made of glass and can break.
• Суу жана электр энергиясы: Ensure all electrical connections are properly sealed and protected from water exposure in the bathroom environment.
• Зыян: Do not use the mirror if it is damaged. Contact customer support for assistance.

3. Пакеттин мазмуну

Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

• EMKE LED Bathroom Mirror (1 unit)
• Installation Accessories (screws, wall plugs, etc.)
• Орнотуу боюнча колдонмо (бул колдонмо)

4. Орнотуу жана орнотуу

4.1 Орнотууга чейинки текшерүүлөр

• Confirm the mirror dimensions (60L x 50l cm) are suitable for your intended installation area.
• Ensure the wall can support the mirror's weight (approximately 4.34 kg).
• Locate a suitable electrical connection point. The mirror requires a direct electrical connection.

4.2 Монтаждоо параметрлери

The EMKE LED Bathroom Mirror can be suspended either vertically or horizontally to best fit your space.

This image illustrates the two available suspension modes for the EMKE LED Bathroom Mirror: vertical and horizontal. The mirror can be oriented to best suit your bathroom layout and personal preference. It also shows the mirror illuminated with both warm (3000K) and cool (6500K) LED light settings.

4.3 Орнотуу кадамдары

1. Mark the desired position for the mirror on the wall, considering the chosen orientation (vertical or horizontal).
2. Drill holes according to the provided installation template or the mirror's mounting brackets.
3. Бургуланган тешиктерге дубалдын сайгычтарын салыңыз.
4. Secure the mounting hardware (screws) into the wall plugs, leaving enough protrusion to hang the mirror.
5. Connect the mirror's electrical wiring to your household electrical system. This step should be performed by a qualified electrician.
6. Carefully hang the mirror onto the secured mounting hardware.

This diagram provides the precise dimensions of the mirror: 600mm (width) x 500mm (height) with a thickness of 29mm. It also highlights key installation considerations: the mirror is designed for easy installation, supports external wall switches, requires a direct electrical connection, and comes in solid packaging to prevent damage during transit. Please note that the power outlet and wall switch are not included.

4.4 Дубалга орнотулган которгучтун шайкештиги

The mirror supports control via an external wall switch. For this functionality, ensure the mirror's integrated touch switch is left in the 'on' position.

The EMKE LED Bathroom Mirror is designed to be compatible with an external wall switch. For proper operation, ensure the mirror's integrated touch switch remains in the 'on' position when using a wall switch to control the mirror's power.

5. Иштөө нускамалары

The EMKE LED Bathroom Mirror features intuitive touch controls for its various functions.

This image highlights the key features of the EMKE LED Bathroom Mirror. These include adjustable brightness, three selectable LED light colors (warm, neutral, cool), an anti-fog function for clear visibility, a memory function to recall previous settings, an automatic 3-hour shut-off for energy saving, and an IP44 waterproof rating for bathroom safety.

5.1 Power On/Off and Color Temperature Adjustment

• Күйгүзүү/өчүрүү: Tap the main touch switch on the mirror surface to turn the LED lights on or off.
• Түс температурасы: With the lights on, tap the main touch switch repeatedly to cycle through the three available color temperatures: 3000K (warm white), 4000K (neutral white), and 6500K (cool white).

The mirror offers three distinct LED light color temperatures: 3000K for a warm ambiance, 4000K for a natural neutral light, and 6500K for a bright cool white. Users can cycle through these colors by tapping the touch switch and adjust brightness from 10% to 100% by pressing and holding the switch.

5.2 Жарыктыкты жөндөө

• With the LED lights on, press and hold the main touch switch. The brightness will gradually adjust between 10% and 100%. Release the switch when the desired brightness level is reached.

5.3 Туманга каршы функция

• The mirror features a separate touch button for the anti-fog function. Tap this button to activate or deactivate the anti-fog heating pad.
• The anti-fog function heats the mirror surface to a constant temperature, preventing condensation and ensuring a clear reflection.

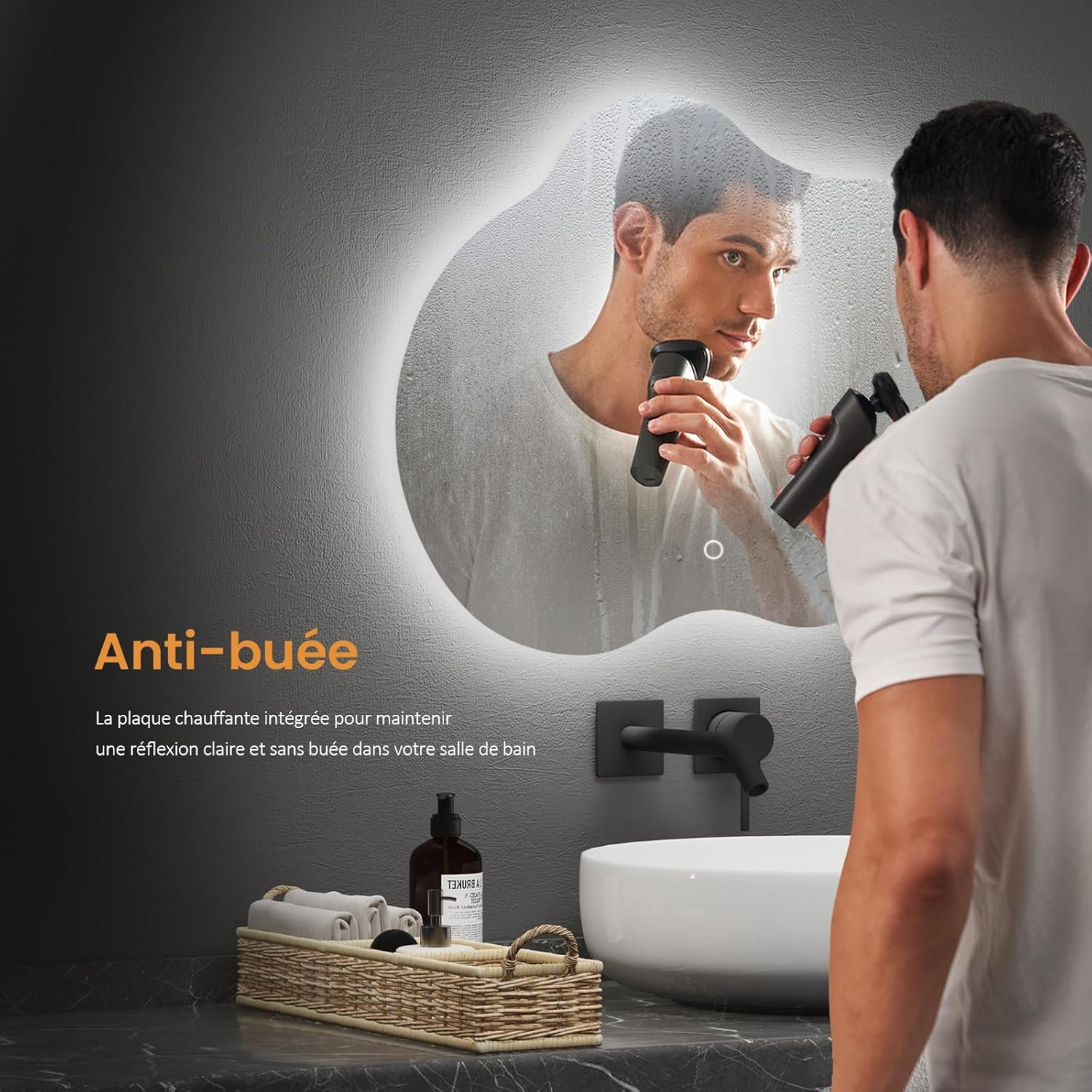

The integrated anti-fog heating pad ensures a clear reflection even in steamy bathroom conditions. Activate the anti-fog function independently via its dedicated touch button to maintain visibility during and after hot showers.

5.4 Эстутум функциясы

• The mirror is equipped with a memory function. After a power interruption, the mirror will automatically restore the last used light color temperature and brightness settings when powered back on.

5.5 Автоматтык түрдө өчүрүү

• To conserve energy, the LED lighting will automatically turn off after 3 hours of continuous operation if no interaction is detected.

To conserve energy, the EMKE LED Bathroom Mirror is equipped with an automatic shut-off feature. If left inactive, the mirror's lighting will automatically turn off after 3 hours.

6. Техникалык тейлөө

• Күзгүнүн бетин тазалоо: жумшак колдонуу, damp cloth and a mild glass cleaner to wipe the mirror surface. Avoid abrasive cleaners or harsh chemicals that could damage the mirror or its coating.
• Рамканы тазалоо: If your mirror has a visible frame (though this model is frameless), wipe it with a soft, dry cloth.
• Электр компоненттери: Ensure the mirror is disconnected from the power supply before cleaning any electrical components. Do not spray water directly onto the mirror's electrical parts.
• Үзгүлтүксүз текшерүү: Күзгү дубалга бекем бекитилгенин текшерүү үчүн, мезгил-мезгили менен орнотуучу жабдыктарды текшерип туруңуз.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or any questions regarding your EMKE LED Bathroom Mirror, please refer to the contact information provided at the point of purchase or visit the official EMKE webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
