Introduction

This user manual provides comprehensive instructions for the Elitech HVAC/R service kit, which includes the Elitech LMG-10W 2-Way Valve Manifold Gauge, the Elitech LMC-100A+ Refrigerant Scale, and the Elitech ILD-200 Infrared Refrigeration Leak Detector. This kit is designed for professional HVAC/R technicians to perform accurate refrigerant charging, recovery, and leak detection tasks.

Figure 1: Elitech HVAC/R Service Kit components.

Продукт компоненттери

Elitech LMG-10W 2-Way Valve Manifold Gauge

The LMG-10W is a digital manifold gauge designed for precise measurement of pressure, temperature, and vacuum in HVAC/R systems. It features a clear display and robust construction for reliable performance.

• APP көзөмөлү: Seamless integration with the Elitech Tools App for remote monitoring and control.
• Remote Firmware Upgrade: Allows for convenient updates to the device's software.
• Accurate Tightness Test Results: Provides precise data for system integrity checks.
• Instant Report Export: Generate and export reports for documentation.
• Автоматтык эсептөө: Calculates subcooling and superheat automatically.
• Батареянын узак иштөө мөөнөтү: Up to 200+ hours of operation.
• Өлчөө диапазону: -14.5 to 800 psi.
• Тактыгы: ±0.5% FS.
• Бирдиктер: psi, kg/cm3, kPa, MPa, bar.
• Иштөө температурасынын диапазону: 14~122°F / -10~50°C.

Figure 2: Elitech LMG-10W Digital Manifold Gauge with included accessories.

Figure 3: Key features and display of the Elitech LMG-10W.

Figure 4: Dimensions and detailed specifications of the Elitech LMG-10W.

Elitech LMC-100A+ муздаткыч шкаласы

The LMC-100A+ is a high-capacity electronic refrigerant charging and recovery scale, essential for accurate refrigerant handling.

• Сыйымдуулугу: Up to 220lbs (100kg).
• Тактыгы: ±0.05% көрсөткүчтөр +10 г.
• Бирдиктер: Kg/Lb/Oz.
• Батареянын узак иштөө мөөнөтү: 40 саатка чейин.
• Автоматтык түрдө өчүрүү: After 10 minutes of inactivity to conserve battery.

Figure 5: Elitech LMC-100A+ Refrigerant Scale within its carrying case.

Figure 6: Battery life and auto shut-off features of the Elitech LMC-100A+.

Elitech ILD-200 Infrared Refrigeration Leak Detector

The ILD-200 is an advanced infrared leak detector designed to quickly and accurately pinpoint refrigerant leaks in HVAC/R systems.

• Detects All Halogenated Gases: Including CFCs, HFCs, HCFCs, HCs, HFOs, and mixed refrigerants (e.g., R11, R22, R404a, R410a, R600a, R1234yf, AZ-50, HP62, MP39).
• Anti-interference & High Precision: Ensures reliable detection in various environments.
• NDIR Sensor: Provides longer sensor life.
• Ыкчам жооп: Quick detection of leaks.
• Стандарттарга шайкештиги: Meets SAE-2791 and SAE-2913 standards.
• Максималдуу сезгичтик: 0.1oz/yr.
• Батарея: 3.7V 3000mAh.
• CE күбөлүк: Certified for safety and quality.

Figure 7: Elitech ILD-200 Infrared Refrigerant Leak Detector.

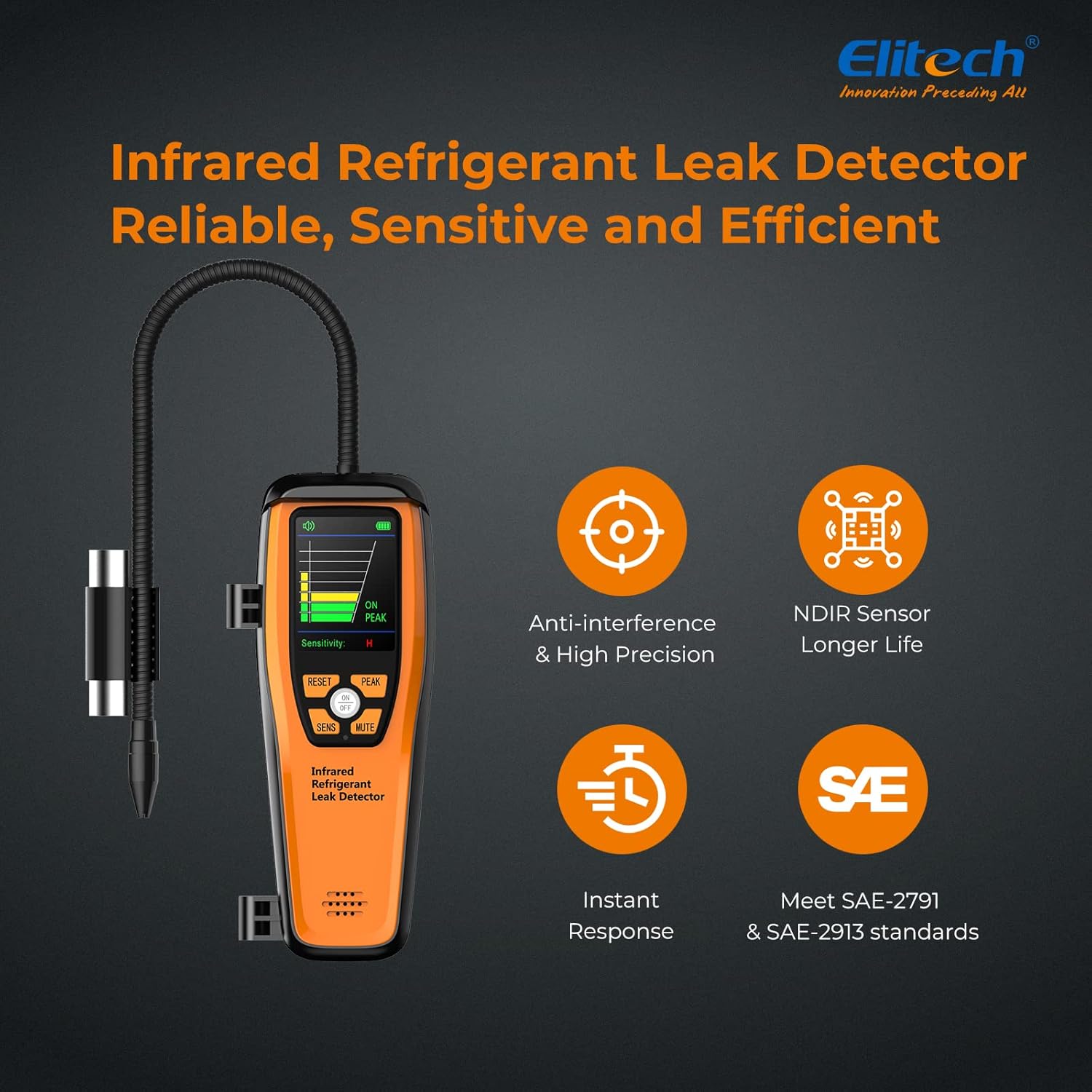

Figure 8: Key features of the Elitech ILD-200.

Figure 9: Dimensions and detailed specifications of the Elitech ILD-200.

Жайгашуу

Before operating the Elitech HVAC/R service kit, ensure all components are properly set up and charged.

1. Пакеттен чыгаруу: Carefully remove all items from the packaging. Verify that all components listed in the packing list are present and undamaged.
2. Батареяны орнотуу/кубаттоо:
   • LMG-10W: Ensure the manifold gauge is charged or has sufficient battery life. Refer to the individual LMG-10W manual for specific battery type and charging instructions.
   • LMC-100A+: Install batteries as per the scale's instructions.
   • ILD-200: Charge the leak detector using the provided charger until the battery indicator shows full.
3. Колдонмону орнотуу (милдеттүү эмес, бирок сунушталат): Download the "Elitech Tools" app from your device's app store (iOS and Android). This app allows for integrated management of Elitech tools.
4. Initial Calibration/Zeroing:
   • LMG-10W: Power on the manifold gauge. Perform a zero calibration as instructed in its specific manual to ensure accurate pressure readings.
   • LMC-100A+: Place the scale on a flat, stable surface. Power it on and press the "Z/T" button to zero the scale before placing any refrigerant cylinders on it.
   • ILD-200: Allow the leak detector to warm up as per its instructions. Ensure it is in a clean air environment when powered on to establish a baseline.
5. Hose Connection (LMG-10W): Connect the appropriate refrigerant hoses to the LMG-10W manifold gauge and to the HVAC/R system service ports as required for your specific task (e.g., charging, recovery, evacuation).

Иштөө нускамалары

This section provides general operating guidelines for using the Elitech HVAC/R service kit. Always refer to the specific manuals for each device for detailed operational procedures.

Refrigerant Charging/Recovery (Using LMG-10W and LMC-100A+)

1. Шлангдарды туташтыруу: Connect the LMG-10W to the HVAC/R system's high and low-pressure service ports using the appropriate hoses. Connect the center hose to the refrigerant cylinder or recovery machine.
2. Place Cylinder on Scale: Place the refrigerant cylinder on the LMC-100A+ scale. Ensure the scale is zeroed before placing the cylinder.
3. Мониторлордун окуулары: Use the LMG-10W to monitor system pressures and temperatures. The LMC-100A+ will display the refrigerant weight.
4. Charge/Recover: Open the manifold valves as required for charging or recovery. Monitor the LMC-100A+ to ensure the correct amount of refrigerant is transferred.
5. Ажыратуу: Once the process is complete, close all valves and carefully disconnect the hoses.

Leak Detection (Using ILD-200)

1. Күйгүзүү: Turn on the ILD-200 leak detector. Allow it to warm up and self-calibrate in a clean air environment.
2. Сезгичтикти тууралоо: Adjust the sensitivity setting (Low, Medium, High) based on the suspected leak size and environment. Start with a higher sensitivity for general scanning.
3. Scan System: Slowly move the probe tip around suspected leak areas (e.g., joints, fittings, valves, coils). The detector will alarm and indicate the presence of refrigerant.
4. Pinpoint Leak: Once a leak is detected, move the probe slowly back and forth to pinpoint the exact source. The alarm intensity will typically increase as you get closer to the leak.
5. Текшерүү: After identifying a leak, ventilate the area and re-scan to confirm the leak location.

Техникалык тейлөө

Proper maintenance ensures the longevity and accuracy of your Elitech HVAC/R service kit.

• Тазалоо:
  • Wipe down all devices with a soft, damp ар бир колдонуудан кийин кездеме.
  • Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
  • Keep the manifold gauge ports and scale platform free of debris.
• Сактагыч:
  • Store all components in their original carrying cases or a protective environment when not in use.
  • Күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Батареяга кам көрүү:
  • For rechargeable devices (LMG-10W, ILD-200), charge regularly, especially before long periods of storage.
  • Remove batteries from the LMC-100A+ if storing for extended periods to prevent leakage.
• Sensor/Probe Care (ILD-200):
  • Keep the sensor tip clean and free from contaminants.
  • Avoid exposing the sensor to excessive moisture or oil.
• Hose Inspection (LMG-10W):
  • Regularly inspect refrigerant hoses for cracks, wear, or damage. Replace if necessary to prevent leaks.

Проблемаларды чечүү

This section addresses common issues you might encounter with your Elitech HVAC/R service kit.

Техникалык шарттар

Detailed specifications for each component of the Elitech HVAC/R service kit.

Elitech LMG-10W 2-Way Valve Manifold Gauge

• Өлчөө диапазону: -14.5ден 800 фунтка чейин
• Тактыгы: ±0.5% FS
• Бирдиктер: psi, kg/cm3, kPa, MPa, bar
• Батареянын иштөө мөөнөтү: 200 XNUMX+ саат
• Иштөө температурасынын диапазону: 14~122°F / -10~50°C
• Өлчөмдөрү: Болжол менен 4.3 x 7.1 x 1.8 дюйм
• Салмагы: Болжол менен 2.1 фунт

Elitech LMC-100A+ муздаткыч шкаласы

• Сыйымдуулугу: 220 фунтка чейин (100 кг)
• Тактыгы: ±0.05% көрсөткүчтөр +10 г
• Бирдиктер: Kg/Lb/Oz
• Батареянын иштөө мөөнөтү: 40 саатка чейин
• Автоматтык түрдө өчүрүү: 10 мүнөт аракетсиздиктен кийин
• Материал: Пластик

Elitech ILD-200 Infrared Refrigeration Leak Detector

• Максималдуу сезгичтик: 0.1oz/yr
• Жооп убактысы: Дароо
• Батарея: 3.7V 3000mAh
• Сенсордун өмүрү: 10 years (Infrared Sensor)
• Стандарттар: Meets EN14624, SAE-162, SAE-2791, and SAE-2913 standards
• Өлчөмдөрү: Approximately 3.3 x 7.9 x 1.5 inches (main body), Probe overall length 15.5 inches
• Салмагы: Болжол менен 0.93 фунт

Кепилдик жана колдоо

Elitech provides dedicated customer support for its products.

For technical questions, troubleshooting assistance, or warranty inquiries, please contact Elitech's US-based customer service team. They are available 24/7 via email or phone.

Refer to the Elitech official webакыркы байланыш маалыматы үчүн сайт же продукт таңгак.
