1. Киришүү
The AquaJoyer Pool Fountain is designed to enhance your pool experience by providing a dual-spray waterfall effect. This accessory is compatible with both above-ground and in-ground pools, offering adjustable height and direction for a customized ambiance. Beyond aesthetic appeal, the fountain aids in lowering pool water temperature and promoting water circulation.
Негизги өзгөчөлүктөрү:
- Жалпы шайкештик: Designed to fit most 1.5" in-ground pool return jets and 1.5" / 1.25" above-ground pool inlet/outlet fittings.
- Ыңгайлаштырылган атмосфера: Features 360° adjustable height and direction, allowing for various spray angles including Cross Water or Parallel Spraying.
- Refreshing Relaxation: Creates a wide, high spray that can lower pool water temperature by 10-20 degrees Fahrenheit, while providing a soothing sound.
- Dynamic Dual Spray Design: Delivers double the water volume for an enhanced splash experience.
2. Орнотуу жана орнотуу
Before installation, ensure your filter pump is off. For optimal performance, a filter pump of at least 0.2HP is recommended. A 0.75HP sand pump can achieve a spray distance of up to 10 meters, while a 0.1HP standard filter pump can reach approximately 4 meters.
2.1 Компоненттер бүттүview
Image 1: All components of the AquaJoyer Pool Fountain laid out for assembly.
2.2 Орнотуу кадамдары
- Prepare Pool Return Jet: Unscrew and remove the existing eyeball or directional flow inlet from your pool's return jet. Use the provided key tool if necessary for easier removal.
- Attach Threaded Adapter: Screw the appropriate threaded adapter (included for 1.5" in-ground or 1.5"/1.25" above-ground fittings) into the pool return jet base. Ensure a tight, leak-free connection.
- Connect Pressure Regulator: Attach the pressure regulator valve to the threaded adapter. This component allows you to control the water flow to the fountain.
- Assemble Vertical Pipe: Screw the vertical pipe onto the pressure regulator.
- Attach Dual Spray Head: Connect the dual spray head to the top of the vertical pipe. Ensure all connections are securely tightened to prevent leaks.
Image 2: Visual guide for installing the fountain on an above-ground pool inlet.

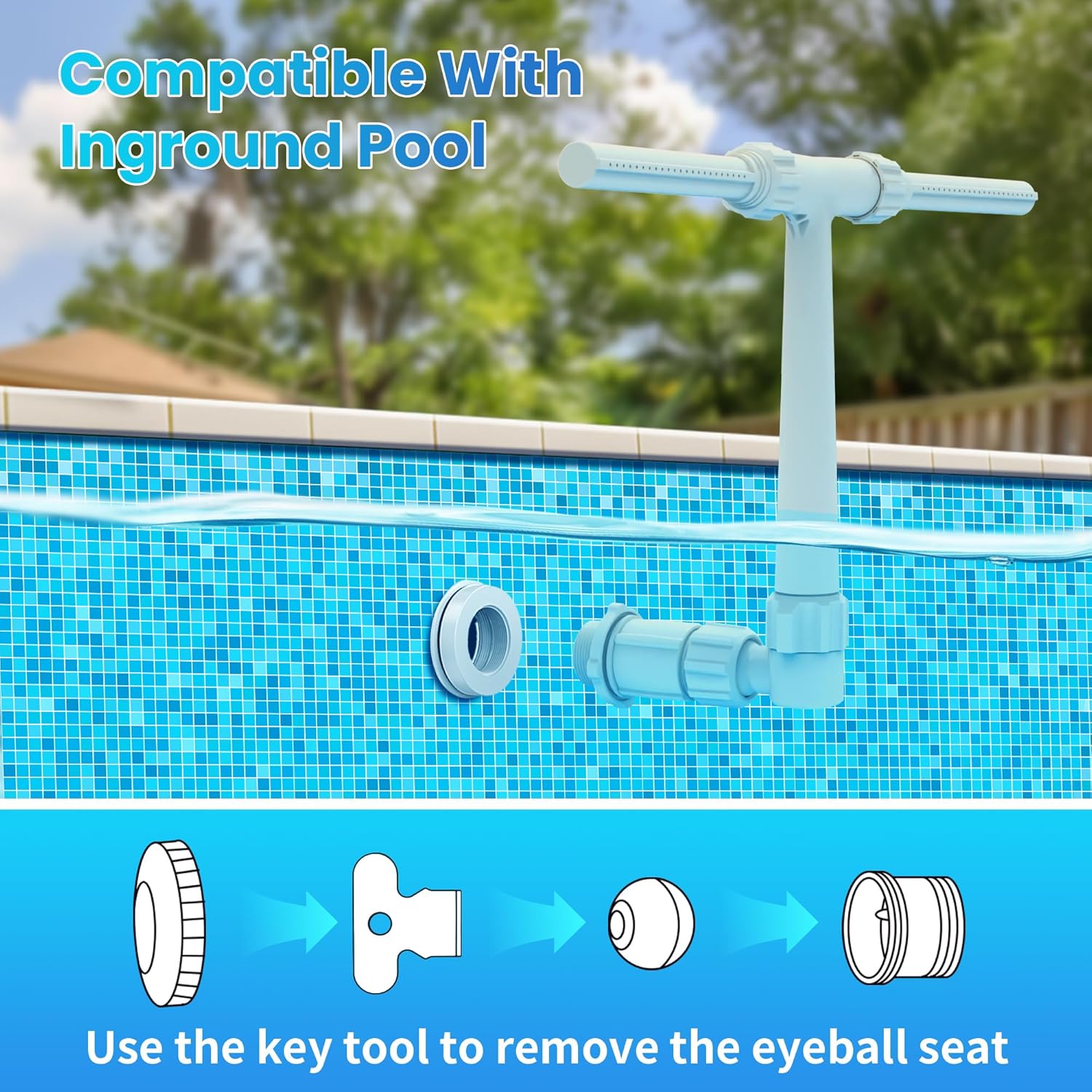

Image 3: Visual guide for installing the fountain on an in-ground pool return jet.
2.3 Орнотуу видеосу
Video 1: A detailed demonstration of the installation and setup process for the AquaJoyer Pool Fountain.
3. Иштөө нускамалары
Once installed, the AquaJoyer Pool Fountain offers several adjustable features to customize your pool experience.
3.1 Adjusting Spray Direction and Height
The dual spray head can be rotated 360° to direct the water flow as desired. You can also adjust the height of the vertical pipe to achieve different spray patterns, from a gentle arc to a higher, more pronounced waterfall. This allows for versatility in various pool sizes and shapes.
Image 4: The fountain demonstrating its 360° adjustable spraying capabilities for direction and height.
3.2 Controlling Water Pressure
The integrated pressure regulator valve allows you to control the intensity of the water spray. By adjusting the opening, you can achieve different pressure levels:
- Fully Closed: High pressure, resulting in a strong, concentrated spray.
- Partially Open: Medium pressure, for a balanced spray.
- Толугу менен ачык: Low pressure, for a gentler, wider spray.
Image 5: Illustrations of the pressure regulator settings: Fully Closed (High Pressure), Partially Open (Medium Pressure), and Fully Open (Low Pressure).
3.3 Cooling and Circulation
The fountain's design maximizes water exposure to the air, facilitating evaporative cooling. This process can effectively reduce your pool's water temperature by 10-20 degrees Fahrenheit, making your swimming experience more comfortable during hot weather. The continuous water movement also aids in overall pool water circulation.
Video 2: Demonstration of the pool fountain's cooling effect and water circulation.
Video 3: A seller's video showcasing the dual sprinkler fountain's ability to cool the pool.
4. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your AquaJoyer Pool Fountain.
- үзгүлтүксүз тазалоо: Periodically remove the fountain piece and clean any debris or mineral buildup from the nozzles. A toothpick can be used to clear small obstructions.
- Прокаттарды текшерүү: Check the rubber gaskets for wear and tear to ensure a watertight seal. Replace if necessary.
- Кыштоо: In colder climates, remove the fountain from the pool before freezing temperatures to prevent damage. Store in a dry, protected area.
5. Кыйынчылыктарды
If you encounter any issues with your AquaJoyer Pool Fountain, refer to the following common troubleshooting tips:
- Reduced Spray Pressure: Check the pressure regulator valve to ensure it is not fully open (low pressure setting). Also, inspect the nozzles for clogs and clean them as described in the Maintenance section.
- Туташуулардагы агып кетүүлөр: Ensure all threaded connections are tightened securely. Check the rubber gaskets for proper seating and any signs of damage.
- Fountain Not Stationary: If the fountain does not sit upright as desired or has too much play in the swivel, ensure all connecting nuts are fully tightened.
6. Техникалык шарттар
- Модель номери: POOL-02-A
- Түсү: Боз
- Материал: Пластмасса, чайыр
- Продукциянын өлчөмдөрү: 5"L x 2"W x 12"H
- Элемент Салмагы: 1.42 фунт (0.65 килограмм)
- Кубат булагы: Corded Electric (requires connection to pool pump)
- Өзгөчө өзгөчөлүгү: Water Flowing
7. Кепилдик жана колдоо
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the AquaJoyer official webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
