1. Киришүү
The BOBLOV F5 Body Camera is a compact and versatile recording device designed for various applications, including law enforcement, personal security, and outdoor activities. It features 4K video resolution, 5-megapixel Sony IMX335 sensors, Electronic Image Stabilization (EIS), and Wi-Fi connectivity for seamless operation and data management.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- BOBLOV F5 Body Camera
- User Manual
- Кронштейн орнотуу
- USB кабели
- Card Reader
Image: The BOBLOV F5 Body Camera package contents, showing the camera, user manual, various mounting brackets, a USB cable, and a card reader.
3. Продукт бүтүп калдыview
The F5 Body Camera is designed for ease of use with a minimalist interface. It features a wide-angle lens and essential controls for recording and power.
Image: The BOBLOV F5 Body Camera held in a hand, alongside a USB adapter and the camera mounted on a blue bicycle helmet, illustrating its compact size and versatility.
Image: Detailed side and front views of the BOBLOV F5 Body Camera, showcasing its integrated clip for attachment and a separate USB adapter.
3.1 Негизги өзгөчөлүктөрү
- 4K Video Resolution: Таза видеолорду тартатtage.
- 5-мегапикселдүү сенсор: Equipped with a Sony IMX335 sensor for enhanced image quality.
- 145-Degree Wide Lens: кенен чөйрөсүн камсыз кылат view.
- Электрондук сүрөттү турукташтыруу (EIS): Reduces video shake for smoother recordings.
- Wi-Fi туташуусу: Allows connection to a smartphone for preview жана file башкаруу.
- USB-C порту: Тез маалыматтарды берүү жана кубаттоо үчүн.
- Компакт дизайн: Small and lightweight for easy portability and discreet use.
4. Орнотуу
4.1 Батареяны заряддоо
Before first use, fully charge the camera's internal 800mAh Lithium Polymer battery. Connect the camera to a power source using the provided USB-C cable. A full charge typically takes approximately 2 hours.
Image: The BOBLOV F5 Body Camera being charged via its USB-C port, with labels indicating a usage time of 1.5-2 hours for 4K recording, 2-2.5 hours for 1080P recording, and a charging time of 2 hours.
4.2 Эстутум картасын салуу
The BOBLOV F5 Body Camera requires a Micro SD card (not included) for storing recordings. It supports cards up to 128GB. Insert the Micro SD card into the designated slot on the camera until it clicks into place.
Image: A close-up of the BOBLOV F5 Body Camera's side, showing the Micro SD card slot and indicating support for memory cards up to 128GB.
4.3 Камераны орнотуу
The camera comes with a rear clip and a helmet bracket for versatile mounting options. Attach the desired accessory to the camera and secure it to your clothing, backpack, or helmet.
Image: Two scenarios demonstrating the use of the BOBLOV F5 Body Camera: one showing it clipped to a person's shirt for discreet recording, and another showing it mounted on a helmet for capturing activities like cycling.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү жана жаздыруу
To power on the camera and begin recording, press the designated power/record button. The camera is designed for quick activation to capture urgent situations. Refer to the specific button layout in the user manual for detailed instructions.
5.2 Video Recording Duration
The F5 Body Camera can record approximately 150 minutes of footage at 1080P resolution or 120 minutes at 4K resolution on a full charge.
5.3 Электрондук сүрөттү турукташтыруу (EIS)
The camera features advanced EIS technology to minimize video shake, resulting in smoother and more stable footage, especially during movement.
Image: A side-by-side comparison illustrating the effectiveness of EIS. The left panel shows a clear, stable view of a road with EIS enabled, while the right panel shows a blurred, shaky view with EIS disabled.
5.4 Wi-Fi байланышы жана тиркемени колдонуу
The F5 camera can connect to your smartphone via Wi-Fi for live preview, ойнотуу жана file management. Download the dedicated app (e.g., 'RoadCam' or similar, as specified in the included manual) to your smartphone. Ensure the camera is within 3 meters of your phone for a stable connection.
- Turn on Wi-Fi on the camera.
- Смартфонуңузду камеранын Wi-Fi тармагына туташтырыңыз.
- Open the app to access camera functions.

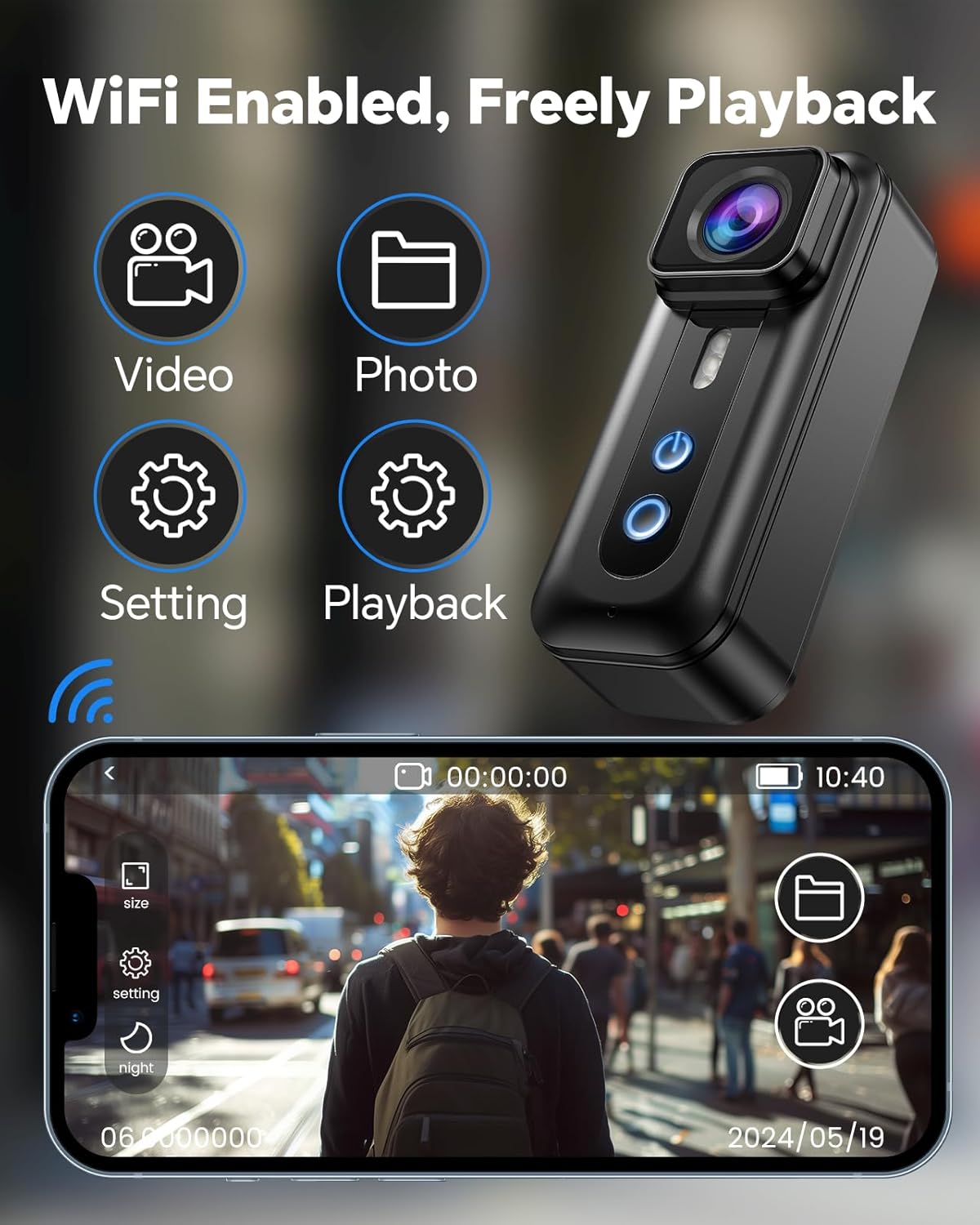

Image: The BOBLOV F5 Body Camera with Wi-Fi icons, positioned next to a smartphone displaying the camera's mobile application interface, which allows for video preview, photo capture, settings adjustment, and playback.
5.5 Маалыматтарды өткөрүү
Files can be transferred from the camera to a computer using two methods:
- Түз USB туташуу: Connect the camera to your PC using the USB-C cable. Ensure the camera is powered on.
- Карта окугучту колдонуу: Remove the Micro SD card from the camera and insert it into the provided card reader, then connect the card reader to your computer.
Image: A two-panel image showing file transfer options. The top panel depicts the camera connected directly to a laptop via USB-C. The bottom panel shows a Micro SD card inserted into a card reader, which is then connected to a laptop.
6. Техникалык тейлөө
- Тазалоо: Камера корпусун тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Линза үчүн атайын линза тазалоочу чүпүрөктү жана эритмени колдонуңуз.
- Сактагыч: Камераны салкын, кургак жерде күндүн тике тийген нурунан жана экстремалдык температурадан алыс сактаңыз.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, батареяны тез-тез толук зарядсыздандырбаңыз. Камераны көпкө чейин колдонбосоңуз да, үзгүлтүксүз кубаттап туруңуз.
7. Кыйынчылыктарды
- Камера күйбөй жатат: Батарея заряддалганын текшериңиз. Кубат булагына туташып, кайра аракет кылыңыз.
- Жаздыруу маселелери: Check if a Micro SD card is properly inserted and has sufficient free space. Format the card if necessary (this will erase all data).
- Wi-Fi туташуу көйгөйлөрү: Ensure the camera and smartphone are within the 3-meter range. Restart both devices and try reconnecting.
- Shaky video: Verify that the EIS function is enabled in the camera settings (if applicable via app or direct controls).
- Files not transferring: Ensure the camera is powered on when connected via USB. Try using the provided card reader.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | БОБЛОВ |
| Модель аты | F5 (02US-CP1A0264US) |
| Фото сенсор технологиясы | CMOS |
| Видео тартуунун резолюциясы | 4K |
| Натыйжалуу дагы эле чечим | 5 депутат |
| Flash эс тутум түрү | Micro SD (128 ГБ чейин) |
| Видео тартуу форматы | MOV |
| Байланыш технологиясы | USB, Wi-Fi |
| Видеокамера түрү | Видео камера |
| Линзанын түрү | Wide Angle (145 degrees) |
| Батарея түрү | 1 Литий Полимер (кошулган) |
| Батарея сыйымдуулугу | 800mAh |
| Usage Time (1080P) | Болжол менен 2-2.5 саат |
| Usage Time (4K) | Болжол менен 1.5-2 саат |
| Заряддоо убактысы | Болжол менен 2 саат |
9. Кепилдик жана колдоо
BOBLOV provides 24 months of product coverage for registered users. For technical assistance or warranty claims, please contact BOBLOV customer support. They offer quick responses within 24 hours and lifetime technical support.
Refer to the official BOBLOV webэң акыркы колдоо чоо-жайын алуу үчүн сайтка же продуктуңуздун таңгагында берилген байланыш маалыматына кайрылыңыз.
