Introduction
Thank you for choosing the WOLFANG WT02 Solar Trail Camera. This advanced wildlife camera is designed for capturing high-quality photos and videos of wildlife, monitoring property, or for general outdoor surveillance. Featuring 4K video resolution, 48MP image capture, integrated solar power, and robust IP66 waterproofing, the WT02 offers reliable performance in various environmental conditions. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your camera.

Image: WOLFANG WT02 Solar Trail Camera banner highlighting 4K 48MP and integrated solar.
Коопсуздук маалыматы
- Do not expose the camera to extreme temperatures or direct sunlight for prolonged periods when not in use.
- Ensure all covers and latches are securely closed to maintain the IP66 waterproof rating.
- Use only recommended battery types (AA batteries) and ensure correct polarity during installation.
- Камераны күчтүү магниттик талаалардан алыс кармаңыз.
- Камераны бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарат.
- Батареяларды жана электрондук тетиктерди жергиликтүү эрежелерге ылайык таштаңыз.
Пакеттин мазмуну
Сураныч, бардык буюмдар бар экенине ынануу үчүн ачканда пакеттин мазмунун текшериңиз:
- 1 x WOLFANG WT02 Trail Camera
- 1 x 32 ГБ Micro SD картасы (алдын ала орнотулган)
- 1 x Монтаждык боо
- 1 x Жөнгө салынуучу монтаждык кронштейн
- 1 x USB кабели
- Бурамалар жана дубал сайгычтары
- User Manual

Image: All components included in the WOLFANG WT02 Trail Camera package, including the camera, mounting accessories, USB cable, and user manual.
Продукт бүттүview
The WOLFANG WT02 Trail Camera features a robust design with integrated solar charging capabilities. Key components include:
- Күн панели: Located on top for continuous charging of the built-in battery.
- Камера линзасы: High-resolution lens for capturing 4K video and 48MP images.
- Инфракызыл диоддор: 26pcs 850nm infrared LEDs for clear night vision up to 65ft.
- PIR Кыймыл сенсору: Жаздырууну иштетүү үчүн кыймылды аныктайт.
- LCD экран: Меню навигациясы үчүн жана viewing captured media.
- Башкаруу баскычтары: For navigating the camera's settings.
- Батарея бөлүмү: For optional 4x AA batteries (not included) for auxiliary power.
- SD карта уячасы: 128 ГБ чейинки Micro SD карталарын колдойт.
- USB порт: For connecting to a computer or external power.

Сүрөт: деталдуу фронт view of the WOLFANG WT02 Solar Trail Camera, showing the lens, infrared LEDs, motion sensor, and solar panel.
Жайгашуу
1. Камераны кубаттоо
The WT02 camera features a built-in 2500mAh rechargeable battery powered by the integrated solar panel. For optimal performance, especially in low temperatures or during initial setup, it is recommended to charge the solar power before use.
- Күн кубаты: Place the camera in direct sunlight to allow the solar panel to charge the internal battery.
- Auxiliary AA Batteries: For extended operation or in low-light conditions, you can install 4 AA batteries (not included) in the battery compartment. These act as auxiliary power.

Image: Illustration showing the solar panel charging the built-in 2500mAh battery and the option for 4x AA backup batteries.
2. Micro SD картаны салуу
A 32GB Micro SD card is included and pre-installed in the card slot. The camera supports Micro SD cards up to 128GB.
- Open the camera's side latch to access the internal compartment.
- Micro SD карта уячасын табыңыз.
- If replacing, gently push the existing card until it clicks and ejects. Insert the new Micro SD card with the gold contacts facing down until it clicks into place.
- Отсекти коопсуз жабыңыз.

Сүрөт: Жакын план view of the WOLFANG WT02 camera's side, showing the Micro SD card slot and USB port for easy access.
3. Камераны орнотуу
The WT02 can be mounted using the included strap or the adjustable mounting bracket.
- Боону орнотуу: Берилген боону камеранын арткы жагындагы оюктардан өткөрүп, даракка же мамыга бекитиңиз.
- Кронштейнди орнотуу: Use the adjustable mounting bracket and screws to attach the camera to a wall or flat surface. This allows for precise angle adjustment.
Position the camera at a height that allows for optimal detection of subjects and ensures the solar panel receives sufficient sunlight.

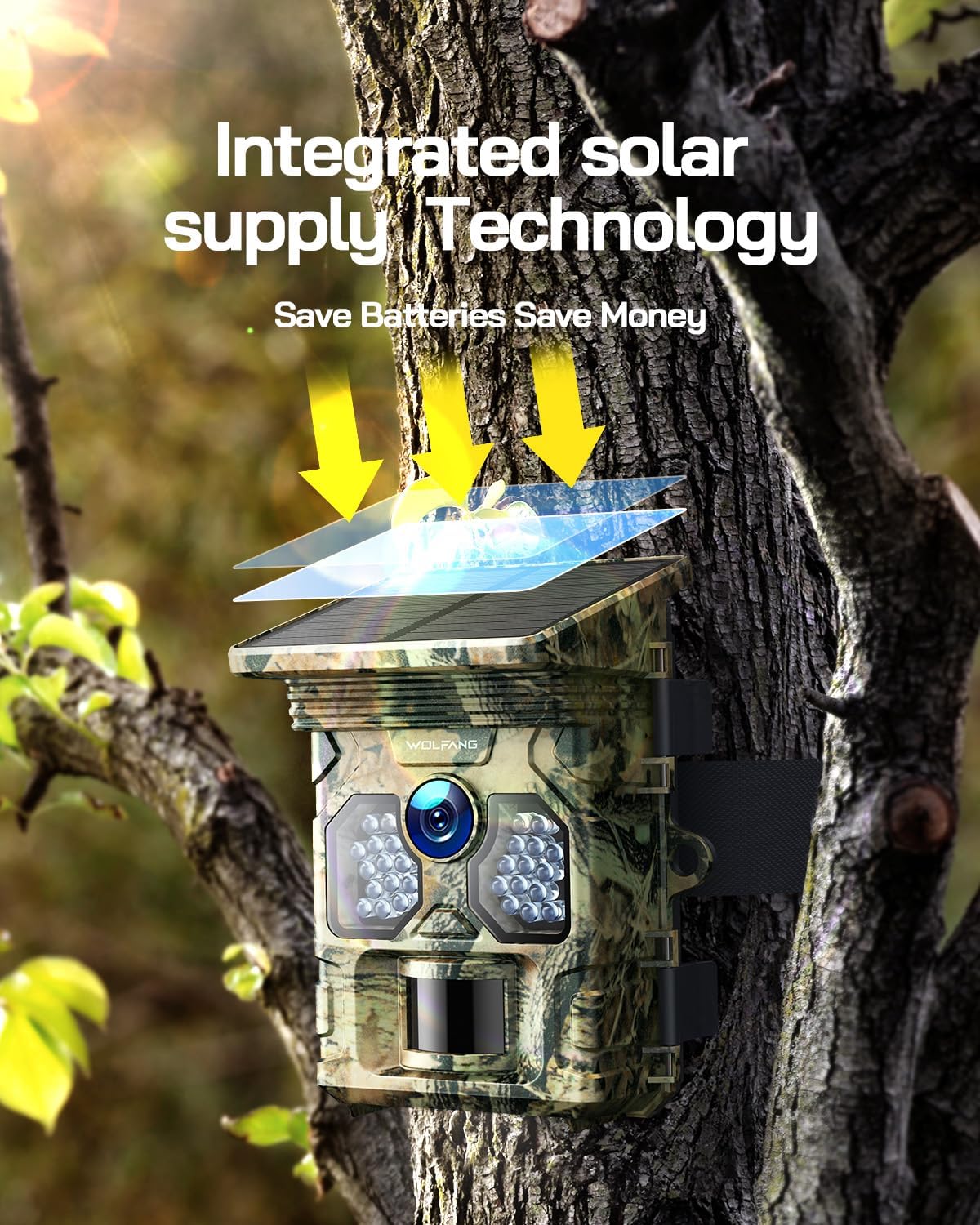

Image: The WOLFANG WT02 Trail Camera mounted on a tree, illustrating its integrated solar supply technology in action.
Камераны иштетүү
1. Power On/Off and Menu Navigation
To power on the camera, slide the mode switch to the "ON" position. The LCD screen will illuminate. Use the navigation buttons (Up, Down, Left, Right, OK, Menu) to browse through settings and options.

Сүрөт: ички view of the WOLFANG WT02 camera, showing the LCD screen and control buttons for intuitive setup and navigation.
2. Setting Photo and Video Modes
Access the menu to configure various settings:
- Режим: Сүрөт, Видео же Сүрөт+Видео режимдеринин бирин тандаңыз.
- Сүрөттүн чечими: Choose from various resolutions up to 48MP. Higher resolution results in larger file өлчөмдөрү.
- Видеонун чечилиши: Select from resolutions up to 4K at 30fps.
- PIR сезгичтиги: Adjust the sensitivity of the motion sensor (Low, Medium, High) based on the environment to avoid false triggers.
- Триггер аралыгы: Катарлуу триггерлердин ортосундагы кечиктирүүнү коюңуз.
- Убакыттын өтүшү: Configure the camera to take photos at set intervals regardless of motion.
- Дата жана убакыт: Так убакыт үчүн туура күндү жана убакытты коюңузamps on your media.

Image: Visual representation of the WOLFANG WT02's ability to capture 4K video and 48MP photos.

Image: Depiction of the WOLFANG WT02's ultra-fast 0.1-second trigger speed, capturing a running fox.
3. Night Vision Operation
The WT02 automatically switches to night vision mode in low-light conditions, utilizing its 26pcs 850nm infrared LEDs to capture clear black and white images and videos without disturbing wildlife.

Image: A close-up of the camera's infrared LEDs, illustrating its superb night vision capabilities with a panther's eyes in the background.

Image: Comparison showing the clarity and detail of night vision captured by the WT02, contrasting with insufficient light and overexposure.
4. ViewТартылган медианы көрүү
Сенин колуңдан келет view photos and videos directly on the camera's LCD screen by switching to "Playback" mode. Alternatively, remove the Micro SD card and insert it into a computer's card reader, or connect the camera directly to a computer using the USB cable to access the files.
Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to clean the camera lens and solar panel. For stubborn dirt, a slightly damp кездемени колдонсо болот, бирок камерага ным кирбегенин текшериңиз.
- Батареяга кам көрүү: If using AA batteries, replace them when the low battery indicator appears. For the built-in rechargeable battery, ensure the solar panel is regularly exposed to sunlight.
- Гидроизоляция: Always ensure the camera's latches and seals are clean and properly closed to maintain its IP66 waterproof rating.
- Сактагыч: When storing the camera for extended periods, remove any auxiliary AA batteries and ensure the built-in battery is partially charged. Store in a cool, dry place.

Image: The WOLFANG WT02 camera mounted on a tree in the rain, demonstrating its IP66 super waterproof capability.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Камера күйбөй жатат. | Low battery; incorrect battery installation; faulty SD card. | Ensure solar panel is charged or install fresh AA batteries with correct polarity. Check if SD card is properly inserted or try a different card. |
| Сүрөттөр/видеолор тартылган жок. | PIR sensitivity too low; SD card full or corrupted; camera in wrong mode. | Increase PIR sensitivity. Format or replace SD card. Ensure camera is in Photo, Video, or Photo+Video mode. |
| Түнкү көрүү сапаты начар. | Infrared LEDs obstructed; low battery. | Clear any obstructions from the front of the camera. Ensure sufficient battery power. |
| Жалган триггерлер. | PIR сезгичтиги өтө жогору; камера кыймылдап турган бутактарга же жылуулук булактарына карап турат. | Decrease PIR sensitivity. Reposition camera to avoid unwanted motion sources. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | WOLFANG |
| Модел | WT02 |
| Сүрөттүн резолюциясы | 48 МП чейин |
| Video Resolution | 4K@30FPS |
| Триггер ылдамдыгы | 0.1 секунд |
| Түнкү көрүү диапазону | Up to 65ft (20m) with 26pcs 850nm IR LEDs |
| Суу өткөрбөйт рейтинги | IP66 |
| Сактагыч | Micro SD card, up to 128GB (32GB included) |
| Электр камсыздоо | Built-in 2500mAh rechargeable battery (solar charged), supports 4x AA batteries (not included) |
| Иштөө температурасы | -4°F – 140°F (-20°C – 60°C) |
| Байланыш | USB |

Image: Four common applications for the WOLFANG WT02 Trail Camera: hunting, farm security, wildlife monitoring, and home security.
Кепилдик жана Кардарларды колдоо
WOLFANG provides a 2-year warranty for the WT02 Solar Trail Camera. If you encounter any issues or have questions regarding your product, please contact our customer service team.
Кардарларды тейлөө электрондук почтасы: support.vc@wolfang.co
Please include your model number (WT02) and a detailed description of your issue when contacting support for faster assistance.
