1. Продукт бүтүп калдыview
The Electrolux KNS5LE18S 500 ColdSense is a built-in combined refrigerator designed for seamless integration into your kitchen. Featuring a LowFrost cooling system, it minimizes ice build-up, reducing the need for frequent defrosting. With a total capacity of 271 liters, it offers ample space for both fresh and frozen foods. This appliance is rated Energy Efficiency Class E20: E, ensuring efficient operation.

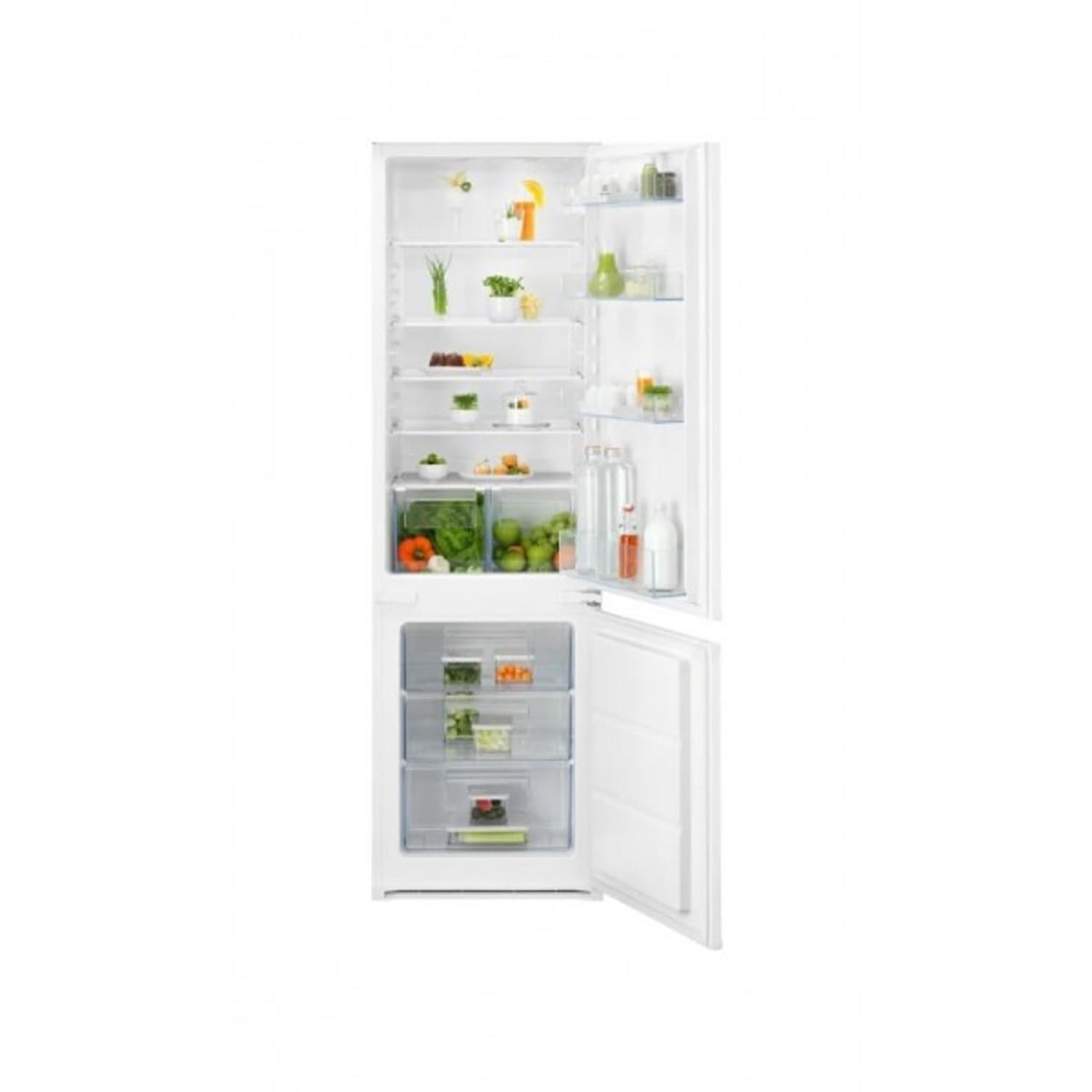

Figure 1: Electrolux KNS5LE18S 500 ColdSense Refrigerator
Key features include reversible doors for flexible installation, a freezer compartment with 3 drawers, and a low noise level of 34 dB for quiet operation.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Бардык коопсуздук эскертүүлөрүн жана бардык нускамаларды окуңуз. Эскертүүлөрдү жана нускамаларды аткарбоо электр шокуна, өрткө жана/же олуттуу жаракатка алып келиши мүмкүн.
- Электр коопсуздугу: Ensure the appliance is properly grounded. Do not use adapter plugs or extension cords. Disconnect the appliance from the power supply before cleaning or maintenance.
- Орнотуу: Install the appliance according to the manufacturer's instructions. Ensure adequate ventilation around the appliance to prevent overheating.
- Балдар: Бул шайманды 8 жаштан жогорку балдар жана физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар колдонсо болот, эгерде алар көзөмөлгө алынган болсо же шайманды коопсуз колдонуу боюнча нускама алган болсо жана келтирилген коркунучтарды түшүнсө. . Балдар шайман менен ойнобошу керек. Тазалоо жана колдонуучу тейлөөнү балдар көзөмөлсүз жасабашы керек.
- Колдонуу: Always use at least two people to move the refrigerator to prevent injury.
- Күйүүчү материалдар: Бул шаймандын ичинде күйүүчү от жагылуучу аэрозолдук кутулар сыяктуу жарылуучу заттарды сактабаңыз.
3. Орнотуу
Proper installation is crucial for the optimal performance and longevity of your Electrolux KNS5LE18S refrigerator. This built-in model requires careful integration into your kitchen cabinetry.
3.1 Таңгактан чыгаруу жана алгачкы даярдоо
Carefully unpack the refrigerator. Remove all packaging materials, including any protective films or tapes. It is recommended to wear protective gloves during this process. Inspect the appliance for any damage incurred during transit.
Video 1: Detailed guide on how to install an Electrolux built-in fridge/freezer with a sliding door system. This video covers unpacking, door reversal, and securing the appliance within the cabinet.
3.2 Door Reversal (if needed)
The Electrolux KNS5LE18S features reversible doors, allowing you to change the door hinging from right to left, or vice-versa, to suit your kitchen layout. Refer to the installation video (Video 1) for a step-by-step guide on how to perform this operation. This typically involves:
- Removing the top and bottom hinges.
- Transferring hinge pins and covers to the opposite side.
- Reattaching the doors and adjusting for proper alignment.
3.3 Positioning and Securing
Position the refrigerator into the designated cabinet opening. Ensure it is level using the adjustable feet. Secure the appliance to the cabinet using the provided brackets and screws. The installation video (Video 1) demonstrates the precise steps for securing the unit and attaching the cabinet doors to the appliance doors via the sliding hinge system.
3.4 Электрдик туташуу
Шайманды туура жерге туташтырылган электр розеткасына туташтырыңыз. Voltage and frequency match the specifications (220-240V, 50Hz). Avoid using extension cords or multiple socket adapters. Allow the refrigerator to stand upright for at least 4 hours before plugging it in to allow the refrigerant to settle.
4. Иштөө нускамалары
Your Electrolux KNS5LE18S refrigerator is designed for intuitive operation. Familiarize yourself with the control panel and its functions.
4.1 Башкаруу панели
The control panel is located at the top of the refrigerator compartment. It typically includes buttons for temperature adjustment, mode selection, and an indicator for the current temperature.
4.2 Температураны орнотуу
To adjust the temperature, press the temperature control buttons (usually marked with '+' and '-'). The recommended temperature for the refrigerator compartment is typically +5°C, and for the freezer compartment, -18°C.
4.3 ColdSense Technology
The ColdSense technology rapidly restores the internal temperature after the door has been opened, minimizing temperature fluctuations. This helps to preserve food quality and reduce waste.
Видео 2: Бүттүview of Electrolux ColdSense technology, highlighting its benefits in maintaining food freshness and reducing food waste by quickly stabilizing internal temperatures.
4.4 LowFrost System
The LowFrost system reduces ice build-up in the freezer compartment, making defrosting easier and less frequent compared to conventional static freezers. When defrosting is necessary, it will be a quicker process.
5. Техникалык тейлөө
Regular maintenance ensures the efficient operation and longevity of your refrigerator.
5.1 Тазалоо
- Тазалоодон мурун шайманды розеткадан ажыратыңыз.
- Ички жана тышкы беттерди жумшак чүпүрөк жана жумшак, абразивдүү эмес жуугуч каражат менен тазалаңыз.
- Эшиктин пломбаларынын бекем жабылышын камсыз кылуу үчүн аларды үзгүлтүксүз сүртүп туруңуз.
- Clean the condenser coils at the back of the appliance periodically (at least once a year) to maintain energy efficiency.
5.2 Эритүү
Thanks to the LowFrost system, manual defrosting of the freezer is required less often. When a layer of ice approximately 5mm thick has formed, it's time to defrost. To defrost:
- Шайманды өчүрүп, аны электр кубатынан ажыратыңыз.
- Бардык азык-түлүктөрдү алып салып, салкын жерде сактаңыз.
- Leave the freezer door open to allow ice to melt naturally. Place towels or a tray to collect melting water.
- Once defrosted, clean and dry the interior thoroughly before restarting the appliance.
6. Кыйынчылыктарды
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди жана чечимдерди текшериңиз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман иштебейт. | Электр энергиясы жок; сайгыч туура салынган эмес. | Check power supply and plug connection. |
| Температура өтө жогору. | Door not closed properly; large amount of warm food inserted; temperature setting too high. | Check door seal; avoid placing large quantities of warm food; adjust temperature setting lower. |
| Ашыкча ызы-чуу. | Appliance not level; parts touching other objects. | Adjust leveling feet; ensure no contact with walls or furniture. |
| Water on the bottom of the refrigerator. | Дренаждык тешик жабылган. | Clean the drain hole with a small tool (e.g., pipe cleaner). |
If the problem persists after checking these points, please contact Electrolux customer service.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукт түрү | Комбинирленген муздаткыч |
| Орнотуу түрү | Камтылган |
| Муздатуу системасы | LowFrost |
| Жалпы кубаттуулугу | 271 литр |
| Refrigerator Volume (E20) | 198 литр |
| Freezer Volume (E20) | 73 литр |
| Тоңдуруу кубаттуулугу | 3.3 kg in 24 h |
| Ызы-чуу деңгээли | 34 дБ |
| Энергияны үнөмдөө классы (E20) | E |
| Жылдык энергия керектөө (E20) | 219 кВт/са |
| Климат классы (E20) | SN-N-ST-T |
| Тtage | 220-240 В |
| Жыштык | 50 Гц |
| Максималдуу энергия керектөө | 100 Вт |
| Өлчөмдөрү (H x W x D) | 1772 x 546 x 549 мм |
| Built-in Dimensions (H x W x D) | 1780 x 560 x 550 мм |
| Таза Салмак | 56 кг |
| Кабелдин узундугу | 2.4 м |
| Door Hinging | Оң (кайтарылуучу) |
8. Кепилдик жана колдоо
Your Electrolux KNS5LE18S refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or to schedule a service appointment, please contact Electrolux customer support. You can find contact information on the Electrolux webсайтында же шайманыңыз менен берилген документтерде.
When contacting support, please have your product model number (KNS5LE18S) and serial number ready. This information is typically found on a label inside the refrigerator compartment.
