1. Киришүү
This manual provides instructions for the proper setup, operation, and maintenance of your KastKing Spartacus II Plus Baitcasting Fishing Reel. Designed for both freshwater and saltwater fishing, this reel features an ultralight design, smooth drag system, and precise gear ratio for optimal performance.
Figure 1: The KastKing Spartacus II Plus Baitcasting Fishing Reel, showcasing анын жылмакай кара дизайны жана эргономикалык туткасы.
2. Коопсуздук боюнча көрсөтмөлөр
- Always handle fishing hooks and lures with care to prevent injury.
- Ensure the reel is securely attached to your fishing rod before casting.
- Иштеп жатканда манжаларыңызды кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Бул колдонмодо сүрөттөлгөндөй, катушканы кадимки техникалык тейлөөдөн тышкары бөлүктөргө бөлүүгө аракет кылбаңыз.
- Store the reel in a dry, safe place away from direct sunlight and extreme temperatures.
3. Reel Components
Familiarize yourself with the main components of your Spartacus II Plus baitcasting reel:
- туткасы: Used for retrieving line. Features EVA knobs for comfort.
- Катушка: Holds the fishing line. Made from CNC anodized aluminum.
- Drag Adjustment Star: Controls the drag tension.
- Магниттик тормоз системасы: Located on the side plate, used to control spool rotation during casting.
- Spool Tension Knob: Adjusts the tension on the spool to prevent overrun.
- Line Guide: Directs the line evenly onto the spool. Features DTCC (Double Tapered Control Chute) for reduced friction.
- Thumb Bar/Clutch: Engages and disengages the spool for casting.
2-сүрөт: бурчтуу view of the KastKing Spartacus II Plus reel, highlighting the handle, spool, and main body.
4. Орнотуу
4.1 Attaching the Reel to a Rod
- Катушканын бутун балык кармагычтын катушка отургучуна тегиздеңиз.
- Tighten the reel seat locking nut until the reel is firmly secured and does not wobble.
4.2 Spooling the Fishing Line
Properly spooling your line is crucial for optimal casting performance and to prevent tangles.
- Pass the fishing line through the line guide on the reel and then through all the guides on your rod.
- Tie the line to the spool using an arbor knot or a similar secure knot. Ensure the knot is tight.
- Close the bail (if applicable, though baitcasters typically don't have one in the traditional sense, ensure the clutch is engaged).
- Maintain light tension on the line as you reel it onto the spool. The line should lay evenly across the spool.
- Fill the spool to approximately 1/8 inch (3mm) from the rim. Overfilling can lead to tangles and backlashes.
5. Катушканы иштетүү
5.1 Сүйрөө системасын жөндөө
The drag system allows line to be pulled from the spool when a fish pulls hard, preventing line breakage. The Spartacus II Plus features a Triple-disc carbon fiber drag system providing up to 17.6 LBs of drag.
- бургула Drag Adjustment Star clockwise to increase drag tension.
- бургула Drag Adjustment Star counter-clockwise to decrease drag tension.
- Set the drag to approximately one-third of your line's breaking strength. Test by pulling line directly from the spool.

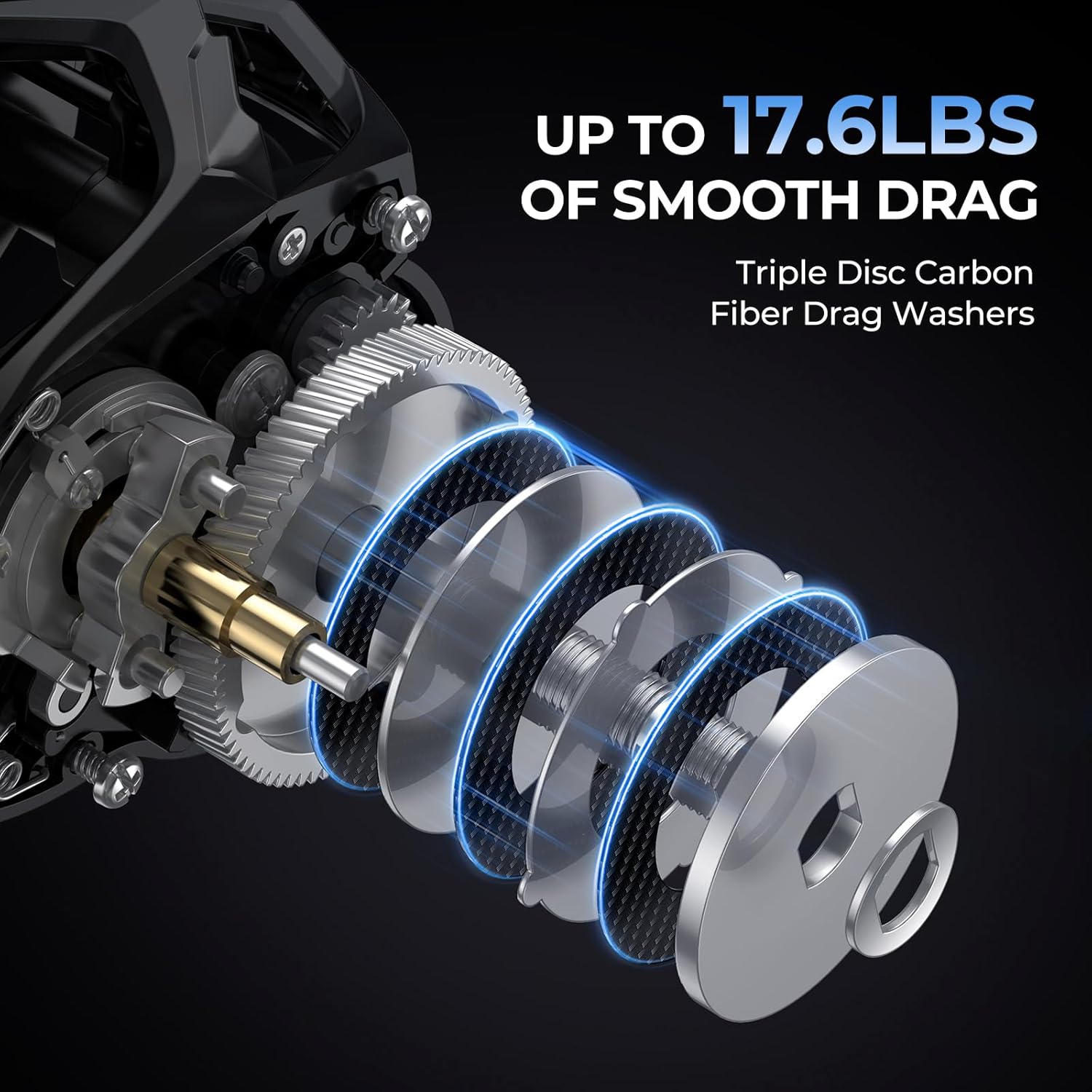

Figure 3: Illustration of the Triple-disc carbon fiber drag washers, capable of providing up to 17.6 LBs of smooth drag.
5.2 Adjusting the Magnetic Brake System
The 5-button magnetic brake system controls the spool's rotation during casting, helping to prevent backlashes. Higher settings provide more braking force, ideal for beginners or windy conditions. Lower settings allow for longer casts but require more thumb control.
- Locate the magnetic brake adjustment dial on the side plate of the reel.
- Rotate the dial to select your desired braking level (typically from 0 to 10, or Min to Max). Start with a higher setting and gradually reduce it as you gain experience.
5.3 Adjusting Spool Tension
The spool tension knob works in conjunction with the magnetic brake to fine-tune casting performance.
- Attach your lure to the line.
- Press the thumb bar to disengage the spool.
- Adjust the spool tension knob until the lure slowly falls to the ground. Once the lure hits the ground, the spool should stop spinning immediately. If it continues to spin, tighten the knob slightly. If it doesn't fall, loosen it.
5.4 Кастинг жана алуу
Baitcasting reels require practice to master casting. Start with gentle casts in an open area.
- Кастинг: Hold the rod with your thumb resting on the spool. Press the thumb bar to disengage the spool. Make a smooth casting motion, removing your thumb from the spool as the lure travels. Lightly feather the spool with your thumb as the lure approaches the target to prevent overrun.
- Алынууда: Turn the handle clockwise to engage the spool and retrieve the line. The line guide will distribute the line evenly.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and smooth operation of your reel.
6.1 Тазалоо
- Ар бир колдонгондон кийин, айрыкча туздуу сууда, катушканы таза суу менен чайкаңыз. Катушканы сууга салбаңыз.
- Роликти жумшак чүпүрөк менен кургатыңыз.
- Use a cotton swab to clean hard-to-reach areas and the line guide.
6.2 Майлоо
- Periodically apply a small amount of reel oil to the ball bearings and moving parts.
- Apply reel grease to the main gears.
- Refer to a reel schematic (often available from the manufacturer's website) for precise lubrication points.
6.3 Сактоо
- Store the reel in a cool, dry place.
- Сүйрөө шайбаларынын кысылышын алдын алуу үчүн сактоодон мурун сүйрөөчү шайбаны толугу менен бошотуңуз.
- Consider using a reel cover to protect it from dust and scratches.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Backlash (Bird's Nest) | Spool tension too loose, magnetic brake too low, improper casting technique, overfilled spool. | Increase spool tension and/or magnetic brake setting. Practice casting technique. Ensure spool is not overfilled. |
| Катуу же майдалоочу алуу | Lack of lubrication, dirt/debris in gears, damaged components. | Clean and lubricate the reel. Inspect for damage. If problem persists, professional service may be required. |
| Сүйрөө тайгаланып баратат же ыраатсыз | Кир жуугуч машиналар кургак, кир же эскирген. | Disassemble drag system (if comfortable), clean washers, and apply a thin layer of drag grease. Replace worn washers if necessary. |
| Сызык бирдей жатпайт | Line guide obstructed or damaged, improper line tension during spooling. | Check line guide for debris or damage. Respool line with consistent tension. |
8. Техникалык шарттар
Key technical specifications for the KastKing Spartacus II Plus Baitcasting Fishing Reel:
- Модель аты: Spartacus II Plus
- Салмагы: 5.5 унция (болжол менен 155.92 г)
- Max Drag: 17.6 LBs (Triple-disc carbon fiber drag washers)
- Gear катышы: 7.2:1 (High strength brass pinion gear, aerospace aluminum main gear)
- Шарлуу подшипниктер: 10 + 1 MaxiDur Double Shielded Stainless Steel
- Кадрдын бийиктиги: 39 mm (low-profile дизайн)
- Тормоз системасы: 5-button magnetic brake
- Line Guide: KastKing DTCC (Double Tapered Control Chute)
- Спуль материалы: CNC Anodized Aluminum
- Frame & Side Cover Material: Carbon Fiber
- туткасы материалы: Aluminum with EVA knobs
- Колдун багыты: Right Hand (as per product data, other orientations may exist)
- Коррозияга каршылык: Suitable for freshwater and saltwater use
Figure 4: The reel's ultralight design, weighing only 5.5 oz due to its carbon fiber frame and side covers.
Figure 5: The compact 39 mm frame height, contributing to a "Palm Perfect" ergonomic design.
6-сүрөт: Ички view illustrating the 7.2:1 gear ratio with high strength brass pinion and aerospace aluminum main gears.
Figure 7: Depiction of the 10+1 MaxiDur double shielded stainless steel ball bearings for smooth operation.
9. Кепилдик жана колдоо
Information regarding the product warranty and customer support details was not provided in the available product data. For warranty claims, technical assistance, or to purchase replacement parts, please refer to the official KastKing webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз.
KastKing Official Webсайт: www.kastking.com
